14 best fowler caliper

Product description

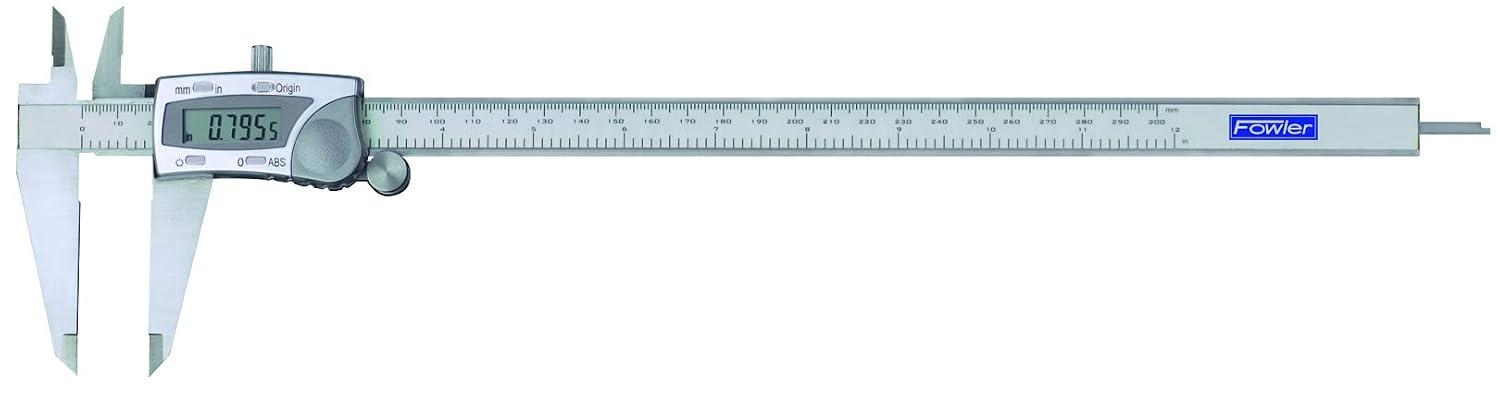

The Fowler full one year warranty electronic caliper, 54-101-150-2, has a 0 to 6” (0 to 150mm) measuring range with 0.0005” (0.01mm) increments for precision and a stainless steel frame for long life. Its digital readout LCD shows inch or metric units for versatility, and either absolute or incremental measurement readings are user-selectable. The electronic caliper measures inside, outside, depth and step values for versatility and includes a protective case and CR2032 lithium battery. This product has 1 year arranty offered by Fowler High Precision. If you experience any problem contact Fowler directly for warranty claims. Digital or electronic calipers are measuring instruments commonly used for inspection in manufacturing to provide the precise measurements of an object. A pair of jaw attached to a long beam with a marked scale is used to take inside, outside and step measurements. An additional depth probe slides along the beam to take depth measurements. One jaw is fixed t the end of the scale, while the other jaw slides along it with gearless precision to take measurements. The reading is electronically generated and displayed on a digital, high-resolution screen as a single value. Digital calipers can take differential measurements, which are used to determine the difference in measurements between two objects, by zeroing the display at any point along the scale. Some digital calipers can switch between standard and metric units, and some can output readings to a computer or printer for reading measurements. Compared to dial calipers, digital calipers provide measurements that are faster, easier and more error-free, but they are more fragile mechanically and electronically, and do not resist coolant well. Vernier calipers are more durable then digital calipers because they do not have internal moving parts, but they can be more difficult to read. Digital calipers are commonly used in fields such as metalworking, mechanical engineering, machining, carpentry and medicine. Fowler High Precision, an American company, manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in the USA in 1946, is headquartered in Newton, MA.

• Measures 1 to 6 “ (0 to 15 mm) in 0.0005” (0.01mm) increments for precision use
• Digital readout LCD shows inch or metric units for versatility when measuring, stainless steel frame for corrosion resistance and long life
• Measures inside, outside, depth and step values for versatility
• Includes protective case and CR 2032 lithium batter
• Full 1 year warranty offered by Fowler High Precision

User questions & answers

Question:	does this measure metric and standard
Answer:	A pushbutton allows you to switch between inch and millimeter units.
Question:	Is this product made and assembled in the USA
Answer:	Here is the thing, if you do your research most every top end brand now may be designed, engineered, and assembled in the USA / Swiss / German. But the parts are most likely out-sourced to other countries to lessen the manufacturing costs with a few exceptions. Honestly the quality and vastly improved also, stunningly so. Fowler is a well respected "Name Brand" and have been around for a number of years, I have and do own some Fowler tools and can attest to their quality.
Question:	Is this a good brand
Answer:	It's a good brand not the best but it reliable for a good while n I've never had a problem with it.
Question:	Does it display Fractions like
Answer:	No it doesn't show fractions only inches and millimeters.

Product description

• Accuracy of 0.001"/0.02mm with 0.0005"/0.01mm resolution for precise measurements
• Hardened stainless steel frame for corrosion resistance and long life
• Digital, single-value readout LCD shows inch and metric units for versatility when measuring
• Absolute and incremental modes to take intermediate or differential measurements
• Four-way jaw for inside, outside, depth, and step measurements

User questions & answers

Question:	does it read fractional
Answer:	No fractionals
Question:	How deep are the jaws? What's the total length of the device
Answer:	MEASUREMENT: 0-300mmApproximate total length: 390mmUpper jaw Approximate length: 22mm Lower jaw Approximate length: 55mm Measured from the digital display.
Question:	Does this Caliper come with a case
Answer:	Yes it does.It's a plastic case.These calipers are a great buy and are very accurate.
Question:	how much cost the certificate from Manufacturert
Answer:	The Certificate would be an additional $40.

Product description

The Fowler Shockproof stainless steel dial caliper has dial graduations of 0.001" with 0.001" accuracy, shockproof anti-backlash control, a sliding jaw with a lock, and a covered rack. This caliper is used for measuring inside dimensions (ID), outside dimensions (OD), depth, and step. This product has a 1 year warranty offered by Fowler High Precision. If you experience any problem contact Fowler directly for warranty claims.

Shockproof spring anti-backlash control with a heavy-duty spring offers increased accuracy over standard gear configurations. Backlash is the amount of clearance between mated gear teeth in the caliper controls that prevents the gear teeth from jamming. It is undesirable to have much backlash due to the lack of precision offered by the increased amount of play between gears. Certain gear designs can minimize or eliminate backlash; spring anti-backlash systems use a spring to add a compressive force, thereby minimizing backlash.

This caliper has a knurled lock screw to hold the sliding jaw in position and help ensure a consistent measurement. A covered rack prevents dirt and debris from clogging the gear, and helps prevent measurement errors. A thumb-operated fine adjustment roller allows for one-handed use.

The caliper measures 0.10" per revolution of the dial. The dial has 0.001" graduations, and the beam has engraved 0.1" graduations. The hardened stainless steel components, including the beam, measuring surfaces, rack, gears, and depth rod, offer corrosion resistance, increased accuracy, and long life. Self-contained movement eliminates gear misalignment, while the dual pinion drive mechanism reduces wear on the rack and pinion. An adjustable dial enables setting zero. The hardened stainless steel is polished to a satin chrome finish, to help prevent glare. This caliper comes with a fitted case.

Dial calipers are measuring instruments commonly used for inspection in manufacturing to provide the precise measurements of an object. A pair of jaws attached to a long beam with a marked scale is used to measure inside, outside, and step measurements in standard or metric units. An additional depth probe slides along the beam to take depth measurements. One jaw is fixed to the end of the scale, while the other jaw slides along it to take measurements. A circular dial indicator is fixed to the movable jaw on a toothed gear rack that transfers movement of the jaws to the dial needle. The base measurement is taken from the long beam, which provides the initial whole measurement in inches or centimeters, and added to the dial reading, which provides fractional measurements in inches or millimeters. A locking mechanism provides the ability to take differential measurements for determining the difference in measurements between two objects. Compared to digital calipers, dial calipers are more durable, but are more susceptible to shock damage and prone to getting dirt in the gears, which can cause accuracy problems. Vernier calipers are more durable than dial calipers because they do not have internal moving parts, but they can be more difficult to read. Dial calipers are commonly used in fields such as metalworking, mechanical engineering, machining, and carpentry.

Fowler, an American company, manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in 1946, is headquartered in Newton, MA.

What's in the Box?

• Fowler Shockproof 0-6” dial caliper

• Fitted case

User questions & answers

Question:	In the video, he mentions measuring "step" could elaborate what "step" is
Answer:	Good explanation at this link: https://www.wonkeedonkeetools.co.uk/calipers/how-do-you-use-a-vernier-caliper-to-measure-step/
Question:	Is this a 12inch
Answer:	Measures lengths up to 6.5 inch. Tool is 9 3/8 inches long.
Question:	Does this caliper have a fine knife edge for measuring od of small groves? (i'm not talking about id
Answer:	There is a finer edge along the inside of the blades. How fine? Not sure if fine enough for your applications. Otherwise their a great set of calipers. I use the Fowler’s more often then my very expensive digital ones.
Question:	It's a Swiss style but doesn't read in mm's
Answer:	Does does not measure in metric.

Product description

The Fowler Shockproof stainless steel dial caliper has dial graduations of 0.001" with 0.001"   accuracy, shockproof anti-backlash control, a sliding jaw with a lock, and a covered rack. This caliper is used for measuring inside dimensions (ID), outside dimensions (OD), depth, and step. This product has a 1 year warranty offered by Fowler High Precision. If you experience any problem contact Fowler directly for warranty claims.

Shockproof spring anti-backlash control with a heavy-duty spring offers increased accuracy over standard gear configurations. Backlash is the amount of clearance between mated gear teeth in the caliper controls that prevents the gear teeth from jamming. It is undesirable to have much backlash due to the lack of precision offered by the increased amount of play between gears. Certain gear designs can minimize or eliminate backlash; spring anti-backlash systems use a spring to add a compressive force, thereby minimizing backlash.

This caliper has a knurled lock screw to hold the sliding jaw in position and help ensure a consistent measurement. A covered rack prevents dirt and debris from clogging the gear, and helps prevent measurement errors. A thumb-operated fine adjustment roller allows for one-handed use.

The caliper measures 0.10” per revolution of the dial. The dial has 0.001" graduations, and the beam has engraved 0.1” graduations. The hardened stainless steel components, including the bar, measuring surfaces, rack, gears, and depth rod, offer corrosion resistance, increased accuracy, and long life. Self-contained movement eliminates gear misalignment, while the dual pinion drive mechanism reduces wear on the rack and pinion. An adjustable dial enables setting zero. The hardened stainless steel is polished to a satin chrome finish, to help prevent glare. This caliper comes with a fitted case.

Dial calipers are measuring instruments commonly used for inspection in manufacturing to provide the precise measurements of an object. A pair of jaws attached to a long beam with a marked scale is used to measure inside, outside, and step measurements in standard or metric units. An additional depth probe slides along the beam to take depth measurements. One jaw is fixed to the end of the scale, while the other jaw slides along it to take measurements. A circular dial indicator is fixed to the movable jaw on a toothed gear rack that transfers movement of the jaws to the dial needle. The base measurement is taken from the long beam, which provides the initial whole measurement in inches or centimeters, and added to the dial reading, which provides fractional measurements in inches or millimeters. A locking mechanism provides the ability to take differential measurements for determining the difference in measurements between two objects. Compared to digital calipers, dial calipers are more durable, but are more susceptible to shock damage and prone to getting dirt in the gears, which can cause accuracy problems. Vernier calipers are more durable than dial calipers because they do not have internal moving parts, but they can be more difficult to read. Dial calipers are commonly used in fields such as metalworking, mechanical engineering, machining, and carpentry.

Fowler, an American company, manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in 1946, is headquartered in Newton, MA.

What's in the Box?

·         Fowler Shockproof 0-12” dial caliper

·         Fitted case



The Fowler Shockproof stainless steel dial caliper has dial graduations of 0.001 with 0.001   accuracy, shockproof anti-backlash control, a sliding jaw with a lock, and a covered rack. This caliper is used for measuring inside dimensions (ID), outside dimensions (OD), depth, and step. This product has a 1 year warranty offered by Fowler High Precision. If you experience any problem contact Fowler directly for warranty claims.

Shockproof spring anti-backlash control with a heavy-duty spring offers increased accuracy over standard gear configurations. Backlash is the amount of clearance between mated gear teeth in the caliper controls that prevents the gear teeth from jamming. It is undesirable to have much backlash due to the lack of precision offered by the increased amount of play between gears. Certain gear designs can minimize or eliminate backlash; spring anti-backlash systems use a spring to add a compressive force, thereby minimizing backlash.

This caliper has a knurled lock screw to hold the sliding jaw in position and help ensure a consistent measurement. A covered rack prevents dirt and debris from clogging the gear, and helps prevent measurement errors. A thumb-operated fine adjustment roller allows for one-handed use.

The caliper measures 0.10” per revolution of the dial. The dial has 0.001 graduations, and the beam has engraved 0.1” graduations. The hardened stainless steel components, including the bar, measuring surfaces, rack, gears, and depth rod, offer corrosion resistance, increased accuracy, and long life. Self-contained movement eliminates gear misalignment, while the dual pinion drive mechanism reduces wear on the rack and pinion. An adjustable dial enables setting zero. The hardened stainless steel is polished to a satin chrome finish, to help prevent glare. This caliper comes with a fitted case.

Dial calipers are measuring instruments commonly used for inspection in manufacturing to provide the precise measurements of an object. A pair of jaws attached to a long beam with a marked scale is used to measure inside, outside, and step measurements in standard or metric units. An additional depth probe slides along the beam to take depth measurements. One jaw is fixed to the end of the scale, while the other jaw slides along it to take measurements. A circular dial indicator is fixed to the movable jaw on a toothed gear rack that transfers movement of the jaws to the dial needle. The base measurement is taken from the long beam, which provides the initial whole measurement in inches or centimeters, and added to the dial reading, which provides fractional measurements in inches or millimeters. A locking mechanism provides the ability to take differential measurements for determining the difference in measurements between two objects. Compared to digital calipers, dial calipers are more durable, but are more susceptible to shock damage and prone to getting dirt in the gears, which can cause accuracy problems. Vernier calipers are more durable than dial calipers because they do not have internal moving parts, but they can be more difficult to read. Dial calipers are commonly used in fields such as metalworking, mechanical engineering, machining, and carpentry.

Fowler, an American company, manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in 1946, is headquartered in Newton, MA.

What's in the Box?

·         Fowler Shockproof 0-12” dial caliper

·         Fitted case
