13 best null modems

Product description

prolific pl2303ta usb rs232 to db9 female adapter cable

support win7 8 10, linux, win ce, etc

Null modem pinout: 2-TXD, 3-RXD 5-GND, 7-CTS. 8-RTS

Up to 921.6M RS232 transfering speed.

Length: 6ft

Driver Download:http://www.prolific.com.tw



Package :

1 x pl2303ta rs232 db9 female cable

• prolific pl2303ta usb rs232 to db9 female adapter cable
• support win7 8 10, linux, win ce, etc
• Null modem pinout: 2-TXD, 3-RXD 5-GND, 7-CTS. 8-RT
• Length: 6ft Up to 921.6M RS232 transfering speed.

Product description

(

USB UART RS232 serial converter cable

Inside CP2102+ZT232 chip board

usb serial null molden DCE adapter cable for upgrading the old version desktop DB9 - DB9 cross wired null modem cable This cable is mostly specially used in PC(host) - PC(host) communication, also called null modem cable

This cable also can be used for PC control the TV, smart TV(as nowadays the TV is a computer) The other application of the usb rs232 db9 female cable is for PC(host) - device(slave), most of this application is 2-RX, 3-TX, 5-GND.....

The overview is the same, only the pinout is different, please be noted win8 10 android linux mac cross wired usb serial db9 ftdi ft232r usb rs232 null modem cable This cable can make your laptop pc(with USB,without DB9) to communicate with your desktop PC(with DB9 COM port) communicated each other.

USB to Null Modem (Cross-Wired) RS232 Serial Adapte

USB2.0 RS232 to DB9 female cable

CP2102+ZT232 chip

USB2.0 standard, full speed

Baud Rate up to 921.6Kb

Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)): 2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC

Standard DB9 COM port pinout: pc(host) with usb to RS232 terminal device(slave) 2- RXD(yellow), 3-TXD(orange),5-GND(GND), 7-RTS(green),8-CTS(brown), 1/4/6/9-NC ​

Customized pinout accept(based on 2/3/5/7/8), but need your message, otherwise, send the standard pinout.

5c*26AWG, copper, 1.8m, black

Support Android, Support Win 10, 8, Win 7, XP, 2000, Linix, Mac OS

Support EEPROM, support Vendor ID re-write,support Mprog3.5

Support FTDI VCP driver and D2XX driver

Neutral packing: zipper PE bag for each.

CE, RoHS compliance

if you need connect the rs232 device with pc, esp notebook pc, laptop pc, port pc, mini pc, etc, then you need a USB RS232 to DB9 MALE cables

• CP2102+ZT232 usb serial null moldem DCE adapter cable for upgrading the old version desktop DB9 - DB9 cross wired null modem cable
• usb rs232 to db9 female adapter cable,CP2102+ZT232 chip.
• This cable is mostly specially used in PC(host) - PC(host) communication, also called null modem cable
• Add a Null Modem RS232 serial port to your laptop or desktop computer through USB.This cable also can be used for PC control the TV, smart TV(as nowadays the TV is a computer)
• Null modem PINOUT: DB9#2-TX(yellw), 3-RX(orang), 5-GND(blk), 7-CTS(green), 8-RTS(brown)

User questions & answers

Question:	Would this work for connecting to a Dell R610? Or for that matter any server with serial comm port
Answer:	I use it to connect to a router, so it’s likely the one you want. I had tried another cable that wasn’t “null modem“ format, and that failed. So, check from the picture that the “gender” of the rs232 end looks right for your dell, and see if you can confirm that the dell wants a null modem cable. But I bet it works,
Question:	Is there a windows driver to use with this cable
Answer:	Hi,please visit this link to Download Drivers : https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-drivers

Product description

1.The null modem serial parallel cable has a DB9 female connector and a DB25 male connector, allowing you to connect a serial printer to a 25-pin serial port or transfer files from PC to PC via a serial connection.

2. Our null modem serial cable allows two DTE or DCE devices to communicate without data transmission conflicts.

3. The cable uses high-quality nickel-plated connectors and plugs and high-quality PVC injection-molded housing, which has the functions of wear resistance, durability, stable transmission and so on.

4. Cable length: 140CM/4.5 feet.

5. Pin definition: DB9 pin 1 to DB25 pin 8, DB9 pin 2 to DB25 pin 3, DB9 pin 3 to DB25 pin 2, DB9 pin 4 to DB25 pin 20, DB9 pin 5 To DB25 pin 7, DB9 pin 6 to DB25 pin 6, DB9 pin 7 to DB25 pin 4, DB9 pin 8 to DB25 pin 5, DB9 pin 9 to DB25 pin 22.

6. Applicable to use 9-pin serial computer to connect 25-hole bill printer and other equipment.

7. Packing quantity: 1xDB9 pin to DB25 pin serial cable

• The null modem serial parallel cable has a DB9 female connector and a DB25 male connector, allowing you to connect a serial printer to a 25-pin serial port or transfer files from PC to PC via a serial connection.
• Our null modem serial cable allows two DTE or DCE devices to communicate without data transmission conflicts.
• The cable uses high-quality nickel-plated connectors and plugs and high-quality PVC injection-molded housing, which has the functions of wear resistance, durability, smooth transmission and so on.
• DB9 female to DB25 female serial port pin definitions: DB9 pin 1 to DB25 pin 8, DB9 pin 2 to DB25 pin 3, DB9 pin 3 to DB25 pin 2, DB9 pin 4 to DB25 pin 20, DB9 pin 5 to DB25 pin 7, DB9 pin 6 to DB25 pin 6, DB9 pin 7 to DB25 pin 4, DB9 pin 8 to DB25 pin 5, DB9 pin 9 to DB25 pin twenty two.
• Applicable to use 9-pin serial computer to connect 25-hole bill printer and other equipment

Product description

Note: This cable is only used for RS232 Data Communication, not for transmitting video files via USB.



Simulate USB Data Transfer: A Replacement for Traditional Serial Null Modem Cable to Connect 2 Computers or USB-Port Devices

Fewer modern PCs continue to implement the RS232 serial port, but for those application areas that previously relied on legacy COM Ports for inter-PC communication, there is still a need of RS-232 serial development on embedded system, this USB to USB Null Modem Cable solves the problem, and allows you send data between your PCs that are not networked.



USB port works as a PC COM port by Prolific PL2303GT converter chip in both of USB type A ends. The signals is RS232, not UART TTL.



It can be easily configured in OTPROM memory to support OTPROM one-time programmable configuration information.



The bi-directional USB RS232 crossover data transfer cable is plug and play, USB powered and no extra power required, USB 2.0 full speed compatible, supports data transfer up to 115.2Kbps baud rate at RS232 levels.



Compatible with RS232 serial devices including modems, GPS devices, cell phones, scanners, networking equipment(console port), graphics tablets, point of sale devices, cameras, touch screens, medical and scientific instruments, industrial process control devices, building automation instrumentation and other serial devices.



USB type-A connector on both ends of cable

Input voltage DC 5V, input current 50Ma

RS232 communication level ±9V, upper and lower limit level amplitude: ±15V

USB 2.0 full speed compatible

supports windows Windows 10, 8, 8.1, 7, Vista, Linux and Mac OS system

Applications:Industrial, Communications & Networking, Consumer Electronics



Original Packing Included



1 x DTECH USB to USB Crossover Cable 6ft

• USB to USB crossover cable connects 2 computers or RS232 protocol devices via USB port for serial data communication
• Ideal for industrial environment - provides 15KV ESD isolated protection on signal pins to protect costly and often sensitive control equipment against electrical damage
• With high performance quality processor chip (Prolific Chip PL2303GT) and I/O auto conversion circuitry which makes it one of the most reliable dongle on the market
• 6ft USB type A port RS232 level cord supports windows Windows 10, 8, 8.1, 7, Vista, Linux and Mac OS system.
• Using the shielded USB null modem cable to protect your data from EMI and RFI noise interference; ideal for sending data betweens PCs or RS-232 devices

Product description

Transfer data between two devices using a RS-232C serial communication protocol



If your com port equipment require three wire null modem cable (TX, RX and GND), take this 10-foot 9 pin serial cable adaptor wherever you need it, it allows you to add your peripherals to an application or replace the crossover cables.



This long 9 pin D-sub RS232 cable male to male is with gold plated pins for superior corrosion resistance ensuring a solid connection.



The connectors are equipped with a pair of thumbscrews for securing the plug to the female socket.



For Connecting RS232 devices below (partial):

Touchscreen

Telescope

vinyl cutting machine

Modem

GPS

network equipment

radio transceiver

stereo system subwoofer/speaker set

sewing machine

weather station

Or controller to a remote control camera

...



Important Note:

It is shielded with standard Foil-Al layer shielding as most cables do, it fits for most of jobs. But if there are big mess of interference at your work area, you may need a special heavy duty shielding cable (copper braided + AL-foil).



Item Specifications:

Connectors: DB9 to DB9 (Male-Male)

Interface Surface: Nickel-plated

Pins Surface: Gold-plated

Wire Gauge: 30 AWG

Cord Diameter: 6mm

Cord Length: 10 ft

Color: Black



What’s Included:

1 x Serial to Serial Cable 10’ Male to Male

1 x User Manual

• Simple 9 pin male to male null modem cable (3 wire type and no hardware handshaking) connects your computer to device with COM port RS-232 compatible interface
• Wired as a serial port cable that 2-3 line are crosslinked (only TX/RX data and signal ground wires connected); standard shielded adapter with AL foil
• DB9 m/m connector on each end equipped with screws to ensure an easy and solid connection for stable data communication
• The wires inside are of 30AWG gauge and easy to solder to, and they connect to the pins in the order of the standard wire color code
• 10 ft long serial cord for hooking up PC laptop to some old RS232C equipment like scanner, Modem, printer, plotter, camera, barcode / embroidery machine, touchscreen, microcontroller, factory test equipmentrs

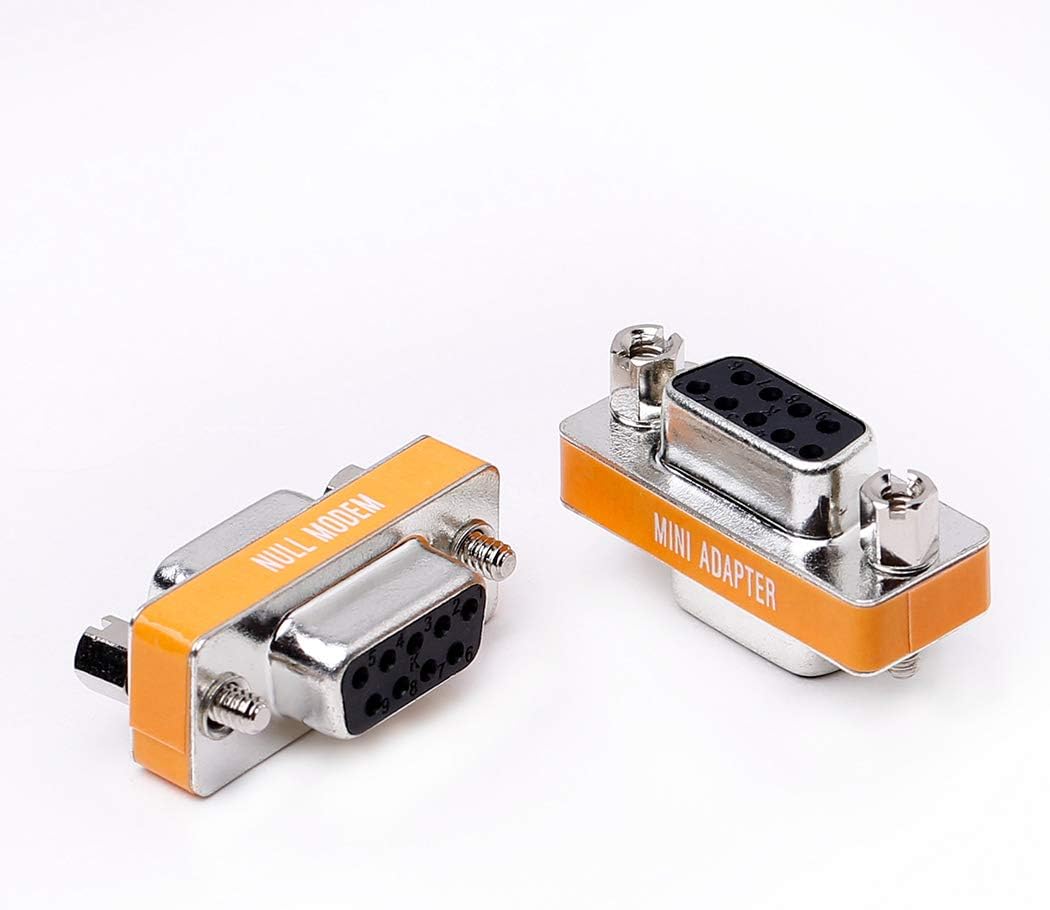

Product description

• Convert your existing straight wired cables to null modem or reverser (transmit & receive) cables with these handy, inexpensive adapters.
• Simply plug these adapters onto the end of a cable and you're done !

• Converts standard, straight wired cables to null modem wiring
• Gold contact plating provides reliable connections with repeated mating cycles
• Slimline design reduces leverage strain on computer ports
• UL grade 94V-0 connector insulator satisfies flammability requirements
• Screws are removable and reversible

User questions & answers

Question:	Do these come in loopback pin configuration to simulate modem connection? I need to have pin 4 looped to 6 and 7 looped to 8 and 2 and 3 crossed
Answer:	We are the factory seller, we have a lot of different pin assignment. But this null modem adapter it's a standard null modem adapter. There is a part drawing in the "Technical Specification" column， you can down load and check it
Question:	Hi, are both of these the exact same? If not what is the difference
Answer:	Yes, both were the same. Rarely are null modem adapters required. Good to have just in case
Question:	What i think i am seeing in the picture is two different converters. is one a straight through gender changer & the other a null modem configuration
Answer:	Both of them are standard null modem adapters
Question:	Will these pass sound so that I may plug in my Bose speakers
Answer:	not sure your application, this is an RS232 signal swap adapter. Here is pinout: pin-1 goes to pin-4, pin-2 to pin-3, pin-5 to pin-5, pin-7 to pin-8, and pins-6&9 are not connected.

Product description

• Convert your existing straight wired cables to null modem or reverser (transmit & receive) cables with these handy, inexpensive adapters.
• Simply plug these adapters onto the end of a cable and you're done !

• Converts standard, straight wired cables to null modem wiring
• Gold contact plating provides reliable connections with repeated mating cycles
• Slimline design reduces leverage strain on computer ports
• UL grade 94V-0 connector insulator satisfies flammability requirements
• Screws are removable and reversible

User questions & answers

Question:	Will these work with Cisco console ports
Answer:	I don't believe they will directly. As i understand it, the Cisco consoles are 8P8C. You would need a box adaptor in the middle to try and make it work and even then, that's if you find one that has more than just the ethernet/CAT, USB and/or SFP ports
Question:	Are these null modem, full handshaking
Answer:	Yes and no depending on your pin out. Gender and tx/rx line out will determine interfacing.

Product description

The SCNM9FF 10ft Cross Wired Serial/Null Modem Cable features two DB9 female connectors, allowing you to connect a serial printer to a 9-pin serial port, or transfer files from PC to PC via serial connection. Designed to provide a reliable, long-lasting connection, this serial/null modem cable is backed by StarTech.com's lifetime warranty.

• Transfer files via serial connection
• 10ft NULL Modem Cable
• 10ft NULL Modem Serial Cable
• 10 ft RS232 NULL Modem Cable

User questions & answers

Question:	Will this work with slc 500 processor
Answer:	Any null modem cable with at least simple handshaking (TX/RX crossed) will work with the SLC 500 and ML1400 over DF-1 protocol. Go shielded if you can. (I'm an Industrial Electrician who's worked with both of these PLCs.)
Question:	Is this a shielded cable
Answer:	Not sure about the shield but it works for my purpose.
Question:	Is this the one for monitor display? Thanks
Answer:	No, this is a serial cable. Monitor cable is a 15 pin.
Question:	Does this cable support hand-shaking? what are the connections for the pins of the male and female sides
Answer:	The wiring pin out for a null modem cable can be found here... https://en.wikipedia.org/wiki/Null_modem

Product features

Applications

- Connects 9 pin serial port to a serial printer.

- Can be used for PC-PC File transfer.

StarTech.com Packaging

Look for StarTech.com Branded Packaging to ensure you are getting a genuine StarTech.com product.

What's in the Box

1 - 10 Feet 9 Pin Null Modem Cable F/F.

Product description

• Convert your existing straight wired cables to null modem or reverser (transmit & receive) cables with these handy, inexpensive adapters.
• Simply plug these adapters onto the end of a cable and you're done !

• Converts standard, straight wired cables to null modem wiring
• Gold contact plating provides reliable connections with repeated mating cycles
• Slimline design reduces leverage strain on computer ports
• UL grade 94V-0 connector insulator satisfies flammability requirements
• Screws are removable and reversible

User questions & answers

Question:	Does anyone know the plating of this null modem adapter
Answer:	This DB9 null modem adapter it's TIN plated.
Question:	Is this part RoHS compliant
Answer:	Actually, these products are old products, and have very few factory make it . We are the only one factory make and sell it on line so far. So the price it's lower. Regarding RoHS, we need declare again, all products which made by KINGDEE are RoHS compliant. And thanks for your asking , we will mark it on the barcode in future lots.
Question:	Does this have full handshaking meaning cts to rts connection
Answer:	Hello Srowe , there are 4 method for null modem. 1.Null modem without handshaking 2. Null modem with loop back handshaking 3.Null modem with partial handshaking 4. Null modem with full handshaking. We checked with our Engineering department , this is a "Null modem with full handshaking".
Question:	Price it's cheap, is the quality good
Answer:	Thank you for the asking. Sure the quality are good. Since we are the FACTORY SELLER, so we can sell it in lower price.

Product description

This Null Modem Cable Adapter features one DB9 male and one DB9 female connector - a cost-saving way to convert a straight through cable into a null modem cable. The DB9F Null modem adapter is backed by lifetime warranty and free lifetime technical support.

• Null modem adapter
• DB-9 (M) to DB-9 (F)
• for P/N: PCI2S232485I
• PCI8S950LP
• SV1115IPEXGB

Product description

• Convert your existing straight wired cables to null modem or reverser (transmit & receive) cables with these handy, inexpensive adapters.
• Simply plug these adapters onto the end of a cable and you're done !

• Converts standard, straight wired cables to null modem wiring
• Gold contact plating provides reliable connections with repeated mating cycles
• Slimline design reduces leverage strain on computer ports
• UL grade 94V-0 connector insulator satisfies flammability requirements
• Screws are removable and reversible

User questions & answers

Question:	where is this product made in/manufactured
Answer:	No idea but they eirk
Question:	Can anyone tell me what is the pin-out is
Answer:	Hello, This is a DB9 null modem adapter, the pin assignment as below: Connector DB9F Pin# to Pin# Connector DB9M Receive Data 2 to 3 Transmit Data Transmit Data 3 to 2 Receive Data Data Terminal Ready 4 to 6+1 Data Set Ready + Carrier Detect System Ground 5 to 5 System Ground Data Set Ready + Carrier Detect 6+1 to 4 Data Terminal Ready Request to Send 7 to 8 Clear to Send Clear to Send 8 to 7 Request to Send see less The pin #9 on both side it's not connected(empty)

Product description

This USB to Serial RS232 Adapter with FTDI (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 null modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters. Extremely Versatile Suited for several industries, this DB9 serial adapter is perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port. It is also ideal for connecting and programing LED and digital signage boards with serial communication ports, as well as bar code scanners, receipt printers and other POS devices. Convenient and Customizable This lightweight and compact serial converter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the adapter cable is disconnected and re-connected to the host computer, or if the system is rebooted. The integrated FTDI chipset supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. Compatible with a Variety of Systems The USB to RS232 serial adapter is compatible with a broad list of operating systems including Windows, Windows CE, Mac OS and Linux, making it easier to integrate into mixed environments. This serial converter is backed by a StarTech.com 2-year warranty and free lifetime technical support.

• MAXIMIZED PORTABILITY: This USB to serial RS232 adapter with FTDI features a single cable design removing the need for additional adapters and cables
• CORRECT DTE/DCE CONFLICTS: Convert your available USB port into a null modem RS232 DB9 serial port, resolving any DTE/DCE conflicts
• BROAD COMPATIBILITY: Compatible with your USB 1.0 or 2.0 ports, this RS232 converter works with your Windows, Mac or Linux systems
• FAST TRANSFER SPEEDS: Experience fast speeds with this serial adapter, supporting a Baud Rate up to 921.6Kbps
• RELIABLE SUPPORT: Backed by a 2-year StarTech.com warranty, this USB to serial converter cable comes with free lifetime technical support

User questions & answers

Question:	Does this work to connect any RS232 device? I have a satellite receiver that uses RS232 and I need to connect it to my PC
Answer:	RS232 adapters are notoriously tricky. I went through four different ones and some work on some devices and not on others. A big problem seems to be with the USB port on the computer recognizing that it's there. This is the most reliable one I have. All of these products include a driver CD, but I did not have use it with this one. I can't say whether it will positively work with your DVD application, but this has worked with more devices than any other one I own. Amazon's return policy is great. No hassles no arguments. So try and and if it doesn't work return it.
Question:	I have a serial port on one pc and only usb ports on the other. will i be able to use this to establish serial connection between two pcs
Answer:	Hi, The ICUSB232FTN should work for your setup of connecting two computers together via serial. Dan StarTech.com Support
Question:	Are the drivers on the included cd compatible with mac osx 10.6 (snow leopard
Answer:	Hi, Thanks for asking! Yes the drivers should be compatible to Mac OS 10.6 We hope this helps. Don't hesitate to get in touch with us directly if you have any further questions. Thank you, StephanCustomer SupportStarTech.com
Question:	How long is the cable
Answer:	Yes I can answer this question, the cable is 6 ft. long.

Product features

Corrects DTE/DCE Conflicts Without Additional Cables/Adapters

The USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.

COM Retention and Integrated FTDI Chipset

This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted.

The integrated FTDI chipset supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

An Ideal Solution For Any Setup

The USB to Null Modem adapter is compatible with a broad list of operating systems including Windows, Windows CE, Mac OS and Linux, making it easier to integrate into mixed environments.

Product description

• Convert your existing straight wired cables to null modem or reverser (transmit & receive) cables with these handy, inexpensive adapters.
• Simply plug these adapters onto the end of a cable and you're done !
• The low profile design reduces leverage strain on overstressed computer ports and is fully shielded for electrically noisy environments.

• Converts standard, straight wired cables to null modem wiring
• Gold contact plating provides reliable connections with repeated mating cycles
• Slimline design reduces leverage strain on computer ports
• UL grade 94V-0 connector insulator satisfies flammability requirements
• Screws are removable and reversible
