13 best mortise tenon jigs

Product description

The General Tools 870 E-Z Pro Mortice & Tennon Jig is ready to use right out of the box to produce 1/4" mortise and tenon joints for cabinets, furniture and frames. Included are bushings for also producing 3/8" and 1/2" joints with other size optional spiral up cut bits

(not included). Using A plunge router with the jig, woodworkers of all skill levels can cut fully aligned mortises and tenons ranging from 1/4" to 1/2" wide and from 1” to 3" long. The jig can be mounted directly on a workbench or onto a board that can be clamped in a vise or to a bench.

GENERAL TOOLS - THE PRECISE TOOL FOR DOING THE JOB EXACTLY RIGHT. Offering over 1,000 tools, we’re proud to provide tradesmen, craftsmen and DIYers around the world with a broad range of affordable, specific-purpose mechanical hand tools and precision measuring and inspection tools.

For inquiries, please contact our Customer Service Department at 212-431-6100. We strive to provide our customers with 100% satisfaction.

WORK SMARTER, MEASURE BETTER AND BE MORE PRODUCTIVE WITH GENERAL TOOLS

From the Manufacturer

This trailblazing tool provides a quick and easy, all in one solution to cut both a matching mortise and tenon with a single inexpensive jig. The jig is ready to use right out of the box to produce 1/4-inch mortise and tenon joints for cabinets, furniture and frames. Included are the bushings for also producing 3/8-inch and 1/2-inch joints. Using a plunge router with the jig, woodworkers can cut fully aligned mortises and tenons ranging from 1/4-inch to 1/1-inch wide and from 1-inch to 3-inches long. The unit can be mounted directly on a workbench or onto a board that can be clamped in a vise or to a bench.

• ALL-IN-ONE SOLUTION- Provides a quick and easy way to cut both a matching mortise and tenon with a single jig
• DURABLE- Jig body made of solid aircraft grade aluminum
• ACCURATE- Integrated clamps and swing arms align and secure wood for accurate joints
• VERSATILE- Can easily handle wood stock ranging from 1/2-inch to 1 1/2-inch thicknesses and can cut multiple mortises in a single long piece
• INCLUDES- 1/4-inch high speed upcut spiral bit, bushing guides for 1/4-inch 3/8-inch and 1/2-inch tenons, two-part base plate/bushing adapter, centering tool and adjustment wrench

User questions & answers

Question:	Does this fit the makita router
Answer:	Yes, you can purchase the wifi bridge separately when the wifi bridge is ready.
Question:	Does this tool work to build a mortise and tenon roof and floor wood made
Answer:	Please note that one WiFi hub only supports connecting to one smart lock each time.
Question:	I have a bosch router, could i use with the 870 e z pro??? because the bushings... suplied with it
Answer:	Yes, it works!
Question:	which routers is this jig compatable
Answer:	If possible, please send us a picture of your door thumb and door handle, so that we can further assist you.

Product description

Safety, accuracy and repeatability are the hallmarks of this heavy-duty tenoning jig. Designed to fit any table saw with a 3/4" x 3/8" miter groove, this jig will hold your stock in precise position. The adjustable back stop will support stock from 0 degrees to 45 degrees. The width of the cut is controlled with a fine-threaded adjustment knob. Constructed of cast iron and steel.

User questions & answers

Question:	I can't budge the vertical support after loosening the two lock levers & round knob, what am I doing wrong
Answer:	Might work for outdoor landscape lighting but not the best connector for this purpose. These are not watertight and are ment for indoor use. I have used plain old wire nuts on my low voltage Malibu lights with some success.
Question:	Will this jig work on my new Bosch 4009 table saw
Answer:	Sorry， this one can not be mounted on din rails.

Product description

Designed with the contractor and trade user in mind, the Trend Lock Jig makes fitting mortice sash locks, deadlocks, and latches into wooden doors a cinch, ensuring a perfect fit each and every time. The jig can be used on all doors from 34mm to 58mm thick and is easily set to the door using the centralising plate and altering the adjustable clamping bar. A set of 16 steel templates are supplied that cover a huge range of locks in common sizes from recognised manufacturers as well as many others.

From the Manufacturer

Trend's Lock Jig uses a set of interchangeable templates and with a router will cut the mortise and face-plate recess for popular door locks.

• QUICK AND SECURE: With its tool-free setup, the Trend Lock Jig is very fast to set to any door width from 34mm to 58mm wide; Full-length clamping plate ensures jig remains rock solid in use, secured with locking levers and twin clamping knobs
• ADJUSTABLE SIZES: The set of 12 lock face plate and 4 lock case templates supplied are held in the Lock Jig with magnets for fast swapping, requiring just one router and cutter to do both the lock case mortice and the faceplate
• FULL INSTRUCTIONS: A comprehensive laminated reference sheet with common lock model also offers a secondary chart on the reverse side for info relating to faceplate and lock case sizes to quickly select the correct templates and achieve perfect results
• EASY TO USE: Each template is stamped to indicate the locks it can be used with; 4-lettered plates for lock cases and 12-numbered plates for the faceplates; Simplifying and speeding up the selection process as well as eliminating costly errors
• NEEDED ACCESSORIES: To rout the lock case mortice, a router with an 80mm plunge and fitted with a 30mm guide bush is required, along with a suitable 12mm diameter cutter with an overall length of 115mm to achieve the maximum mortice depth of 70mm

User questions & answers

Question:	Does this jig allow for self beveling
Answer:	It's supposed to tell you in the app when the batteries get low. I just had a set of batteries die with no notification, however. Yet another thing that doesn't work.
Question:	I have a mortise lockset that has a 5/8" x 4" body and a 11/16 x 5 9/16 face plate. is there a template for this? Linnea PL
Answer:	HomeKit compatibility means you can use the Siri virtual assistant on iPhone, iPad, and Apple Watch to lock or unlock August Smart Lock using voice commands. Working with Apple's smart home platform also means Smart Lock can be a part of commands like "Goodnight" that turn off connected lights, lock the front door, and lower the temperature.
Question:	Will this jig accomodate for Baldwins beveled face plates
Answer:	The app works with Android phones. However, the reviews on the play store are abysmal because features like Auto Unlock simply do not work. This is no longer a new product and it is clear that August is not devoting the necessary resources to fix this product. Android support should be marked with an asterisk as it is not full support.
Question:	Does it have a jig for 22mm x 240mm
Answer:	The docs say that it will work with a 3rd gen Apple TV. That's just not true---it doesn't. It does seem to work with the 4th Gen ATV, but you loose a lot of the reporting, etc, claimed by the Connect. That is, the ATV only tells you if the lock is open or closed. It doesn't tell you who opened it or when they opened it. The Connect isn't a viable solution, either. It doesn't really work at all. It connects poorly, and will actually control the lock remotely maybe 5% of the time so it's not a viable choice if you want to operate the lock remotely. So, practically speaking, given that none of the possible bridge devices actually work well enough to be useful, you cannot monitory away from home.

Product description

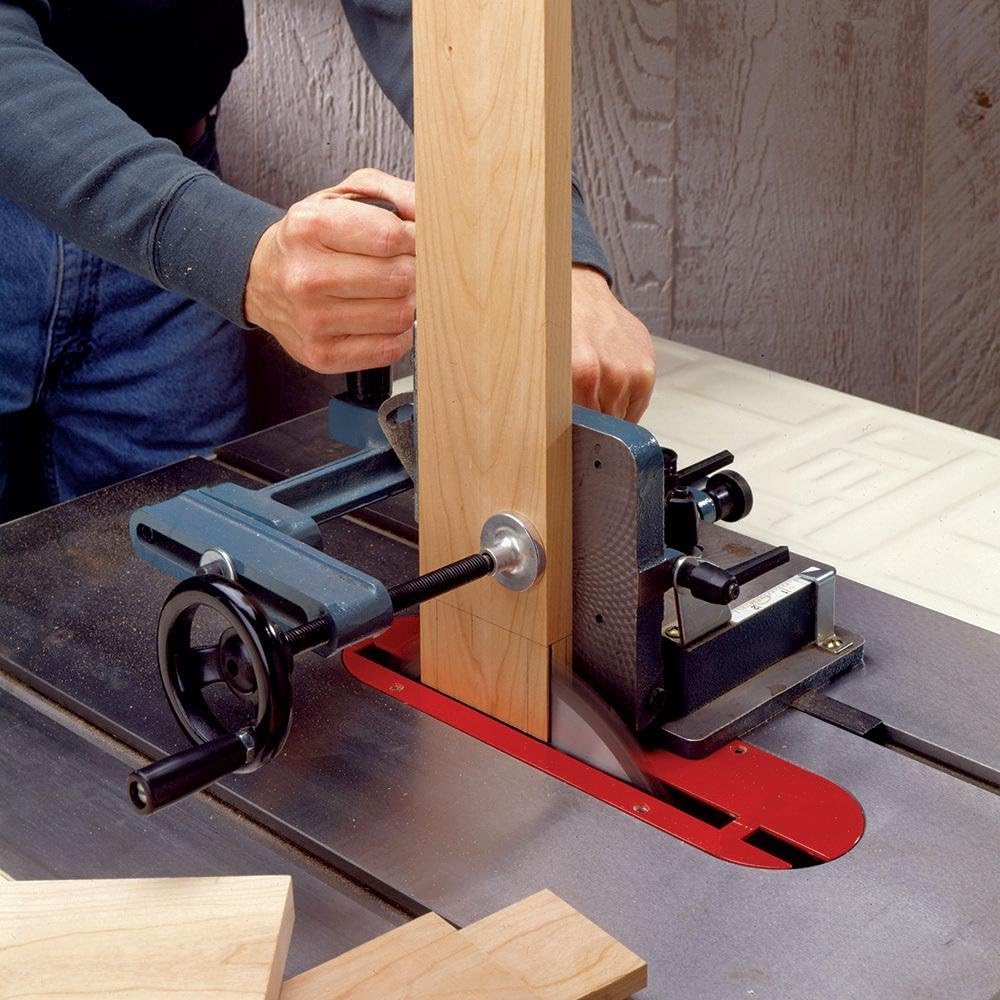

When you need perfect, tight joints, the DELTA 34-184 Universal-Deluxe Tenoning Jig will give you professional results every time. The DELTA 34-184 is designed to work with any table saw with a 3/8-inch by 3/4-inch miter slot, standard on almost all table saws. It is made of durable, CNC precision milled cast iron, and can be used with both right and left tilt saws. The jig can be adjusted from 45 to 90 degrees with adjustable positive stops, and there's a micro-fine adjustment knob for fine width-of-cut settings down to 4/1000-inch. By pushing a button, you can make for macro adjustments.

Unlike most jigs that require tools to make adjustments, the DELTA 34-184 features a large thumbscrew that allows for tool-less adjustments. With two ergonomic handles, you'll be able to make smooth cuts every time easily and comfortably. The jig handles up to 3-1/4-inch thick stock and features a quick-release hold down clamp for efficient work. The jig measures 11.8 x 12 x 8.2 inches and weighs 21.3 pounds.

From the Manufacturer

Delta 34-184 Universal-Deluxe Tenoning Jig

• Has ergonomic handles, quick release coarse adjustment, micro adjustment to .004-inch
• Universal miter bar for use with all table saws with 3/8-inch by 3/4-inch miter slots
• Adjustable 90 degree positive stop for accurate repetitive cuts
• 90 degree-45 degree Backstop with Adjustable 90 degree Positive Stop for Secure Support of Angular Stock
• Multi-position control levers for convenient easy adjustment; Better locking leverage, extra-large crank handle for fast, easy clamping of work

User questions & answers

Question:	What is the maximum depth of cut allowed
Answer:	This item comes with 8 each Cam Connector Discs, 25mm x 12mm.
Question:	Is this made in China
Answer:	Diameter: 25mm Length: 12mm
Question:	Does this jig work with Ridgid 4512 table saw? Seems like the track is too far from the blade
Answer:	We do not have 19mm available.

Product description

Build or repair furniture and more with the Miles craft . Includes everything you need to get started creating strong and accurate doweled joints.

• The Miles craft Joint Mate allows for quick and accurately doweled corner, edge or surface joints
• Metal bushings included to ensure accurate alignment When drilling for perfectly positioned dowels every time
• Steel dowel/Tenon centers for durable and accurate location marking of dowel holes or in second board being joined
• Fluted hardwood dowel pins with chamfered ends Add strength and endurance to your joined surfaces (Includes 3 different sizes)
• Brad point drill bits included in 3 different sizes (1/4", 5/16", 3/8")

User questions & answers

Question:	How many dowels of each size are included
Answer:	The blades are 1 3/8 inches wide.
Question:	Which hardwood is used to make the dowels
Answer:	I didnt get a tap.
Question:	Would I be better of buying a separate doweling jig if I plan to build a table? This jig looks like you have to hold it in place
Answer:	The red/black item is from a different manufacturer... so, yes: buy the other product
Question:	What's the difference between the regular and "Limited Edition
Answer:	yup:^)

Product description

Save on all the must-have accessories for your Leigh FMT Mortise and Tenon Jig with this value-priced bundle! It includes a boxed-set of all the standard bits for the FMT-eight solid carbide bits in all, ranging from 1/16" to 1/2" in diameter-as well as sixteen specialty guides for routing a huge variety of perfect mortise and tenon joints.This kit includes three sets of FMT guides, each with its own unique capability.The 1/4" guide set contains eight guides and can machine mortises and tenons 1/4" thick, ranging from 1/4" to 2-3/8" wide.The 3/8" guide set includes 4 guides and can machine mortises and tenons 3/8" thick, ranging from 1" to 2-1/2" wide.The 1/2" guide set also includes 4 guides and can machine mortises and tenons 1/2" thick, ranging from 1" to 2-1/2" wide.The three sets also include convenient storage stands for simple, upright organization.

Product description

The Lumberjack Tools Home tenon cutters are ergonomically designed and feature a Radius Shoulder profile (low profile) that offers a more refined look. The tools are Safe, Fast And Easy to Use to use and the tenon cutter Works Like a Giant Pencil Sharpener. Build your own log beds, log railings, log fences, log tables, log chairs, log arbors, log benches And more! A 1/2" heavy duty drill is recommended for use (Specs: Pipe handle drill, single-speed, 450 RPM's or less). Tenon cutters are backed by Lumberjack Tools Lifetime . Home Tenon Cutters are die cast from automotive grade aluminum and feature dual blade technology to cut tenons quickly and efficiently. Accepts a log from 2-1/2" - 3-1/2" in diameter. Includes: 2" Tenon Cutter, Set of Blades (Includes blades, button screws, Allen wrench) And Manual. Made in the USA

• DIY LOG FURNITURE TOOL - Build log beds, end tables, chairs, coffee tables And more!
• CUTS A 2" TENON DIAMETER
• CREATES A RADIUS SHOULDER - A radius shoulder is a more refined, low profile shoulder
• DRILL REQUIREMENTS - Designed to run on a heavy-duty 1/2", single-speed, high torque, low RPM (500 or less) corded drill
• MADE IN USA

User questions & answers

Question:	Does it come with the blades
Answer:	Yes. Same rules as when you use a wire nut or other type connector.
Question:	maximum tenon legnth
Answer:	Probably won’t work for anything above 20. They work great on heavier gauge wire.
Question:	Whant is the max log size you can use with this product
Answer:	Not IP-rated for outdoor use. Would need an enclosure.
Question:	Are spare blades available
Answer:	I know I'm really late, but I have found the proper replacement bolt. First off, the part you will receive is a Midwest Fastener 74661. The bolt that is 35mm long is Midwest Fastener 74666. Not on Amazon, but it is available at Menards.

Product features

Drill a Mortise Hole

FORSTNER BIT & DRILL NOT INCLUDED

Using the forstner bit (Not Included), drill a female hole into the log required based on your blueprint plan (Not Included).

Cut the Tenon

Our log tenon cutters Work Like a Giant Pencil Sharpener™. Using the tenon cutter provided in the kit and a 1/2", single-speed, high torque, low RPM drill, create a tenon on the end of a log quickly and easily.

Assemble

Take logs with the tenons on the end and assemble them with the logs with the mortise holes. It is that simple!

Threaded Shank

All tenon cutters feature a threaded shank that can be removed and replaced in the case of damage. This allows you to just replace the shank versus the entire tenon cutter.

Durable Aluminum Powder Coated Body

Home tenon cutters feature our signature red powder coated paint. This durable paint is virtually chip resistant and is on top of a high grade die cast aluminum body

High Carbon Steel Blades - Dual Blade Technology

Home blades are curved to create a radius shoulder profile. They are razor sharp and extremely durable. Most customers can get close to 1,000 cuts before having to resharpen or replace the blades. All tenon cutters feature two blades to create the best tenon and shoulder possible in the least amount of time.

Radius Shoulder Profile

Home tenon cutters create a radius shoulder profile which is a low profile shoulder ideal for more refined projects.

Product description

The Mortise Lock Installation Kit comes with everything you need to cut professional quality, fast and accurate mortise pockets! No other combination of tools can produce such accurate results every time. The new jig is quick and simple to set up, self centering and locks onto the door edge securely. Quick change threaded cutters means cutters can be changed in seconds, without removing the jig from the door. For use on hard wood, soft wood, composite doors and even aluminum doors (with the use of special cutters). Protect and store tools in a custom heavy duty case. In addition to the self-centering Mortise Jig with aluminum housing, carrying case and instructions, the Kit includes: 7/8″ Wood Screw Cutter, 1″ Wood Screw Cutter, 1-1/4″ Wood Screw Cutter, Long Boring Shaft. The Mortise Installation Jig Installation Kit is also expandable to core doors and prep for hinges and strikes, with the appropriate attachments.

• The Mortise Lock Installation Kit comes with everything needed to cut professional quality, fast and accurate mortise pockets and face plates for Schlage, Sargent, Corbin Russwin, Kaba, and other door hardware
• The mortise jig is quick and simple to set up, self centering and securely clamps onto the door edge securely
• This professional kit includes three of the most common carbide-tipped wood cutting bits - 7/8”, 1”, and 1-1/4” diameter. The threaded cutters means cutters can be changed in seconds, without removing the jig from the door. Additional wood-cutting, aluminum-cutting, plunge, and door coring bits are available separately.
• For use on hard wood, soft wood, composite doors and even aluminum doors (with the use of special cutters)
• Protect and store tools in a custom heavy duty case

Product description

Introducing the Router Fluting Jig by POWERTEC.

This jig was designed to produce fast and accurate custom fluted moldings and grooves in straight stock, providing your columns and furniture projects with a more professional and polished look.

Versatile

Features an acrylic base that's been pre-drilled to accommodate most of the popular brand routers. You can also custom drill for non-standard routers.

Stock Feed Capacity

The jig possesses dual, low-friction, underside rails that straddle your work piece, allowing the jig to accommodate boards up to 9-1/2" wide - wide enough to cut flutes spaced evenly over 8 inches wide.

Premium Build

Our engineers have manufactured each component of this kit with high precision results in mind. It also uses both, acrylic and phenolic for durability and heavy duty usage.

It's Easy to Use

Remove your router base plate and mount the jig to your router. For high precision accuracy, there are zero mark scales on the centerpiece and writable/erasable indexing surfaces to help make setup simple.

This kit includes an acrylic router plate, jig base, guides, adjustable fence, measurement scales, mounting hardware and knobs for quick and easy tightening - everything you need to make perfectly spaced flutes on your stock.

Compatible Models

Porter Cable(Series: A100, A7529, A690, A8529, A890); Ryobi(R1631K); Makita(RF1101); Bosch(fixed-base 1617 series, 1618, 1619, 1619 EVS); Hitachi(M8V, M-12VC, TR12); DeWALT(DW621, DW616 series, DW625, DW618); Craftsman(315 275 000, 315 175 040, 315 175 050, 315 175 060) & more!

POWERTEC is a leading manufacturer of high quality woodworking tools and accessories, machines, and an assortment of OEM replacement parts. We are committed to exceeding expectations, while bringing the latest innovations, technology, and product development to the industry.

• INCLUDES: Fluting Jig Kit w/ Acrylic Router Plate, Jig Base, Guides, Knob Assortment, and Mounting Hardware
• FUNCTION: This fluting jig for routers allows you to make quick and precise flutes and slots in straight stock for columns, cabinet trims and furniture parts – giving your projects more of a professional look and finish
• EASY TO INSTALL: Simply remove the base plate from your router and mount this jig to the router
• FEATURES: A centerline (zero mark) on the scale for accurate alignment, a pre-drilled profile to accommodate routers from many of the most popular brands, and it can take in router stock of up to 8 inches wide
• BUILD: All components were made with premium quality material that’s designed to produce impressive results and long-term durability

Product description

Shop Fox W1500 13 x 13 x 8-Inch Heavy Duty Aluminum Adjustable Right Angle Jig

• Solid Aluminum
• Fully extended depth is 13-inches, closed is 7-1/2-inches
• Miter bar is 3/8-by-3/4-by-11-inches, can be removed for irregular work
• Maximum horizontal opening is 1-3/4-by-8-inches
• Increases operator safety

User questions & answers

Question:	does this require proprietary clamps for vertical work? does it require proprietary clamps to replace the horizontal clamp
Answer:	It is not waterproof only water resistant.
Question:	Does this have a micro adjuster to dial in tenon location preciselt
Answer:	They are very light at the wire itself will secure it

Product features

Shop Fox W1500 Right Angle Jig

The Shop Fox Right Angle Jig is constructed using top quality aluminum castings and plates which are machined to exacting tolerances. It has the perfect weight-use ratio to dampen vibration, yet is still light enough to easily slide the workpiece through the machining process. Its quality and precision are evident from the first cut. Cut tenons, dados, rail ends, and finger joints safely and with complete accuracy.

Increased Operator Safety

The Right Angle Jig increases operator safety on a wide range of applications from cutting and shaping to sanding operations. Ergonomically positioned handles with grooved finger slots provide excellent control and all-day comfort for production applications. The W1500 can be used with a router table, horizontal borer, shaper, bandsaw, tablesaw, sander and various other woodworking machines.

Work Faster and Smarter

You will find that using the Shop Fox W1500 with a tablesaw or shaper is a real time saver for positioning and holding your work effectively and safely. Many cuts and operations that you thought were impossible with traditional clamping methods are now accomplished with ease. Beside being able to use the miter slots on these machines to draw the work piece across the cutting edge, you have the ability to slide the material forward on the built-in rails to make incrementally deeper passes without having to reposition the already secured piece.

Extremely Versatile

The W1500 face plate features pre-drilled holes for mounting the angle bracket and are also handy for attaching drill press clamps (not included). Woodstock offers several sizes of these clamps within the Steelex tool line with the following model numbers; W1301 - 6 inch, D2192 - 10 inch and D2493 - 12 inch. One toggle hold-down clamp is included for securing stock horizontally. The angle bracket is adjustable for a broad range of angles allowing you to set your workpiece to the desired position and perform cuts safely and accurately.

Product description

Use your Leigh FMT to flip your mortises on their sides! Some joints, like dust dividers in a chest of drawers, require mortises to be routed at 90 degrees to the clamp plate. The new Y-Axis mortise guide can produce six sizes of mortises: 1/4" x 3/8", 1/4" x 1/2", 1/4" x 3/4", 5/16" x 1/2", 5/16" x 3/4" and 1/2" x 1". Additional sizes can be routed using table limit stops and different bit sizes. Note: New FMT guides not exactly as shown.

Product description

Amazon.com Ideal for woodworking, furniture and cabinet making, the Porter Cable 4216 12-inch dovetail jig kit enables cutting a wide variety of joinery for drawers, boxes, and furniture. This package includes a template 4211 for half-blind, rabbeted half-blind and sliding dovetails, the 4213 template for through dovetails and box joints, and the 4215 template for miniature through, miniature half-blind dovetails, and miniature box joints. Durable, single-piece steel base design requires no assembly (view larger). Able to accommodate stock from 1/4 to 1-1/8 inches thick, this jig's heavy-duty cam-type clamps with sandpaper-backed locking bars provide a firm grip of wood. On-board instructions provide clear user guidance for the various applications and machined aluminum templates provide superior cutting accuracy and long-term durability. Its router bit depth gauge allows users to set bit depths without measuring and its durable, single-piece steel base design requires no assembly and allows clamping or bolting directly to the work bench. Warranty This Porter-Cable tool is backed by three-year limited warranty covering any defects due to faulty materials or workmanship (from the date of purchase). It's also covered by Porter-Cable's one-year free service contract, where Porter-Cable will maintain the tool and replace worn parts caused by normal use--for free. What's in the Box Porter-Cable 4216 deluxe dovetail jig combination kit with jig base; three templates (4211, 4213, and 4215); four router bits (43776PC, 43743PC, 43014PC, and 43777PC); four template guides (42037, 42040, 42046, and 42054); two lock nuts; wrench; operating instructions On-board instructions provide clear guidance for various applications (router not included; view larger). 4216 Deluxe Dovetail Jig Combination Kit At a Glance: Includes 12-inch dovetail jig plus three templates Template alignment lines and router bit depth gauges allow for quick,

Ideal for woodworking, furniture and cabinet making, the Porter Cable 4216 12-inch dovetail jig kit enables cutting a wide variety of joinery for drawers, boxes, and furniture. This package includes a template 4211 for half-blind, rabbeted half-blind and sliding dovetails, the 4213 template for through dovetails and box joints, and the 4215 template for miniature through, miniature half-blind dovetails, and miniature box joints.

Durable, single-piece steel base design requires no assembly (view larger).

Able to accommodate stock from 1/4 to 1-1/8 inches thick, this jig's heavy-duty cam-type clamps with sandpaper-backed locking bars provide a firm grip of wood. On-board instructions provide clear user guidance for the various applications and machined aluminum templates provide superior cutting accuracy and long-term durability. Its router bit depth gauge allows users to set bit depths without measuring and its durable, single-piece steel base design requires no assembly and allows clamping or bolting directly to the work bench.

Warranty

This Porter-Cable tool is backed by three-year limited warranty covering any defects due to faulty materials or workmanship (from the date of purchase). It's also covered by Porter-Cable's one-year free service contract, where Porter-Cable will maintain the tool and replace worn parts caused by normal use--for free.

What's in the Box

Porter-Cable 4216 deluxe dovetail jig combination kit with jig base; three templates (4211, 4213, and 4215); four router bits (43776PC, 43743PC, 43014PC, and 43777PC); four template guides (42037, 42040, 42046, and 42054); two lock nuts; wrench; operating instructions

From the Manufacturer

Ideal for woodworking, furniture and cabinet making, the Porter Cable 4216 12-inch dovetail jig kit enables cutting a wide variety of joinery for drawers, boxes, and furniture in stock from -1/4 to 1-1/8 inches thick with a router (sold separately). The kit includes a template 4211 for half-blind, rabbeted half-blind and sliding dovetails, the 4213 template for through dovetails and box joints, and the 4215 template for miniature through, miniature half-blind dovetails, and miniature box joints. The unit's template alignment lines and intuitive router bit depth setting gauges deliver industry leading ease of set-up and enable depth settings without measurements. On-board instructions provide clear guidance while machined aluminum template provides superior cutting accuracy and long term durability. All bit needed to make joinery above are included. Ninety-day money back guarantee, 3 year limited warranty, 1 year free service contract.

• Includes template 4211 for half-blind, rabbeted half-blind and sliding dovetails
• Includes template 4213 for through dovetails and box joints
• Includes template 4215 for miniature through and half-blind dovetails, and miniature box joints
• Template alignment lines and router bit depth gauges allow for quick, easy set-up; Router bit depth gauges allow user to quickly and accurately set the depth without taking measurements
• Included with jig: templates, two lock nuts, wrench, and instruction manual. Machined aluminum template provides superior cutting accuracy and long term durability

User questions & answers

Question:	What width of boards will fit in this jig, and what is the max thickness of boards that can fit in it? Will it handle 4/4 stock
Answer:	Hi Derek, I have not seen a way to bevel the cut to match the door bevel. The jig mounts square to the door. I have had the same question myself early on. It seems to be ok though, because the lockset hardware doesn't bevel either, the plunger plates are square to the door and do not follow the door bevel. We have not had an issue with the 5 degree or so bevel on the door looking bad or functioning badly. Hope this helps.
Question:	Does it contain the essential guide rings
Answer:	There is a mortise template for a 5/8" x 4-1/4" lockset included. The faceplate templates are for 7/8" or 1" wide faceplates. There is no template for 11/16" faceplate included with the kit. The Trend Lock website (www.trenddirectuk.com) lists other available templates.
Question:	Can you use it with the Bosch router or do you need special accessories
Answer:	Yes the template pivots to match the bevel Not real familiar with Baldwin products as I own a commercial door company and I have never seen a beveled faceplate it is the door that is beveled in my experience
Question:	does it include the 4 router bits usually included with in this set
Answer:	I don’t see that size listed. The closest to that size is 22.5mm x 152.5mm. Not sure if you are referring to the faceplate size or the actual lock body. This jig has the capability to be used with a deep plunging router to mill out lock-sets that fit deep into the door. There are templates that are used to deep cut for the lock body and other templates that are used to mortise out the face plate for such a lock set

Product features

PORTER-CABLE 4216 Super Jig

Ideal for woodworking, furniture, and cabinet making. Dovetail Jig Combination Kit enables cutting a wide variety of joinery for drawers, boxes, and furniture. Durable, single-piece steel base design requires no assembly. Accommodates stock from 1/4 to 1-1/8 in. thick, this jig's heavy-duty cam-type clamps with sandpaper-backed locking bars provide a firm grip of wood. Onboard instructions provide clear user guidance for the various applications and machined aluminum templates provide superior cutting accuracy and long-term durability. Its router bit depth gauge allows users to set bit depths without measuring, and its durable, single-piece steel base design requires no assembly. Clamps or bolts directly to the work bench.

Features

• Heavy-duty cam-type clamps with sandpaper-backed locking bars provide firm grip of wood U
• Seful for half-blind, rabbeted half-blind and sliding dovetails
• Includes template 4213 for through dovetails and box joints
• Includes template 4215 for miniature through and half-blind dovetails, and miniature box joints
