14 best deck screw jig

Product description

Create a better, more-beautiful deck with the Kreg Deck Jig . This concealed-fastening system works together with Kreg Deck Screws to allow you to install decking without visible fasteners, so all you see is the beauty of your decking instead of a bunch of screws. The Deck Jig features hardened-steel guides to drill precisely positioned pilot holes, and to guide Deck Screws to attach decking from the edge solidly and invisibly—whether you’re using solid-wood or composite deck boards. The Deck Jig makes drilling the stepped pilot holes and driving screws easy in all situations thanks to three hardened-steel guides—one at 90° to the board edge, and two at opposing 45° angles—that allow easy access when working near walls, as well as when creating strong joints where boards butt together end to end. The stepped drill bit creates a perfectly positioned pocket hole and clearance hole for the Kreg Deck Screw, while a stop collar ensures prefect drilling depth. After drilling, just drop a Kreg Deck Screw—an integral part of this concealed-fastening system—into the same guide, and then drive it with the included square-drive driver bit. It’s equipped with a stop collar, too, to ensure that the self-tapping, case-hardened screw gets driven to the perfect depth. The aggressive threads bite securely into the joist, while the smooth upper shank and flat-bottom head work together to pull the deck board tightly into place. The Deck Jig Concealed-Fastener System works with composite decking, as well as solid-wood decking such as cedar, hardwoods, and pressure-treated wood—kiln-dried after treatment (KDAT) recommended.

• The Kreg Deck Jig helps you get the deck you want, without any unsightly exposed nails or screws
• Hardened-steel drill guides keep the stepped drill bit and driver bit at the precise, optimal angle
• Three hardened-steel drill guides let you install deck boards in a variety of hard-to-reach areas
• Works with composite decking, as well as solid-wood decking such as cedar, hardwoods, and pressure-treated wood—kiln-dried after treatment (KDAT) recommended
• Easy-grip handle gives you a secure hold and complete control over each and every joint

User questions & answers

Question:	Can I use narrower spacers, let's say
Answer:	Not sure but as long as the diameter of your exercise bike handlebar is comparable to that of a standard bike, I assume this extension can be used.
Question:	can this work with 2x4/2x6 (1 1/2 inch width) wood
Answer:	They are aluminum, they seem very strong. In the other hand the bar doesn't seem to be as strong as the joining pieces. I have it mounted on my bike with two lights, and use it to rest my hands when riding my road bike.
Question:	How this better as compare to camo pro-x1 guide
Answer:	Hello, Install the handlebar extender to your bicycle handlebar, add extra storage space for the bicycle to fix bicycle lights, speedometers,GPS or phone holders, etc. The length of the bicycle extender is 25 cm, suitable for bicycles with handlebar diameter between 18-34mm. For details, please check the second size picture and the fourth product usage picture
Question:	Has anyone had problem fitting the screws through the jig? i bought the kreg deck screws, and do not fit. they also are not square drive
Answer:	Hi, our bike handlebar extender suitable for bicycles with handlebar diameter between 18-34 mm.

Product features

Kreg Deck Jig

Create a better, more beautiful, comfortable, longer-lasting deck

Product description

Master your deck with the Jig-A-Deck. The Jig-A-Deck evenly spaces 4" or 6" wide decking with a 1/4" gap and ensures that all your field and joint placement screws are perfectly aligned and in their exact position every time. Comes in a 2-piece set.

• Helps create a straight line of screws across your whole deck
• JIG-A-DECK allows you to professionally space & fasten deck boards in a fraction of the time
• Allows perfect fastener spacing for both 4" & 6" wide deck boards
• Helps provide perfect 1/4" spacing
• Excellent for use with hardwood, composite PVC & pressure treated decking

User questions & answers

Question:	Is this plastic or metal... and has anyone used for installing boards with no gap at all by not inserting between boards
Answer:	I have had multiple pairs on my drz and I love them. They’re pretty much only good for one decent drop on the street before they bend though.
Question:	Does this come in a 3/16" gap
Answer:	YES
Question:	Has anyone used this for a fence
Answer:	No clue! Got this as a gift for my son-in-law!!? Sorry!
Question:	What is the spacing between the two prongs? I’m wondering if it would straddle the 4” part of a 2x4 when building a fence
Answer:	No. You need ATV bars for an ATV. These are for motorcycles.

Product description

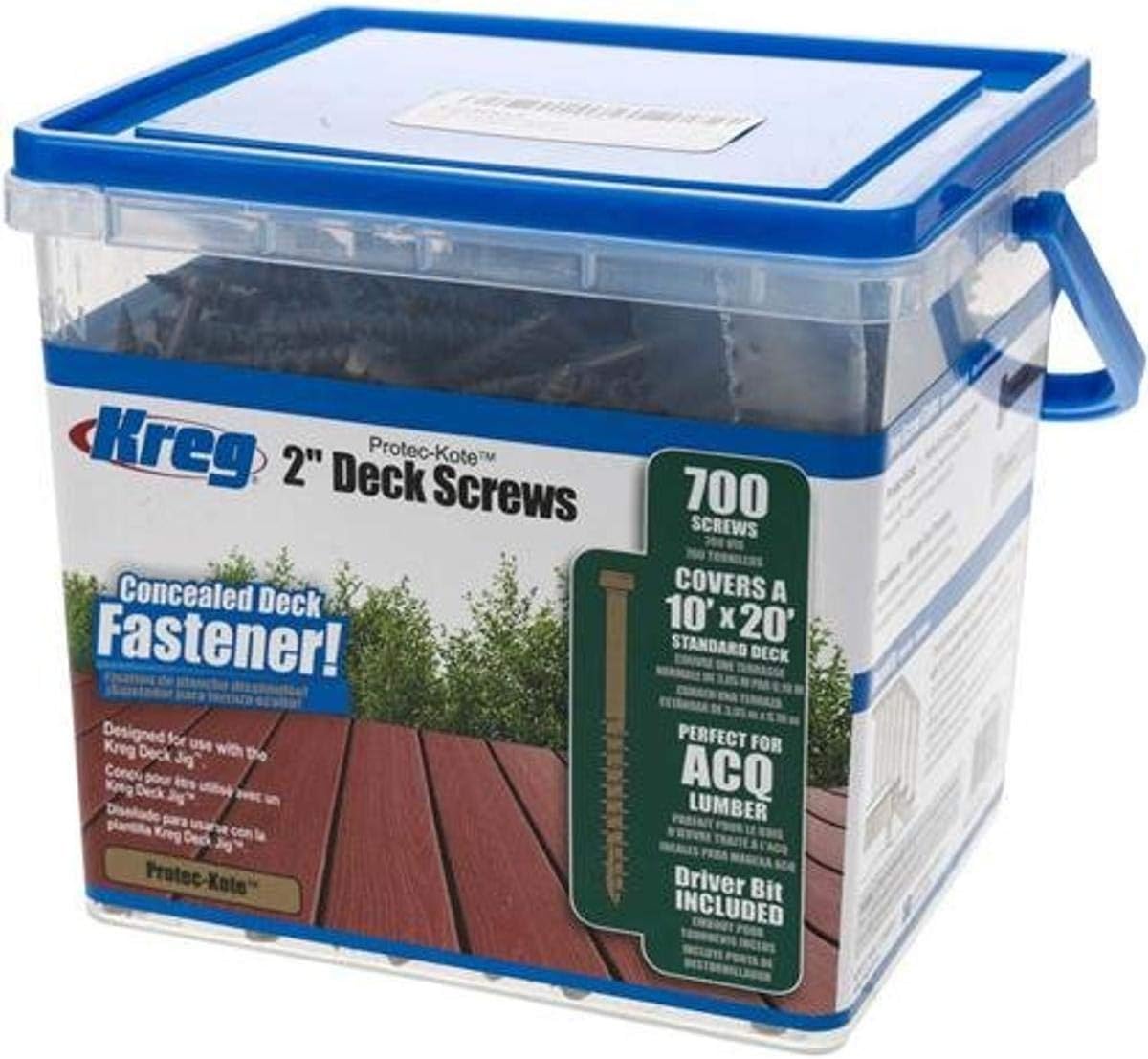

KREG SDK-C2W-700 2-Inch, #8 Coarse, Deck Screw, 700 Ct

From the Manufacturer

Kreg Deck Screws were designed specifically for use with the Kreg Deck Jig, and they can also be used as simple face-screws for a variety of outdoor projects. These screws feature a highly weather-resistant Protec-Kote finish which protects them from the elements.

• Kreg Deck Screws were designed specifically for use with the Kreg Deck Jig
• These screws feature a highly weather-resistant Protec-Kote finish which protects them from the elements
• Protec-Kote--Three weather-resistant layers protect against corrosion in a wide variety of decking applications
• 700 Screws
• Protec-Kote Finish highly weather resistant
• Flat bottom head creates secure hold, won't split the workpiece
• Self-Tapping tip drills a hole while it's driven
• KTX Square Drive provides incredible cam-out resistance, less spinning, more driving

User questions & answers

Question:	What's the difference between this and KREG SDK-C2SS-700 2-Inch, #8 Coarse, Stainless Steel Deck Screw, 700 Ct
Answer:	There are two versions of the Marksman Pro - the standard Marksman Pro which works on 2x6s but not 2x4s and the Marksman Pro NB which works on 2x4s not 2x6s. Redwood would be fine. I used cedar but either would be great. This is a very good fastening system for deck boards.
Question:	Can these be used in pressure treated wood
Answer:	Not straight in fastening. But would be possible to bond two 2x4's together by the tool by toe screwing them together
Question:	would these hold up on a fresh water lake side dock
Answer:	Yes I used the CAMO Marksman Pro-NB Toolfor my Ipe 3/4" x 3 1/2" boards. Worked great! I says it fits 3/4" x 3 1/4" to 1" x 5". It can do 1 1/2" thick too I beleive.
Question:	What is the square footage for a box of
Answer:	Yes, it will. The Pro-NB will work on boards from 3"-4 5/8", plus or minus 1/16". I just tried mine on some cedar fencing which is less the 3/4" thick, but it works fine with the short screws (1 7/8").

• Accurate and Multi-Angle -This cable railing drilling guide jig dowel allows you to drill 90 degree horizontal vertical straight hole and 45 degree angled hole for the wood railing post. The success of DIY cable railing projects depends on drilling straight and accurate holes. Now you can add a whole new level of accuracy with this drill guide jig when drilling railing post holes with your hand drill
• Visibility to position- The handrail drill guide is made of transparent acrylic with excellent visibility that you are easy to lock your selected position on the decking wood post which you want to drill hole
• Various hole sizes –This cable railing drill template guide jig offers 4 different size guide track holes (fit 3/16”,1/4”, 5/16”,3/8” drill bit), those are compatible with most cable railing kit hardware. The hole drilled by 1/4-inch drill fit most 1/8" cable railings lag screw
• Safe and easy operate-This handrail drill guide work with 6” woodworking F clamp no shaking and safer drilling angle 45 degree inclined hole and 90°horizontal vertical straight hole for 4”x4” posts and lager clamp for lager posts. Clamp the space rather than the bushing, otherwise it may not hold securely. F clamp is not included, please search 'F clamp', then choose a size larger than 8 inches.
• Portable-This drill guide for cable railing is light and small pocket carrying, compact and easy to carry

User questions & answers

Question:	Are there washers for the 45 degree angle with use of the kits that pass through the rail
Answer:	Yes

Product features

Save a bunch of money by drilling 45° holes for one post corner solution.

Accurate and multi-function

Accurate holes are essential for the cable railing system. The multifunctional drill jig can make the hole much more accurate, not only for 45° angle but also for the horizontal angle.

Transparent material

It’s high transparency and the edge make it easier to locate the position where you want to drill a hole.

Small & portable

It does not take up a lot of space, easy to carry and store for its compact size.

Product description

Drill Guide for Cable Railing Kit Lag Screw Fitting Wood Post Installation, Fit 90 Degree

Horizontal Deck and 30&45 Degree Angled Stair Railing, Aluminium 4 Kinds of

Holes Silver Drilling Template Jig



To install a great cable railing requires right tools and your patience,

we are sure you will complete your project successfully with this tool.



Choose premium aluminum alloy material with excellent surface oxidation treatment,

which has great performance on rust resistance, wear resistance and durability.



This cable railing drill template guide jig offers 4 different size guide track holes

(fit 3/16”,1/4”, 5/16”,3/8” drill bit), those are compatible with most cable railing kit hardware.

• ☞ Accurate and Multi-Angle - This cable railing drilling guide jig dowel allows you to drill 90 degree horizontal vertical straight hole and 30&45 degree angled hole for the wood railing post. The success of DIY cable railing projects depends on drilling straight and accurate holes. Now you can add a whole new level of accuracy with this drill guide jig when drilling railing post holes with your hand drill.
• ☞ Heavy duty material - Choose premium aluminum alloy material with excellent surface oxidation treatment, which has great performance on rust resistance, wear resistance and durability.
• ☞ Various hole sizes - This cable railing drill template guide jig offers 4 different size guide track holes (fit 3/16”,1/4”, 5/16”,3/8” drill bit), those are compatible with most cable railing kit hardware. The hole drilled by 1/4-inch drill fit most 1/8" cable railings lag screw.
• ☞ Safe and easy operate - This handrail drill guide work with 6” woodworking F clamp no shaking and safer drilling angle 30°&45° inclined hole and 90° horizontal vertical straight hole for 4”x4” posts and lager clamp for lager posts. F clamp is not included.
• ☞ Portable - This drill guide for cable railing is light and small pocket carrying, compact and easy to carry.

Product description

The Kreg Deck Jig helps you get the deck you want, without any unsightly exposed nails or screws Concealed-fastener system for installing deck boards Easy-grip handle gives you a secure hold and complete control over each and every joint Hardened-steel guides keep the stepped drill bit and driver bit at the precise, optimal angle Three lifetime-warranted, hardened-steel drill guides let you install deck boards in a variety of hard-to-reach areas Handy spacer rings ensure accurate deck board spacing for proper drainage and longer deck life Specifications Features: Installs concealed deck fasteners, Three hardened-steel drill guides Construction: Impact-resistant polymer, hardened steel Adjustability: Adjustable stop collars for 4/4, 5/4, and 2-by decking Capacity: 4/4, 5/4, and 2-by (1 1/2"-thick) decking material Includes: Deck Jig, Deck Jig Drill Bit, Deck Jig Driver Bit, Stop Collars, Hex Wrench, ¼" Spacer Rings, Owner's Manual KREG SDK-C2W SCREWS Kreg Deck Screws were designed specifically for use with the Kreg Deck Jig These screws feature a highly weather-resistant Protec-Kote finish which protects them from the elements Protec-Kote--Three weather-resistant layers protect against corrosion in a wide variety of decking applications Protec-Kote Finish highly weather resistant Flat bottom head creates secure hold, won't split the workpiece Self-Tapping tip drills a hole while it's driven KTX Square Drive provides incredible cam-out resistance, less spinning, more driving

• Bundle Includes: Deck Jig, Deck Jig Drill Bit, Deck Jig Driver Bit, Stop Collars, Hex Wrench, ¼" Spacer Rings, Owner's Manual and 1400 count 2-Inch 8 Coarse Deck Screws
• This bundle allows you to built a deck up to 20' x 20'
• The Kreg Deck Jig helps you get the deck you want, without any unsightly exposed nails or screws

Product description

The CAMO Edge Deck Fastening System is a fast, easy, and affordable way to install a fastener-free deck surface. Patented CAMO Edge Deck Screws have a rake tip that augers material out as you drive. The Pro-X1 Guide allows you to quickly install these screws through the edge of the deck board—not the surface. To use the Pro-X1 Guide, attach one of the included driver bits to your drill, load Edge Deck Screws on both sides of the Guide, and drive. It’s that easy! The built-in shoulder on the driver bit sets an automatic depth of drive which prevents over-driving the screw. The Pro-X1 Guide is ideal for treated lumber. It fits any 5-1/4 in. (133mm) to 5-3/4 in. (146mm) deck board and creates an automatic 1/16 in. (1.58mm) spacing which is perfect for the typical shrinkage that occurs in treated lumber.

• Pro-X1 Guide installs two patented CAMO Edge Deck Screws through the edge of the deck board—not the surface
• For exclusive use with CAMO Edge Deck Screws that auger material out to reduce splitting and cracking
• Attach included driver bit to your drill, load Edge Deck Screws on both sides of the Pro-X1 Guide, and drive
• Pro-X1 Guide is ideal for treated lumber
• Fits any 5-1/4 in. (133mm) to 5-3/4 in. (146mm) deck board and creates automatic 1/16 in. (1.58mm) spacing

User questions & answers

Question:	How to I secure the last plank butts to the wall
Answer:	This tool is no longer in production. The Marksman tools come either with a 3/16" spacer on both sides (Marksman Pro and Marksman Pro-NB), or a 1/16" spacer on both sides (Marksman Pro-X1).
Question:	I do not understand reviews which state the 1/16" spacer only goes on the back of the tool and the front is a fixed 3/16" spacer. Explain
Answer:	No this tool is not intended for grooved deck boards as those require a clip style hidden fastener. Search "CAMO Edge Clip" or "CAMO EdgeX Clips" to find the appropriate fasteners. Each bucket of clips comes with the Never Miss Guide that can be used to fasten down the clips or you can use the innovative "CAMO Drive" tool to fasten the clips while standing. Check it out!
Question:	Will this work with grooved composite deck boards
Answer:	This tool has a range of 5-1/4" to 5-3/4" in board width.
Question:	What width boards can this hold
Answer:	Not good in my experience. I built a project out of pine 2x4's and approximately 20 of 100 snapped on me. Very frustrating.

Product description

Smart-Bit Deck Screw Depth Setter is designed to make fastening decks, drywall, and general screw setting easier and faster, with clean and uniform results: perfectly set screws every time. The tool is adjustable so that it can be used with many different screw types and sizes, and features an Auto-Stop mechanism that sets the screw at the target depth without stripping the screw recess. A free-spinning stop collar with rubber O-ring protects the work surface from damage or marking. The Depth Setter works with both Phillips and Torx bits and is designed for use with a full range of Starborn fasteners. The Depth Setter also works well with other fastener products.

• Once target depth is reached, the Auto-Stop mechanism inside the tool disengages the driver bit
• Adjustable depth allows you to choose the depth needed for your job
• Stop collar's rubber O-ring prevents the tool from damaging the deck surface
• Perfect for decks and drywall - Works with star drive and Phillips drive bits
• Do NOT use with an Impact Driver

User questions & answers

Question:	It's magnetic? Hold screws
Answer:	I have to beg to differ with the previous 4 answers, as I believe the square drive is NOT recommended for this application (though a bit would surely fit).My guess is that a square drive will not release easily enough, and will over-drive the screw.Product DescriptionThe SMART-BIT Deck Screw Depth Setter easily sets face fasteners to the perfect depth every time, in every deck board. Achieve amazing consistency while face fastening deck boards and more thanks to this easily-adjustable depth setter tool. Works great with DECKFAST CAP-TOR xd Composite Epoxy Coated Steel Deck Screws and other Starborn star-drive products. **Not recommended for use with square-drive products.Note: Designed to work with a drill drive, not intended for use with an impact screw driver.
Question:	What is range of depth that can be set
Answer:	Sorry that currently we don't have 45 degree angled washers. We only have 30 degree and 35 degree ones.
Question:	Will this product work with #2 square drive
Answer:	Yes it’s a great idea and will work

Product description

Kreg Deck Screws were designed specifically for use with the Kreg Deck Jig, and they can also be used as simple face-screws for a variety of outdoor projects. These screws are made from a highly weather-resistant Stainless Steel, providing the ultimate protection against rust and corrosion.

• 700 Screws
• Stainless Steel for the highest possible rust and corrosion resistance
• Flat bottom head creates secure hold, won't split the workpiece
• Self-Tapping tip drills a hole while it's driven
• KTX Square Drive provides incredible cam-out resistance, less spinning, more driving

User questions & answers

Question:	What's the difference between this and KREG SDK-C2W-700 2-Inch, #8 Coarse, Deck Screw, 700 Ct
Answer:	Clear
Question:	In what country are Kreg screws made
Answer:	Hey there, the only difference is that this product contains two refill pouches, while the other contains one refill pouch.
Question:	What grade of stainless steel are they
Answer:	Great question! The ingredients are: 3-bromo-1-chloro-5,5-dimethylimidazolidine-2,4-dione (bleach), 1,3-dichloro-5,5-dimethylimidazolidine-2,4-dione (bleach), 1,3-dichloro-5-ethyl-5-methylimidazolidine-2,4-dione (bleach), Sodium chloride (process aid).

Product description

The Kreg 2-5/8 Deck screws are designed to work with the Kreg Deck Jig System on 2X decking materials. These screws can also be used as a general fastener on thicker materials.

• These screws are coated with the Protec-Kote weather resistant material
• Protec-Kote-Three weather-resistant layers protect against corrosion in a wide variety of decking applications Recommended for ACQ treated lumber
• Using the Kreg Deck Jig on 2X and thicker decking materials requires special instructions These can be downloaded at kregtoolcom/2x
• 525 Count

User questions & answers

Question:	Will these work on screwing wood to metal
Answer:	Dear Amazon Customer, Yes, green/new deck wood boards will shrink, but all depend on: 1. What kind of deck board you use? 2. What is the shrinkage rate/range of your deck boards? 3. When you install? Summer (shrinkage in winter)? Winter (small or no shrinkage in winter, but might expand a bit in summer)? 4. How wide you want the gaps will be? 5. Consult with your deck wood vendor and do the math to have the final decision of our "Myard Deck Board Jig Spacer". Hope this helps. Thank you for your question and interest. PayandPack stores
Question:	what type if bit shape do they use
Answer:	The tongue on the Kreg Deck Jig Spacer is .9" deep.
Question:	Where are the stainless version of these available
Answer:	They are made of plastic,,, mostly will float!!!!!
Question:	Will these screws work with Composite decking
Answer:	Plastic. The handle is the spacer, which is removable. You can lay it on top of the board and line up to use as a template.

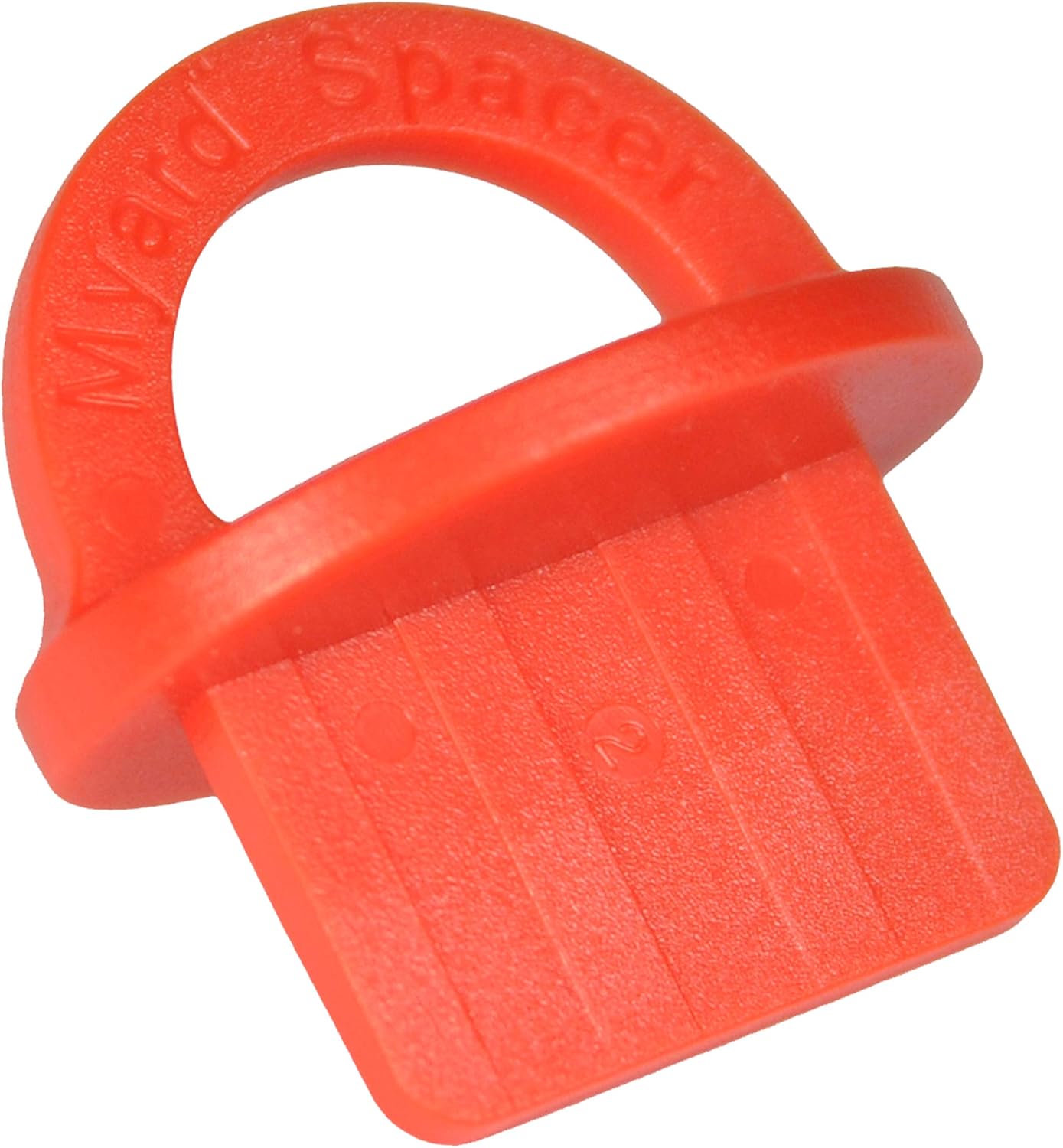

• ▼ This listing: Red, 1/8" (3.2mm) spacing. ▼ Other options: Red 1/8", Orange 5/32", Yellow 13/64", Green 1/4", Blue 5/16" or MIX Pack (4 pcs of each size).
• ▼ Place spacers between installed and uninstalled deck boards to unify the spacing gaps, pull out spacers after installing each board. Useful tools for your decking project !
• ▼ Durable, bright-colored plastic for easy finding the right spacer size. ▼ Unique circular corners + blade slice design for no denting and marring to deck boards.
• ▼ 20 pieces in box for long spans decking. ▼ Included plastic box with lid and carrying handle for easy storage.
• ★★★ More Myard decking products: 2"x4" Railing Connectors, 4"x4" Post Base, 4"x4" Post Caps...

User questions & answers

Question:	Are these used only for composite decks? Wood deck planks shrink as they dry. Using these would make the spacing too wide
Answer:	The Kreg Deck Jig will work with 1 1/2" thick material. You will simply want to use the 2 5/8" Kreg Deck Screws.

Product features

Deck Post Base Cover Skirt Flange with Screws (4x4 and 6x6 inches)

▼ 2 sizes options: 4"x 4" post (actual 3.5"x 3.5" dry post on market) ; 6"x 6" post (actual 5.5"x 5.5")

▼ Perfect for deck supports, porch railing, handrails and post holders. Also, can be used as table leg / mailbox post support brackets.

▼ Sanding / trimming may be required depending on post type and little size error.

▼ POST HEIGHT LIMIT: 60" (5-feet), NOT for roof support ▼

▼ Made from paintable durable High-Strength Nylon + Anti-UV + FRP (Fiber Reinforced Plastic). NO fading, aging, and weakening from sun exposure. UV-resistant.

▼ Stainless Steel 304 screws are included: 8 short screws (installed horizontally) to post. 12 long screws (vertically) to deck floor board.

▼Thicker & higher post base bottom for better structural strength on decks.

▼ Clean contemporary style. Re-designed for better looking. Fast & easy post installation in minutes.

Deck Foundation Block for 4x4 Inches posts and 2x4 lumber stud joists

▼ QUICK BUILD: Stackable & light. Easy & instant to ship, carry, position and install. Only weights 2 LBs/each, replaces heavy concret (50 LBs).

▼ APPLICATION: Quick foundations for home improvement projects such as deck, garden shed, landing, walkway, BBQ area, poolside, cubby house, dog shelter and more.

▼ CAPACITY: Each block designed to support up to 1700 LBs. Bigger bearer footing pad size 12"x12".

▼ COMPATIBILITY: Four way recess to accept standard 2"x4" (actual 1.5"x3.5") lumber stud joists; Accepts 4"x4" (actual 3.5"x3.5") or 100x100mm posts.

▼ OPTIONAL HOLES: 5 holes on top platform for wood screws; 4 holes at corners for ground anchors.

▼ QUALITY MATERIALS: 100% New Polyamide #66 engineering plastic used + Glass fiber reinforced + High rating Anti-UV added.

▼ NOTICE: It is recommended to check your local building guidelines / code before starting your project.

▼ Not for post or beam go tight into a corner.

Deck Railing Connectors with Screws for 2x4 (Actual 1.5x3.5) Inches Stair Wood Handrail

▼ Includings: 1 pairs (equals 2 pcs) of deck rail bracket connectors, 12 pcs black coating Stainless Steel #304 screws.

▼ Easily and accurately install the 2"x4" railing (actual 1-1/2" x 3-1/2") to post at 90 degrees. Stair railing connectors are also available.

▼ Sanding / trimming may be required at railing ends' corners and edges due to wood external size error.

▼ Myard Railing Connector works on wood and composite railings.

▼ Upgraded materials: Nylon + Fiber + Anti-UV. 2 times more durable than normal ABS, PP... products.

▼ Color options: Black, Red.

▼ Each connector 4 holes at side for installing railing to post with 4 screws at 30 degrees (weight capacity 50% more).

Deck Screw-Free Universal Fence Pyramid Top Cap fits Post 4 x 4 Inches (Actual Post Size 3.5 x 3.5)

▼ *** IMPORTANT: Fits standard posts of 4x 4 (actual 3.5"x 3.5") inches. See images, or ask us if any questions before ordering. Thanks.

▼ Matte/fog surface on top; Matte/fog surface on bottom base.

▼ 5 holes at bottom base for gluing on 4"x 4" post. (see images)

▼ Screw-FREE (Nail-FREE) installation. ONE-PIECE structure, solid and durable. Pack of 1. Sanding / trimming may be required depending on post type and little size error.

▼ Made from HIGH impact, UV stable (anti-UV) ABS resin. Same as Golf Course Sprinkler head.

Iron Steel Balusters for Deck Railing Handrail Porch

• Classic Round - (diameter: 3/4"), in Length 26", 29", 32", 36"
• Estate Square - (cross section: 3/4" x 3/4"), in Length 26", 29", 31", 32", 42"
• Estate Square Facemount - (cross section: 3/4" x 3/4"), in Length 31", 42"
• Large Classic Round - (diameter: 1"), in Length 26", 29", 32", 36"
• Large Estate Square - (cross section: 1" x 1"), in Length 26", 29", 32"
• Traditional Rectangle Facemount - (cross section: 1" x 1/2"), in Length 26", 29", 32", 36"
• Straight Flat - (cross section: 1" x 1/8" solid), in Length 29-1/2", 32-1/4"
• Baroque Curve - (cross section: 1" x 1/8" solid), in Length 32-1/4"
• Arc Curve - (cross section: 1" x 1/8" solid), in Length 32-1/4"

Product description

This durable hardened steel driver bit is designed for exclusive use with the Kreg Deck Jig. It features a quick-change compatible shank and a magnetic tip. Depth collar and allen wrench included.

• Hardened Steel for long life
• Quick Change Hex Shank
• No. 1 Square Drive
• Magnetic Tip
• Included Depth Collar and Allen Wrench

User questions & answers

Question:

does Kreg's make a T-15 drive bit for the deck jig

Answer:

I'm not sure I understand the question. The screws are flat-head, so they won't protrude, and they are chrome in color, and of course they have the Philips head markings on them so they can be screwed in. I'm not sure what you mean by "clean," however. I have ordered them myself, and they are not "dirty," if that's what you're asking! The question you need to ask is what is the proper length and gauge for the work you're doing.

Product description

1 Year Warranty: Johnson Level warrants this product against defects in material and workmanship for one year after the confirmed purchase date. At its option, the company will replace or repair the product if it fails under normal use.

The Johnson Level & Tool Deck-Mate Board Spacing Tool evenly spaces dry or "green" deck lumber without falling through cracks. It is ideal for use with polymer decking, which requires accurate spacing. The spacing tools is built for durability and easy use, with a high-impact plastic body and easy-to-read 1/8- and 3/16-inch spacer edges. It includes a nail/screw layout guide for 2-by-6-inch or 2-by-4-inch decking. It is covered by a 1-year limited warranty.

From the Manufacturer

Durable, high-impact plastic body. 1/8 In. or 3/16 In. spacer edges. Nail/screw layout guide for 2 In. x 6 In. or 2 In. x 4 In. decking. Evenly spaces dry or green deck lumber.

• Spacing tool ideal for accurately laying decking
• Evenly spaces dry or green deck lumber; ideal for use with polymer decking
• High-impact plastic body
• Includes nail/screw layout guide
• 1-year limited warranty

User questions & answers

Question:	Will it work on 5/4 lumber
Answer:	It's about 1 1/8".
Question:	Is this tool useful even if using concealed fasteners
Answer:	It’s just a spacer. You can drive screws with it in place but not through the spacer. You then need to pry it out and move on. I found it helpful especial with longer deck boards that were not perfectly straight.
Question:	What is the distance form the edge of the bord and the center of the hole where the screw goes
Answer:	I haven't used mine for a while so i checked and no it is not... I used the device to install Trex on my deck and the screws were long enough that I could hold the screw to start it. Hope this helps. Wes
Question:	Can you drive deck screws through this or does it need to be removed before driving the screw in
Answer:	It is from 0 (flush) to about 3/16" deep. The density of the wood will affect

Product features

Johnson Level & Tool 60-275 DeckMate Deck Plank and Fastener Spacing Gauge

The Johnson Level & Tool Deck-Mate Board Spacing Tool evenly spaces dry or green deck lumber without falling through cracks. It is ideal for use with polymer decking which requires accurate spacing. The spacing tools is built for durability and easy use with a high-impact plastic body and easy to read.

It includes a nail/screw layout guide for 2-by-6-inch or 2-by-4-inch decking. Deck Mate - Deck Board Spacing Tool Durable ideal for use with polymer decking High-impact plastic body.high-impact body.

About Johnson Level & Tool

With more than 70 years of developing solutions to help professional tradesmen do their work more accurately, more quickly and more reliably, Johnson brand products are most trusted by professionals worldwide. Over the years, we have built a comprehensive portfolio of leveling, marking and layout tools, which includes construction grade lasers, levels and squares.

In addition, Johnson is positioned to offer a broad spectrum of laser distance measures, measuring wheels, digital measuring tools, and digital levels and protractors. Like every product we supply, Johnson brand products are designed to offer a high quality tool that represents the highest value product available anywhere. Johnson has a reputation for exceptional service, education and everyday dependability to exceed expectations for quality and service.

Product description

Production Process

Inclined hole locator can be convenient to connect the panels. At the same time hide the screws to maintain the beautyl

1)Insert the woodworking drill into the main body, adjust the distance of the drill bit, install the limit ring

2)The positioner is clamped to the top of the main plate, and the plate and the positioner are clamped together with an F clamp

3)The electric drill must be confirmed to rotate in the forward direction and cannot be drilled in the reverse direction. The electric drill is recommended to be adjusted to more than 1500 rpm. Do not drill at a low speed. When drilling, the speed must be pressed down at a constant speed.

4)Choose the right screw.



Convenient to use

Convenient and easy for quick drilling inclined holes to hide the screws in wooden furniture. Mini size - one hand can be grasp, DIY carpentry tools &2-ways oblique holes for accurate screw joints. Made of solid aluminum, not rust or break, this is the last pocket hole Jig of you'll need.

15 Degree oblique hole locator: help you drill an oblique hole easily, you can make perfect joints.

Sharp knife head with perfect performance, can work smoothly without burr, and helps to improve work efficiency.

Use with A F Clamp Or C Clamp and Drill Bits to create those perfect woodworking holes to create or repair wood joints



Pocket Hole Jig Material: Carbon steel (drill and ring), aluminum (locator)

Type: Inclined Hole Drill Bit

Quantity: 14 PCS

Color: Blue/silver

Angle: 15 degrees

Oblique Hole Size: 6/8/10mm

Drill diameter: 6mm, 8mm, 10mm

Positioner size: 67*38*18cm

Stoppers Size: 6mm/8mm/10mm

Sleeves Size: 6mm/8mm/10mm

DIY Supplies: Woodworking



Package Includes:

1 x Drill Guide

3 x Drill Bits (6mm/8mm/10mm)

3 x Stoppers (6mm/8mm/10mm)

6 x Sleeves (6mm/8mm/10mm)

1 x Hex Key

• 【MULTIPURPOSE】：The mini pocket fixture is very suitable for DIY household projects or professional and general commercial purposes. Must have tools for constructing train tables, workbenches, entrance kitchenware, bookcases and dressing tables. Sharp knife head with perfect performance, can work smoothly without burr, helps to improve work efficiency.
• 【DOUBLE POCKET】： Dual Pocket 15°Drill Angle, 2-way hole, can realize precise screw connection, and embed screws to realize invisibility. Allows you to easily hide screws/fasteners.
• 【3 SIZES DRILL BITS】：Easily convert between pairs of 6/8/10mm drill drive adapters to adapt to any wood type, position and angle. It fits well with plugs and sleeves of corresponding sizes.
• 【CONVENIENT TO USE】：Drill inclined holes quickly and easily to hide screws in wooden furniture. Minimum size-can hold one hand, DIY woodworking tools and 2-way inclined holes for precise screw connection.
• 【KIT】：Pocket hole jig comes with pocket hole jig, 3 sizes drill (6/8/10mm) ,3 sizes stoppers (6/8/10mm), 3 sizes sleeves(6/8/10mm).Work with A F Clamp Or C Clamp (Not Included) and drill bits to create accurate woodworking holes to create or repair wood joints.
