12 best bevel gear set
Bevel gear sets are a crucial component in power plant driveline systems, especially in situations where the power needs to be transferred between non-parallel or intersecting shafts. These gear sets are designed to transmit power and motion between two shafts that are typically positioned at an angle to each other. They are commonly used in power plants for various applications, including speed reduction, torque multiplication, and changing the direction of rotation.
Key characteristics and information about bevel gear sets in power plant driveline systems include:
Types of Bevel Gears:
- Straight Bevel Gears: These gears have straight teeth and are used when the shafts intersect at 90 degrees.
- Spiral Bevel Gears: These gears have spiral-shaped teeth and are preferred for smoother and quieter operation, especially at higher speeds and under heavy loads.
Applications in Power Plants:
- Speed Reduction: Bevel gear sets are often used to reduce the rotational speed of high-speed turbines and generators to match the desired speed for other equipment or the electrical grid.
- Direction Change: They are used to change the direction of rotation in driveline systems, ensuring that power is transferred efficiently from one component to another.
- Torque Transmission: Bevel gears can also multiply torque, allowing power plants to efficiently transmit high levels of torque to various components.
Efficiency and Lubrication:
- Proper lubrication is critical to minimize wear and friction in bevel gear sets, ensuring their efficient operation.
- Design and maintenance considerations focus on maximizing the gear set's efficiency to minimize energy losses and optimize power transfer.
Maintenance:
- Regular inspection and maintenance of bevel gear sets are essential to ensure their long-term performance and reliability.
- Inspections may include checking for wear, alignment issues, and lubrication levels.
Materials and Durability:
- Bevel gears are typically made from materials like steel or alloy steel to withstand the high loads and stresses encountered in power plant applications.
- Proper material selection and heat treatment processes are essential to enhance durability and longevity.
Noise and Vibration Control:
- In power plants, noise and vibration control are critical. Spiral bevel gears are often preferred because they generate less noise and vibration compared to straight bevel gears.
Design Considerations:
- Bevel gear sets are designed to handle specific loads, angles, and speed requirements, and their design must consider these factors to ensure safe and efficient operation.
In summary, bevel gear sets are indispensable components in power plant driveline systems, facilitating the transmission of power, changing the direction of rotation, and controlling speed and torque.Proper design, materials, lubrication, and maintenance are essential for their reliable and efficient performance in power generation facilities.
Below you can find our editor's choice of the best bevel gear set on the market

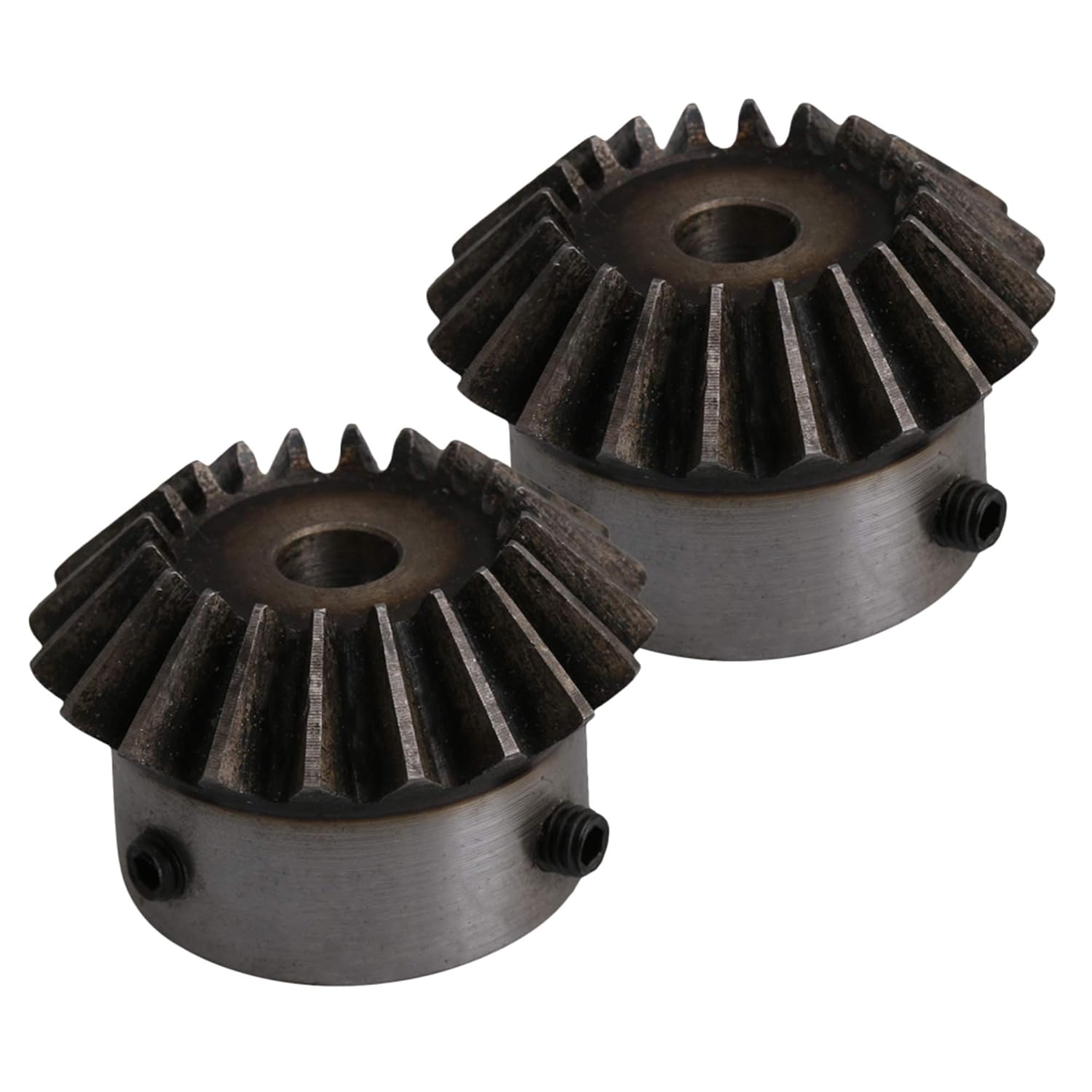

CNBTR 45 Steel 1.5 Modulus Silver 8mm Hole Diameter Tapered Bevel Gear Wheel 20 Teeth Pack of 2
- Made of 45 steel with high wear-resistance, strong and durable.
- Tapered Bevel Gear Wheel, 1.5 Modulus, 20 teeth, 8mm hole diameter.
- Used widely in conveying, agricultural equipment, textile machinery, printing machinery, automotive applications, etc.
User questions & answers
| Question: | Mine did not come with the set screws. Should it come with the screws? If not, what size do I need |
| Answer: | Set screws are very cheap. To make sure on the size of the screws, just take the gears to your local hardware store (such as ACE) and they will give you the right size. |
Yibuy 2PCS 2 Modulus 20 Teeth 14mm Hole Dia 90 Degrees Tapered Bevel Gear
Product description
Features:
1.Each item is qualify checked with a unique Manufacturing Part Number label on
the inner package,in order to confirm if it is authentic item sold by our store.
2.Any question,please contact and send us the MPN label information.
3.Made of 45# steel with high wear-resistance, strong and durable.
4.Tapered Bevel Gear Wheel, 2 Modulus, 20 teeth, 14mm hole diameter.
5.Widely use in conveying, agricultural equipment, textile machinery, printing machinery, automotive applications, etc.
6.Description: 1:1 bevel gear wheel can only used with 1:1 gear wheel, and can not match the other modulus of teeth. 90 degrees
7.Scope of application: for all kinds of mechanical transmission occasions.
Specifications:
Material: 45 # steel
Color:Silver+Black
Modulus: 2 mode
Number of teeth: 20T
Hole Dia: 14mm/0.55 inch
Height: 27mm/1.06 inch
The largest outside diameter: 42mm/16.53 inch
Fixed way: M5 screw side fixed
Brand name: Yibuy
Weight:254 g
Package include:
2x Bevel Gears
- Made of 45# steel with high wear-resistance, strong and durable.
- Tapered Bevel Gear Wheel, 2 Modulus, 20 teeth,14mm hole diameter.
- Widely use in conveying, agricultural equipment, textile machinery, printing machinery, automotive applications, etc.

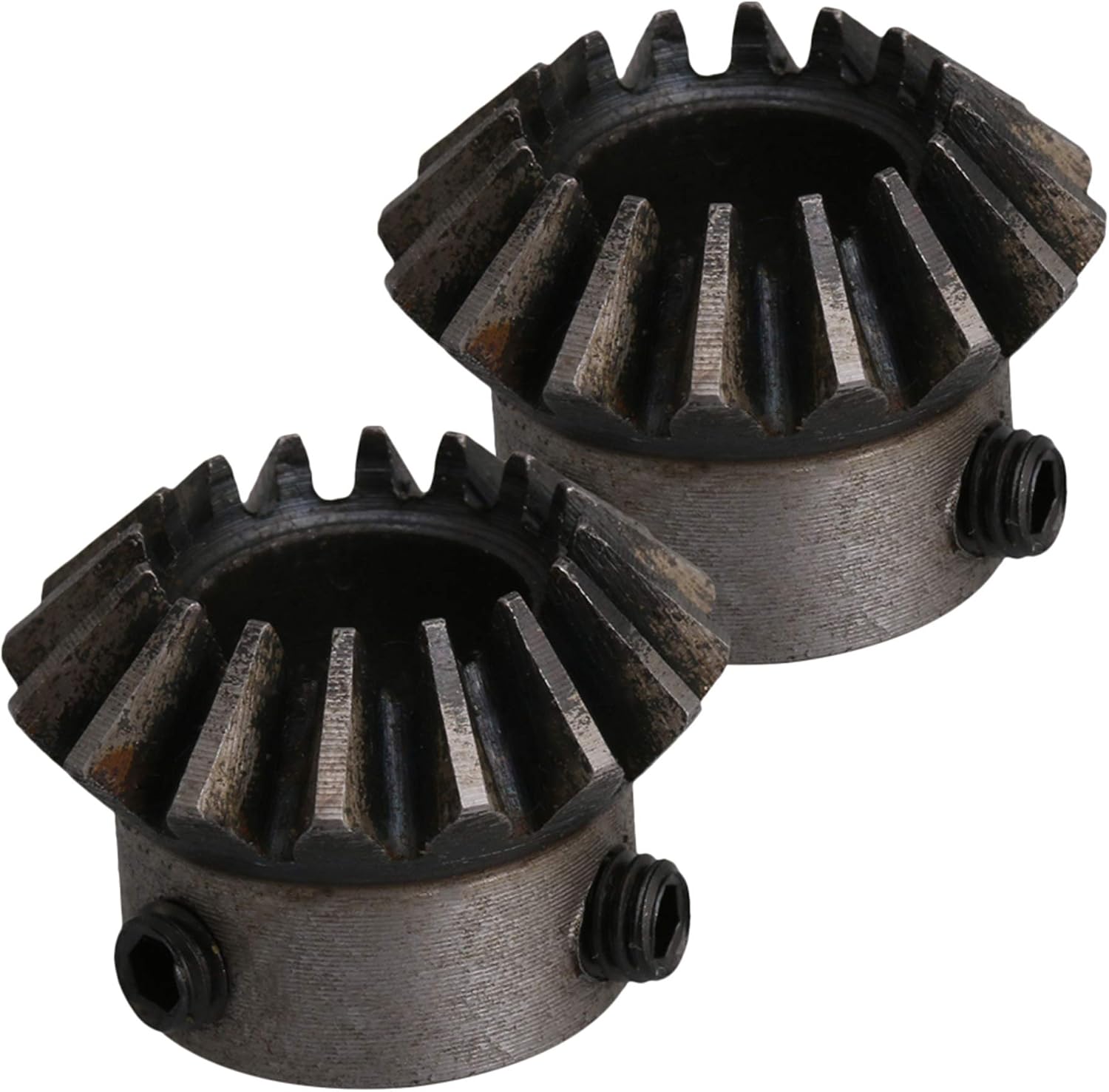

CNBTR Tapered Bevel Pinion Gear 12mm Hole Diameter 45# Steel 1.5 Module 16 Teeth Pack of 2
- Made of 45# steel with high wear-resistance,strong and durable.
- Lower contact ratio between gears, higher load capacity.
- It only can fit for 1.5 module gear,16 teeth,90 degrees,12mm Hole Diameter.
- Suitable for used in agricultural equipment, textile machinery, printing machinery, Mechanical transmission, etc.
- Note:1 to 1 bevel gear (only 1 to 1 match, can not match with other modules and other number of teeth)
User questions & answers
| Question: | anyone used these for a drill press extension |
| Answer: | i have plans from woodsmith for a drill press table and this is the size gear i haven't built it yet |
| Question: | I was searching for a replacement gear for my porter cable saw part number 5140082-09 and this part came up in the search. Is it compatible |
| Answer: | I would be cautious about using this part to replace a gear set in a power tool. The precision and strength (hardness) are unlikely to be adequate. Better to go back to Porter Cable for OEM parts. |
Product features
Specifications
Teeth: 16 teeth
Hole diameter: 12mm
Height: 18mm
The biggest diameter: 26mm
Material:45# steel
Color:Silver Black
Brand name: CNBTR
Size: 2.6x1.8cm/1.02x0.71 inch(Dia x H)
Fixing method: M5 screw side fixing
Weight: 51g
Note
1 to 1 bevel gear (only 1 to 1 match, can not match with other modules and other number of teeth)
Package include
2 x Bevel Gears Wheel

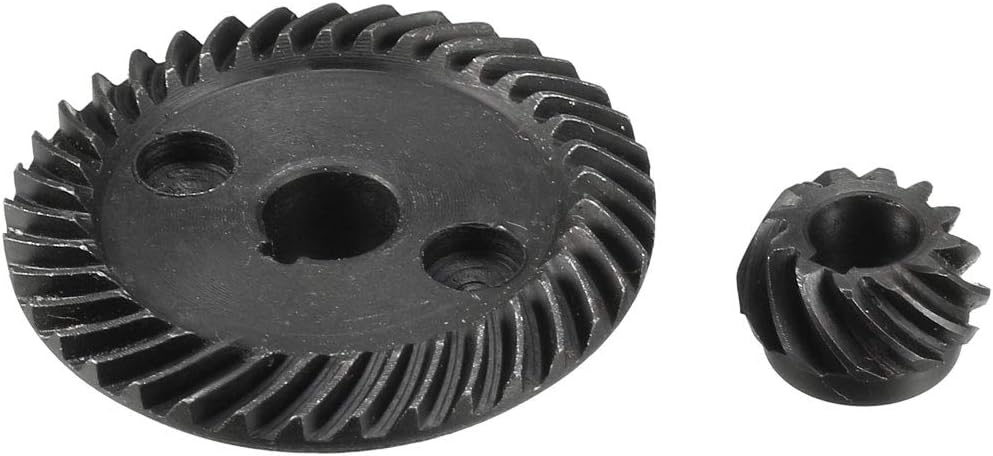

uxcell Metal Spiral Bevel Gear Set for Makita 9523 Angle Sander
Product description
Made of metal material, feature spiral teeth. Bevel gears are useful when the direction of a shaft's rotation needs to be changed. Great replacement for the Makita 9523 Angle Sander broken gear wheel. Non-OEM product. Makita 9523 Angle Sander is not include here.
- Product Name : Spiral Bevel Gear;Fit for : Makita 9523 Angle Sander (Non-OEM,Not Include Here)
- Material : Metal;Ring Gear Size : 46 x 15mm/ 1.8" x 0.59" (Max.Dia*T)
- Fit for Shaft Diameter : 10mm/ 0.39";Pinion Gear Size : 18 x 12mm/ 0.7" x 0.47" (Max.Dia*T)
- Fit for Pinion Shaft Diameter : 8mm/ 0.31";Color : Dark Gray
- Weight : 75g;Package Content : 1 x Spiral Bevel Gear Set for Makita 9523 Angle Sander
User questions & answers
| Question: | how many teeth has this gear wheel |
| Answer: | My order got lost (after it arrived) sorry can't help but the total size is about 3.5" |
| Question: | What is the diameter of the inner circle |
| Answer: | 34mm |

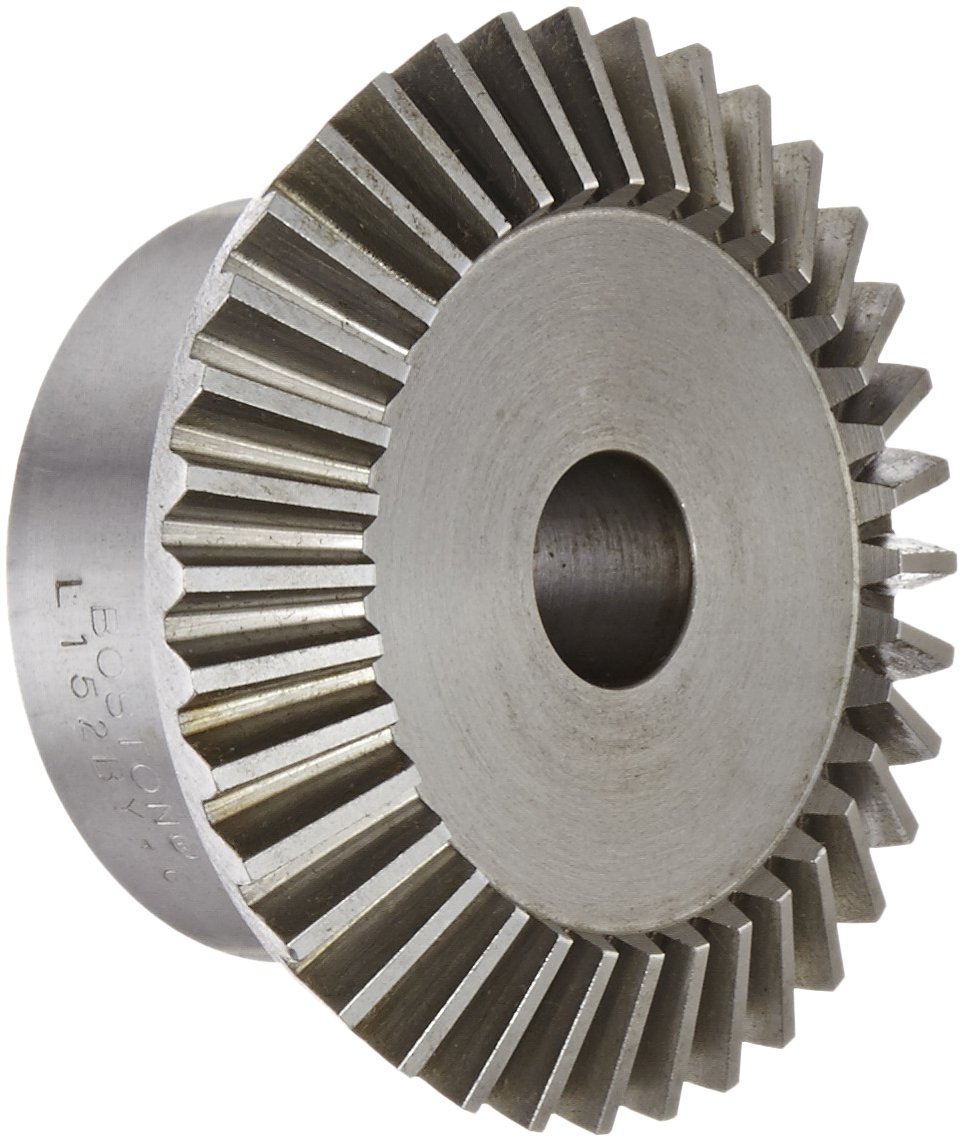

Boston Gear L152BY-G Bevel Gear, 2:1 Ratio, 0.625" Bore, 12 Pitch, 36 Teeth, 20 Degree Pressure Angle, Straight Bevel, Steel
Boston Gear
Product description
- 36 teeth for use with L152BY-P mating bevel gear in 2:1 gear ratio applications
- Straight bevel 90 degree mesh transmits mechanical power between perpendicular shafts
- Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
- Low carbon steel (0.2 percent carbon) for applications where the hardness and strength of higher levels of carbon are not needed to transmit torque and motion
- Unhardened teeth for applications where hardness and strength are not needed to transmit torque and motion
User questions & answers
| Question: | What diámetros is this ithem |
| Answer: | Outside Diameter: 3.05 in Bore Size: 0.63 in Pitch Diameter: 3.00 in Mounting Distance: 1.88 in Diametrical Pitch: 12 Ratio: 2:1 |

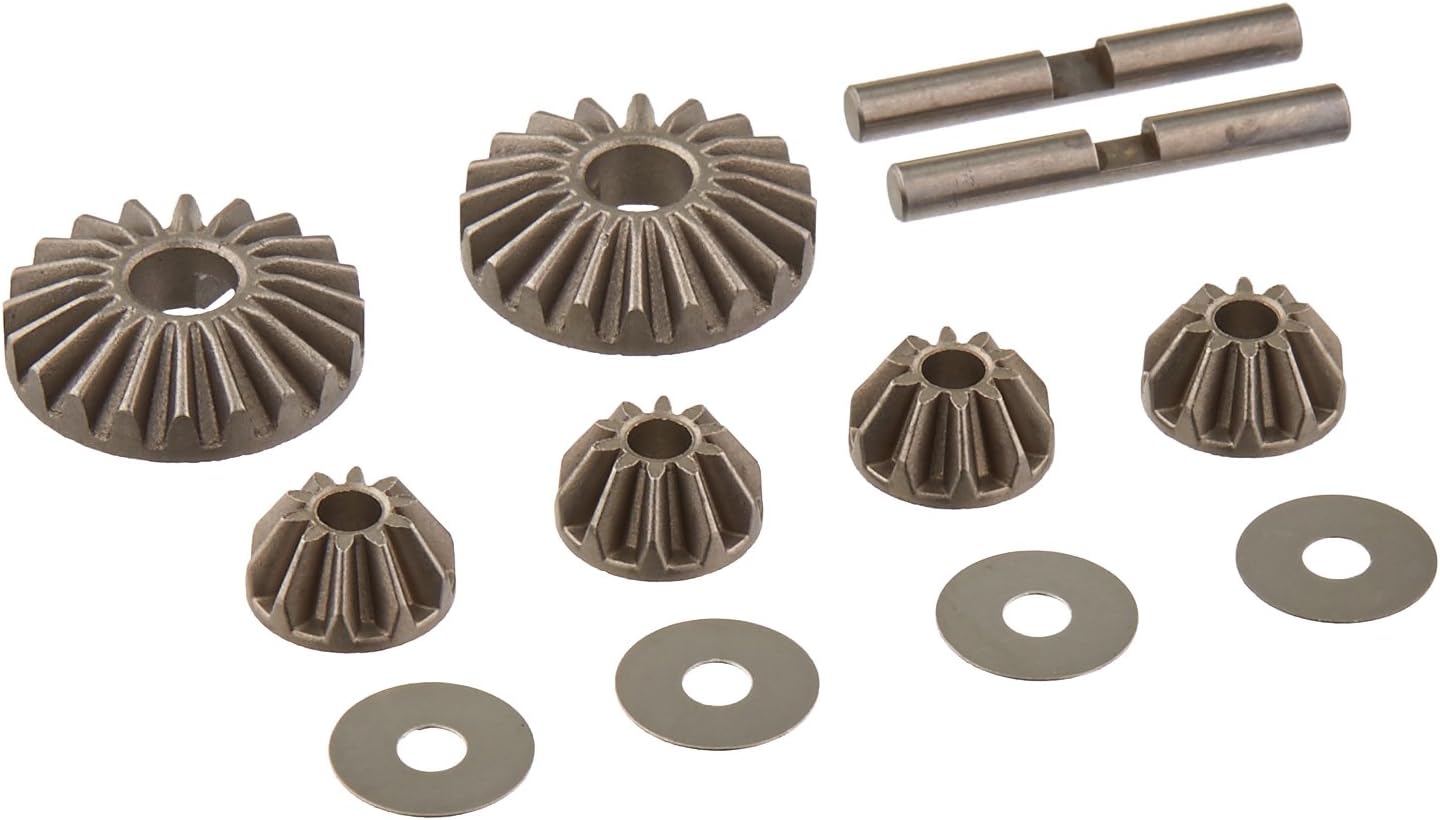

Losi Front/Rear Diff Bevel Gear Set:LST/2,:LST3XL-E, LOSB3538
Losi
Product description
Losi Front/Rear Diff Bevel Gear Set: LST/2, LST 3XL-E, LOSB3538
- Product Type: Toys And Games
- Package Dimensions: 9.144 L X 7.62 W X 1.524 H (Centimeters)
- Package Weight: 0.022 Kilograms
- Country Of Origin: Taiwan, Province Of China
User questions & answers
| Question: | Are these plastic or metal |
| Answer: | Metal |
| Question: | Does this fit the losi lst xxl 2 electric |
| Answer: | Yes |
| Question: | Does this fit 1/18 scale |
| Answer: | No, it of the 1/8 scale Losi. This would be to big on a 1/18 scale rc car. Unless you did a major modification to the differential. |
| Question: | Is this just for the front or rear or both |
| Answer: | Front, rear and center I use it for all of them unless I need a whole new rebuild kit with a new casing. |

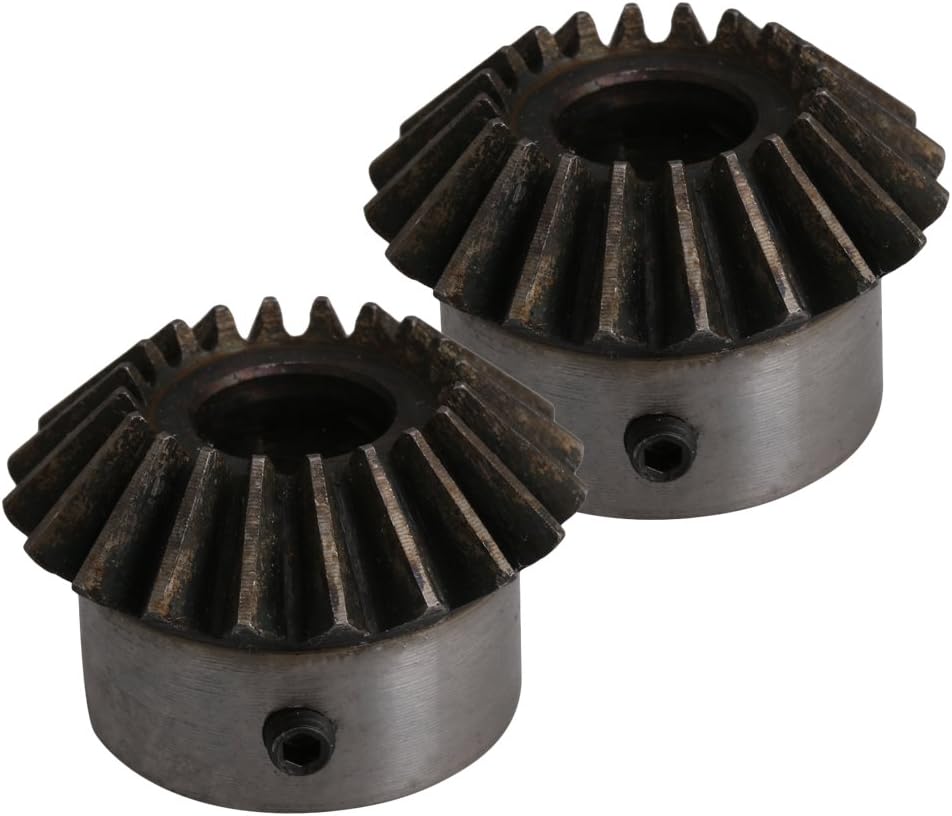

CNBTR Bevel Miter Gear 90 Degrees Tapered 2 Module 20 Teeth 8mm Hole Dia Wheel Pack of 2
yqltd
Product description
Note: This product does not contain screws.
Specifications:
Material: 45 # steel
Color:Silver+Black
Modulus: 2 mode
Number of teeth: 20T
Hole Dia: 8mm/0.31 inch
Height: 27mm/1.06 inch
The largest outside diameter: 42mm/16.53 inch
Fixed way: M5 screw side fixed
Brand name: CNBTR
Weight:299 g
Features:
1.Lower contact ratio between gears, higher load capacity.
2.It only can fit for 2 module gear,20 teeth,90 degrees,Hole Dia 8mm.
3.Note:1 to 1 bevel gear (only 1 to 1 match, can not match with other modules and other number of teeth)
4.Suitable for used in agricultural equipment, textile machinery, printing machinery, Mechanical transmission, etc.
5.Made of 45# steel, high wear-resistance,longtime use.
Package include:
2 x bevel gears wheel
The unique MPN label on each inner package, which confirm it passed the quality inspection and it is genuine item sold from our shop. Please offer it to us when you need assistance.
- Note: This product does not contain fixing screws.
- Lower contact ratio between gears, higher load capacity.
- Suitable for used in agricultural equipment, textile machinery, printing machinery, Mechanical transmission, etc.
- Made of 45# steel, high wear-resistance,longtime use.
- Note:1 to 1 bevel gear (only 1 to 1 match, can not match with other modules and other number of teeth)

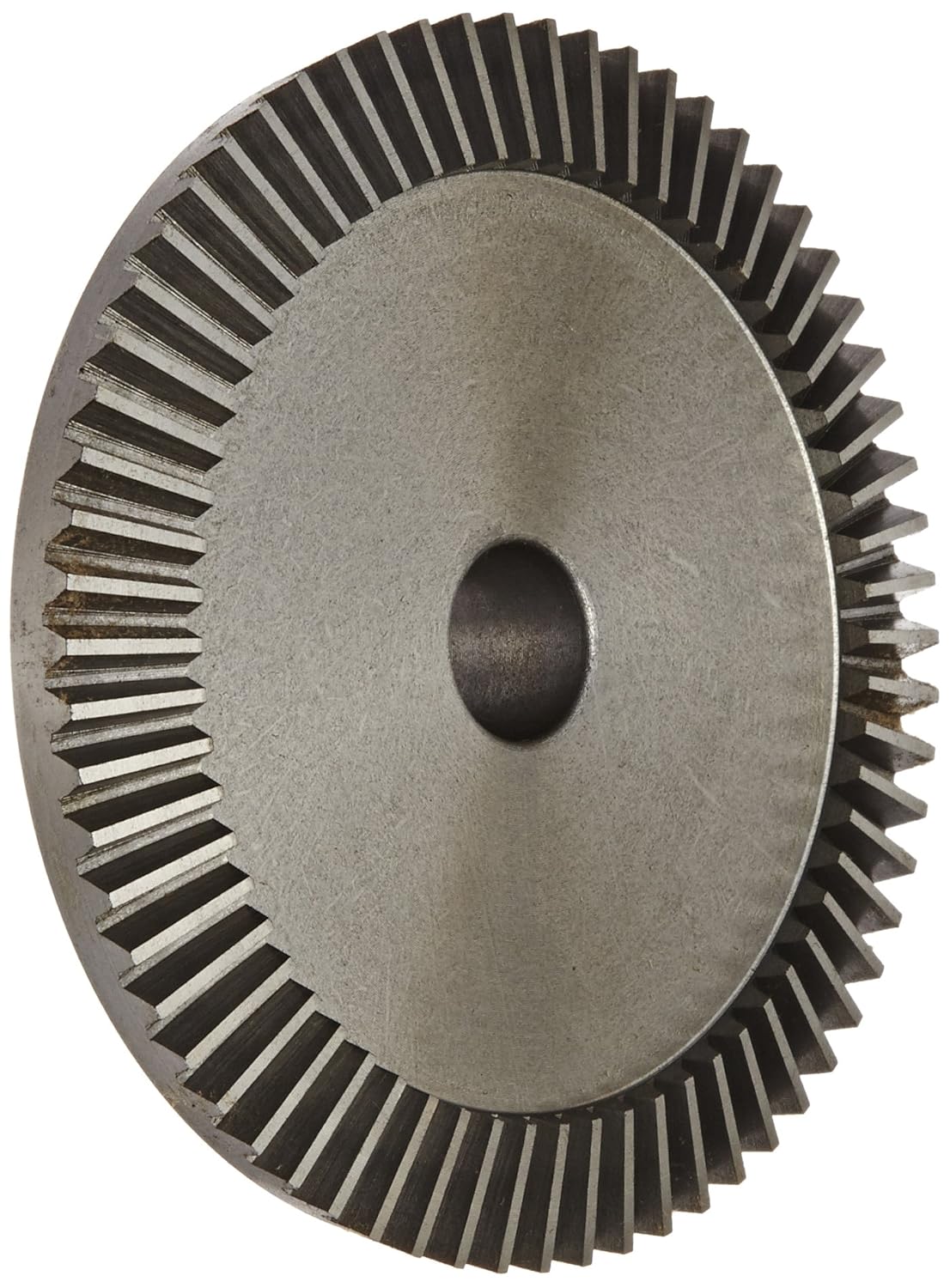

Boston Gear PA4416Y-G Bevel Gear, 4:1 Ratio, 0.625" Bore, 16 Pitch, 64 Teeth, 20 Degree Pressure Angle, Straight Bevel, Cast Iron
Boston Gear
Product description
- 64 teeth for use with PA4416Y-P mating bevel gear in 4:1 gear ratio applications
- Straight bevel 90 degree mesh transmits mechanical power between perpendicular shafts
- Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
- ASTM A48 Class 30 gray cast iron for resistance to wear, corrosion, and galling
- Unhardened teeth for applications where hardness and strength are not needed to transmit torque and motion
User questions & answers
| Question: | what is the outside diameter of this gear |
| Answer: | The outside diameter is 4.020 inches, pitch diameter is 4.000 inches. |
Axial AX30395 Heavy Duty HD Bevel Gear 38T/13T: AXIC0395
Axial
Product description
AX30395 Heavy duty bevel gear set offers improved gear mesh, reducing slop in the drive train. In addition it helps add weight low down, which helps keep the center of gravity low and on the rocks where you want it. Made from high grade steel and hardened for increased strength.
Includes everything you need to install it into your kit.
Features:
- Improved gear mesh reduces drive train slop
- Hardened steel for increased strength and additional weight in the axle
- One set per axle required
From the Manufacturer
This is the 38T Heavy Duty Bevel Gear Set for the Scorpion. Metal construction, black in color. One pinion gear One 38T gear.
- Improved gear mesh reduces drive train slop
- Made from high grade steel and hardened for increased strength
- Hardened steel construction adds weight low down which helps keep center of gravity low
- One set per axle required
- 38 Tooth / 13 Tooth gear ratio
User questions & answers
| Question: | Is this set heavy enough for a 20+ hp driven wood cutting buzz saw |
| Answer: | Only one way to find out! |
| Question: | will it fit a scx |
| Answer: | Yes |
| Question: | is this an upgrade to the rtr yeti 10th scale gearset |
| Answer: | these are a big improvement to the rtr |
| Question: | Will this fit the RR10 bomber |
| Answer: | They will fit in the differential. Check the gear sizing though to make sure it matches unless you want to make it overdrive gearing or something like that |

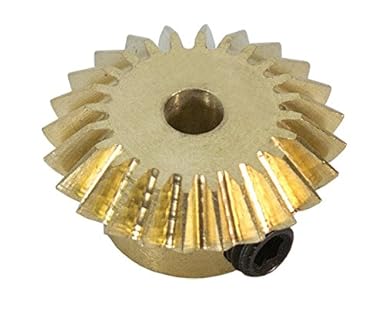

32P (4mm Bore) 24T Bevel Gear
ServoCity
Product description
Now you can build right angle drives inside or outside of channel with these new 24 tooth, 32 pitch bevel gears. We offer them in four bore sizes, 1/4”, 4mm, 5mm and 6mm. Great for building differentials or any application where you need to transfer rotational motion 90 degrees. Sold individually with set-screw.
- The set screw requires a 3/32” Hex Key
User questions & answers
| Question: | Is this a miter gear - can I mate two of the same to get 1:1 ratio |
| Answer: | Yes, you can mate this 24T Bevel Gear with another one of the 24T Bevel Gears, so yes you can consider this Bevel Gear to be a Miter Gear. |
Tamiya 51008 Bevel Gear Set TT01/TGS, 51008.
TAMIYA
Product description
Tamiya TT-01 Bevel Gear Set. Package includes the parts needed to replace the gears and cross pin in one differential.
- Brand new item. Sealed in original package.
- This gear is good and work well with another gears.
- Size: 3.9 x 2.9 x 0.2 inches
- Tamiya R / C SPARE PARTS SP-1008 bevel gear (TT-01 / TGS)
- Good Quality!
User questions & answers
| Question: | Does it work with tto1 type e |
| Answer: | It is perfect fit for the diff from the TT01 Type E chassis |
| Question: | what is the diameter of the larger gear & the diameter of the hole in the middle? I am using for an art project&would really appreciate this informati |
| Answer: | The larger gear is 19mm in outer diameter. The hole inside is an oblong shape...the longer end is 5mm across, the shorter is 3mm. |
| Question: | Will it work in the tamiya hornet |
| Answer: | Unfortunately I can't help. I have a TT 01 chassis. |

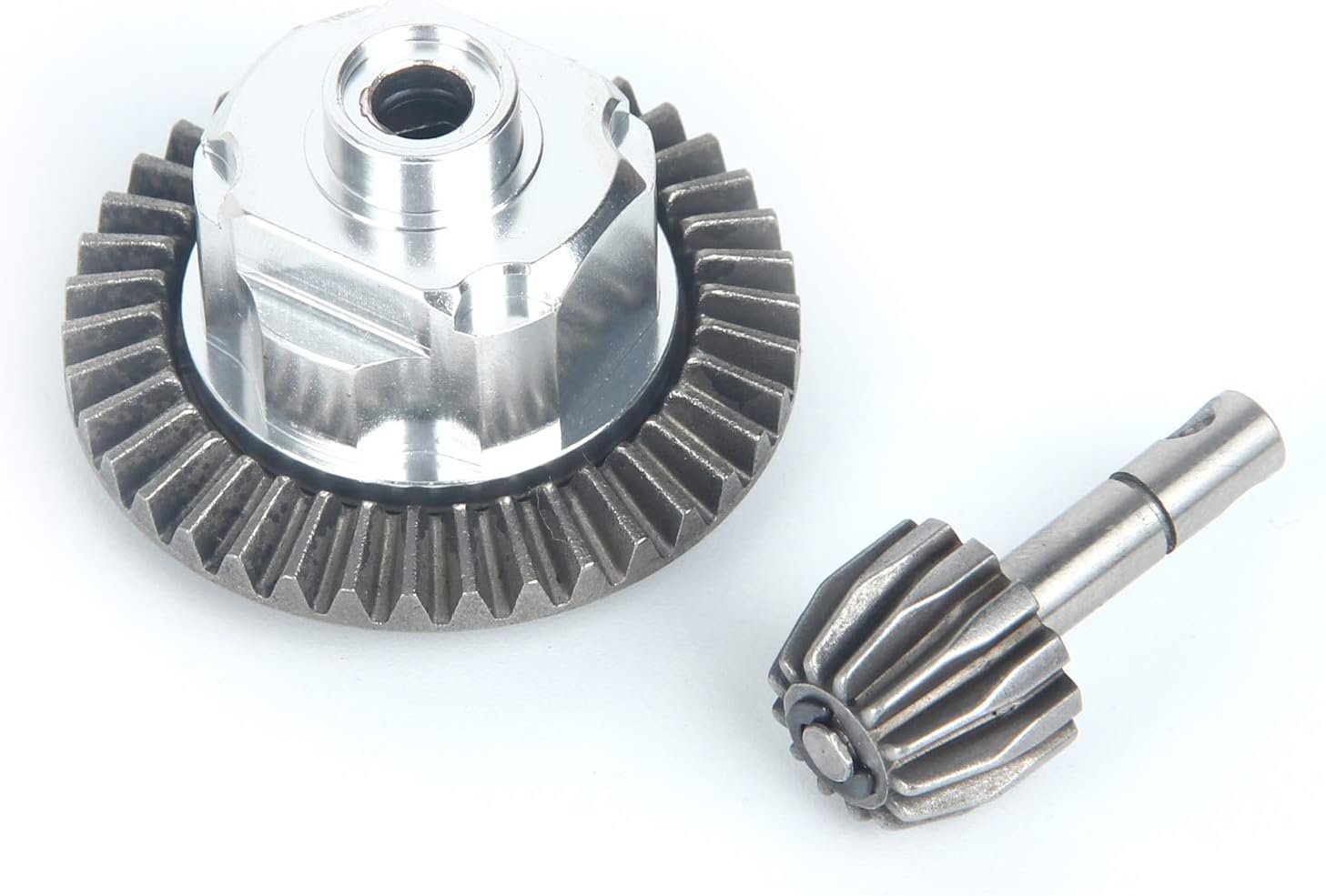

LCX Racing Racing 1/10th RC Crawler Car Heavy Duty Bevel Gear Set -38T/13T w/Differential Gears for Axial Wraith
Product description
Specification:
Application: Axial Wraith
Material: Hardened Steel
You will receive:
1 set Gear
- Designed for Axial Wraith.
- Made of high strength hardened steel.
- Strong and durable, easy to install.
- Contains differential case and differential gears.
- Package List: 1set gear
