14 best sodial r charge controllers

Product description

FlexMax80 FM80-150VDC Charge Controller FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system. The FLEXmax Charge Controllers are the revolution. Developed by OutBack Power, its features include support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character-display shows the current status and logged system performance data for the last 128 days at the touch of a button. The FLEXmax family of charge controllers is the latest advanced improvement in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power Systems. The ground-breaking FLEXmax MPPT software algorithm is both continuous and active, it increase your photovoltaic array power yield up to 30% compared to non-MPPT controllers. With the technology of active cooling and intelligent thermal management cooling, the FLEXmax charge controllers can operate at their full maximum current rating in ambient temperatures as high as 104F (40C) (Optional Remote Temp Sensor Recommended for optimal operation- Sold separately). . Features: Built-in 128 days of Data Logging Programmable Auxiliary Control Output. Fully OutBack Network Integration Capable (with use of the OutBack HUB - Sold separately). Programmable Battery Voltages from 12 VDC to 60 VDC. Advanced Continuous Maximum Power Point Tracking Increases PV Array Output by up to 30%. Specifications: Nominal Battery Voltages: 12, 24, 36, 48

• Programmable to Charge Battery Voltages from 12 VDC to 60 VDC.
• Advanced Continuous Maximum Power Point Tracking Increases PV Array Output by up to 30%.
• Backlit 80 character-display shows the current operational status.
• Input PV voltages up to 150VDC open circuit for charging battery banks from 12-60VDC.
• Gets more amp hours from your solar panels into your batteries everyday.

User questions & answers

Question:	hello, how many 300 watts panel I can put using series configuration with this flex max
Answer:	This depends on the battery bank nominal voltage... i.e. 12, 24, 48VDC battery bank and the voltage and rated current output of your solar modules. All specs and recommendations for current and voltage limits on The Flex Max series chargers are available at the manufacturer's website wwww.OutBackPower.com
Question:	Can I hookup a 2000 watt solar panel array to this voltage controller
Answer:	The Outback FM80 has a NEC recommended maximum array at STC nameplate wattages: 1000-watts for 12VDC systems, 2000-watts for 24VDC systems, 4000-watts for 48VDC systems. Absolute Maximum (coldest site conditions) array open circuit voltage input 150VDC / Startup and operating maximum 145VDC . Full specifications and user manuals can be downloaded at the manufacturer Outback Power site.
Question:	Does this product have a warranty ? How many years
Answer:	This product comes with the manufacturer Outback Power 5-Year warranty.
Question:	how many watts of solar panels can it handle charging a 12v battery bank
Answer:	The Outback FM80 has a NEC recommended maximum array at STC nameplate wattages: 1000-watts for 12VDC systems, 2000-watts for 24VDC systems, 4000-watts for 48VDC systems. Absolute Maximum (coldest site conditions) array open circuit voltage input 150VDC / Startup and operating maximum 145VDC . Full specifications and user manuals can be downloaded at the manufacturer Outback Power site.

Product description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

User questions & answers

Question:	Can you send the performance history to your computer
Answer:	Yes, the app will create a .csv file that can be sent to your computer via email, bluetooth, etc.
Question:	Are these chargers able to stop charging if the battery reaches a defined voltage (over-voltage protection
Answer:	The Victron charges have a sophisticated charging method that uses three states. The final one, called a float charge reduces the current to a trickle at a safe battery voltage.
Question:	What is the manufacturer warranty on this item? Please provide link
Answer:	The boxes have a sticker - 5 year warranty, but i'll be darned if i can find a link for ya. (I have the 100/30A, and 150/60A units). wish you well.
Question:	I have flat plate agm batteries, but the only settings are for gel and spiral agm. what do i do
Answer:	For AGMs, you can use the factory default, or "Gel Victron deep discharge", both of which are 14.4V charge, 13.8V float. Or, set it to your battery manufacturer's recommendation with a custom profile.

User questions & answers

Question:	I have a 370 watt solar panel. Will this charge controller be sufficient
Answer:	Check the manuals for details but I do believe it works with lithium. But do be careful altering the settings, if you mess up then it would cause a very hazardous fire.
Question:	Can i put 4 in series, w/ 48v battery? 4 panels x 37.44 v = 149.76 v 4 panels x 8.68 a = 34.68 a
Answer:	NO, it is for 12/24 volt systems.
Question:	I have 2 260w solar panels rated at 38.1voc. Im trying to set up a 12v battery bank that this will charge. Will the 150v/35A be too big for my system
Answer:	Mine came on time as it was in stock
Question:	Is the output voltage range adjustable? I have a 24v lead acid battery bank and want to keep a 27.5v charge. Is this possible
Answer:	I don't think this was intended to charge a lithium battery. It is used to charge Deep Cycle 12 V. or perhaps 24 V. batteries for RVs from a solar charger. For lithium battery recharge, I'm pretty sure you need a very different device!

Product description

The Rangy 60A Rover MPPT Charge Controller is an intelligent negative ground controller. Built with protections against reverse polarity, short-circuiting, overheating, & more, This MPPT controller is also capable of self-diagnosing itself in the event of an error. Its durable shell protects against general wear & tear, & aluminum heat sink allows for heat dissipation. The Rover 60A can automatically detect 12V/24V/36V/48V systems & can handle various battery options such as gel & lithium. Pair this charge controller with the Rangy BT-1 & Renogy DC Home app to view your system's performance in real time & make parameter changes straight from your smart device. Specification Nominal Voltage: 12V/24V/36V/48V Auto Recognition Rated Charge Current: 60A Rated Load Current: 20A Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C) Self-Consumption: 0. 7W-1. 2W Operating Temperature: -31 °C to 113 °C Temperature Compensation: -3mV/°C/2V (default) Dimensions: 285 x 205 x 102mm (11. 22 x 8. 07 x 4. 00in) Weight: 7. 9lbs Enclosure: IP32 Terminals: 25mm2 4AWG

• MPPT Technology: Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
• Multiple Protections Eliminate Safety Hazards: Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
• Compatibility with multiple battery types for convenient use: Sealed Lead Acid, GEL, Flooded and Lithium Iron Phosphate.
• Easy to use LCD: LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
• RS232: RS232 port allows the Rover PG to communicate with the BT-1 Bluetooth module, which can pair with the Renogy DC Home smartphone app.

User questions & answers

Question:	What connection wires are required to put 2 of the rover 100a in parallel, as advertised
Answer:	It’s designed for 12 volt batteries but I’d be more concerned about the size of your solar panel- not to exceed the following rating for that controller. Rated Charge Current: 20A Max. PV Input Voltage: 26V
Question:	Can these be stacked
Answer:	In theory, Wattage=VoltageXAmps. A 100W panel at 14V will put out 7A, and at 12V, around 8A. If you string three together and they were operating at 100% efficiency, you could theoretically exceed the capacity, but that would be rare. However, I won't say you can use 3 just because of that possibility.
Question:	can i use 2 400w panels and charge 2 12v 100w lithium iorn batteries
Answer:	Thank you for the question! The negative 20a Voyager is an older model that will not have an activation mode for Li batteries. The new version both PG and NG will be able to activate Li batteries. Thank you, M.S.
Question:	Can i safely connect six (6) 160w renogy solar panels (each with 20v open voltage and 8a) to this charge controller
Answer:	yar, upside doin tyo

Product features

Renogy Rover

60A MPPT Solar Charge Controller w/ LCD Display

LCD Screen & Multiple LEDs

Displaying system operating information and error codes.

Die-cast Aluminum Design

For efficient heat dissipation.

RS232 Communication Port

Allows communication with optional BT-1 Bluetooth Module and usage of Renogy DC Home App.

Temperature Sensor

Wide Temperature Compensation Range up to 176 F, non-polarized wires are insulated and protected from harsh environments.

Product description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

• SmartSolar MPPT 100-Volt 50 amp: A solar charger gathers energy from your solar panels, and stores it in your batteries, Using the latest, fastest technology, SmartSolar maximises this energy-harvest
• The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged
• By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage
• Anytime anywhere remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect
• Incorrect installation can be hazardous, Please consult a licensed professional and follow all applicable electrical codes during installation

User questions & answers

Question:	Does this take care of the function of the victron batteryprotect? it seems so but just want to make sure. thanks
Answer:	your solar can have a VOC up to 100 volts and then it will drop it down to 12 or 24 volts to charge the battery bank.
Question:	Can I have much higher input (nominal voltage of 24v) into this unit and have the unit charge a 12v battery bank? 36v->unit->13.5v
Answer:	The single difference between them is that the SmartSolar MPPTs have Bluetooth built-in so that you can monitor and configure them through the VictronConnect smartphone app. The BlueSolar MPPTs do *not* have the Bluetooth built-in; you can use a VE.Direct to Bluetooth Dongle to achieve the same functionality, but the cost of a SmartSolar ends up a little less (typically) than a BlueSolar MPPT +a VE.Direct to Bluetooth Dongle, so it usually makes more sense to order the SmartSolar. If you're not planning on monitoring the MPPT or changing any of the settings, however, a BlueSolar will be just fine, as the actual circuitry is virtually identical. Regards, -Justin Mobile Power Pros / Bay Marine Supply
Question:	what is the difference between smart solar and blue solar
Answer:	The charger will compensate for temperature based on it's internal sensor, essentially gauging the local environment's temperature. An option Smart Battery Sense can be attached to the battery for true battery temperature. Those are new and in short supply, but should be fully available by the end of June, 2018.
Question:	Does this unit alternate voltage based on battery temperature
Answer:	No

Product description

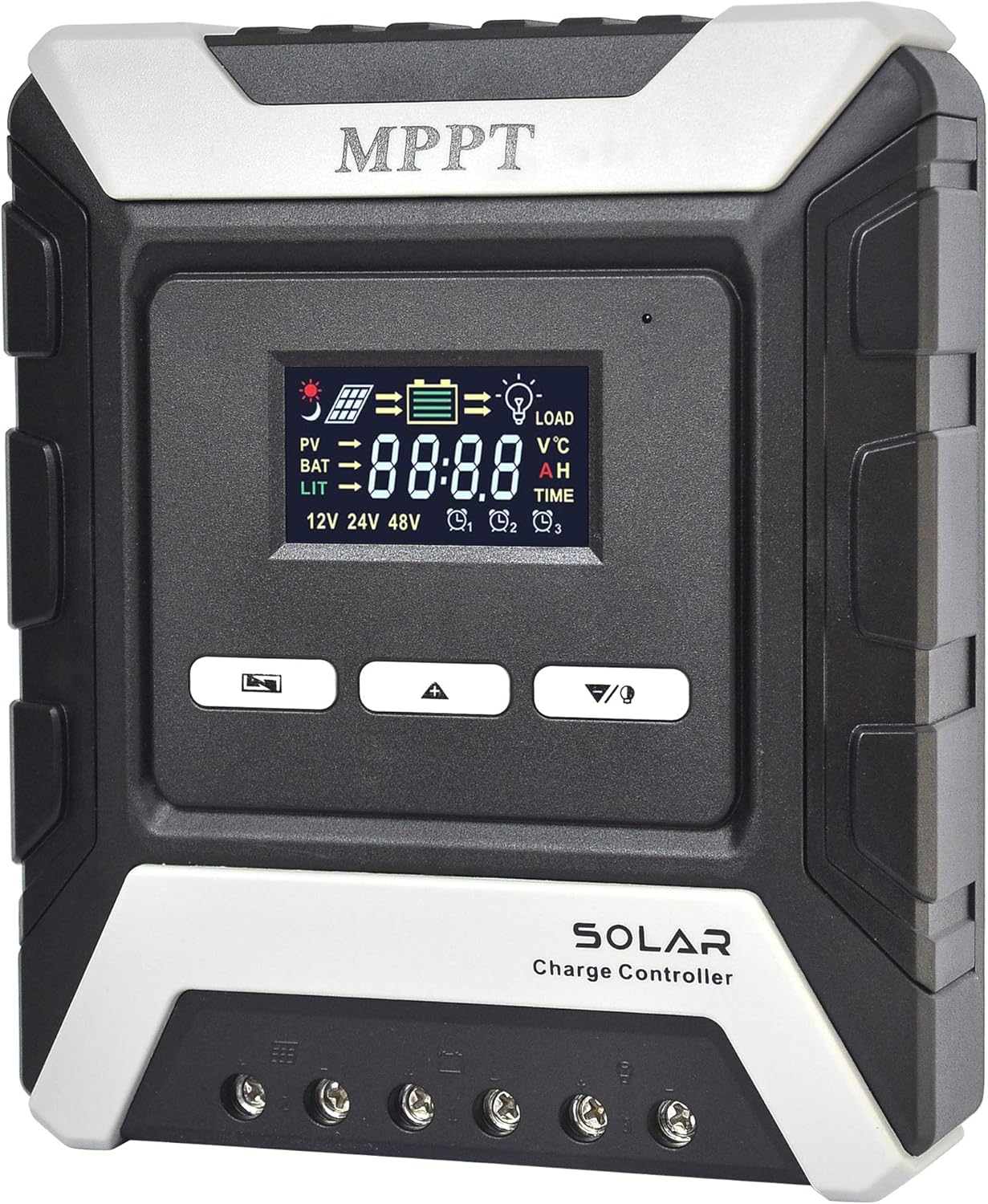

The P-Series Charge Controller is suitable for a variety of off-grid solar applications.It can protect the battery from excessive discharge and excessive charging of a solar cell module loads



Features:

1.Various real-time data is displayed on one display(Volt, Amaps, %,°C)

2.Advanced MPPT technology ensures up to 99.5% tracking efficiency.

3.Battery model selection:lead acid(gel,sealed,submerged)

4.Charging mode:three levels(constant current, constant voltage, floating charge) to extend battery life.

5.user programmable for the battery type,load control,timer setting

Suitable for various specifications of solar panel



.Technical data:

MPPT P60:

12V system:open circuit voltage ≤48V(Voc) maximum. PV input power:780W

24V system:Open circuit voltage ≤96V(Voc) maximum.PV input power:1560W

Automatic identification of 12V/24V DC system voltage

Rated charging/discharging current:60A

Maximum open circuit voltage solar panel (Voc):18V-48V(12V system)/36V-96V(24V system)

Power terminal:10 AWG

User programmable for battery Type, load control,dual timer settings





Warm Tips:

Battery must be connected first!



Never connect the soalr panel array to the controller Without/Before a Battery.



THE DISASSEMBLY SEQUENCE IS CONTRARY TO THE WIRING ORDER.



Never connect any inverter/wind/Alternator/Charger into the charge controller!



Ensure the battery voltage is enough.(>9V)



Never exceed the max input power/Voltage of your controller



Packing:

1*MPPT P60 solar charge controller

1*English Manual

1*Fixing screw

1*Remote temperature sensing line

• 🥇AUTOMATICALLY DETECTS 12V/24V（Max 100V）DC SYSTEMS,Dual USB give your electronic product MAX 5V 2.4A.Support sealed,Gel,Flooded Lead-acid battery and lithium battery.Three stages(constant current, constant voltage, floating charge)
• 🥇POSITIVE GROUND MPPT CONTROLLER - The solar panel charge controller is equipped with high tracking efficiency up to 99%, hardly wasting the energy from solar panels.with three load Timer:ON/OFF mode,PV&Time control mode,PV voltage control mode,Dual Time control mode.
• 🥇MULTIFUNCTIONAL LCD DISPLAYS - All the Various Real-time data shown on the same one display, it's convenient for users to check the data. And the MPPT charge controller 60 amp supports manual switch load and 5 seconds to restore the factory settings.LED shows if solar panels and battery are really connected to the controller.Lightning protection function.Convenient to check.
• 🥇MULTI-PROTECTION AND MULTI-STAGE CHARGING - Built-in intelligent protection against reverse polarity, reverse discharge, overload, short-circuiting, under voltage and reverse current. Multi-stage charging includes constant current, constant voltage and floating charge, and temperature compensation increase your battery life and improve your system's performance.
• 🥇360 DAY SATISFACTORY GUARANTEE - We offer a 360 Day 100% SATISFACTORY warranty for our customers.Contact us if you have any question.

User questions & answers

Question:	Can the controller still be installed outdoors but in a protected location, such as a patio where it will nt get wet
Answer:	Yes, you will just have the MPPT Charger set for Lithium use.
Question:	Will this work with lithium ion batteries
Answer:	It does not say on unit or manual. Buy I am guessing it is made in China.
Question:	Where is this manufactured
Answer:	I didn’t care for the unit, return it for a refund. I bought the epever 60 amp mppt controller. It came with everything needed including the temp sensor.
Question:	Hello, i received my p60 controller and so far it’s working great. how can i order the temp sensor for this unit? i cannot find anything on it
Answer:	Dear friend, Sorry, Tracer4215BN can not work with lithium battery, it can work with lead-acid/ Gel /Sealed/ Flooded Battery Tracer AN 10-40A can work with lithium battery. The link: https://www.amazon.com/dp/B077HHYYHT https://www.amazon.com/dp/B07KW5W49J If you have any question please contact us, email: [email protected] Best wishes Y-SOLAR Service team

Product description

"Specifications Rated Battery Current :40A Rated Load Current:20A Max. PV Input Short Current:50A Max. Battery Voltage :32V Max. Solar Input Voltage :100VDC Charge circuit voltage drop:≤ 0.26V Discharge circuit voltage drop : ≤ 0.15V Working Temperature :-35°C to +45°C Max. Terminal Size :8AWG Rated Load Current :10% to 90% NC Net Weight :4.41 lb. Overall Dimension :9.37 x 6.81 x 2.85in. "

• Automatically detect 12V or 24V DC system voltages Innovative MPPT technology with high tracking efficiency up to 99% and peak Conversion efficiency of 98%
• Die-cast aluminum design for heat dissipation and The capability of measuring the battery's temperature and remote monitoring Customizable charging voltages
• Charges over-discharged lithium-ion batteries Error code detection for easy self diagnoses
• Compatible with various Deep Cycle battery options: Sealed, Gel, Flooded, and Lithium Electronic protection: Overcharging, over-discharging, overload, and short circuit Reverse protection: Any combination of solar module and battery, without causing damage to any component 4-stage charging: Bulk, Boost, Float, and Equalization and LCD screen with programmable charging parameters
• RS232 port allows the Rover to communicate with the BT-1 Bluetooth module, which can pair with the Renogy DC Home smart phone app

User questions & answers

Question:	If a conect my panels and my batteries to 24 v what will be the voltage that I¨ll recibe in the in load terminals
Answer:	Let say solar panel produce 36Vdc And battery voltage is 27Vdc The load terminal is about 27Vdc
Question:	What version of the 20amp model is being sold here from amazon? per the manufacturer website, renogy bt, is optimized for rover charge controllers f
Answer:	This is last year's model and currently sold out here the Renogy website and eBay. New models coming. Rich solar still has them at $89.00 for the 20amp..but offers no bt module
Question:	Can I disconnect the battery while the solar collector is still connected
Answer:	No, I dont think that's a good idea since they say connect batteries first the solor panels. If you was to shut ur system down, the go in reverse. Panels discount then battery.
Question:	Is anyone having problems with hf / vhf radio interference (rfi
Answer:	On MPPT and PMI controllers of different brands, RFI particularly in the VHF & UHF bands can be extreme. The solar panels do act as large antennas transmitting the interference. Some fairly simple decoupling circuitry can help. Right at the PV input, i've used a large forward diode into a large, CPU-grade electrolytic along with common-mode chokes on wiring before the diode. On the controller outputs, a "Corcom" type pi-filter helps a lot, but components in series with the output must accept full output current without much voltage drop. This can get rid of about 99% of RFI without too much problem. I do use solar and wind turbines for power at my off-grid property and run amateur radio equipment from 70 cm to 160 meter bands.

Product features

Renogy Rover

20A/30A/40A MPPT Solar Charge Controller w/ LCD Display.

LCD Screen & Multiple LEDs

Displaying system operating information and error codes.

Die-cast Aluminum Design

For efficient heat dissipation.

RS232 Communication Port

Allows communication with optional BT-1 Bluetooth Module and usage of Renogy DC Home App.

Temperature Sensor

Wide Temperature Compensation Range up to 176 F, non-polarized wires are insulated and protected from harsh environments.

Product description

☀️Suitable for farm solar power system, solar street light, solar patio light, solar billboards, outdoor camping solar system, ship solar system.

Specification:

*Batt voltage: DC 12V/24V Auto

*Charge /Discharge current: 20A

*Over discharge Protection: 10.7V/21.4V

*Charge recover voltage: 12.6V/25.2V

*Overcharge Floating charge: 13.7V/27.4V

*Over discharge Protection: 10.7V/21.4V

*Equalization: B01: sealed 14.4V / B02: Gel 14.2V / B03: flood 14.6V



Intelligent solar controller:

The product can automatically manage the working of solar panel and battery in solar system. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically (LCD will be unavailable at the same time).



Easy to operate and installation :

Wiring STEPS: Screw the adjustment screw counter-clockwise until the plates move down. Insert the wire into the new opening between the plate and the "top" of the Terminal hole, not under it. Screw the adjuster clockwise and the plate will move upwards thereby squishing the wire in the Terminal hole.

Installation STEPS：Connect the system in the order of 1.Battery > 2. Load > 3.PV Array in accordance with Figure, and disconnect the system in the reverse order 3. 2 .1.



Note:

<1>Please keep it in cool and well ventilated place to maintain good heat dissipation.

<2>the regulator is only suitable for lead acid batteries:OPEN, AGM, GEL, not for nickel hydride, lithium, ions, or other batteries.

<3>Make sure your battery has enough voltage for the controller to recognize the battery before first installation.

<4>The working temperature of this controller is -35°C to 60°C, during hot sunny days, the temperature outside might go up to 60-75°C. Please do keep the controller stay in cool and well-ventilated place to maintain good heat dissipation.

• ☀☀☀20A Solar Charge controller : Binen solar charger controller are UL 1741 certified,the solar charger controller compatibility with 12V 24V system. Discharge Current: 10A,build-in industrial micro controller, automatically manage the working of solar panel and battery in solar system. Dual USB output 5V/2.5A (max), to support mobile phone chargeing.
• ☀☀☀Multiple Protection Functions: Binen solar controller has short-circuit protection, open-circuit protection,reverse protection, over-load protection. Fully 3-stage PWM charge management, improve system efficiency and prolong the life span of the battery.
• ☀☀☀Battery Type: The charge regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL, it is not suited for nickel hydride, lithium, Liions, or other batteries. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically.
• ☀☀☀LCD Display: Comes with a display that can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration, suitable for home, industrial, commercial etc.
• ☀☀☀Easy to Install and Operate: The charge controller should connect the battery first, then the solar panel, and finally the load! The disassembly sequence is contrary to the wiring order.Dual mosfet Reverse current protection, low heat production. ( Note: The charge controller will heat up when it is running. Please be careful to install the charger controller on a flat, well-ventilated place)

Product features

20A solar charger controller

*Rated Voltage: 12V/24V

*Discharge current: 10MA

*Max. PV Voltage: 50V

*Max input power and voltage: 260W /12V; 520W/24V

*Floating charge: 13.7V/27.4V (defaul)

*Discharge Stop: 10.7V/21.4V (defaul)

*Charge recover voltage: 12.6V/25.2V (defaul)

*Load Mode: 24 hours, 1-23 hours, 0 hour

How to adjust the float voltage?

Step 1: The system default float voltage is 13.7V, but you can change it according to your needs. Press MENU to enter the parameter page and find the floating charge voltage page.

How to adjust the float voltage?

Step 2: In floating charge voltage interface long press 3-5 seconds MENU to enter setting and using UP or DOWN to set the floating voltage

Product description

The Rover Elite series of MPPT charge controllers give you the most efficient charging for countless 12V and 24V off-grid solar applications. Compatible with an assortment of batteries, including Lithium, the Rover Elite MPPT charge controller utilizes powerfully smart tracking technology to maximize solar charging energy to your battery. Additionally, the Rover Elite MPPT is equipped with multiple battery, controller, and solar protection features that give you peace of mind and an optimized system you can trust.Operating Temperature Range: -4°F~113°F / -20°C~45°C

• 12V /24V Automatic System Recognition
• Backlit LCD displays system information and identifying error codes
• Advanced MPPT Technology with up to 99% high tracking efficiency, 96% conversion efficiency, and Lithium-reawakening feature
• 4 Deep Cycle Battery Pre-Sets: Gel, Flooded, Lithium-Iron Phosphate (12. 8V), and Sealed/AGM.
• Multiple Electronic Protection Features, including over-charging, over-discharging, reverse polarity, and over-temperature
• Power Source Type: Solar Powered

User questions & answers

Question:	which blue tooth module would you use with this controller
Answer:	If you are truly connecting 200 amps, you would need #2/0 AWG. If you are referring to 200 watts solar panels, that would be a lot different. I have 8 200watt panels and I used 10AWG wire. I hope this helps.
Question:	It doesn't sense battery voltage from the main connections? Does it require, and include, the sensor for the "Batt" connection
Answer:	I haven't looked at doing that right now. I now the 100 amp controller can be in parellel.
Question:	Anyone else having issues with theirs ramping up the amps then suddenly dropping to zero even though the battery is at
Answer:	Thank you for the question! This controller can handle up to 800w and 150VDC input to charge a 12v battery bank. As long as the panels do not exceed the max input it will charge lithium batteries. Thank you, M.S.
Question:	Can 2 of these be used with there own array (five 100 watt panels) per controller for a total of 1000 watts to a common ahr battery bank
Answer:	That to me would be the max to attach to the rover I would not do any more than that

Product features

Renogy 40 Amp Rover Elite MPPT Charge Controller

The Rover Elite series of MPPT charge controllers give you the most efficient charging for countless 12V and 24V off-grid solar applications. Compatible with an assortment of batteries, including Lithium, the Rover Elite MPPT charge controller utilizes powerfully smart tracking technology to maximize solar charging energy to your battery. Additionally, the Rover Elite MPPT is equipped with multiple battery, controller, and solar protection features that give you peace of mind and an optimized system you can trust.

Package Includes

• 40 Amp Rover Elite Charge Controller
• Temperature Sensor

Dimensions: 7.85 x 5.12 x 3.02 in ┊ Weight: 3 lbs

• ★MPPT Charge Controller 40A: Innovative MPPT technology with high tracking efficiency up to 99% and peak Conversion efficiency of 98%. Max PV Power: 480W /12V, 960W /24V 1920/48V.
• ★All Battery Type Support: Solar charge controller can support all kinds of battery, Lead-acid &Life PO4 & Ternary Lithium Battery. The Default Setting is Ternary Lithium battery.
• ★Color Programmable LCD Screen: Solar controller match 12-24-48V battery Auto. The major parameters can be programed via Color LCD Screen. Colorful LCD Display is clearer for you to operate.
• ★Good Heat Dissipation: Pure Aluminum backboard make charge controller for solar panel with good Heat Dissipation. Especially multi-edge backboard design increases the heat dissipation area. Make solar mppt inverters keep in optimal heat dissipation state for long working time.
• ★Full Protection: Over-charge&Over-discharge Protection, short-circuit&open circuit&reverse protection, over current protection, overheat temperature protection. So the mppt controller can be wildly used in RV/trailer/Marine/Boat/Camp/Home.

User questions & answers

Question:	what is size of flat sheet
Answer:	To file a warranty claim, please send a picture of the problem as well as a copy of your order receipt to: [email protected]. We are here to help. Thank you, Malouf
Question:	What does the split king set come with? (2 fitted one flat
Answer:	This mattress protector provides protection from liquids, allergens, and dust mites to the top of your mattress and will not protect your mattress from bed bugs. If you are looking to protect against bed bugs, you will need a mattress encasement. We offer a variety of encasements and would be happy to help you find one that meets your needs. Here are some of our encasements: https://www.amazon.com/MALOUF-Certified-Mattress-Encasement-Protector/dp/B004NIVX24, https://www.amazon.com/MALOUF-OMNIPHASE-Waterproof-Temperature-Regulating/dp/B013GVCDAO, https://www.amazon.com/MALOUF-ENCASE-Waterproof-Zippered-Encasement/dp/B014T7RO8U, https://www.amazon.com/MALOUF-Waterproof-Mattress-Encasement-Protector/dp/B013HTMQEI. Please feel free to reach out us at: [email protected] if you have any additional questions. Your satisfaction is important to us and we are here to help. Thank you, Malouf

Product features

MPPT Charge Controller Feature:

1. Advanced Maximum Power Point Tracking (MPPT) technology which efficiency up to 99%.
2. Colorful LCD Screen with parameter adjustment
3. Full and completed protection function
4. Multiple load control modes: 24 hours mode, lighting ON / OFF, light On+Timer

Controller Parameter

1. System voltage :12V/24V/48V Auto Recognition
2. Max. solar panel power: 480W/12V, 960W/ 24V,1920/48V
3. Rated Charging Current :40A
4. Battery Type: Lead-acid (Gel, Sealed, Flooded) and Lithium battery.
5. Overall Dimension:6.0 x 7.5 x 2.1 inch
6. Net Weight :1.76 lb.

Colorful LCD Display

Color LCD Screen is clearer for you to browse dates. Easy for you to handle to parameter adjustment.

Dentate Wire Port&Dual DC output

Dentate wire port design can connect wire more tight, not easy to loosen. Dual DC output convenient for you to charge DC device.

Good Heat Dissipation

Multi-edge Aluminum backboard design increases heat dissipation area. Make solar charge controller keep in good heat dissipation state in long working time.

The MPPT charge controller suitable for all battery type. （ Default Setting is Ternary Lithium battery.）

Including Lead-acid battery(Gel Sealed Flooded ) & Lifepo4 (Lithium iron phosphate battery)&Ternary Lithium Battery.

Product description

The Renogy Wanderer 10A solar charge controller integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use the controller uses an LCD to notify users of battery information. This advanced charge controller is designed for off-grid solar applications and can be used with a 12V/24V battery or battery bank. The compact size of the controller makes installation a breeze. The controller comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults.

• Optimized for a 12V/24V system; Deep Cycle Sealed (AGM), Gel, Flooded and Lithium battery option ready.
• Smart 4-Stage PWM charging (Bulk, Boost, Float, and Equalization) increases battery life and improves system performance. Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.
• Backlit LCD screen displays system operation, diverse load control, and error codes.
• Integrated 5V 2A USB ports to charge USB devices. Compact in size makes it easy to install virtually anywhere.
• Capable of charging over-discharged lithium batteries. Integrated RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy DC Home smartphone app.
• Power Source Type: Solar-Powered
• Wanderer10A|30A Installation Notes: The default starting position of the Wanderer controller terminal hatches are closed (in the UP position) that could mistakenly look like an open wire hatch. Make sure to FIRST lower each terminal hatch by screwing the terminals counterclockwise (CCW) to expose the wire terminal hatch to the open position. THEN secure each cable by rotating the screws clockwise (CW) to the closed position.
• Simple Install: Fully open the hatch (CCW), insert the appropriate wires, and completely close the hatch (CW).

User questions & answers

Question:	Is there a way to adjust the float voltage on this unit
Answer:	No, the float voltage on mine is 13.8V no matter the battery type setting. There is a manual on the Renogy website that lists float at 13.2V when set for Flooded batteries. However that is not the case on my unit, which I bought in 2016.
Question:	Can anyone explain the middle led's lighting sequence? What are the possible states of display, blinking, on, what do they mean
Answer:	The middle LED's lighting sequence is as follows: Green ON when battery level is in the right range. Green slowly flashing when battery level is full. Yellow ON when battery level is low. Red ON when loads cut off. Hope this helps.
Question:	max number of 100w panels for this controller
Answer:	This will depend on 2 things: 1 - what is the amp rating of your controller. &. 2 - what is the nominal voltage output of the panels. A 30 amp controller can handle a maximum of 3.6 100 watt panels of 12 volts (100 watts / 12 volts = 8.33 amps, 30 amp controller / 8.33 amp panel = 3.6 panels per controller). Of course, you can't have .6 panels so the safest load would be 3 panels. Yes, math is VERY IMPORTANT when being safe with electronics.
Question:	The description says "These are Positive Ground Controllers." How do you ground a system on the positive side
Answer:	Please ignore this if you're not interested in a dissertation on grounding. First, THIS is a NEGATIVE "ground" controller, so that's GOOD. Why? "Ground" is a misleading term. I've designed stuff for NASA spacecraft that had connections called "ground". Whaaat? We're going to run an extension cord to the spacecraft, so we can keep it tied to a metal pipe stuck in the dirt? Nope. "Ground" is just what electronics folks usually call a COMMON POINT the circuitry is referenced to. It doesn't necessarily have anything to do with the ground we walk on. Electrical stuff works by having two sides, positive and negative, with a voltage difference between them, the "pressure" that makes current flow. Electrical power folks tie one side to the dirt your house sits on, for safety. Your house has water pipes and stuff that's pretty well connected to the dirt. If you grab a water pipe and the 110V ground at the same time there's no voltage difference, so current doesn't flow through you and hurt you. 110V is 10x higher than a solar panel voltage so it's a lot more dangerous. Tying one side to the dirt was a very good idea. Long, long ago, and far, far away, electrical power folks chose the negative side to connect to the dirt, and most stuff made since has pretty much matched that. Then some folks decided to make "positive ground" devices, because for their designs it was easier and cheaper. Some of us think they should have been spanked. It caused all this "positive ground" and "negative ground" malarkey. On to solar power systems. Think of it like this: A controller has electronically controlled switches in it. One switch connects the solar panel to the battery to charge it and disconnects when the battery is full. Another switch connects the load to the battery when you want the load turned on. In a "negative ground" system, the terminals of the panel, battery and load called "minus" or "negative" are all tied together, and the controller switches the positive side connections. Since many loads are connected together on the minus side to ground (dirt) this is a GOOD THING. In a "positive ground" system it's the opposite. The positive side of everything is tied together, and the controller switches the negative side connections. Imagine this: If you connect the battery negative terminal and the load negative terminal both to ground (shorted together) and the controller switch is between them, what happens when the switch opens? That's right, NOTHING. The switch is shorted out by your ground connections so it can't disconnect the load. So that's what's wrong with a positive ground controller. Everyone is used to tying negative together and to ground and they do that and it screws up the controller. But a positive ground controller can be used as long as you don't connect the battery and panel to *anything* except the controller. For example, your van's battery negative is connected to the chassis of your van, and so are the negative sides of all the lights and devices in your van. JUST DON'T TIE THE SOLAR PANEL OR SOLAR BATTERY NEGATIVES TO YOUR VAN CHASSIS TOO. You CAN tie the controller's load output negative to your van chassis, as long as you don't connect any. other. point. in the solar charging system to chassis too. With a "negative ground" controller you don't have to worry about any of this malarkey. You can tie the battery, panel, load negatives all to chassis without any problems. This is why NEGATIVE GROUND CONTROLLERS ARE BETTER. Sorry for the lengthy explanation. I hope folks can follow this and it helps them understand this "ground" stuff.

Product features

Renogy Wanderer

The Renogy Wanderer 10A solar charge controller integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use the controller uses an LCD to notify users of battery information. This advanced charge controller is designed for off-grid solar applications and can be used with a 12V/24V battery or battery bank. The compact size of the controller makes installation a breeze.

Specification

Layout

1. LCD Screen
2. Select Button
3. Enter Button
4. USB Ports
5. Load Terminal
6. Battery Terminal
7. PV Terminal
8. RS232 Communication Port

RS232 Communication Port

Integrated RS232 port allows communication with BT-1 Bluetooth module (Not Included) and usage of Renogy DC Home App.

Compatible Battery Types

1. Sealed
2. Gel
3. Flooded
4. Lithium

USB Port

5V 2A USB Ports

• ❶: Battery type: LiFePO4, AGM is compatible with more battery charging;
• ❷: The best open circuit voltage (Voc) of solar panels: 12V system: Voc ≥18V, Voc≤96V; 24V system: Voc ≥36V, Voc≤96V; (automatic identification of 12V/24V system);
• ❸: Charging current and MAX.PV input power: (12V/24 system)100A: MAX.PV=1300W/2600W;
• ❹: Prevention: overcharge, overdischarge, overload, overheat, reverse polarity, lightning and other protection functions;
• ❺: Worry-free installation and after-sales guarantee: professional technical team guides the installation; Amazon warehouse logistics;

User questions & answers

Question:	What does the time setting 00H mean
Answer:	Yes, it can; You only need to set PV off = full voltage of lithium battery;
Question:	Will this work with lithium ion batteries
Answer:	Don’t think so you need a midnight charge control or three. Cost you about 1500
Question:	Does this controller do an automatic equalization charge on schedule
Answer:	That depends on your solar panels. If its 100a then its rated at 1200 watts. So you could supposedly have 1200 peak watts of solar. Remember that solar panels vary in voltage and amperage as they experience different sunlight.
Question:	What is the maximum rated current for the load output? max charging output is 100a, is the load current the same
Answer:	Yes, it's a 5.5mm x 2.1mm plug.

Product features

Feature

Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99%.

High quality components, perfecting system performance, with maximum conversion efficiency of 98.5%.

Ultra-fast tracking speed and great tracking efficiency.

Wide MPP operating voltage range.

12/24VDC automatically identifying system voltage.

LCD panel display design, dynamically displaying tool‟s operating data and working condition.

Support 3 charging lead-acid battery options: Sealed, Gel, Flooded.

Battery temperature compensation function.

Added Features:

• Blacklight LCD Display
• The display directly shows the amount of charge: KWH, without the need for other measuring instruments
• Two new vents are added for scientifically designed convection cooling.
• More Safety Protection
• Maximum DC/DC transfer efficiency is as high as 98.7%

COPPER COILS

True MPPT controller, The Three copper coils play a step-down roles to make your system work more stable.

TRANSFORMER

Short-circuting

Reverse-current

Overcharging

Overload

Over-discharging

Reverse polarity protection

FAN COOLING

Good Heat Gissipation

Intelligence Fan-on temperature >45℃ and off < 40℃ , let your controller feel cooling.

Fan use BEARING technologies increase life UP TO 5000hrs in normal use.

PORTS DESIGN

We consider that the larger diameter of the wire will be greater cost for customers, so we designed two connectors for each pos and negs on solar and batteries connectors

MPPT technology

Automatically detect 12V or 24V DC system voltages

Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%

Various optional batteries

Deep cycle Sealed, Gel, Flooded and Lithium (12.8V LFP) battery option ready

Charges over-discharged lithium batteries

Protection System

Electronic protection: Overcharging, over-discharging, overload, and short circuit.

Reverse protection: Any combination of solar module and battery, without causing damage to any component

Customize charge controller

Customizable charging voltages

Positive ground charge controller

HOW TO WIRE YOUR SOLAR CONTROLLER?

Turn the adjusting screw counterclockwise until the plate moves downward.

Please peel off the coating of the cable tip by about 8 to 10 mm，Then Insert the wire into the new opening between the plate and the "top" of the terminal hole.

When turning the adjuster clockwise, the plate moves upward and crushes the wire in the hole of the terminal.

Make sure all connections going into and from the controller are tight.

IMPORTANT NOTE:

Make sure your battery must be atleast 60% charged prior to connecting to controller.

Always connect your battery first

Never connect your solar panel array to the controller without a battery.

Careful your input power and voltage does not exceed the max.

• 【Batteries】 Compatible with various deep cycle batteries: Sealed, Gel, Flooded, and Lithium.
• 【12V/24V】 Detect 12V or 24V DC system voltages automatically. Innovative MPPT technology with high tracking efficiency up to 99% and peak. Conversion efficiency of 98%.
• 【Protection】 Electronic protection: Overcharging, over-discharging, overload, and short circuit. Reverse protection: Any combination of solar module and battery, without causing damage to any component.
• 【Design】 Die-cast aluminum design for heat dissipation and the capability of measuring the battery's temperature and remote monitoring. Customizable charging voltages.
• 【Bluetooth】 RS232 port allows to communicate with the BT-1 Bluetooth module, which can pair with smart phone app.

User questions & answers

Question:	Can I take an input of 26 volts/7.69 amps and send an output of 20 volts/10amps? Voltage on my panels is a bit too high
Answer:	Dear friend, thank you for your question. Once you buy our products, you have a one-month refund service and a half-year return and exchange service. Please contact us whenever necessary.
Question:	How accurate is the battery voltage reading
Answer:	It does not need batteries, it is a wired controller
Question:	Is this unit a Negative grounded charge controller
Answer:	Yes, a headset can be plugged directly into the controller.
Question:	What software can I use to use PC with controller
Answer:	Yes, the controller is compatible with Windows 10

Product features

RICH SOLAR

20A MPPT Solar Charge Controller w/ LCD Display

Product description

Meet the Renogy Adventurer-Li, newly improved with two advanced features. Thanks to its programmable Lithium charging voltage, the 30A PWM solar charge controller is now capable of charging most Lithium batteries available on the market. The second addition to the controller is the RS232 port, used to connect and communicate with the Renogy BT-1 Bluetooth module. By adding the BT-1 to the Adventurer-Li, you can now use the smartphone app, Renogy DC Home, to monitor and adjust your solar system remotely. Unique in its form, the Adventurer-Li is a negative-ground, flush mount controller, designed for an aesthetically clean and integrated look on RV and camper walls. However, if flush mounting does not appeal to you, an included Surface Mount Attachment allows you to forgo it. Capable of charging both 12V and 24V photovoltaic systems, the Adventurer-Li integrates highly efficient PWM charging to increase battery longevity by regulating the charge flowing from the solar panels to the battery bank. This charge controller comes equipped with a fully comprehensive self-diagnostic system and electronic protection functions to prevent damage from installation mistakes or system faults. Specifications: Nominal Voltage: 12 VDC/ 24 VDCRated Charge Current: 30AEqualization Voltage: Sealed: 14. 6 V; Gel: None; Flooded: 14. 8 VFloat Voltage: 13. 8 VSelf-consumption: ≤ 13mAOperating Temperature: -13° F to 131° FEnclosure: IP20Terminals: Up to 8 AWGUSB Output: 5V, 2. 4A MaxMax. PV Input Voltage: 50 VDCBoost Voltage: Sealed: 14. 4 V; Gel: 14. 2 V; Flooded: 14. 6 V; Lithium: 14. 2 VUnder Voltage Warning: 12VTemperature Compensation Coefficient: -3mV/° C/2VStorage Temperature: -31° F to 176° FDimensions: 6. 56 x 4. 50 x 1. 90 inchesWeight: 0. 6 lbs

• Compatible with 12V and 24V system; Deep cycle Sealed, Gel, Flooded and Lithium battery option ready.
• The Adventurer is a negative ground controller. This ensure compatibility with any negative ground system, which is the standard and most conventional way of grounding. Any negative connection on the solar module, battery and load can be safely earth grounded as required.
• Smart 4 Stage PWM charging (Bulk, Boost, Float and Equalization) and temperature compensation increases battery life and improves system performance. Intelligent protection against: reverse polarity, overcharging, short-circuit and reverse current.
• Backlit LCD screen for displaying operating information and error codes. 5V 2. 4A USB port on the front display can be used to charge mobile phones, tablets, speakers, etc. RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy DC Home smartphone app.
• Designed to cleanly flush mount on walls, providing a sleek, integrated look. An included Surface Mount Attachment allows for versatility in mounting.

User questions & answers

Question:	Is the maximum charge voltage adjustable? AGM batteries take a higher voltage
Answer:	Dear customer, Thanks for your question. 1.This 1200w solar inverter our recommend the use of PV modules Power 4*300W (4 pieces 300W/36V solar panel connect in parallel) 2.If you have any question,you can contact us ,we will be glad to help you. Best regards PKASOLA Inc
Question:	Do all Renogy Adventurer 30A modells come with battery temperature sensor
Answer:	Dear customer, Thanks for your message. 1.Our product according UL-1741standerd to producing. 2.Now this product have new stype,if you need new type,you can check "B07V67FLDJ" Best regards PIKASOLA Inc
Question:	does this unit allow you to see charging info for the day? max amps, ect
Answer:	Yes, of course.
Question:	What is the length of the remote temperature sensor & remote battery voltage sensor that are included
Answer:	Dear customer, Thanks for your question. 1.If you install three of the micro inverter,you just need one with the wifi and the rest just standard. 2.This wifi can manage up to 46 inverters. Best regards PIKASOLA Inc

Product features

Renogy Adventurer

The Renogy Adventurer-Li is a negative-ground, flush mount controller, designed for an aesthetically clean and integrated look on RV and camper walls. However, if flush mounting does not appeal to you, an included Surface Mount Attachment allows you to forgo it. Capable of charging both 12V and 24V photovoltaic systems, the Adventurer-Li integrates highly efficient PWM charging to increase battery longevity by regulating the charge flowing from the solar panels to the battery bank.

Backlit LCD

Displaying system operating information and error codes

The Surface Mount Attachment

Allows for versatility in mounting.

RS232 Communication Port

Allows communication with optional BT-1 Bluetooth Module and usage of Renogy DC Home App.

Compatible with Temperature Sensor & Battery Voltage Sensor

Wide Temperature Compensation Range up to 176 F, non-polarized wires are insulated and protected from harsh environments
