• 【COMPLETE LINEAR RAIL KITS】- This linear rail set includes two 1000mm/39" long SBR12 rail shafts and 4 SBR12UU blocks. Sliding blocks to be used cooperatively with rails, smooth sliding provided by the inside linear bearing.
• 【HIGH-QUALITY STEEL MATERIAL】- CNC parts linear rails are made of carbon steel, linear Bearings made of quality bearing steel with aluminum alloy housing. Surface chrome plating treatment beautiful anti-rust, high hardness, more durable.
• 【PREMIER LINEAR GUIDING SYSTEM】- Perfect combination of the main axle bearing rail and aluminum alloy support, which nicely stabilizes the original rail. Industrial-grade standard SBR block, with a high precision linear bearing inside.
• 【EASY TO INSTALL】- Aluminum alloy support rail with pre-drilled holes for ease of mounting. Stainless steel Linear optical axis guide bearings linear movement. Easy to install, no need for maintenance.
• 【WIDE APPLICATION】- The linear guide rail is widely used in the automation machinery such as DIY CNC routers, lathes, machine tools, bending machines, laser welding machines, etc. Also applicable for large-scale transmission equipment, including industrial robots, cracker machines.

User questions & answers

Question:	Do you have a technical data sheet for this item? (e.g. stiffness, load capacity, etc) I am planning on using a motor with a capacity of 3.5 HP
Answer:	have not been able to find any data specific to this rail I can tell you I am using them on a 1000mm x600mm cnc bolted directly to the side frame of the machine 2 rails per side and I have not been able to detect any deflection in the rails which are carrying 40 odd pounds of gantry , motors ,spindle and such the bearings do have some slop but this can be tweaked out with the 2 adj screws on each bearing to end up with a very near zero deflection
Question:	Is it possible to connect these end to end
Answer:	In a perfect world absolutely. Satisfactory results are dependent on the flatness of the mounting bed and your ability to machine/chamfer/square the rails (I would recommend doweling the rail ends if you have access to a CNC or lathe)
Question:	Can this be used for 3d delta printers as the vertical sliders
Answer:	It appears to me that delta printers use a different styles slide. My first impression would be the answer is no. These components soul have to be placed side by side to see off modifications could be made to accept what your suggesting. I am not familiar with delta printers. I did however do a little research. So to offer these as a replacement should be investigated thoroughly... Good luck, Len
Question:	What does SBR refer to and which is best for a plasma cnc table
Answer:	Short base rail. I would see if they have larger one.. these would work if it’s a small cnc like a 2’x4’.

Product features

Complete Linear Rail Kits

Linear rail kit includes 2 pieces of 1000mm/39" long SBR12 rail shafts and 4 SBR12UU blocks. Corrosion-resistant, high strength, and wear resistance.

High-Quality Material

This bearing rail is constructed with carbon steel main axle and aluminum alloy support, bearing steel linear rail block, and aluminum alloy casing.

High Hardness & Rigidity

Surface chrome plating treatment beautiful anti-rust, high hardness, with high accuracy and strong durability.

Complete Sliding Unit

Cylindrical guide composed of principal rail and aluminum support, stabilizing the original rail. Premier quality bearing blocks moves smoothly while using.

Easy To Assemble

Aluminum material support rail with pre-drilled holes for ease of mounting.

Widely Used

The linear guides are perfect for your DIY routers, mills, lathes, widely used in the automation machinery such as machine tools, bending machines, laser welding machines, etc.

SBR12-1000 mm Linear Guideway Rail Kit

The linear motion products and technology are widely used for automatic mechanical facilities under common accuracy and designed with load capacity and rigidity higher than other similar products with structure optimization. Bearing blocks are able to resist high temperatures and own long service life.

Product description

Description

The SBR16-2000 mmrail shaft is made with good quality steel and aluminum alloy. for easy installnation,Oxided aluminum avoid rusting,support unit enhanced stability have multi length stroke options

The linear rail apply forApplied in semiconductor manufacturing equipment, printed circuit boards, IC assembly equipment, medical equipment, robotic arms, precision measurement machine and other small linear motion device.

Feature

2 X 2000mm/78.7" long SBR16 rail shafts

Good quality steel plus aluminum alloy

4 SBR16UU blocks with smooth sliding

Specifications

Feature: Smooth motion

Performance: Low noise

Bearing Blocks: 4 pieces, SBR16UU

Rail Shafts: SBR16, 2000 mm (78.7")

Package Content

2 X SBR16-2000 mm Linear Slide Guide Fully-supported Rails

4 X SBR16UU Bearing Blocks

Service

If you need more piece,please contact me, the more quantities you want,the lower price you get.

If there are any problems, please contact me in time. I will be in charge. Please believe me to give you a satisfactory answer.

• There are 2 SBR16 rail shafts, 2000mm/78.7" long, and 4 SBR16UU blocks. The blocks should be used together with rails.
• The linear rails made of carbon steel ,coated with chrome, ensuring anti-rusty and sturdy rails for a long time use. The inside steel bearings, coated with aluminum alloy, for a smooth sliding.
• The combination of the original rail and aluminum alloy support makes the rail stable. SBR blocks are industrial and standard. The inside bearings are highly precise.
• Pre-drilled holes for ease of mounting. Stainless steel linear rails and bearings move in a straight line. Easy to install, no need to maintain.
• The linear rails apply for large-scale transmission equipment including industrial robots, cracker machines,supersonic cleaning equipments, solar energy and clothing supporting devices, etc.

Product description

The SDS1000X-E series employs a new generation of SPO (Super-Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/divan innovative digital trigger system with high sensitivity and low jitter, and waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X -E also employs a 256 -level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding forIIC,SPI,UART,CAN,LIN bus types is included. The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new1million point FFT math function that gives the SDS1000X -E very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co -processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of SIGLENT’s new SDS1000X -E cannot be matched anywhere else in this price class. The four channel series includes even more functions, including: searching and navigating, on-screen Bode plot, 16 digital channels(Option), an externals powered 25 MHz AWG module(Option), a USB WIFI adapter(Option),and an embedded application that allows remote control via web browser.Optional MSO capability

• 100Mhz, 4 channels, 1Gsa/use, 1Mpts fft
• Standard decoder: iic, spi, uart/Rs232, can, lin
• 16 digital channels (mso) (four channel series only, option)
• USB AWG module(four channel series only, option)
• USB WIFI adapter(four channel series only, option)
• NOTE: Refer User guide included along with the product before use

User questions & answers

Question:	Can I decode ic, spi, uart/Rs232, can, lin signals with the the scope, i.e. without the sla1016 module
Answer:	Yes! Decoding is included with the base model! There is no need to purchase a software license (or "hack" the scope) to unlock the decoding options.
Question:	Is siglent sds1104x-e good for a beginner
Answer:	The SDS 1104X-E is a great scope. It is considered an entry level instrument. It is excellent for the individual entering the electronics field.
Question:	Does this item include the optional items(16ch logic decoder, usb awg and usb wifi
Answer:	For WiFi you can use an Access Point that can be operated in "Client Mode". I am using a TP-Link N300 (WR802N) and it works very well. The other options really seem to require special firmware/license upgrades.
Question:	Some say this scope is "noisy". Is it useful for measurements where the range is +/- 20 mV
Answer:	its noisy in the fact the fans arent quite. Not because of line noise... 20mv is not a problem

Product features

Key Features

• Math co-processor speeds front panel operation
• Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
• Low background noise and 500 μV / div to 10 V / div voltage scales
• Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN
• On-screen Bode plot and web-browser control (standard on 4 channel only)
• WiFi control (optional on 4 channel only)
• True measurement and math can use all 14 Mpts of memory
• Large 7-inch TFT-LCD display with 800 * 480 resolution

Gate and Zoom Measurement

Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements’ validity and flexibility.

Hardware-Based High Speed Pass/ Fail Function

The SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.

1Mpts FFT

The new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.Four-channel series support Peaks, Markers, a variety of numbers.

History Waveforms (History) Mode and Segmented Acquisition (Sequence)

Playback the latest triggered events using the history function.Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store riggered waveforms and timestamp of each frame.

Serial Bus Decoding Function (Standard)

SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.

True Measurement to 14 M Points

SDS1004X-E can measure all sampled data points up to 14 Mpts. This ensures the accuracy of measurements while the math co-processor decreases measurement time and increases ease-of-use.

Bode Plot (Four Channel Series Only)

SDS1004X-E can control the USB AWG module or control an independent SIGLENT SDG instrument, scan a devices amplitude and phase frequency response, and display the data as a Bode Plot. There is also a Vari-level Mode for accurately measuring Power Supply Control Loop Response (PSRR). It can also show the result lists, and export the data to a USB disk.

Web Control (Four Channel Series Only)

With the new embedded web server, users can control the SDS1004X-E USB WIFI Adapter series only) from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities. The web page has PC and mobile styles that include an embedded virtual control panel

• 【High quality materials】: Professional and technical steel rails and blocks for low-friction bearings, long-lasting and long-lasting.
• 【Several lengths available】: 250mm (10 holes）, 300 mm, （12 holes）, 350 mm, （14 holes）, 400 mm, （16 holes）, 450mm （18 holes）, 500mm （20 holes）, 550mm （ 22 holes Zum. To connect the rail to the machine using M3 screws and nuts.
• 【Muti-using】: Made of Bearing Steel with low friction coefficientsUsed in devices for the manufacture of semiconductors, printed circuit boards, IC packages, medical devices, robot arms, precision encoders and other small linear motion devices.
• 【Easy to disassemble and install】: Hold the roller up during the disassembly process to prevent the ball from accidentally falling.
• 【High Quality】: Usongshine is a brand specializing in the development and manufacture of 3D printing accessories. Every MGN12 has been subjected to strict quality control ex works.

User questions & answers

Question:	What size bolts / t-nuts would you use to connect these to 2020 alum? (Can't read the diagram - too fuzzy
Answer:	I used Socket head M3 x 8 MM with matching 3mm T-nuts. Phillips head should also work okay.
Question:	What is the packaging of the products
Answer:	Bubble + box
Question:	What is the difference between the black blocks and the "blue black" blocks? Can they be interchanged with each other
Answer:	They are just different colors. The size of MGN12H block is the same. So they can be interchanged with each other.
Question:	What is the accuracy of this linear guide? I am looking precise for 3D printer
Answer:	They work great, very good quality .I am very satisfied

Product features

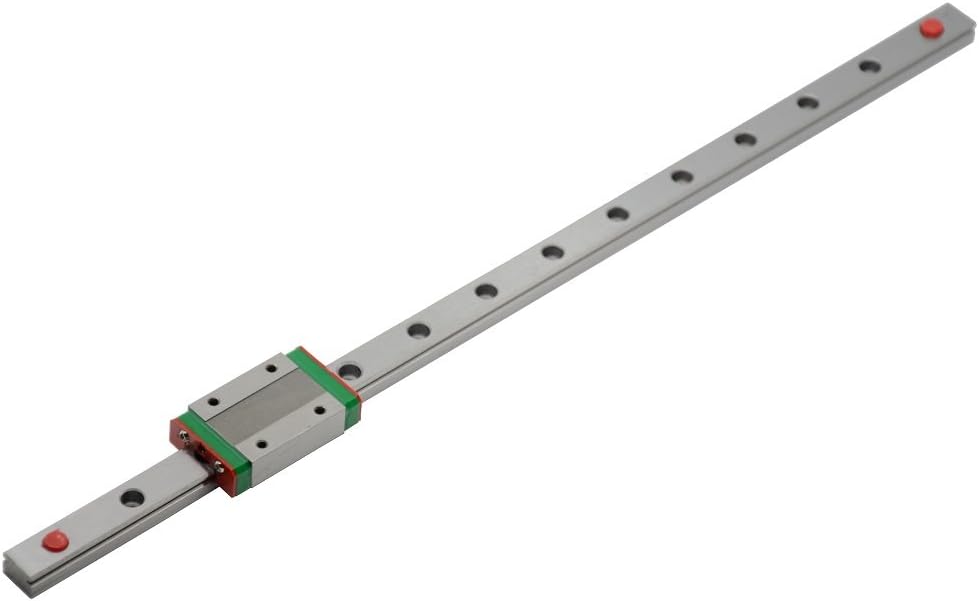

Usongshine MGN12

MGN12 300/350 / 400mm miniature linear rail slide + MGN12H trolley for 3D printer accessories. Widely used for semiconductor manufacturing equipment, circuit board IC assembly equipment, medical equipment; Machine arm, precision measuring devices, office automation devices and other small linear sliding devices.

Usongshine is a brand that is dedicated to the production of high quality printers, printer accessories and CNC machines and is 20 years old.

Material: metal

Type: slide rail

Slide rail: linear guide rail

Accuracy level: H

Length (optional):

Approx. 200mm / 7.8inch / 250mm / 9.84inch, 300mm / 11.8inch, 350mm / 13.7inch, 400mm / 15.7inch, 450mm / 17.7inch, 500mm / 19.7inch, 550mm / 21.6inch.

Weight: 217 ~ 417g

Delivery content:

1 * MGN12 linear guide rail

1 * MGN12H or MGN12C

Note: Due to the light and screen setting, the color of the item may be slightly different from the pictures. Please allow slight dimensional difference due to the different manual measurement.

High quality

Stable

No noise

• 【HSR15-1500 mm LINEAR GUIDE RAIL】- This linear guide rail set includes 2 pieces of 1500 mm/59" long HSR15 rail shafts and 4 bearing blocks with smooth sliding
• 【HIGH-QUALITY STEEL MATERIAL】- Linear bearings made of quality bearing steel. Beautiful and anti-rust surface treatment ensures durability, high hardness, and stiffness. Smooth running, low noise and non-pollution.
• 【PREMIER LINEAR GUIDING SYSTEM】- Linear guides and rails provide a smooth, precision, guiding surface on which the rolling element of a linear bearing rides. It helps to build an economical linear guiding system and designed to achieve high precision linear motion, low friction coefficient.
• 【EASY TO INSTALL】- Steel support rail with pre-drilled holes for ease of mounting. Stainless steel Linear optical axis guide bearings linear movement. High accuracy & Easy setting up.
• 【WIDE APPLICATION】- Grinding machine, milling machines, lathes, drilling machine, and comprehensive processing machines, discharge manufacturing machine, boring machine, line cutting machine, precise measurement instrument, woodworking machinery, handling machine, and the shipping device.

User questions & answers

Question:	i know these are raelly big, but with just the friction quality in mind would these be good for a 3d printer or would it be too tight or hard to move
Answer:	too tight.
Question:	what is the size of mounting screws for rail
Answer:	I believe it’s M4
Question:	Do you have this in 1000 or 2000mm lengths
Answer:	1500 mm
Question:	when you tilt these does the block slide down on its own
Answer:	Depends on the angle. The higher the angle the better chance they will slide on their own.

Product features

Linear Rail Kits

Linear slide kit includes 2 pieces of 1500mm/59" long HGH20 rail shafts and 4 bearing pillow blocks.

High Quality Material

This bearing rail is constructed with the quality main axle, and the bearing blocks can resist high temperature and own long service life.

High Hardness & Rigidity

The beautiful and anti-rust surface treatment, with high rigidity and high load.

Complete Sliding Unit

Professional and technical rail and block, stabilizing the original rail. Move smoothly without deflection, minimal wear and low noise while using.

Easy to Assemble

Pre-drilled holes on the support rail mounts for ease of mounting.

Wide Application

Perfect for your DIY routers, mills, lathes, widely used in the automation machinery and also suitable for various kinds of automated machines and equipment.

HSR15-1500mm Linear Guideway Rail w/ Square block

The linear motion products and technology are widely used for automatic mechanical facilities under common accuracy. HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization.

Product description

Package include:



1pcs CBX1605 ballscrew 100mm length Linear Stage Actuator with 1pcs NEMA23 RTM23HS6430 2-Phase Stepper motor



Stepper motor Parameter:



Name: RTM23HS6430

Step angle: 1.8 degree

Motor flange size: 57mm

Motor length: 56mm

Holding torque: 1.2N.m

Current: 3A

Resistance: 0.8 ohm

Inductance: 2.4 mH

Rotor Inertia: 440g.cm

Lead wire: 4pcs

Wiring:

Red: A+

Green: A-

Yellow: B+

Blue: B-



Linear Stage Actuator Parameter

Series: CBX1605-100A

Profile Width: 42mm

Drive Type: CBX1605 Ballscrew

Screw precision grade: C7

Screw Pitch: 5mm

Linear Type: Square Linear Rails

Bearing Type: Single Square HGH Carriages

Motor Type: 2-Phase Nema23 High torque Stepper Motor

Effective Travel Length: 100mm / 3.94inch

Accuracy: 0.3mm / 0.01inch

Max. Speed: 50mm/s,2inch/s

Horizontal load: 30Kgs / 66.2lbs

Vertical load: 10Kgs / 22lbs

Axial Load Capacity: 22Kgs / 48.5lbs

Overall Length:170mm





Have no CAD drawings!!!

• Use CBX precision 1605 ballscrew
• 1Pcs NEMA23 RTM23HS6430 2-Phase Stepper motor are include without motor driver
• Repeat positioning accuracy of up to ± 0.3mm
• Effective Travel Length 100mm /3.94 inch
• Beads screw for movement structural elements executed. With high precision, high efficiency, long life, low coefficient of friction, versatility, etc

User questions & answers

Question:	What is the length of the extrusion? Without end plates and motor
Answer:	Effective Travel Length: 100mm / 3.94inch
Question:	i need to replace motor with a double shaft so I can add an encoder. What is the coupling shaft diameter? 5mm
Answer:	I'm not sure. The motor and the threaded shaft are different diameters.
Question:	Does this item also accomodate a nema 17 motor? there appear to be additional holes on the motor mount
Answer:	Yes, but you will need to replace the shaft coupler and get some short 3mm screws The mounting plate is drilled but not threaded for the 17 . You will need a 5mm to 8mm coupler. sold on Amazon UPC 665268871146
Question:	Is it possible to the the stage without the motor
Answer:	Of courese, but have to ship to you from China,

• The length of linear rail :600mm / 23.5 inch, diameter: 0.62 inch / 16mm
• 2 pieces of SBR16 rail shafts (23.5inch / 600mm long) and 4 pieces SBR16UU blocks
• Easy to build an economical linear guiding system
• Cylindrical guide with aluminum support and principal rail, stabilizing the original rail
• The linear rails can be used in large transmission equipment, such as industrial robots, supersonic cleaning equipment,   solar energy, cracker machines and clothing supporting devices, etc.

User questions & answers

Question:	Can these be used for an x - y router where there would be significant side loading to the rails (a gantry type design
Answer:	These are nice guides, but I would not use them for a router. I use them to move a splash guard up and down, but I would not rely on them for anything precise or heavy duty. The carriage has about a 25° rotation to both sides of the rail so a side load would be difficult.
Question:	Can someone confirm? are these 2 rails each of 600mm which means total of 1200 mm
Answer:	Yes, the length of each rail is 600mm, the total length is 1200mm.
Question:	Is there a way to add a brake and end-stops to this set? Thinking of mounting a sim-racing chair to it
Answer:	There is a locking wrench, but I don't know if it can achieve the effect you want.
Question:	How much weight can these carry
Answer:	4 sliders load 220 lbs.

Product features

Linear Rail Kits

Our package incl. 2 pieces of SBR16 rail shafts (23.5inch / 600mm long) and 4 pieces SBR16UU blocks

High Quality

Made of high quality aluminum, this linear rail is durable, stable and support the blocks movement smoothly.

Stable Support

Cylindrical guide with aluminum support and principal rail, stabilizing the original rail

Smooth Movement

With the ball in the block, it can move smooth and quick on the liner without any obstruct.

Easy Mount

Due to the pre-drilled hole, you can easily install it.

Widely Usage

The linear rails can be used in large transmission equipment, such as industrial robots, supersonic cleaning equipment, solar energy, cracker machines and clothing supporting devices, etc.

Linear Guideway Rail

Specification:

Length: 23-1/2”

Material: steel

Performance: Smooth

Color: Silver

Package:

4 x Blocks

2 x Linear

Product description

Introduction

The material is the high quality steel, extend the service life of the shaft and the machine. The shaft is case hardened, If you use normal steel shaft,The bearings will be reduce in use process.Besides, it's more durable than Plastic linear bearing. Move smoothly without deflection, minimal wear and low noise.

Feartures

Steel material and hardened Case

Pre-drilled holes on the support rail mounts

High accuracy and strong durability

Accept customized length and assembly

Parameter

Rail width: 5mm

Rail length: 1500mm

Material: Gcr15 steel

Weight: 14lbs

Package dimensions: 60"X5"X3"

Package:

2pcs 15-1500mm linear guideway length 300mm

4pcs square type carriage bearing block internal width 34mm

• Rail width 5mm; Rail length1500mm
• Steel material support rail with pre-drilled holes for ease of mounting
• There are 4 square carriage blocks,so that you can assembly to the flange type and rectangular
• It can move smoothly without deflection minimal wear and low noise, because the high accuracy and strong durability
• The Rail guide is widely used in the automation machinery such as machine tool,bending machines, laser welding machines, etc

User questions & answers

Question:	Can I order a shorter length
Answer:	Yes
Question:	Why are the grease fittings and hole covers so hard to find? Could you start selling them here
Answer:	Just oil the rails, maybe once a year. There is no need to get fancy with grease pumps.
Question:	Is there any force or weight capacity listed for these? my gantry will weigh roughly 175 pounds (for a 5x10 cnc plasma
Answer:	Considering the weights is divided between 4 blocks there shouldn’t be a problem supporting your gantry. That said, you didn’t mention the type of cnc you are planning on. Will it be routing, milling, or just plasma. Some have higher axial loads that could exceed these capabilities.
Question:	The tech details states that these rails are 5mm wide but the picture shows 2cm and the text description says 15mm? What is the correct rail width
Answer:	Yes, 15mm wide and whatever length you choose Ken

Product description

Linear Rail Set SBR16-1200mm

This linear rail kit is of 2 pieces of 1200mm/47.2" long SBR16 rail shafts and 4 SBR16UU bearing blocks. Perfect combination of main axle and aluminum alloy support, which nicely stabilizes the original rail. Premier quality bearing blocks moves smoothly while using.

SBR16 Linear Rail Kits

Linear rail kit includes 2 pieces of 1200mm/47.2" long SBR16 rail shafts and 4 SBR16UU blocks. Corrosion-resistant, high strength, and wear resistance.

High-quality Material

This bearing rail is constructed with carbon steel main axle and aluminum alloy support, GCr15 bearing steel linear rail block and aluminum alloy casing.

High Hardness & Rigidity

Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, with high accuracy and strong durability.

Complete Sliding Unit

Cylindrical guide composed by principal rail and aluminum support, stabilizing the original rail. Premier quality bearing blocks moves smoothly while using.

Easy To Assemble

Aluminum material support rail with pre-drilled holes for ease of mounting.

Widely Used

The linear guides is perfect for your DIY routers, mills, lathes, widely used in the automation machinery such as machine tool, bending machines, laser welding machines, etc.

Specification

• Type: Linear slide rail set
• Performance: Smooth motion
• Performance: Low noise
• Rail Shafts: 2 pieces SBR16
• Bearing Blocks: 4 pieces SBR16UU
• Rail shaft length: 1200mm/47.2inch
• Rail shaft diameter: 16mm/0.63inch

Package & Content

• 2 x SBR16-1200 mm/47.2" Linear Slide Guide Fully-supported Rails
• 4 x SBR16UU Bearing Blocks

• 【1200MM SBR16 LINEAR RAIL KITS】- This linear rail set includes 2 pieces of 1200mm/47.2" long SBR16 rail shafts and 4 SBR16UU blocks. Sliding blocks to be used cooperatively with rails, smooth sliding provided by inside linear bearing.
• 【HIGH-QUALITY STEEL MATERIAL】- CNC parts linear rails are made of carbon steel, linear Bearings made of GCr15 bearing steel with aluminum alloy housing. Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, more durable.
• 【PREMIER LINEAR GUIDING SYSTEM】- Perfect combination of main axle bearing rail and aluminum alloy support, which nicely stabilizes the original rail. Industrial-grade standard SBR block, with high precision linear bearing inside.
• 【EASY TO INSTALL】- Aluminum alloy support rail with pre-drilled holes for ease of mounting. Stainless steel Linear optical axis guide bearings linear movement. Easy to install, no need to maintenance.
• 【WIDE APPLICATION】- The linear guide rail is widely used in the automation machinery such as  DIY CNC routers,lathes, machine tool, bending machines, laser welding machines, etc. Also applicable for large-scale transmission equipment including industrial robots, cracker machines.

User questions & answers

Question:	Can you put a set screw or adjust the tension on the bearings so they dont move backk and forth
Answer:	Yes you can.

Product features

SBR16 Linear Rail Kits

Linear rail kit includes 2 pieces of 1200mm/47.2" long SBR16 rail shafts and 4 SBR16UU blocks. Corrosion-resistant, high strength, and wear resistance.

High-quality Material

This bearing rail is constructed with carbon steel main axle and aluminum alloy support, GCr15 bearing steel linear rail block and aluminum alloy casing.

High Hardness & Rigidity

Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, with high accuracy and strong durability.

Complete Sliding Unit

Cylindrical guide composed by principal rail and aluminum support, stabilizing the original rail. Premier quality bearing blocks moves smoothly while using.

Easy To Assemble

Aluminum material support rail with pre-drilled holes for ease of mounting.

Widely Used

The linear guides is perfect for your DIY routers, mills, lathes, widely used in the automation machinery such as machine tool, bending machines, laser welding machines, etc.

Linear Rail Set SBR16-1200mm

This linear rail kit is of 2 pieces of 1200mm/47.2" long SBR16 rail shafts and 4 SBR16UU bearing blocks. Perfect combination of main axle and aluminum alloy support, which nicely stabilizes the original rail. Premier quality bearing blocks moves smoothly while using.

• 【COMPLETE LINEAR RAIL KITS】- This set includes supported linear rails SBR20-300/600/1000 mm rails, 3pcs of ball screws RM1605-350/650/1050 mm-C7, 3 sets of BK/BF12 and 3pcs of couplings 6.35 mm*10 mm.
• 【HIGH-QUALITY MATERIAL】- Linear guides are made of quality material, and the ball screw with the high efficiency and low heat generation can ensure accurate micro feed and get a higher rigidity.
• 【PREMIER LINEAR GUIDING SYSTEM】- Complete sliding unit's system with high accuracy and can be moved without deflection. There is a lot of balls rolling motion between the screw shaft and nut, it is possible to obtain a high efficiency of movement.
• 【EASY TO INSTALL】- Quality support rail with pre-drilled holes for ease of mounting. The ball screw movement achieves high-speed feed. Convenient to install it, less effort to maintain.
• 【WIDE APPLICATION】- The linear guide rail is widely used in CNC Router\CNC Grinding machine, the industrial machinery printing, paper-processing, automatic machine, X-Y table, factory automation equipment, etc.

User questions & answers

Question:	what is the mount hole spacing from hole to hole in both directions i need the grid
Answer:	1/2 inches
Question:	can i buy an additional 1050mm ball screw with this kit? So this kit plus one more 1050mm ball screw
Answer:	I don’t know, but I thought about it myself also.
Question:	Does the screw thread length match the guide rail? Example: Does the 1050mm long ball screw have 1000mm of thread (matching the 1000mm rail
Answer:	The 1050 mm ball screw measurement is total length. It has 990 mm of screw
Question:	The guides are 12 or 20 mm
Answer:	20mm

Product features

Linear Guide Rail Set

The listing is for supported linear rails SBR20-300/600/1000 mm rails(6 supported rails+12 SBR20UU bearing blocks), 3pcs of ball screws RM1605-350/650/1050 mm-C7(3 screws+3 ballnuts+3 end-machinings), 3 sets of BK/BF12(with locknuts and Cir-clips) and 3pcs of flexible couplings. Move smoothly without deflection, minimal wear, and low noise.

Package Content

• 2 X SBR20-300mm Linear Rail Guide
• 2 X SBR20-600mm Linear Rail Guide
• 2 X SBR20-1000mm Linear Rail Guide

Product description

Specification:

Condition: 100% Brand New

Item Type: Linear Stages

Material: Aluminum Alloy (Black Anodized)

Model: SEMY60-AS

Moving Distance Adjustment: Micrometer Differential Head

Sliding Track: Linear Guide

Rail Type: Cross Roller Type

Table Size: Approx. 60 * 60 * 40mm / 2.4 * 2.4 * 1.6in

Load Resistance: 44.1N

Stroke: ±6.5mm

Centimeter Card Accuracy: 0.01mm

Parallelism: 30μm

Moving Parallelism: 20μm

True Straightness: 3μm

Product Size: Approx. 90 * 90 * 40mm / 8.1 * 8.3 * 1.6in



Package List:

1 * Linear Stage



Note:

1. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.

2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

• 【ALUMINUM ALLOY】: 100% brand new and high quality.
• 【DURABLE】: Linear stage is made of aluminium alloy material with black anodized surface,it is durable.
• 【SPECIALTY】: This is a XY linear guide sliding track, used for capacitive touch screen production equipment, fixtures, optical instruments, etc.
• 【STABLE PERFORMANCE】: Precision machining and stable performance, good using effect.
• 【ADHIBITION】: Suitable for laboratory precision inspection, mechanical equipment positioning and movement, various fiber coupling, optical waveguide alignment, core adjustment, packaging system, etc.

Product description

1000mm Linear Optical Axis Slider Set

This linear rail set is of 2Pcs 1000mm/39.37" chrome plated linear shafts; 4Pcs fixed shaft support SK16; 4Pcs pillar block bearings SCS16UU. Perfect combination of main axle and aluminum alloy support, which nicely stabilizes the original rail. Premier quality bearing blocks moves smoothly while using.

1000mm Linear Rail Slider Set

CNC rail kit includes 2Pcs 1000mm/39.37" chrome plated linear shafts; 4Pcs fixed shaft support SK16;4Pcs pillar block bearings SCS16UU.

High-quality Material

This bearing rail is constructed with carbon steel main axle and aluminum alloy support, GCr15 bearing steel linear rail block and aluminum alloy casing.

Smooth Sliding & High Precision

Sliding blocks to be used cooperatively with rails, smooth sliding provided by inside linear bearing. Rod Rail Shaft Support with high accuracy(G6).

High Hardness & Rigidity

Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, with high accuracy and strong durability.

Easy To Assemble

Aluminum material support rail with pre-drilled holes for ease of mounting.

Widely Used

CNC rails is perfect for installation on all kinds of machinery; such as: engraving machine, woodworking machinery, printing machinery, machinery, etc.

Specification

• Material: Carbon steel, GCr15, aluminum alloy
• Performance: Smooth motion
• Performance: Low noise
• Rail Shafts: 2Pcs Chrome Plated Shafts
• Bearing Blocks: 4Pcs SCS16UU
• Bearing Support: 4Pcs Fixed Support SK16
• Rail shaft length: 1000mm/39.37inch
• Rail shaft diameter: 16mm/0.63inch

Package & Content

• 2 x Chrome Plated Steel Shafts
• 4 x SCS16UU Bearing Blocks
• 4 x Fixed Support SK16

• 【1000MM LINEAR OPTICAL AXIS SLIDER SET】- Linear rail set includes 2Pcs 1000mm chrome plated linear shafts; 4Pcs fixed shaft support SK16; 4Pcs pillar block bearings SCS16UU. Corrosion-resistant, high strength, and wear resistance.
• 【HIGH-QUALITY STEEL MATERIAL】- Linear motion bearing kit are made of carbon steel, linear Bearings made of GCr15 bearing steel with aluminum alloy housing. Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, more durable.
• 【PREMIER LINEAR GUIDING SYSTEM】- Perfect combination of main axle bearing rail and aluminum alloy support, which nicely stabilizes the original rail. Industrial-grade standard SBR block, with high precision linear bearing inside.
• 【EASY TO INSTALL】- Aluminum alloy shaft support with pre-drilled holes for ease of mounting. Stainless steel Linear optical axis guide bearings linear movement. Easy to install, no need to maintenance.
• 【WIDE APPLICATION】- Linear motion ball bearing set is widely used for digital 3D coordinate measuring equipment such as precision equipment or special machinery industry. Suitable for kinds of electronic equipment/guide bar, drive shaft, and pillar.

User questions & answers

Question:	What size screws are the linear bearing holders tapped for
Answer:	#10-32

Product features

1000mm Linear Rail Slider Set

CNC rail kit includes 2Pcs 1000mm/39.37" chrome plated linear shafts; 4Pcs fixed shaft support SK16;4Pcs pillar block bearings SCS16UU.

High-quality Material

This bearing rail is constructed with carbon steel main axle and aluminum alloy support, GCr15 bearing steel linear rail block and aluminum alloy casing.

Smooth Sliding & High Precision

Sliding blocks to be used cooperatively with rails, smooth sliding provided by inside linear bearing. Rod Rail Shaft Support with high accuracy(G6).

High Hardness & Rigidity

Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, with high accuracy and strong durability.

Easy To Assemble

Aluminum material support rail with pre-drilled holes for ease of mounting.

Widely Used

CNC rails is perfect for installation on all kinds of machinery; such as: engraving machine, woodworking machinery, printing machinery, machinery, etc.

1000mm Linear Optical Axis Slider Set

This linear rail set is of 2Pcs 1000mm/39.37" chrome plated linear shafts; 4Pcs fixed shaft support SK16; 4Pcs pillar block bearings SCS16UU. Perfect combination of main axle and aluminum alloy support, which nicely stabilizes the original rail. Premier quality bearing blocks moves smoothly while using.

Product description

SBR20-1000mm Linear Guideway Rail Kit

The linear motion products and technology are widely used for automatic mechanical facilities under common accuracy and designed with load capacity and rigidity higher than other similar products with structure optimization. Bearing blocks are able to resist high temperatures and own long service life.

Complete Linear Rial Kits

High-quality Steel Material

Premier Linear Guiding System

Easy to Install

key Features

Complete Linear Rail Kits

Linear rail kit includes two pieces of 1000mm/39.5" long rail shafts and 4 SBR20UU blocks. Corrosion-resistant, high strength, and wear resistance.

High-Quality Material

This bearing rail is constructed with carbon steel main axle and aluminum alloy support, bearing steel linear rail block, and aluminum alloy casing.

High Hardness & Rigidity

Surface chrome plating treatment beautiful anti-rust, high hardness, with high accuracy and strong durability.

Complete Sliding Unit

Cylindrical guide composed of principal rail and aluminum support, stabilizing the original rail. Premier quality bearing blocks moves smoothly while using.

Easy To Assemble

Aluminum material support rail with pre-drilled holes for ease of mounting.

Widely Used

The linear guides are perfect for your DIY routers, mills, lathes, widely used in the automation machinery such as machine tools, bending machines, laser welding machines, etc.

Specifications

Bearing Blocks: 4 pieces, SBR20UU

Rail Shafts: SBR20, 1000 mm (71")

Package Content

2 X SBR20-1000 mm/39.5" Linear Slide Guide Fully-supported Rails

4 X SBR20UU Bearing Blocks

• 【COMPLETE LINEAR RAIL KITS】- This linear rail set includes two pieces of 1000mm/39.5" long rail shafts and 4 SBR20UU blocks. Sliding blocks to be used cooperatively with rails, smooth sliding provided by the inside linear bearing.
• 【HIGH-QUALITY STEEL MATERIAL】- CNC parts linear rails are made of carbon steel, linear Bearings made of quality bearing steel with aluminum alloy housing. Surface chrome plating treatment beautiful anti-rust, high hardness, More durable.
• 【PREMIER LINEAR GUIDING SYSTEM】- Perfect combination of the main axle bearing rail and aluminum alloy support, which nicely stabilizes the original rail. Industrial-grade standard SBR block, with a high precision linear bearing inside.
• 【EASY TO INSTALL】- Aluminum alloy support rail with pre-drilled holes for ease of mounting. Stainless steel Linear optical axis guide bearings linear movement. Easy to install, no need for maintenance.
• 【WIDE APPLICATION】- The linear guide rail is widely used in the automation machinery such as DIY CNC routers, lathes, machine tools, bending machines, laser welding machines, etc. Also applicable for large-scale transmission equipment, including industrial robots, cracker machines.

User questions & answers

Question:	how much weight will they support
Answer:	If the rail is supported, I would think hundreds of pounds. Might really depends on the bearings.
Question:	Can these rails be used as a bottom slider for a drawer I was planning to make? This will be a pull out drawer that would weigh ~150 lbs
Answer:	I think your best bet would be regular heavy duty drawer slides. These are very strong but you would have to make the rails as long as the drawer plus the distance you plan on pulling the out. You would also have the clearance behind the drawer for the rail when it is pushed in.
Question:	Can these be used upside down with 20 lbs. hanging on them? Will they come off the track
Answer:	No way to come off track even if bearings are gone
Question:	How much "play" is there between the bearing blocks and the rail? I want to use this to make a precision fence for a table saw
Answer:	This is not an answer but more of a question to the original poster... did you end up using this to create a precision fence for a table saw? I was thinking the same thing so if you did, would you mind sharing some pictures on a review of this product?

Product features

Complete Linear Rail Kits

Linear rail kit includes two pieces of 1000mm/39.5" long rail shafts and 4 SBR20UU blocks. Corrosion-resistant, high strength, and wear resistance.

High-Quality Material

This bearing rail is constructed with carbon steel main axle and aluminum alloy support, bearing steel linear rail block, and aluminum alloy casing.

High Hardness & Rigidity

Surface chrome plating treatment beautiful anti-rust, high hardness, with high accuracy and strong durability.

Complete Sliding Unit

Cylindrical guide composed of principal rail and aluminum support, stabilizing the original rail. Premier quality bearing blocks moves smoothly while using.

Easy To Assemble

Aluminum material support rail with pre-drilled holes for ease of mounting.

Widely Used

The linear guides are perfect for your DIY routers, mills, lathes, widely used in the automation machinery such as machine tools, bending machines, laser welding machines, etc.

SBR20-1000mm Linear Guideway Rail Kit

The linear motion products and technology are widely used for automatic mechanical facilities under common accuracy and designed with load capacity and rigidity higher than other similar products with structure optimization. Bearing blocks are able to resist high temperatures and own long service life.

Product description

MGN12(MR12) linear guide 350mm with MGN12H carriage block.



There are 2 red rubber stoppers on the ends of the rail in case the carriage falls off the rail, please remove them after assembling the rail on your machine if necessary.



Packing list:

1 * MGN12 linear rail guide 350mm length

1 * MGN12H carriage block(been installed on the rail)

2 * steel balls(for backup)

• 350mm MGN12 linear rail guide with MGN12H block
• There are 2 red rubber stoppers to keep the block on the rail
• Threaded holes of the block: 4-M3*3.5; center distance of the holes: 20*20mm
• There are 14 holes on the rail for fixing the rail to the machine with M3 nut and screw, and it is suggested to use T nut M3 if you fix it to 20 series EU Al-profile
• Come with 2 spare balls in the package for backup

User questions & answers

Question:	what is the difference between the mgn12h and the mgn12c
Answer:	Hello, MGN12H(45.7*27) is longer than MGN12C(34.7*27). Please check these listings for details: B07DZ723JS, B0788MGZ16
Question:	What size socket caps go into the countersunk mounting holes
Answer:	Hi, as you can see the dimension in the picture, for the rail, φD is 6mm, φd is 3.5mm and h is 4.5mm, so it is suitable to use M3 hexagon socket head cap screws to fix the rail.
Question:	Will you be getting more of the 200mm rail
Answer:	Yes, we will send inventory asap. Thanks for your support!
Question:	How much weight can the carriage block carry
Answer:	Hi, for MGN12H block, the basic dynamic load rating is 380kgf, the basic static load rating is 600kgf, please check the image of the listing to confirm the other parameters.
