13 best linear motion ball screws
Linear motion ball screws are crucial components used in machinery and equipment for converting rotational motion into linear motion. They are commonly employed in various industries, including manufacturing, automation, robotics, and aerospace, among others.
Here are some key points about linear motion ball screws:
Functionality: A ball screw is essentially a threaded rod with ball bearings (also known as ball bearings) that travel along the helical grooves of the screw. When the screw rotates, the ball bearings move, allowing the nut (which holds the bearings) to move along the length of the screw.
Precision and Efficiency: Ball screws are valued for their high precision and efficiency in converting rotational motion to linear motion. This makes them essential in applications where accuracy and reliability are paramount.
Advantages Over Other Mechanisms: Compared to other methods of achieving linear motion, such as belts and pulleys or lead screws, ball screws are often preferred for their higher load capacity, reduced friction, and increased efficiency.
Applications: They are used in a wide range of applications, including CNC machines, 3D printers, medical devices, semiconductor manufacturing equipment, and various automated systems.
Components: A ball screw system typically consists of the ball screw itself, a nut, and often a support bearing system. These components work together to ensure smooth and precise linear motion.
Types of Ball Screws:
- Ground vs.Rolled Screws: Ground ball screws are manufactured with high precision through a grinding process, resulting in a smoother surface and higher accuracy. Rolled ball screws are made through a rolling process and are generally less expensive but slightly less accurate.
- Single Nut vs. Double Nut: Some ball screw systems have two nuts that run along the same screw. This configuration provides better load distribution and can help prevent backlash.
Maintenance: Proper maintenance is essential to ensure the longevity and performance of ball screws. This may include regular lubrication and checking for wear and misalignment.
Availability: Linear motion ball screws and related components can be found through various suppliers and manufacturers specializing in linear motion products, power transmission products, and industrial scientific equipment.
Please note that my knowledge is based on information available , and we do not have access to real-time or updated information beyond that date. If you're seeking the most current details on linear motion ball screws, we recommend consulting reputable manufacturers or suppliers in this field.
Below you can find our editor's choice of the best linear motion ball screws on the market

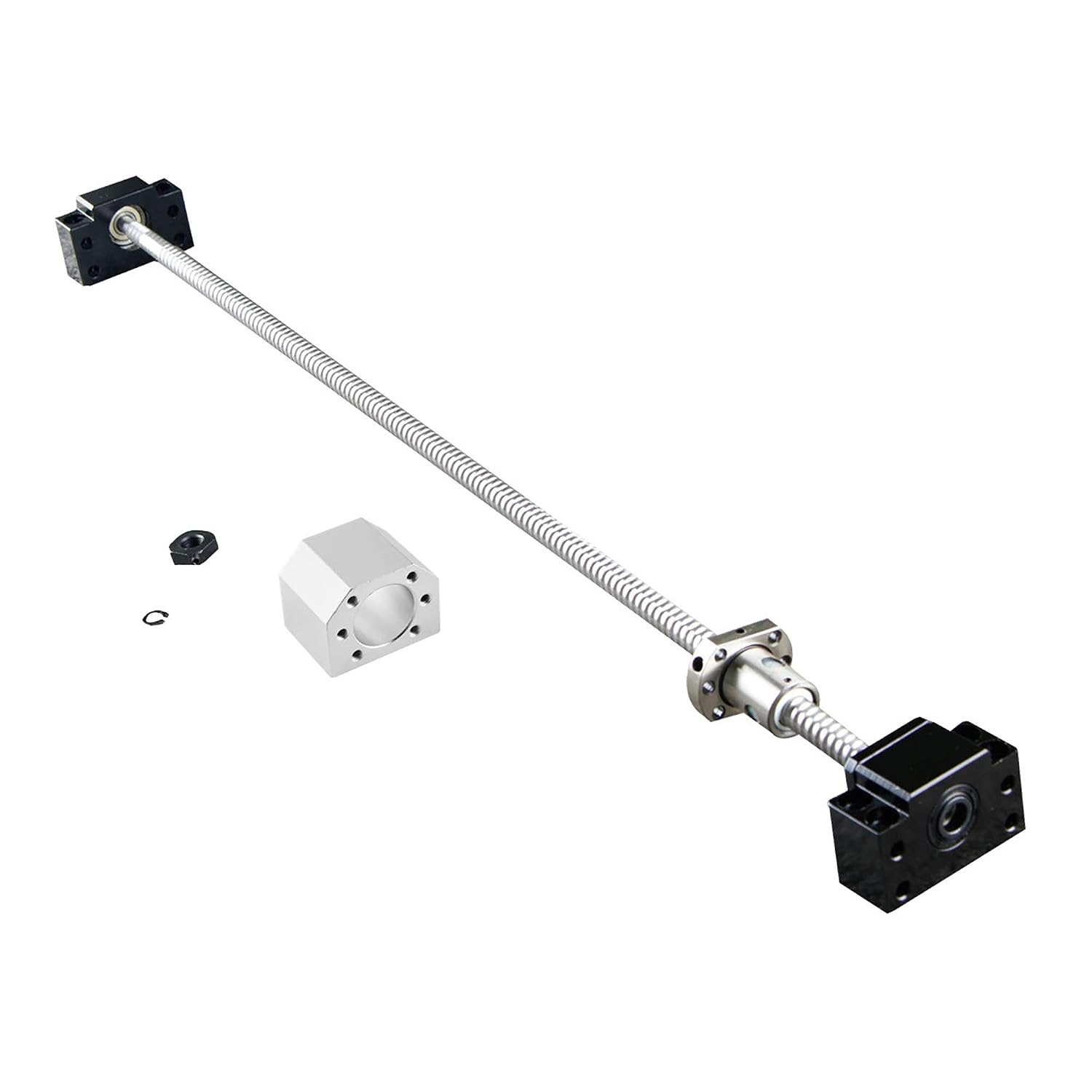

Mophorn Ballscrew SFU1605-1200mm Anti-Backlash 1605 Ball Screws + 1 Set BK and BF12 + Couplers for CNC Route Grinding Machine
Mophorn
- 【FINE WORKMANSHIP】 - Diameter: 16 mm; Lead: 5 mm. The ball screw is made of high-quality and durable CF54 steel that is wear-proof and resistant to high temperatures. It provides a helical raceway for ball bearings, which act as a precision screw, playing an essential role in situations where high precision is necessary.
- 【HIGH MECHANICAL EFFICIENCY】 - Compared to alternatives, the linear motion kit has higher mechanical efficiency and is four times the Acme lead screw of the same size.
- 【MUTE OPERATION】 - The ball screw kit features an accuracy grade of C7 with bearing fits less than 0.03 mm, making little noise while running.
- 【LITTLE SLIDING FRICTION】 - The CNC part bears very little sliding friction between the nut and screw, and therefore longer service life.
- 【WIDE APPLICATION】 - The linear motion actuator is widely applied to CNC router, machine tools, robots, precision assembly equipment, etc.
User questions & answers
| Question: | Is the overall length1200mm or is the threaded length 1200mm |
| Answer: | Overall length is 1200 mm |
Product features
Quality Steel
The ball screw assembly is composed of a shaft, a nut, and BK/BF12 support sides. The ball reverser is made of quality steel, which stands up to wear and tear, and meet high load capacity requirements.
Faster Translating
The ball assembly acts as the nut, while the threaded shaft is the screw. Whereas, it yields higher mechanical efficiency than traditional Acme alternatives.
Accuracy Grade C7
The CNC router part is of accuracy grade C7 with bearing fits less than 0.03 mm so that the actuator rod doesn't wiggle so much when operating.
Mute Operation
The CNC linear rail kit bears very little sliding friction between the nut and screw. So downtime for maintenance and parts replacement is cut, and so is the demand for lubrication.
Power Saving
Meanwhile, its overall performance is excellent, considering it saves power and ensures high efficiency.
Wide Application
The ball screw kit is widely applied to CNC router, machine tools, robots, precision assembly equipment, etc.
SFU1605 1200 mm BK/BF12 Ball Screw
The ball screw runs smoothly even under a load, which helps create a long-lasting, high mechanical efficiency. It provides low-friction travel in applications that require high speeds, accurate positioning, and repeatable movement.
- Fine Workmanship
- High Mechanical Efficiency
- Mute Operation
- Little Sliding Friction

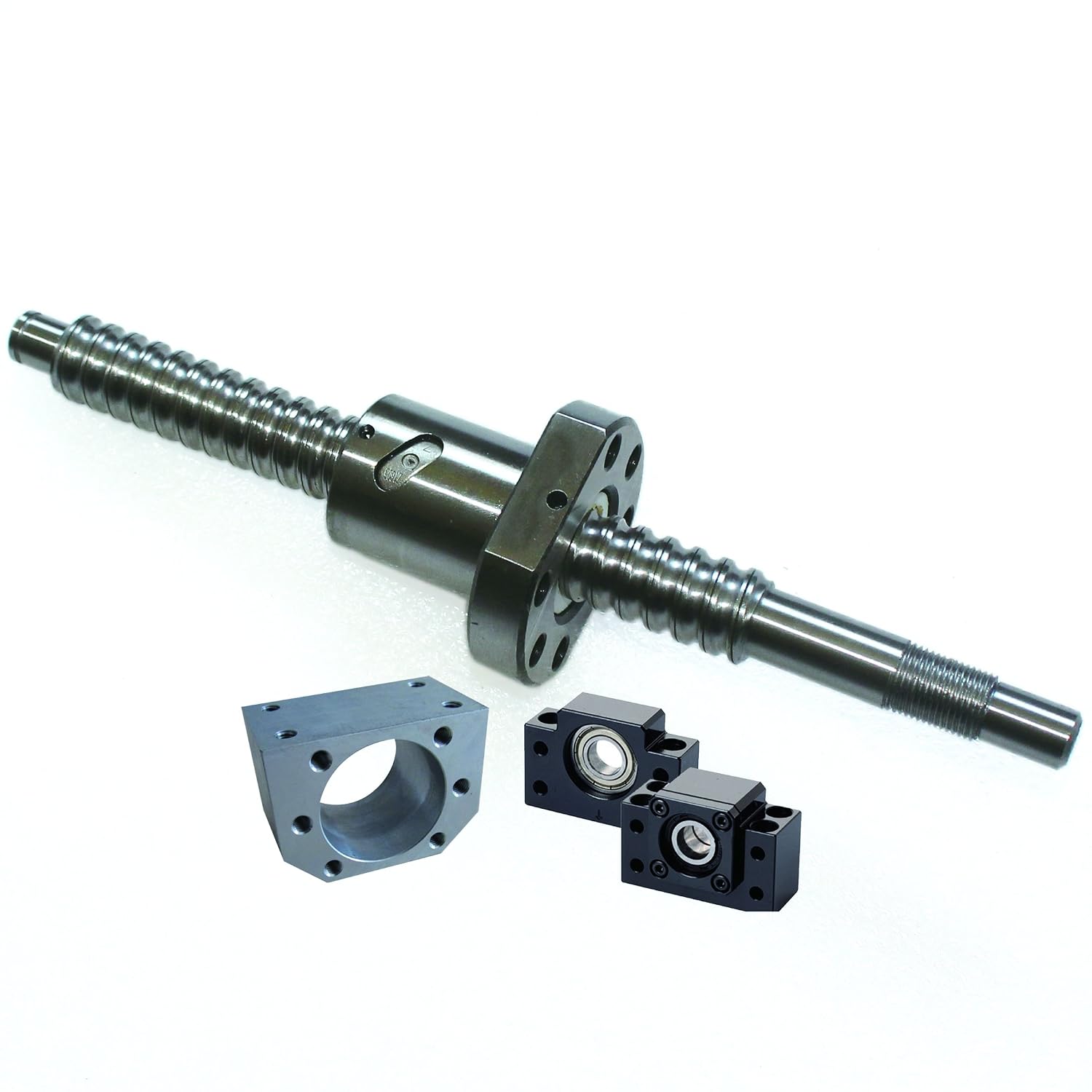

Mophorn Ballscrew RM1605-1500mm,Anti-Backlash Ballscrew 6.35mmx10mm Coupler with End Machine Ballscrew Kit,with Set BK/BF 12 and Screw & Ball Nuts Housing,for CNC Grinding Machine
Mophorn
Product description
RM1605-1500mm Antibacklash Ballscrew
Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack. Because it's small friction drag,They are also used in machine tools, robots and precision assembly equipment. High precision ball screws are used in steppers for semiconductor manufacturing.
Feature:
A small friction loss, high transmission efficiency
High speed feed and Micro-feed supply
High service life time due to low friction; low operation noise
No stick-slip effect,heats up less,reduced drive power required
High static and dynamic stiffness
High and more accurate positioning
High axial forces per Ball Screw volumina
Specifications:
Name：Ballscrew +BK/BF12+Coupler
Material: Bearing Steel
Ballscrew Overall Length: 1500mm
Coupler End Inner Hole：6.35mm*10mm
Fixed Side Diameter:12mm
Package Content:
1 x RM1605-L1500mm Ballscrew
1 x Signle Flange Ballnut with End Machining
1 xBK12 Fixed End support +1pcs BF12 Free End support
1 x BR Series Clamp coupler D25-L30-6.35*10mm
- Ballscrew Overall Length:1500mm/59inch ;Coupler End Inner Hole:6.35mm*10mm;Fixed Side Diameter:12mm
- The Antibacklash Ballscrew Material :Bearing Steel
- High dimensional accuracy, low friction coefficient, good wear resistance.
- The ballscrew support seat surface is electroplated processing, surfacing smooth and beautiful
- The ball screws are widely used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack
User questions & answers
| Question: | Are there any CAD models or technical drawings available for these parts |
| Answer: | I found all the drawings i needed via google search. They are out there you just have to search to get them. |
| Question: | How many turns per inch |
| Answer: | 5.08001 |
| Question: | What is the travel distance per revolution |
| Answer: | https://www.youtube.com/watch?v=f1G7NVaV31k |
| Question: | Does this come with the ballnut housing |
| Answer: | Yes |

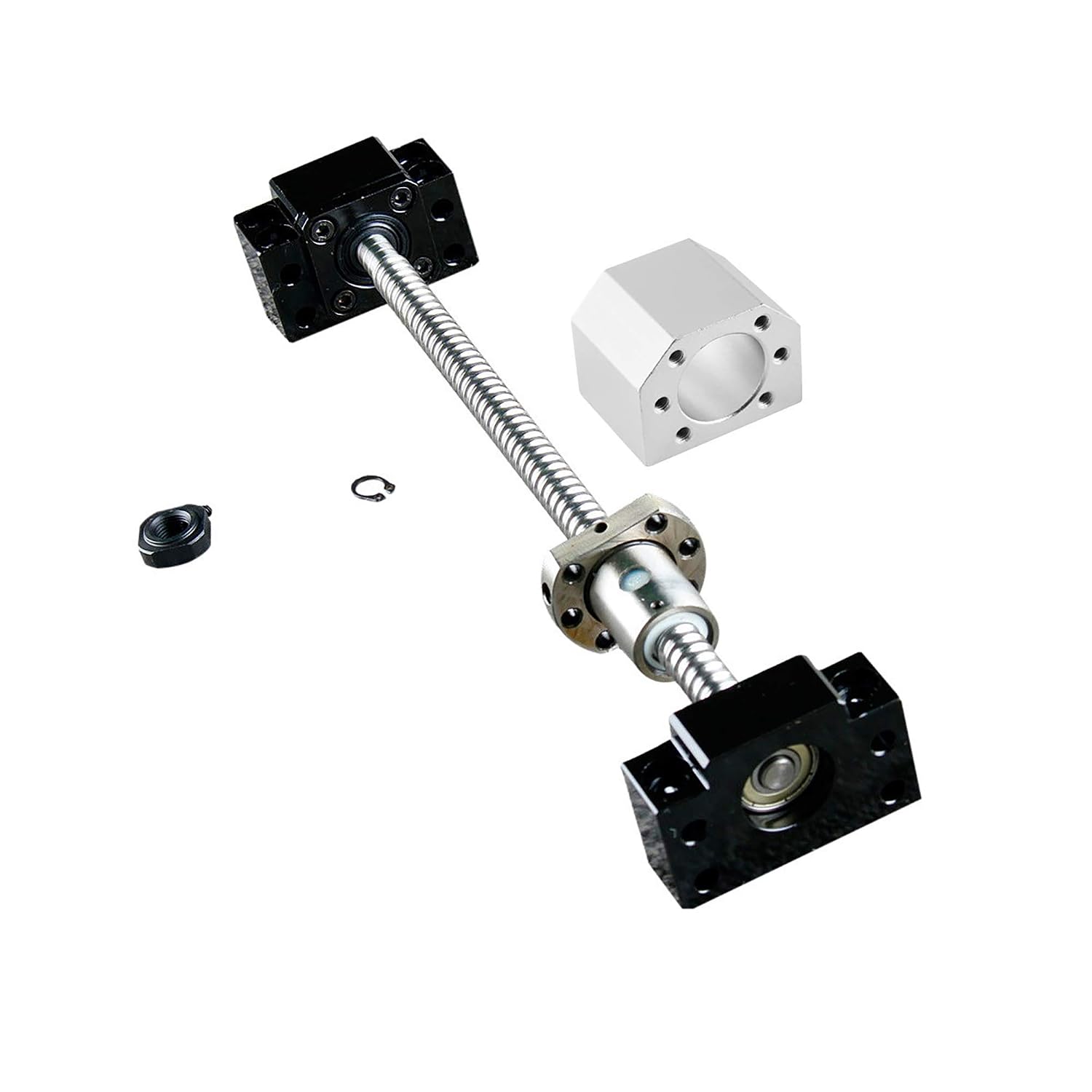

SFU1605 1000mm Ballscrew kit + Set BK/BF12 Kit + 1605 Ballscrew RM1605 L1000mm Ball Screw with Ball Nuts + Screw Nut Housing for CNC Machine
Lishui
Product description
Package include:
1Pcs SFU1605 ballscrew - L1000mm with 1Pcs SFU1605 metal deflector single flange Ballscrew Nut
1Pcs BK12/BF12 End Support with locknuts and circlips
1Pcs DSG16H Aluminum ballscrew Nut housing
Manufacturing Process:Rolled Thread
Precision:C7 Grade
Accuracy <0.5mm
Material: Carbon Steel
Type:RM/SFU1605 ballscrew
Length: Total length 1000mm
fit for Coupler: 10mm coupler
Notice: when you install support bearing's clip need you this tool ( see the last image ) and pay attention to the installation direction of BK / BF
End Machined ballscrew
high service life time due to low friction; low operation noise
no stick-slip effect;heats up less;reduced drive power required
We can customise all Ballscrew length less than 1200mm, Any problems, Feel Free to contact us.
- high service life time due to low friction; low operation noise, Total length 1000mm L
- no stick-slip effect;heats up less;reduced drive power required
- High static and dynamic stiffness,more accurate positioning
- End Machined ballscrew SFU1605-1000mm L with nut+BK12/BF12+Ball nut Housing
- We can customise all Ballscrew length less than 1200mm, Any problems, Feel Free to contact us.
Mophorn Ball Screw SFU1605 350mm,Ballscrew Kit Anti-Backlash RM1605 350mm Ball Screws + 1 Set BK and BF12 Support Ballnut + Couplers,Ball Screws for CNC Machine
Mophorn
- 【FINE WORKMANSHIP】 - Diameter: 16 mm; Lead: 5 mm. The ball screw is made of high-quality and durable CF54 steel that is wear-proof and resistant to high temperatures. It provides a helical raceway for ball bearings, which act as a precision screw, playing an essential role in situations where high precision is necessary.
- 【HIGH MECHANICAL EFFICIENCY】 - Compared to alternatives, the linear motion kit has higher mechanical efficiency and is four times the Acme lead screw of the same size.
- 【MUTE OPERATION】 - The ball screw kit features an accuracy grade of C7 with bearing fits less than 0.03 mm, making little noise while running.
- 【LITTLE SLIDING FRICTION】 - The CNC part bears very little sliding friction between the nut and screw, and therefore longer service life.
- 【WIDE APPLICATION】 - The linear motion actuator is widely applied to CNC router, machine tools, robots, precision assembly equipment, etc.
Product features
Quality Steel
The ball screw assembly is composed of a shaft, a nut, and BK/BF12 support sides. The ball reverser is made of quality steel, which stands up to wear and tear, and meet high load capacity requirements.
Faster Translating
The ball assembly acts as the nut, while the threaded shaft is the screw. Whereas, it yields higher mechanical efficiency than traditional Acme alternatives.
Accuracy Grade C7
The CNC router part is of accuracy grade C7 with bearing fits less than 0.03 mm so that the actuator rod doesn't wiggle so much when operating.
Mute Operation
The CNC linear rail kit bears very little sliding friction between the nut and screw. So downtime for maintenance and parts replacement is cut, and so is the demand for lubrication.
Power Saving
Meanwhile, its overall performance is excellent, considering it saves power and ensures high efficiency.
Wide Application
The ball screw kit is widely applied to CNC router, machine tools, robots, precision assembly equipment, etc.
SFU1605 350 mm BK/BF12 Ball Screw
The ball screw runs smoothly even under a load, which helps create a long-lasting, high mechanical efficiency. It provides low-friction travel in applications that require high speeds, accurate positioning, and repeatable movement.
- Fine Workmanship
- High Mechanical Efficiency
- Mute Operation
- Little Sliding Friction
CHUANGNENG Ballscrew kit SFU1605 RM1605 1000mm Ball Screws Bearings + Set BK/BF12 Kits End Support Ballnut Housing,with end Machining,Length Approx 39.37inch / 1000mm for CNC Machine
CHUANGNENG
Product description
Specifications:
Model: SFU1605
Precision: C7 Grade
Length: 1000mm(39.37inch)
Diameter: 16mm(0.62inch)
Pitch: 5mm
Product name: BK12+BF12 Ball Screw End Support
Material: Carbon steel
Color: silver, as picture shows
Package Including:
1 x End Machine SFU1605-1000MM
1 x Ball Screw Nut
1 Set BK12/BF12
1 x DSG16H Ball nut Housing
About End machining
This item ball screw has end machining;
high service life time due to low friction; low operation noise;
no stick-slip effect;heats up less;reduced drive power required;
We can customise all Ballscrew length 9.84inch-59inch, Any problems, Feel Free to contact us.
We are the professional CNC accessories seller.If you have any questions or demands, please don't hesitate to contact with us.We can customize the length whatever you want, pls contact us before buying.
- Ballscrew Overall Length: 1000mm(39.37in),model:SFU/RM1605 ;End machined ballscrew SFU1605-1000mm L with nut+BK12/BF12+Ball nut housing.
- Material :Bearing Steel and aluminum alloy, Minimum starting torque, able to apply high speed and micro-feeding The ball screws precision is assured because of thorough quality control system.
- no stick-slip effect, heats up less, reduced drive power required , high axial forces per Ball Screw volumina.
- The ballscrews apply for electronic machinery robot, measuring instruments, medical equipment, X-Y table, factory automation equipment, etc.
- Packange would be sent within one day FROM CA & NJ WAREHOUSE ,Items are generally dispatched within 1 business day.
User questions & answers
| Question: | What is the distance between Bk12s mounting holes ? For |
| Answer: | 46mm.If you have any other questions,please feel free to contact us. Thanks. |
Mophorn SFU1605-600mm Ballscrew Anti-backlash 1605 Ball Screws 1 Set BK and BF12 and 1 PCS 6.3510 Coupler for CNC Route Grinding Machine
- 【FINE WORKMANSHIP】 - Diameter: 16 mm; Lead: 5 mm. The ball screw is made of high-quality and durable CF54 steel that is wear-proof and resistant to high temperatures. It provides a helical raceway for ball bearings, which act as a precision screw, playing an essential role in situations where high precision is necessary.
- 【HIGH MECHANICAL EFFICIENCY】 - Compared to alternatives, the linear motion kit has higher mechanical efficiency and is four times the Acme lead screw of the same size.
- 【MUTE OPERATION】 - The ball screw kit features an accuracy grade of C7 with bearing fits less than 0.03 mm, making little noise while running.
- 【LITTLE SLIDING FRICTION】 - The CNC part bears very little sliding friction between the nut and screw, and therefore longer service life.
- 【WIDE APPLICATION】 - The linear motion actuator is widely applied to CNC router, machine tools, robots, precision assembly equipment, etc.
Product features
Quality Steel
The ball screw assembly is composed of a shaft, a nut, and BK/BF12 support sides. The ball reverser is made of quality steel, which stands up to wear and tear, and meet high load capacity requirements.
Faster Translating
The ball assembly acts as the nut, while the threaded shaft is the screw. Whereas, it yields higher mechanical efficiency than traditional Acme alternatives.
Accuracy Grade C7
The CNC router part is of accuracy grade C7 with bearing fits less than 0.03 mm so that the actuator rod doesn't wiggle so much when operating.
Mute Operation
The CNC linear rail kit bears very little sliding friction between the nut and screw. So downtime for maintenance and parts replacement is cut, and so is the demand for lubrication.
Power Saving
Meanwhile, its overall performance is excellent, considering it saves power and ensures high efficiency.
Wide Application
The ball screw kit is widely applied to CNC router, machine tools, robots, precision assembly equipment, etc.
SFU1605 600 mm BK/BF12 Ball Screw
The ball screw runs smoothly even under a load, which helps create a long-lasting, high mechanical efficiency. It provides low-friction travel in applications that require high speeds, accurate positioning, and repeatable movement.
- Fine Workmanship
- High Mechanical Efficiency
- Mute Operation
- Little Sliding Friction
Mophorn Ballscrew Anti-Backlash RM2505-1800mm-C7 Ball Screws with A Ball Nut and End Machine + BK and BF20 End Support Bearing for CNC Route Grinding Machine Ballscrew Overall Length 1800mm
Mophorn
- 【FINE WORKMANSHIP】 - Diameter: 25 mm; Lead: 5 mm. The ball screw is made of high-quality and durable CF54 steel that is wear-proof and resistant to high temperatures. It provides a helical raceway for ball bearings, which act as a precision screw, playing an essential role in situations where high precision is necessary.
- 【HIGH MECHANICAL EFFICIENCY】 - Compared to alternatives, the linear motion kit has higher mechanical efficiency and is four times the Acme lead screw of the same size.
- 【MUTE OPERATION】 - The ball screw kit features an accuracy grade of C7 with bearing fits less than 0.03 mm, making little noise while running.
- 【LITTLE SLIDING FRICTION】 - The CNC part bears very little sliding friction between the nut and screw, and therefore longer service life.
- 【WIDE APPLICATION】 - The linear motion actuator is widely applied to CNC router, machine tools, robots, precision assembly equipment, etc.
Product features
Quality Steel
The ball screw assembly is composed of a shaft, a nut, and BK/BF12 support sides. The ball reverser is made of quality steel, which stands up to wear and tear, and meet high load capacity requirements.
Faster Translating
The ball assembly acts as the nut, while the threaded shaft is the screw. Whereas, it yields higher mechanical efficiency than traditional Acme alternatives.
Accuracy Grade C7
The CNC router part is of accuracy grade C7 with bearing fits less than 0.03 mm so that the actuator rod doesn't wiggle so much when operating.
Mute Operation
The CNC linear rail kit bears very little sliding friction between the nut and screw. So downtime for maintenance and parts replacement is cut, and so is the demand for lubrication.
Power Saving
Meanwhile, its overall performance is excellent, considering it saves power and ensures high efficiency.
Wide Application
The ball screw kit is widely applied to CNC router, machine tools, robots, precision assembly equipment, etc.
SFU2505 1800 mm BK/BF20 Ball Screw
The ball screw runs smoothly even under a load, which helps create a long-lasting, high mechanical efficiency. It provides low-friction travel in applications that require high speeds, accurate positioning, and repeatable movement.
- Fine Workmanship
- High Mechanical Efficiency
- Mute Operation
- Little Sliding Friction
CNCCANEN Ballscrew SFU1605-2000mm, RM1605 78.7in Ball Screw End Machined + 1Set BK12/BF12 End Support + DSG16H Ball Nut Housing for CNC Route Grinding Machine 3D Printer DIY
CNCCANEN
Product description
Feature:
High speed feed and Micro-feed supply
High service life time due to low friction; low operation noise
No stick-slip effect,heats up less,reduced drive power required
High static and dynamic stiffness
Fused with shiny surface matching with high precision
More resistant to wear and tear, greatly extending the life cycle of the ball screw life increased several times.
-------------------------------------------------------------------------
Specifications:
Name：Ballscrew +BK/BF12+ball nut housing
Material: Carbon Steel
Ballscrew Overall Length: 2000mm
-------------------------------------------------------------------------
Package Content:
1 x RM1605-L2000mm Ballscrew End Machined
1 x Signle Flange Ballnut with End Machining
1Set BK12/BF12 End Support
1 x DSG16H Nut Housing
- Lead:0.2/5mm Length: 78.7in/2000mm RM1605 Ballscrew: C7 standard
- Smooth and ultra quiet bearings for rails.
- Manufactured under strict control of temperature and humidity. Precision is assured because of thorough quality control system
- Minimum starting torque, able to apply high speed and micro-feeding.Above average axial stiffness
- Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack
User questions & answers
| Question: | What is the pitch |
| Answer: | SFU1605, The distance of one rotation of the nut is 5mm |
| Question: | What is the screw length for the 1550mm overall length |
| Answer: | Hi friend, ballscrew 1550mm are overall length, not screw length. please contact us by Amazon message,then we can send the drawing of the ballscrew to you. thank you! |
| Question: | i need a ballscrew setup with bearing blocks bk12 and bf12 ends and a 20mm to 50mm lead? most important is the lead |
| Answer: | Hi friend, I am sorry we don't have sell this 20mm to 50mm lead of ball screw. Thank you! |
| Question: | How many millimetres of travel is this ball screw |
| Answer: | SFU1605 ballscrew, nut rotation is 5mm one round. |
CHUANGNENG Ball Screw CNC Parts SFU1605 RM1605 16mm 850mm with Metal Deflector Ball Screw nut + End Supports BK12/BF12 +1PCS CNC Coupler with end Machining, Length Approx 33.46inch/850mm
CHUANGNENG
Product description
Features:
Model: SFU1605-850mm;
Material: Carbon Steel;
Product name: Ball Screw;
Precision:C7 Grade;
Length: 850mm(33.46inch)
Diameter: 16mm(0.62inch)
Pitch: 5mm(0.19inch)
BK12+BF12 Ball Screw End Support with locknuts and circlips;
Package Including:
1 x End Machine SFU1605-850MM;
1 x Ballscrew nut;
1 Set BK12/BF12;
1 x BR 6.35mm x 10mm Shaft Coupler
Application:
The ball screw is the transmissioncomponent and it is used in precision machine tools and machinery ,CNC Parts Its mainfunction is to convert the rotary movement into linear movement, or convert thetorque into axial reaction force, with high precision, reversibility and highefficiency.
High precision (±0.05mm), high efficiency, Brand New and high quality.
Low noise, smooth, not easy to shake or be detached when it is rotating at high speed.
- Package Included :1 x SFU1605-850mm Ball Screw End Machining;1 x Ball Screw Nut;1 set BK12/BF12 end support;1 x Coupler
- High static and dynamic stiffness Long service life due to lowfriction, low operating noise and high transmission efficiency.
- High axial forces per Ball Screw volumina，high and more accurate positioning，no stick-slip effect, heats up less, reduced drive power required.
- The ball screw is the transmissioncomponent and it is used in precision machine tools and machinery. Its mainfunction is to convert the rotary movement into linear movement, or convert thetorque into axial reaction force, with high precision, reversibility and highefficiency.
- To ensure good quality and perfect after-sales service, if you have any requirements, please contact the online service. If you want a longer Ball Screw, we can provide you with a ball screw with a length of 9.84 inches-59 inches.
User questions & answers
| Question: | What is the distance between bk12 back mounting hole to bk12 front mounting. There are two pairs of mounting holes in the front bk |
| Answer: | 1005mm |
uxcell Machinery Rubber Flexible Bellows Ball Screw Cover 3cm Inner Dia Black
Product description
Description:
Round tube, spiral and flexible design.
Used widely for protect lead screw, ball screw, shaft in machine tools.
Also used for vent protector and dust proof in mechnical equipments.
- Product Name: Ball Screw Cover; Color: Black
- Material: Rubber; Package Content: 1 x Ball Screw Cover
- Inner Diameter: 30mm/1.2"
- Outer Diameter: 50mm/1.9"
- Battery Included: No
User questions & answers
| Question: | How long is this product? What is the max/min length |
| Answer: | 650mm long. Thx! |
| Question: | What is the retracted length |
| Answer: | I'm thinking between 3 and 4" Its in a spot that i can't measure without taking things apart. |
GUWANJI Ball Screw SFU2005 400mm Ballscrew Antibacklash 2005 Ball Screws with Metal Ball Screw Nut for CNC Route Grinding Machine, Diameter 20mm Pitch 5mm (Length 400mm)
GUWANJI
Product description
SFU2005 400mm Ball Screw
The ball screw runs smoothly even under a load, which helps create a long-lasting, high mechanical efficiency. It provides low-friction travel in applications that require high speeds, accurate positioning, and repeatable movement.
Specifications
Main Material: bearing steel
Ballscrew : C7 standard
Length : 15.8†(400mm)
Feature:
A small friction loss, high transmission efficiency
High speed feed and Micro-feed supply
High service life time due to low friction; low operation noise
No stick-slip effect,heats up less,reduced drive power required
High static and dynamic stiffness
High and more accurate positioning
High axial forces per Ball Screw volumina
Package Content:
1 x Ball screw SFU2005-400 mm with a Ball Nut and End Machining
- WIDE APPLICATION: The ball screws are widely used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack.
- HIGH MECHANICAL EFFICIENCY: Low frictional loss, high transmission efficiency. This also helps extend its service life.
- HIGH PRECISION: Precision is assured because of thorough quality control system. Minimum starting torque, able to apply high speed and micro-feeding. Above average axial stiffness.
- FINE WORKMANSHIP: Diameter: 20 mm; Lead: 5 mm. The ball screw is made of high-quality and durable CF54 steel that is wear-proof and resistant to high temperatures. It provides a helical raceway for ball bearings, which act as a precision screw, playing an essential role in situations where high precision is necessary.
- MUTE OPERATION: The ball screw kit features an accuracy grade of C7 with bearing fits less than 0.03 mm, making little noise while running.
Mophorn SFU1605-1000mm Ballscrew Antibacklash 1605 Ball Screws 1 Set BK and BF12 and 1 PCS Couplers for CNC Route Grinding Machine
Mophorn
- 【FINE WORKMANSHIP】 - Diameter: 16 mm; Lead: 5 mm. The ball screw is made of high-quality and durable CF54 steel that is wear-proof and resistant to high temperatures. It provides a helical raceway for ball bearings, which act as a precision screw, playing an essential role in situations where high precision is necessary.
- 【HIGH MECHANICAL EFFICIENCY】 - Compared to alternatives, the linear motion kit has higher mechanical efficiency and is four times the Acme lead screw of the same size.
- 【MUTE OPERATION】 - The ball screw kit features an accuracy grade of C7 with bearing fits less than 0.03 mm, making little noise while running.
- 【LITTLE SLIDING FRICTION】 - The CNC part bears very little sliding friction between the nut and screw, and therefore longer service life.
- 【WIDE APPLICATION】 - The linear motion actuator is widely applied to CNC router, machine tools, robots, precision assembly equipment, etc.
User questions & answers
| Question: | What is the usable stroke for the 1000mm |
| Answer: | THE SCREW IS 76 INCHES LONG SO YOU TAKE THE SPACING OF THE BEARING CAGES LETS SAY 18 AND SUBTRACT THAT FROM THE 76 AND THAT WILL BE YOUR USABLE TRAVEL |
| Question: | One set of 2 ball screws |
| Answer: | no, one screw and one nut so 2 parts, its called a matched set or a set. |
| Question: | Is it possible to get with motor mount (threaded) on both ends and use 2 BK12 mounts |
| Answer: | It would probably need to be special ordered or purchased else where. I know they are made. my cnc table kit from pdjinc who make the Pilot Pro CNC kit machine.. Phil the owner would know. came with them. |
| Question: | is the diameter on the other end of the ballscrew (1605) also 10mm/1cm |
| Answer: | Both ends have a 10mm diameter, so if you want a coupler for this ball screw, it will have to be 10mm on one side and your motor shaft diameter on the other. |
Product features
Quality Steel
The ball screw assembly is composed of a shaft, a nut, and BK/BF12 support sides. The ball reverser is made of quality steel, which stands up to wear and tear, and meet high load capacity requirements.
Faster Translating
The ball assembly acts as the nut, while the threaded shaft is the screw. Whereas, it yields higher mechanical efficiency than traditional Acme alternatives.
Accuracy Grade C7
The CNC router part is of accuracy grade C7 with bearing fits less than 0.03 mm so that the actuator rod doesn't wiggle so much when operating.
Mute Operation
The CNC linear rail kit bears very little sliding friction between the nut and screw. So downtime for maintenance and parts replacement is cut, and so is the demand for lubrication.
Power Saving
Meanwhile, its overall performance is excellent, considering it saves power and ensures high efficiency.
Wide Application
The ball screw kit is widely applied to CNC router, machine tools, robots, precision assembly equipment, etc.
SFU1605 1000 mm BK/BF12 Ball Screw
The ball screw runs smoothly even under a load, which helps create a long-lasting, high mechanical efficiency. It provides low-friction travel in applications that require high speeds, accurate positioning, and repeatable movement.
- Fine Workmanship
- High Mechanical Efficiency
- Mute Operation
- Little Sliding Friction
SFU1204 500mm Ballscrew kit + Set BK/BF10 Kit + 1204 Ballscrew RM1204 L500mm Ball Screw with Ball Nuts + Screw Nut Housing for CNC Machine
Lishui
Product description
Package include:
1Pcs SFU1204 ballscrew - L500mm with 1Pcs SFU1204 plastic deflector single flange Ballscrew Nut
1Pcs BK10/BF10 End Support with locknuts and circlips
1Pcs DSG12H Aluminum ballscrew Nut housing
Manufacturing Process:Rolled Thread
Precision:C7 Grade
Material: Carbon Steel
Type:RM/SFU1204 ballscrew
Length: Total length 500mm
Coupler: 8mm coupler
Notice: when you install support bearing's clip need you this tool ( see the last image ) and pay attention to the installation direction of BK / BF
End Machined ballscrew
high service life time due to low friction; low operation noise
no stick-slip effect;heats up less;reduced drive power required
We can customise all Ballscrew length less than 1200mm, Any problems, Feel Free to contact us.
- high service life time due to low friction; low operation noise,Total length 500mm L
- no stick-slip effect;heats up less;reduced drive power required
- High static and dynamic stiffness,more accurate positioning
- End Machined ballscrew SFU1204-500mm L with nut+BK10/BF10+Ball nut Housing
- We can customise all Ballscrew length less than 1200mm, Any problems, Feel Free to contact us.
User questions & answers
| Question: | What is the travel length |
| Answer: | 19.685" 500 X .03937 |
| Question: | What’s the thread length on the ball screw |
| Answer: | For 1204 ball screw, the thread length is 4mm, for 1605 ball screw, the thread length is 5mm. |
| Question: | Do you sell these with double ball nuts? if not can i order additional nuts |
| Answer: | Dear friend, sorry to tell you that the 1204-500 ballscrew kit doesn't include the ball nuts. But we can see it separately,if you need it, please confirm with us the type and length of your ballscrew, so that we can quote you the nuts. Thank you ! |
Latest Reviews
View all
Koss Over Ear Headphones
- Updated: 24.06.2023
- Read reviews
Cheap Iron For Clothes
- Updated: 29.01.2023
- Read reviews
Intex Baby Pool Floats
- Updated: 12.04.2023
- Read reviews
Samsung Gaming Laptops
- Updated: 13.03.2023
- Read reviews
Electric Toothbrush For Woman
- Updated: 22.05.2023
- Read reviews
