14 best cnc rack and pinion

Product description

RACK GEAR, 14 1/2 PA, 12 DP, STEEL,

User questions & answers

Question:	cross section dimensions
Answer:	The width of this rack is .750 in, overall thickness is .500 in, and pitch line to back is .417 in.

Product description

Brand New Intermediate Steering Shaft Kit that includes an 36" Long Cut-to-Length 3/4" Double D Steering Shaft that features an Beautiful Nickel Plated Finish, and comes with an 1" Double D x 3/4" Double D Universal Joint, and 3/4" Double D X 3/4"-36 Universal Joint, that fits 1974-1980 Ford Mustang II, Ford Pinto, and Mercury Bobcat with 1" Double D Steering Columns, and Manual Rack and Pinions with 9/16"-26 Spline Input Shafts (SWS Part # 150-2884, 105-9182, 105-9256 ).

These are brand new parts produced by Southwest Speed.

Southwest Speed Cut-to-Length Steering Shafts are manufactured using the highest quality materials available, and are built to handle the abuse from high horsepower applications.

Kit Includes:

• New Southwest Speed 36" Cut-To-Length Nickel Plated Steering Shaft (SWS # 150-2884)
  • Nickel Plated Finish
  • 36" Long Cut-to-Length Intermediate steering shaft that can be cut to any desired length
  • Fits Manual Steering Rack and Pinions
  • Fabricated from CNC Machined High Strength Steel
  • 3/4" Double D Steering Shaft
  • Built to handle the abuse from racing applications

• 1" Double D X 3/4" Double D Universal Joint (SWS # 105-9182)
  • This Universal Joint Attaches the 1" DD Steering Column to 3/4" DD Steering Shaft
  • High strength needle bearings
  • Built to handle the vibrations from racing applications
  • Working angle up to 30 degrees
  • High quality fasteners designed for better attachment and upgraded safety

• 9/16"-26 X 3/4" Double D Universal Joint (SWS # 105-9256)
  • This Universal Joint Attaches the 3/4" DD Steering Shaft the
  • 9/16"-26 Spline Manual Rack and Pinion
  • High strength needle bearings
  • Built to handle the vibrations from racing applications
  • Working angle up to 30 degrees
  • High quality fasteners designed for better attachment and upgraded safety

  • Brand New Intermediate Steering Shaft Kit that includes an 36" Long Cut-to-Length 3/4" Double D Steering Shaft that features an Beautiful Nickel Plated Finish, and comes with an 1" Double D x 3/4" Double D Universal Joint, and 3/4" Double D X 3/4"-36 Universal Joint, that fits 1974-1980 Ford Mustang II, Ford Pinto, and Mercury Bobcat with 1" Double D Steering Columns, and Manual Rack and Pinions with 9/16"-26 Spline Input Shafts (SWS Part # 150-2884, 105-9182, 105-9256 )
  • Applications: | Ford: > 1974-1978 Mustang II with Power Steering > 1974-1980 Pinto with Power Steering | Mercury: > 1975-1980 Bobcat Power Steering
  • Kit Includes: | New Southwest Speed 36" Cut-To-Length Nickel Plated Steering Shaft (SWS # 150-2884) > Nickel Plated Finish > 36" Long Cut-to-Length Intermediate steering shaft that can be cut to any desired length > Fits Manual Steering Rack and Pinions > Fabricated from CNC Machined High Strength Steel > 3/4" Double D Steering Shaft > Built to handle the abuse from racing applications
  • 1" Double D X 3/4" Double D Universal Joint (SWS # 105-9182) > This Universal Joint Attaches the 1" DD Steering Column to 3/4" DD Steering Shaft > High strength needle bearings > Built to handle the vibrations from racing applications > Working angle up to 30 degrees > High quality fasteners designed for better attachment and upgraded safety
  • 9/16"-26 X 3/4" Double D Universal Joint (SWS # 105-9256) This Universal Joint Attaches the 3/4" DD Steering Shaft the 9/16"-26 Spline Manual Rack and Pinion > High strength needle bearings > Built to handle the vibrations from racing applications > Working angle up to 30 degrees > High quality fasteners designed for better attachment and upgraded safety

Product description

THIS LISTING IS FOR 1 PIECE- R2020X4 20PA 1/2"X1/2"X4' RACK FACTORY NEW FACTORY STOCK!

User questions & answers

Question:	will this rack fit the gear ya 15 spur gear 20 pa
Answer:	Yes
Question:	I am looking for a rack and pinion gear set for a kinetic log splitter Im building. Will this rack handle the repeated shock load from my splitter
Answer:	The product is very durable but in my opinion it is way to small for use as the main ram in a kinetic log splitter.
Question:	What is the part number for the gear compatible with this rack
Answer:	there are many different gears that fit this rack, different id's and tooth /dia differences
Question:	What material is this rack made from
Answer:	Steel

Product description

Adding a forklift, conveyor, sorter, or other linear-motion component to robots is made simple with this pack. The rack gears – used individually or laid end to end – are attached to a TETRIX Channel. The slide blocks and pinion gear go onto another Channel that slides across the rack gears when powered by gears and a DC motor with motor mount, sold separately. Includes four GF nylon rack gears, four GF nylon slide blocks, and one aluminum pinion gear.

User questions & answers

Question:	Can i buy extra pinions? i'm designing a yoke for a flight simulator. i'll want at least four pinions to keep a smooth, stable platform. thanks
Answer:	Just to add another model to the list - these fit my 2001 Nissan frontier v3.3, 4x4 as well. Nice shocks.
Question:	What is the max length of extension if all raccks are placed end-to-end
Answer:	This listing is for a single, please try this listing for the pair. As far as I can see the rear shocks are out of stock https://www.amazon.com/dp/B079QFVFKN?ref=myi_title_dp
Question:	How to connect motor to pinion? what is the size of the socket/ screw needed
Answer:	What is your application year make and model? Typically the 4wd has a different shock than 2wd thus you will need to search a different part number.
Question:	I order a set but only the plastic parts came, not the aluminium structure, is this like that
Answer:	I have a 2006 3500 dually, as far as i can tell looks the same as the 2500HD.

Product description

Introduction

The material is the high quality steel, extend the service life of the shaft and the machine. The shaft is case hardened, If you use normal steel shaft,The bearings will be reduce in use process.Besides, it's more durable than Plastic linear bearing. Move smoothly without deflection, minimal wear and low noise.

Feartures

Steel material and hardened Case

Pre-drilled holes on the support rail mounts

High accuracy and strong durability

Accept customized length and assembly

Parameter

Rail width: 5mm

Rail length: 1500mm

Material: Gcr15 steel

Weight: 14lbs

Package dimensions: 60"X5"X3"

Package:

2pcs 15-1500mm linear guideway length 300mm

4pcs square type carriage bearing block internal width 34mm

• Rail width 5mm; Rail length1500mm
• Steel material support rail with pre-drilled holes for ease of mounting
• There are 4 square carriage blocks,so that you can assembly to the flange type and rectangular
• It can move smoothly without deflection minimal wear and low noise, because the high accuracy and strong durability
• The Rail guide is widely used in the automation machinery such as machine tool,bending machines, laser welding machines, etc

User questions & answers

Question:	Can I order a shorter length
Answer:	Yes
Question:	Why are the grease fittings and hole covers so hard to find? Could you start selling them here
Answer:	Just oil the rails, maybe once a year. There is no need to get fancy with grease pumps.
Question:	Is there any force or weight capacity listed for these? my gantry will weigh roughly 175 pounds (for a 5x10 cnc plasma
Answer:	Considering the weights is divided between 4 blocks there shouldn’t be a problem supporting your gantry. That said, you didn’t mention the type of cnc you are planning on. Will it be routing, milling, or just plasma. Some have higher axial loads that could exceed these capabilities.
Question:	The tech details states that these rails are 5mm wide but the picture shows 2cm and the text description says 15mm? What is the correct rail width
Answer:	Yes, 15mm wide and whatever length you choose Ken

Product description

2x SBR16 fully supported Linear Slide Guide Rails

16mm diameter, 400mm Length

1x Anti backlash RM1204 endmachined ball screws with ball nuts

12mm diameter, 400mm length

4x SBR16UU Linear Slide Open Bearing Blocks

1x BK10 fixed side and BF10 floated side end support bearings

• Steel Material and Hardened Case
• Pre-drilled holes on the Support Rail Mounts
• Designed and Produced by Joomen LLC
• High Accuracy and Strong Durability
• Accept Customized Length and Assembly

User questions & answers

Question:	How much weight can they support
Answer:	I did not push them to their limit, so I don't know. They are very similar to Thompson. You could use the Thompson rating, but I would de-rate it 50%. Also, It would depend on speed and even weight distribution on bearings.
Question:	how much torque can this system hold? i am looking for something like this for a traverse on wire and cable transfer machines
Answer:	Hi Daniel, SBR20 2x rails plus 4x bearings can load 70KG, Thanks
Question:	Are wight ratings for these for vertical or horizontal deployment
Answer:	hi, for horizontal deployment, 2x SBR16 rails plus 4x SBR16UU bearings can load 60KG, thanks
Question:	If I need the product in a smaller size, say 300 mm in length, can I cut it or can it be done by the person whom completes the orders
Answer:	you can just bought this product, we will send you the 300mm length and make refund for overpayment. please don't bought amazon fulfilled prime product and buy seller fulfilled item. in this way we can change to 300mm length

Product description

RM1605-1500mm Antibacklash Ballscrew BF12/BK12 with Locknut and Cir-clip and 1Pcs 0.25”x0.39” Couplers

Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack. They are also used in machine tools, robots and precision assembly equipment. High precision ball screws are used in steppers for semiconductor manufacturing.

Specifications

Main Material : Ball bearing steel, aluminum alloy

Supporting Seat : BF12/BK12

Pin : 0.2”

Length : 59”

Steeper Coupling : 0.25” x 0.39”

Ballscrew : C7 standard

Features:

C7 standard ballscrew

Standard machine end with BF12/BK12

Low frictional loss, high transmission efficiency

Strict quality control system

High speed feeding and micro-feeding

Made with good quality ball bearing steel and aluminum alloy

Package content

1 x Set of RM1605--1500mm Anti-backlashed Ballscrew

1 x BF12/BK12 with Locknut and Cir-clip

1 x RM1605 Ball Nut

1 x 0.25”x 0.39” Steeper Coupling

• Ballscrew kit main material : ball bearing steel, aluminum alloy.Pin : 0.2”.Length : 59” Steeper Coupling : 0.25” x 0.39”.Ballscrew : C7 standard
• Low frictional loss, high transmission efficiency
• Manufactured under strict control of temperature and humidity. Precision is assured because of thorough quality control system
• Minimum starting torque, able to apply high speed and micro-feeding.Above average axial stiffness
• Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack

User questions & answers

Question:	What is the pitch of this ball screw
Answer:	RM1605 16 mm diameter shaft 5 mm pitch
Question:	is 1500mm the overall length or the travel of the ballscrew
Answer:	It is the overall length of the ball screw
Question:	Do you have dimensioned prints for hole locations on the bearing blocks
Answer:	RM1605 is a standard Ball Screw Size. According to datasheets, the holes are on a 38mm diameter circle, with the top and bottom ones being 45deg up and down. https://www.linearmodul.dk/Filer/PDF-Kataloger/PDF-Katalog%20Ballscrews.pdf
Question:	What is the diameter of the shaft and the coupler ? i am trying to connect it to a primopal stepper motor phb57s112-40595-k3a
Answer:	I needed to order a uxcell coupler 10mm x 14mm I used a nema 34 motor the shaft is 14mm and the screw shaft size is 10mm

Product description

Feature:

1.Shaft Optical Axis suitable for kinds of electronic equipment/guide bar, drive shaft, pillar.

2.Lead Screw are widely used for machine tools, like 3D printing.

3. Bearing Pillow Block have a certain bearing capacity, can hold in ordinary precision rack, strong adaptability.

4. This set includes Optical Axis & Lead Screw, Pillow Block Bearing, Linear Rail Support, CNC Stepper Coupler and Ball Bearing.

Specification:

Color: Silver & grey

Weight:637g

Accessory:

2 pcs x 8x200mm steel Optical Axis

2 pcs x 55x13x30mm Zinc Alloy Pillow Block Bearing

4 pcs x 42x32x11mm Aluminum Rail Shaft Support

1 pcs x 200x8mm Stainless Steel Lead Screw Rod with Nut

4 pcs x 8x34.5mm Linear Slide Block

2 pcs x 5x8mm D19L25 Flexible Shaft Coupling

Package include:

1 Set x T8 Rail Shaft Support & Lead Screw Rod(15pcs)

• Shaft Optical Axis suitable for kinds of electronic equipment/guide bar, drive shaft, pillar.
• Lead Screw are widely used for machine tools, like 3D printing.
• Bearing Pillow Block have a certain bearing capacity, can hold in ordinary precision rack, strong adaptability.
• This set includes Optical Axis & Lead Screw, Pillow Block Bearing, Linear Rail Support, CNC Stepper Coupler and Ball Bearing.

User questions & answers

Question:	What size screws for the barrens
Answer:	What do you of barrens?????
Question:	Is it a 8mm leadscrew? Is there an alternate product where you provide a 'nut housing' too
Answer:	yes its an 8mm leadscrew not sure about the second part of your question
Question:	Reference the shaft supports. what is dimension from centerline of the shaft bore to the bottom mounting surface of the shaft support? thank you
Answer:	20mm
Question:	How long are the three rods ? please state in inches and cm. i don't understand what is 200mm ? lengh of the rods
Answer:	My rods are inaccessible at this time. However, 200mm is 20 cm, which comes out to ~7.87 inches. I remember them being about 8" long, having worked with them. One of the rods is threaded, the other 2 are straight guides. This was some pretty nice stuff for the price.

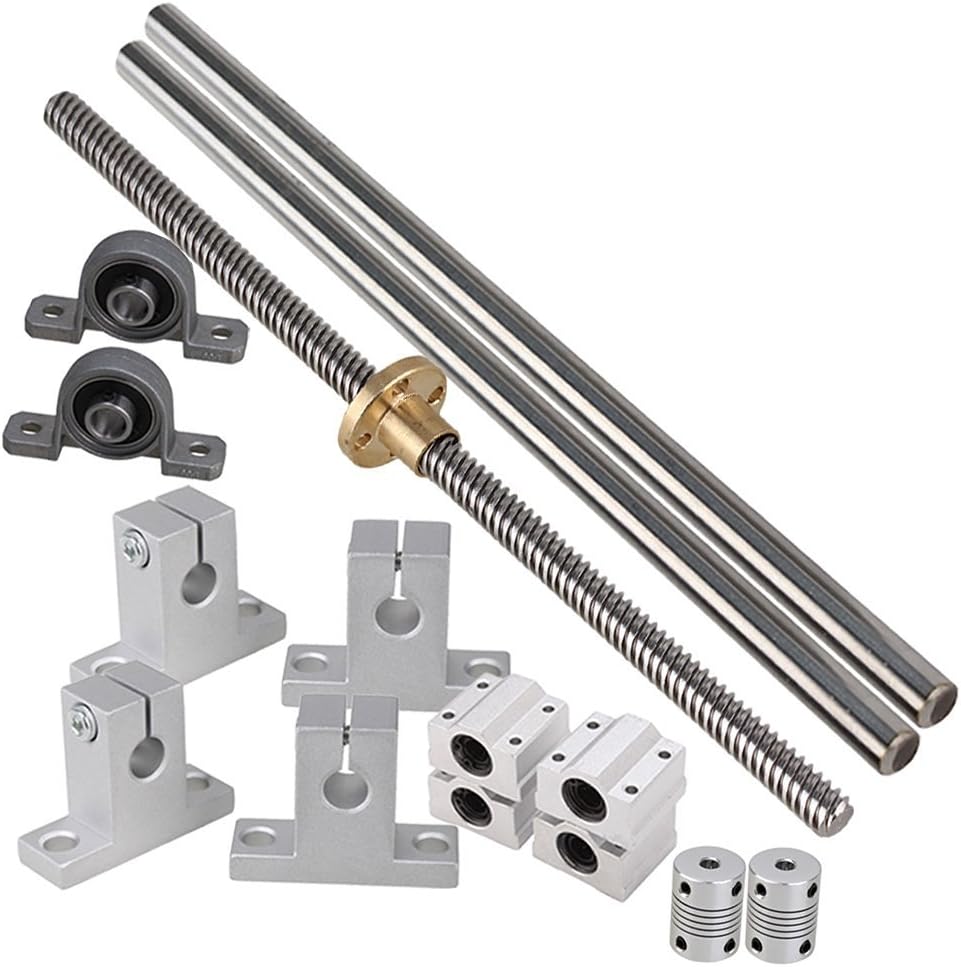

Product description

Feature:

1. Lead Screw are widely used for machine tools, like 3D printing.

2. Shaft Optical Axis suitable for kinds of electronic equipment/guide bar, drive shaft, pillar.

3. Bearing Pillow Block have a certain bearing capacity, can hold in ordinary precision rack, strong adaptability.

4. This set includes Optical Axis & Lead Screw, Pillow Block Bearing, Linear Rail Support, CNC Stepper Coupler and Ball Bearing.

Specification:

Color: Silver and Gray

Total Weight: 972g

Accessories:

2PCS Zinc Alloy 8mm Inner Dia 55x13x30mm Pillow Block Bearing

4PCS Aluminum 8mm Innner Dia 42x32x11mm SK8 Linear Rod Rail Support Guide Shaft Bearing

2PCS Aluminium Alloy D19L25 5x8mm Flexible Shaft Coupling

4PCS 8mm Inner Dia L34.5mm SCS8UU Linear Bearing

2PCS 8mm L500mm Linear Shaft Optical Axis

1PCS Stainless Steel & Brass L500mm D8mm 8mm Lead Screw Nut

Package Include:

1 Set of Lead Screw Bearing Mounts (15PCS)

Q:How can I know more details of each Accessory?

A:Welcome to visit our shop to see the related items with corresponding keywords.

• Sold on Amazon

User questions & answers

Question:	Do you have the shipping Weight
Answer:	I would say less than 4 lbs.
Question:	What size stepper motors? Nema23? Nema
Answer:	Yes here is the item. 3 of uxcell 8mm to 6.3mm Shaft Coupling 25mm Length 18mm Diameter Stepper Motor Coupler Aluminum Alloy Joint Connector for 3D Printer CNC Machine DIY Encoder and the link for it https://www.amazon.com/gp/product/B06X9V3PJ3/ref=oh_aui_detailpage_o08_s00?ie=UTF8&psc=1 hope that help's
Question:	what size are the four holes in the slider things
Answer:	10-32 thread by approx. 1/2". the metal is soft enough that you can take a 10-32 bolt and drive it into the body and it will thread all the way through.
Question:	What size motor shaft fits the coupler in this kit
Answer:	1/4 but my motor was bigger so i drill it to fit it takes a lot of mistreatment and still works great

Product description

Sunsong is a global manufacturer of fluid transfer hoses supplying products for both original equipment and the aftermarket. As an original equipment Manufacturer our research & development is focused on continually developing new materials and technologies for the global automotive industry. With manufacturing facilities in multiple countries, Sunsong is equipped to serve a far reaching customer base. We are dedicated to delivering OE quality products to the automotive aftermarket.

• Contains the quality components required for steering Unit repair
• Fit type: Vehicle Specific
• Package Dimensions: 2.3 L x 22.9 H x 14.5 W (centimeters)
• Made in China

Product description

2PCS Linear Rail 0.78-47 Inch SBR Linear Guide Rail with 4PCS Bearing Block Linear Rail Set Slide Guide Rod for DIY CNC Routers Lathes Mills

Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Because of point contact between ball and straight axis, so the load is small. The ball is spinning with the smallest friction, it can run a high precision and smooth motion.

Application

It is widely used in linear motion system. Such as, punch, tool grinding machine, automatic cutting machine, printer, card sorting machine, food Packing Machine, other sliding parts on industrial machinery.

Parameter

Model: SBR20-1200

Guide Length: 47"

Diameter: 0.78"

Guide material: Axis - 45 carbon steel optical axis, chrome-plated surface hard axis; bracket - aluminum

Optical axis accuracy: Optical axis accuracy g6 level

Optical axis hardness: HRC58-60 degrees

Package Content

SBR20-1200mm Rail x 2

SBR20UU Block x 4

• Linear rail model: SBR20-1200 .Guide Length: 47".Diameter: 0.78".Suitable for for 0.78inches slotted bearings
• Aluminum support rail with pre-drilled holes for ease of mounting.Suits X, Y, Z axis
• The support rail unit provides maximum rigidity and stiffness to the shaft throughout the whole stroke, and ensure the performance of the unit
• The linear guide rail can be applied to DIY CNC routers lathes and mills
• It is widely used in linear motion system. Such as, punch, tool grinding machine, automatic cutting machine, printer, card sorting machine, food packing machine, other sliding parts on industrial machinery

User questions & answers

Question:	How much weight can a set of these handle
Answer:	I’m not sure but these rails are holding about 15 lbs on my X axis, witch is holding my Z axis also! My motors aren’t even working hard! Their stout!
Question:	Could I mount these on the ceiling and hang lights from them
Answer:	Yes...as long as you hit the joist and not just the drywall
Question:	What is height from bottom of rail base to top of carriage? Are rails available in 1500mm length
Answer:	I don't know. I through them in the trash.. They literally broke after the first try with no load our weight on the they are trash
Question:	how can choose the length
Answer:	When choosing a length it all depends on your design of your machine! You have to factor in the motor that’s going on it!

Product description

1-1/4 HP motor delivers 6.5 Amps for improved performance. Heavy Duty aluminum motor for increased durability.

• Variable speed control dial (10,000 to 30,000 RPM) enables user to match the speed to the application
• Smooth rack and pinion fine depth adjustment system for more precise settings
• Slim and ergonomically designed body for increased comfort and control
• Quick release cam lock system for easy depth adjustments and base removal/installation
• Electronic speed control maintains constant speed under load
• Soft start feature for smooth start ups
• Fixed base accepts industry standard template guides for convenience

User questions & answers

Question:	can you set this up for a table router
Answer:	My short answer would be yes. I'm not sure whether there are commercially available tables for it, though. You may have to build one yourself.
Question:	What is the set of drill bits should I buy for this tool. I bought the MLCS 8377 15-Piece Router Bit Set with Carbide-Tipped 1/2-Inch Shanks and are n
Answer:	This is a 1/4" collet router. If you want to use 3/8" (new to me) or 1/2" get a 1/2" router. I've used routers for 45 years. Own a 1/4" and two 1/2" Here's a quick guide: 1/4" router is the most widely useful, can be held in one hand for quick work, your arm doesn't get tired as fast as with a larger router. This one is good for hinge guides and door installs, laminate trimming (laminate trim bits with bearings), round over of the edges of boards or plywood. Makes a neat no slivers edge, get 1/2", 3/4" diameter cove bits (these will make 1/4 and 3/8" from the edge curves) I get these with bearings as well. (If you want less of a curve, use less depth, the curve is not symmetrical--no one will care. This is what I usually grab my 1/4" router for (I've got a Porter Cable 1/4" that's 40 years old. Can't figure out how to take it apart to replace the cord. Rather than a $60 trip to the tool repair I'm thinking of this one, vacuum dust collection is a plus). Shelf dados, usually 1/2 to 3/4" wide, is best done with a more powerful 1/2" router, but you can get by with this with two passes (overlapping) of a 1/2" straight bit. Plunge routing: always use dust collection. Freehand scroll work: 1/8 or 1/4" round bits- I don't do this, others do. If you don't yet have a router, or a specific shop need, get a 1/4". If you think you need one of those $400 router tables: don't. Make your own or buy a jointer. Figuring out how to make a router table will teach you about making jigs (you can make a fence that has finer adjustment than the fanciest most expensive one on the market) Direction of working. There's a correct direction to running a router along the edge of a board. With plywood, pine, fir, spruce, etc.. going the correct way can rip out long splinters. If you first make a very shallow pass in the 'wrong' direction to knock off the edge, then go normal depth in the correct direction, you can avoid this. (I still don't know if I want this router or not. There were 6 opened and reclosed boxes (returns?) at the Home Depot. Why?)
Question:	can it be used for wood doors and frames for hinges
Answer:	Yes, but it is a much better used as router than a door or frame hinge.
Question:	Can I trim my toe nails with it
Answer:	I definitely would use a flush trim bit. A round over or rabbiting bit might be too much. IMO

Product features

Performance & Precision

The Makita 1-1/4 HP Compact Router (model RT0701C) delivers performance and precision in a compact design. With a full 1-1/4 maximum horsepower, the RT0701C is engineered for a range of precision routing applications.

The RT0701C has a powerful 1-1/4 HP (maximum horsepower) motor with a variable speed control dial (10,000-30,000 RPM) that enables the user to match the speed to the application. Additional performance features include electronic speed control to maintain constant speed under load, and soft start feature for smooth start-ups. The RT0701C is double-insulated with a heavy-duty aluminum motor housing for increased durability.

The RT0701C is engineered for precision and includes a smooth rack-and-pinion fine depth adjustment system and easy-to-read depth scales for more precise settings. The quick release cam lock system is designed for easy depth adjustments and base removal/installation, with a high-visibility base design for improved handling and performance.

Additional features include a slim and ergonomic design that weighs only 3.9 lbs., with a durable flat top design for added convenience when changing bits. The base can be removed quickly to install other bases (sold separately), and the shaft lock is engineered for quick and easy bit changes. The RT0701C uses ¼” shank router bits.

Includes:

-1/4" Collet (763637-1).

-Straight Guide (122965-7).

-Spanner Wrench (781039-9).

-Spanner Wrench (781011-1.

1 Year - 30 Day Warranty

Every Makita product is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Certain products referenced below have longer warranties. Should any trouble develop during the one-year period, return the Complete product, freight prepaid by user, to one of Makita’s Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge.

These warranties do not apply to Makita Accessories or where:

Repairs have been made or attempted by others.

Repairs are required because of normal wear and tear. With regard to Pneumatic Nailers, normal wear parts include the following and are not covered under this warranty: piston/driver assemblies, piston stops, driver blades, rubber o-rings, seals, isolators, air filters, and driver belts.

The tool has been abused, misused, improperly maintained or operated. With regard to Pneumatic Nailers, improper operation includes the failure to use clean, dry regulated compressed air and/or air pressures exceeding the maximum indicated on the nailer casting. With regard to Lithium-Ion Tools, improper operation includes the use of a non-genuine or 'knock-off' battery on a Lithium-Ion Tool or Charger. With regard to Laser Instruments, abuse includes liquid damage or physical damage caused by impact.

Alterations have been made to the tool.

In no event shall makita be liable for (a) any indirect, incidental, punitive or consequential damages arising from the sale or use of the products sold under these warranties, or (b) any amount in excess of the amount actually paid to makita for the products sold hereunder. This limitation applies both during and after the terms of the warranty.

Makita disclaims liability for any implied warranties, including implied warranties of 'merchantability' and 'fitness for a specific purpose' after the expiration of any express warranty.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

Product description

2PCS Linear Rail 0.59-59 Inch HSR Linear Guide Rail with 4PCS Bearing Block Linear Rail Set Slide Guide Rod for DIY CNC Routers Lathes Mills

he linear motion products and technology are widely used for automatic mechanical facilities under the common accuracy. It features equal load ratings in the radial,reverse radial and lateral directions, and self-aligning to absorb installation-error.

Application

Grinding machine, milling machines, lathes, drilling machine, and comprehensive processing machines, discharge manufacturing machine, boring machine, line cutting machine, precise measurement instrument,woodworking machinery,handling machine,and the shipping device.

Parameter

Type: Linear guideway

Model: HGH 15CA

Guide length: 59"

Guide width: 0.59"

Slider Length:2.4"

Slider Width: 1.34"

Slider weight: 0.4lbs/per

Rail weight: 4.8lbs/per

Package content

0.59-59 inch Rail x 2

Block x 4

• Linear rail model: HGH 15CA.Guide length: 59".Guide width: 0.59".Slider Length:2.4".Slider Width: 1.34"
• High rigidity and high load.Smooth running, low noise and non-pollution
• Features equal load ratings in the radial,reverse radial and lateral directions, and self-aligning to absorb installation-error
• The Linear rail is widely used for automatic mechanical facilities under the common accuracy
• The linear guide rail can be applied to DIY CNC routers lathes and mills

User questions & answers

Question:	Is there a drawing to show the dimensions needed for mounting into your design, like screw sizes and locations. Need before I can buy
Answer:	We did not get a drawing, but just measured.
Question:	What size screws are recommended for the rails to be mounted
Answer:	I used #8-32 screws and they fit the holes fine.
Question:	what is D1 and D2 hole size for bolts? need to know what bolts will fit before I buy them
Answer:	#8 on the rail and 4mm on the blocks

Product description

This wooden machine has a sturdy wooden construction ideal for classroom use. This apparatus can demonstrate how gears can turn rotational motion into translational motion. Includes an instruction manual to fascilitate student and teacher use of the apparatus.

• Made of particle board and wooden componetsThebase is 15 3/4" by " base and 2 3/8" tall6" tall
• Great, robust product to introduce students to simple machines
• Includes insruction guide to fascilitate student and teacher use
• Built to withstand years of student use and abuse

User questions & answers

Question:	Can I use a motor to drive this
Answer:	No, the product is designed for simple hand operation to display simple machine concepts to students.
