12 best garage lift system

Product description

With the Racor Ceiling Storage Heavy Lift you can create 16 square feet of additional storage space without compromising floor or wall space. The Ceiling Storage Heavy Lift gives you a convenient storage solution for all of those bulky items that take up so much space on the floor, such as seasonal storage, boxes or totes, outdoor furniture, large tools, tires, or just about anything else you can think of. Made of steel construction, the Ceiling Storage Heavy Lift has a unique pulley system that lets you easily load and lift up to 250 pounds of storage items to the ceiling and lock securely in place. The Ceiling Storage Lift easily lowers 8 feet from the ceiling when you want to retrieve or add items. Raise and lower using a hand crank or attach your power drill. It has everything you need to store large items the safe, easy way without your feet ever leaving the ground.

Assembly required; installs into ceiling joists. Order yours today, and reclaim your garage!

The RacorPro PHL-1R Pro HeavyLift Storage Rack lets you load and lift heavy items to the ceiling for storage without the need for a ladder. It helps to free up valuable floor space in your garage or storage area and allows you to store heavier items, such as furniture, lawn mowers, tires, canoes, snow throwers, and more. The heavy-duty 4-by-4-foot platform is built to last and provides 16 square feet of additional storage space in your garage or storage area.

Heavy-Duty Lifting Capacity for Heavier Items

The PHL-1R is both tough and durable, and it's built to handle heavier items up to 250 pounds. The heavy-duty steel support beams and 4-by-4-foot platform are made from high-quality materials that are made to handle tough loads and provide years of consistent performance. The unit is built to lower 8 feet from the ceiling, accommodating storage spaces with taller ceilings. The drill driver attachment allows you to raise and lower the platform using your own drill.

The unique pulley system makes it easy to raise and lower heavy items with minimal effort on your part. With a durable winding axle that works in conjunction with the pulleys and strong nylon cables, the PHL-1R handles the brunt of the weight so you don't have to, while raising or lowering the platform quickly and smoothly.

Safety Lock Ensures Safety and Stability

The innovative safety lock ensures that the load stays locked into place when fully raised to the ceiling. Simply use the winding crank to engage the safety lock when the platform is raised to its highest position, and use the winding crank's integrated hook to disengage the safety lock and safely lower the platform.

An Additional 16 Square Feet of Storage Space for Your Garage

The PHL-1R's tough 4-by-4-foot platform gives you an additional 16 square feet of valuable storage space in your garage or storage area. This allows you to store your lawn mower out of the way during the winter or to store your snow thrower during the summer months, clearing valuable floor space and creating tidier, more useful quarters.

The RacorPro PHL-1R HeavyLift Storage Rack measures 49.25 x 17.5 x 7.25 inches (packaged) and weighs 74 pounds (packaged). It comes in a smooth black finish and includes all necessary hardware. Additional tools required for installation include: stud finder (for drywall ceilings), adjustable or box end wrench, socket wrench, cordless drill/driver, Phillips screwdriver, pencil, and a 4-foot straightedge or chalkline.

What's in the Box

Winding crank assembly, two arm assemblies, two cable assemblies (including nylon cables), three wire grids, two wire beam supports, center spindle square end, center spindle round end, gear drive, Allen wrench, four end caps, 20 hex bolts, four Allen head screws, two hex head screws, two fender washers, eight long machine bolts, 16 washers, eight nuts, 12 "J" hooks, 12 washers, 12 nuts.

• Adjustable - Mounts to any ceiling, adjust to angle ceilings with the built in nylon rings
• Durable - High strength steel allows you to lift up to 250 pounds
• Efficient - Raises and lowers by crank and includes all installation accessories
• Reliable - Steel cables allow for 8ft of vertical lift and securely locks into place
• Reclaim Your Garage - 16 sq feet of additional overhead storage space with the 4 ft X 4 ft design, making more room for the things you want to do

User questions & answers

Question:	Does the rack have to be fully retracted to lock? For example, can it be raised half way and lock
Answer:	You can lock it pretty much any height you want. You raise and lower by turning a loop and the lock puts a pin in the loop so it won't turn.
Question:	Do you need to install any lag bolts in the T-bracket section? Directions only show 4 bolts on each of four arms. I want to straddle a metal i-beam
Answer:	Sorry I don't know the answer to that question. I had a handyman install it who has installed it several times. I know he said he used different stronger bolts that were in the original package and said the unit would now hold up to about 300-400 lbs. without worry. You will love it. It's the best solution around.
Question:	my ceiling is about 18 feet in the garage. Can I extend the cables/controls
Answer:	I have 9' ceilings in my garage and the platform lowers to within 18" of the floor. You could add cable to extend the drop to accomodate the added height from the original point. However your highest lift point would be about 7'6" above the floor. I am sure any alterations would void any warranties to the product. On a side note: I have two now and will be ordering at least one more soon. As far as control rod, you will have to extend it to meet your needs. The directions suggest a 1/2 inch drill but I had a local machine shop turn the insert down to fit a 3/8 drill. I might advise you to not use a cordless drill. I personally would consider going a little lighter on the max weight.
Question:	I'm surprised no one mentions that you have to drill ten holes fairly close together in each joist for the lag screws, according to instructions. Ten seems like overkill. Won't this weaken the joist
Answer:	Most ceiling joists are 2x6 and bigger and I have installed two of these lifts on the same joists and have not seen a problem with sagging or splitting of the wood. Considering the lift will hold up to 250 pounds it needs to fastened securely. If you are concerned about your joists being weakened by drilling I'm sure you could come up with a cripple stud solution where a second piece of wood is fastened to the original joists with three bolts and then the lift is screwed into the cripple studs. Still drilling the original joist but only in three places rather the ten.

Product features

Racor Ceiling Storage Lift

With the Racor Ceiling Storage Heavy Lift you can create 16 square feet of additional storage space without compromising floor or wall space. The Ceiling Storage Heavy Lift gives you a convenient storage solution for all of those items that take up so much space on the floor. The Ceiling Storage Heavy Lift has a pulley system that lets you load and lift up to 250 pounds of storage items to the ceiling and lock securely in place. Raise and lower using a hand crank or attach your power drill.

• Tips : How To USE: As image 4 shows, it firstly needs a mental bar or solid wooden bar that affords enough weights to hang the hoist up ceiling indoor or hanging outdoor.
• Lifting Weight: 220lb.(Single-line), 440lb.(Double-line) ; Lifting Height: 38ft(Single-line), 19ft(Double-line) ; Lifting Speed: 33ft/min(Single-line), 16ft/min(Double-line);
• Handle remote cord is 4.9FT ; Electric chord of remote 5.2 FT ; Diameter of wire rope: 0.12inch ; Tensile strength of wire rope ≧ 1870N/mm2
• Rated Volt: 110/120V ~ 60Hz ; Rated Current: 4.1A ; Input Power: 460W ; Horsepower: 0.616 hp
• VERSATILE USE: Partsam electric hoist winch can be used to lift regular or irregular shape things as stones, trees, mower, engine, truck top cover ect. vertically or horizontally in garage, ceilings, loft, barn, attic anywhere and anytime you can imagine, and is a "must" in Christmas for lifting all kinds of heavy things. Lift Slings are included to make your job easier.【PARTSam Electric Hoist Runs with Emergency Stop Switch, the Red Button Works for that】

User questions & answers

Question:	Will this hoist hold a 100 lb. item indefinitely
Answer:	It is not safe to walk under a suspended load. Ever, even under ideal circumstances. It is forbidden by OSHA. If you chose to leave a load suspended by ANY hoist It should be in an area not normally used by people and inspected on a regular basis.
Question:	What is the warranty
Answer:	This item has one year warranty , hope you like it.
Question:	Dear all Customers , how long for the remote control cord would be fitting better for your necessaries ? Thank you very much for your suggestions
Answer:	It needs to be as long as steel cable. Why is the steel cable so long if the control cable is so short? Should I climb a 30ft ladder to use the 5ft remote control to use the 38ft hoist cable? Also, hire an American to write your product description if that's who you are trying to sell to.
Question:	Where is this hoist manufactured
Answer:	everything is made in china, even the computer you asked this question on.

Product features

Commen Questions:

1. Can be install horizontally or vertically
2. Not waterproof, can be only used indoors.
3. There is no wireless remote at present.
4. Does it reverse at the same speed for lowering ------- Yes, same up as down. Not so fast either direction to ensure the safety.
5. If I am using this to life a vehicle top do I need anything other than what comes with the lift? ------- You will probably need a sling. I would check vehicles web sites for others that made there own slings. I found mine on a Porsche site but was custom fit for the top.
6. Can the stop button get stuck? ------- Stop button probably stuck. It comes with the panic button activated (red knob) twist to release and it will pop put.
7. Does the lift automatically shut off when it reaches its maximum height? ------- Yes

Core Makes it Be

Pure Copper Wire

Perfect Heat Dissipation

1. front cover
2. stator cooper wire winding
3. rotor-core
4. brake
5. back cover
6. radiator fan

What's Core Inside

1. front cover /rotor-core
2. brake
3. back cover
4. radiator fan

How Does It Make Difference

With this flexible electric hoist, it is available to use for your various needs under different situations.

FUNCTIONAL & FLEXIBLE

Zinc-plated Anti-rotate Steel Wire

Anti-heat Cable

WHAT MAKES IT DIFFERENT

Normal steel wire ropes are twisted with several thin steel ropes, item would be likely to rotate to the opposite side. For expamly, allwires originally are twisted to the left, then the ropes would be easy to rotate to the right way with the danger that the wires would be easy to twist off. That's why we remake it to be safer.

Aimed To Be Professional

We have original professional manufactures and factories, and of course the most important professional tec staff who have been working on the feilds for years with profound experiences.

For the parts of the hoists, accurate data test reports play significant roles before we get all this into markets and shelves.

Anti-heat Data Test and Anti-heat Resistor Test , as the most important two safety processes strictly fits manufacturing standards for every single piece of items on sale.

Product description

There's no such thing as not enough room for another kayak, canoe, or ladder. Store your kayak overhead and out of the way. Smooth pulleys and latches make lifting even the heavy kayaks super easy. The exclusive rope locking mechanism prevents unwanted release and can suspend one product - 125 lb. load limit. Please note, you can mount this item as pictured on a 2 X 4 and screw the 2 X 4 to the joist or mount it right to the joist itself. Buy with confidence!

FEATURES:

Hooks are designed with a rubber coating to protect from scratches.



Easy to install and easy to use.



Robust engineering allows you to lift heavy products - 125lb capacity.



For Ceilings up to 12ft.



Safe locking mechanism prevents accidental release.



Raise your canoe, kayak, ladder, or bike to the ceiling with ease.



Home Storage.



WE OFFER A LIFETIME WARRANTY AND 100% UNCONDITIONAL FULL MONEY BACK GUARANTEE!

Tired of your canoes and kayaks taking up all your free space in the garage? Turn to the Rad Sportz kayak/canoe lift hoist, which stores your boat overhead and out of the way. The hoist is equipped with a smooth pulley, latch, and hook system, which let you easily lift products as heavy as 100 pounds. Just attach the pulleys to a ceiling joist, secure the boat with the straps and hooks, and lift. The exclusive rope locking mechanism will keep your kayak or canoe safely suspended above the ground, so you needn't worry about accidentally dropping the boat in mid-lift. Plus, the hooks are rubber coated to protect your gear from scratches and scuffs. Designed for ceilings up to 12 feet tall, the hoist also works with items like bicycles, ladders, and cargo boxes.

• Hooks are designed with a rubber coating to protect from scratches
• Easy to install and easy to use
• ROBUST ENGINEERING - New improved STRAPS eliminate the fragile hooks that plague cheaper hoists, and allow you to lift heavy products, up to 125lb. Capacity. This is the kayak hoist that all the other are trying to copy.
• For Ceilings up to 12ft, you can mount this item as pictured on a 2 X 4 and screw the 2 X 4 to the joist or mount it right to the joist itself
• Safe locking mechanism prevents accidental release

User questions & answers

Question:	Are the pulley wheels plastic or metal? It looks similar to a Harbor Freight bike hoist that I have. I am looking for something more heavy duty
Answer:	Hey G.Harder the pulley wheel's are plastic. But this model is rated for heavy object's. I have used mine to hold up my wheelbarrow to open up floor space and have not had any problem's. The only change I made was with the way the rope was secured in the block, instructions say to tie a knot at the end of the rope but I was not satisfied with that so I bought a couple cable clamp's at hardware for $.99 cent's and clamped the rope around one of the mounting bolt's and feel safe working under it now. I'm very happy and satisfied with this product and would recommend it to anyone looking.
Question:	Is any other products like this that is better
Answer:	? This one is better than the Atwood one. I bought both. Although I prefer the rope that comes with the Atwood one, the Rad is heavier duty and better built in general.
Question:	How long are the straps? Would they go around a Yakima Skybox
Answer:	Each strap is 7 feet long, and the nylon line is very long. I didn't install it yet but it looks very similar to the bike rack that they sell and it is very strong and well made.
Question:	How tight to the ceiling can you get a kayak
Answer:	About 18" max. If you only use the hooksThe kit comes with straps that attach to the hook. With straps at least 24 inches to ceiling I have 8 foot garage ceiling. By attaching to straps -one end to loop other end to loop holding buckle I can get 6 feet between floor & bottom of kayak If you can't attach kayak to hooks only. You need to play with with harness straps to get max height.

Product features

Kayak Hoist Lift Garage Storage Canoe Hoists 125 lb Capacity

There's no such thing as not enough room for another kayak, canoe, or ladder. Store your kayak overhead and out of the way. Smooth pulleys and latches make lifting even the heavy kayaks super easy. The exclusive rope locking mechanism prevents unwanted release and can suspend one product - 125 lb. load limit. Please note, you can mount this item as pictured on a 2 X 4 and screw the 2 X 4 to the joist or mount it right to the joist itself. Buy with confidence!

Redesigned Straps

New improved STRAPS eliminate the fragile hooks that plague cheaper hoists, and allow you to lift heavy products, up to 125lb. Capacity.

Easy to install and easy to use.

Robust Engineering

Hooks are designed with a rubber coating to protect from scratches.

For Ceilings up to 12ft.

Versitile

Safe locking mechanism prevents accidental release.

Raise your canoe, kayak, ladder, or bike to the ceiling with ease.

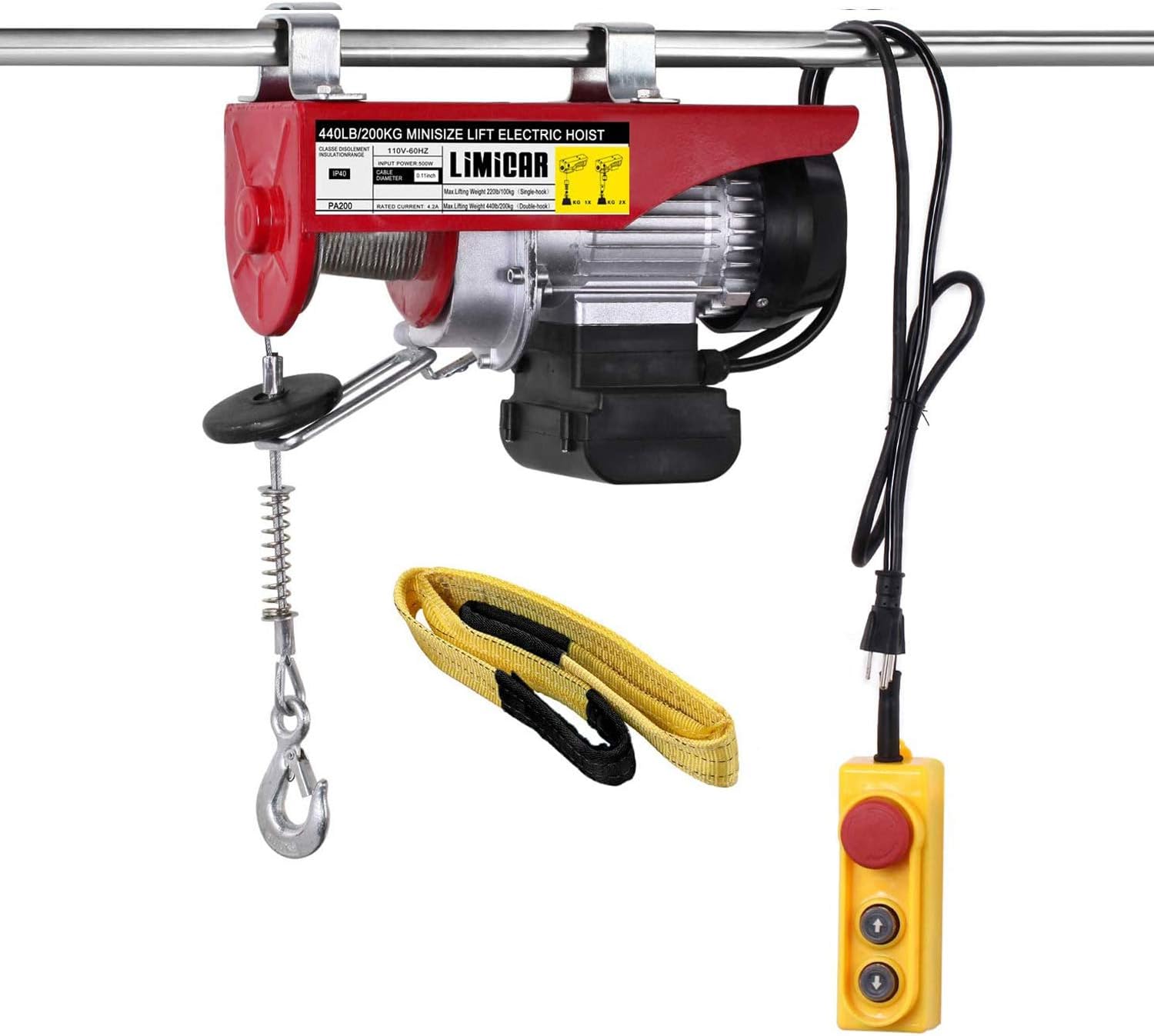

• ✅Specification: Horsepower: 0.68 HP; Load Capacity: 220LBS (Single-line) or 440LBS (Double-line); Lifting Speed: 32.8FT/min(Single-line), 16.4FT/min(Double-line); Lift Height of 39FT of Single Cable Lifting Speed, 19.5FT of Double Cable Lifting Speed; Voltage Frequency: 110V-60Hz; Input Power: 500W.
• ✅Widely Used: Electric Hoist Lift is the important tool for hoisting in workshops, household garages and warehouses etc. It is used for DIY market and is also the ideal equipment for hotels,shops, repairing, material handling, industrial assembly lines and large industrial equipments etc.
• ✅Features: Precision lifting with momentary switch; Wide selection of tools for handling all types of goods; Easy to use, maneuvered with one hand; Tethered remote control with power up/power down; Weighted lift hook; Sheaved pulley lift hook for dual line operation; Durable braided steel cable.
• ✅Function: LIMICAR Electric Hoist Lift has compact and exquisite appearance and easy installation, security and reliability. Variable speed control allows you to choose how fast or slow you need to move at any point, giving you full control and precision when lifting. A quick coupling enables great flexibility and use of multiple tools on the same hoist. Switch between tools in no time.
• ✅Installation: The hoist Standard Version is provided with a specially designed bracket system which allows to hold pipes box. Check that socket features(volt-hertz) correspond to those indictaed on the machine plate; then, you can insert the plug. In case a cable extension is needed, it is absolutely important to respect the table's data. Package Included: 1 X 440LBS Electric Hoist Lift Set; 1 X 6.6'x3" FREE Lift Sling Strap; 1 X Instructions.

User questions & answers

Question:	How can I rig the double line. Do I need to buy additonal parts for this lift
Answer:	All parts come with the electric hoist. There is a separate pulley wheel and hook provided in the package. Just run the cable through the pulley and back up to the hole on the frame as shown in the picture.
Question:	I would like to extend the remote control and ask what gauge the wire is
Answer:	Mine quit after1 month, I would save your money
Question:	What is the warranty
Answer:	This 440lbs electric hosit has one year warranty, hope you would like it.
Question:	do you have to buy rail separate
Answer:	yes. You have to buy the rail separately. Hoist does come with U brackets.

Product features

Single or Double Line Operations

Single Line

Speed: 32.8FT/min

Lift Height: 39FT

Load Capacity: 220LBS

Double Line

Speed: 16.4FT/min

Lift Height: 19.5FT

Load Capacity: 440LBS

Premium Mounting Case

Made of high quality steel material, rugged and rust-resistant. Mounting hanging clamp brackets are included for attaching hoist to fixed overhead or rotating support.

Handy Remote Control

4FT corded remote switch allows you to control up and down function of the hoist from a safe distance. Built-in safety braking mechanism, just press the red emergency stop button when in need.

Professional Lift Hook

2 heavy duty weighted lift hooks with high tension, capable to withstand heavy use. Maximum load capacity ups to 220lbs each, 440lbs total. Sheaved pulley lift hook, enables dual-line operation.

Durable Steel Cable

Zinc-plated braided cable, made of high carbon steel, roughly 0.11" in diameter, high density, anti-rotate and anti-heat.

Powerful & Energy-saving

Constructed with high quality copper motor, features better heat dissipation ability. Provides strong power with lower electricity consumption. Adopts premium gears to force more smooth with lower noise.

Broad Application

Fully automatic hoist, requires no hand cranking. Applicable addition for multiple occasions, such as construction site, automotive garage, ship building, warehouse, railway maintenance, household improvement, food production, etc.

Package List

• 1 X 440LBS Electric Hoist
• 1 X 6.6'x3" Lift Sling Strap
• 2 X Weighted Lift Hook
• 2 X Mounting Clamp Bracket
• 4 X Screw & Nut
• 1 X User Manual

• HOIST FITS ALL JEEP WRANGLER AND GLADIATOR MODELS: Your Jeep Wrangler accessories or Jeep Gladiator accessories are not complete without this garage ceiling storage system to quickly and safely store the hardtop and organize your garage. 10' ceiling height, 145lbs. max load.
• EASY TO INSTALL: Four point hoist kit comes with illustrated instructions and installation video.
• SAFEST HOIST DESIGN WITH ANTI-DROP SYSTEM: Patented system lifts evenly regardless of weight distribution. Pulley system reduces weight by 6 times for a 6:1 mechanical advantage. The self-locking cleat grips instantly to prevent accidental release if the rope is dropped.
• BONUS THUMB SCREWS FOR EASY HARDTOP REMOVAL: No tools needed using quick removal thumb screws/tee knobs (set of 6). Jeep hard top bolts fit all models 2007 and later. Thumb screws are made of durable nylon head with 1 inch long steel stud. Washer is galvanized steel with rubber bonded backing. Hoister box will appear previously opened so the T-knobs can be placed inside.
• QUALITY MANUFACTURING WITH 5-YEAR WARRANTY: High quality stainless steel hardware and double braided rope provide durability, ball bearing pulleys keep the system running smoothly. 60 years of innovation. Made in USA.

User questions & answers

Question:	doea anyone have a video of using a side wall instead of the end
Answer:	I have it sideways and it works great!
Question:	My garage ceiling is angled will it still work
Answer:	I would think so. Just have to make sure the ropes are done right and when you pull it up off your Jeep make sure its going to life it all at the same time. may need to get longer rope. Depending on how tall the angled ceiling is.
Question:	My ceiling has metal studs. Can i still use this and if so what do i use to mount boards to the celiling
Answer:	you'll need to drill through your studs no matter if they are wood or metal. all mounting hardware is included. its just nuts and bolts. nothing complicated, just a pain in the butt
Question:	herplover4ever Fit 1998 jeep sahara
Answer:	As far as my install, it will work with any hardtop. You need to be aware of buying correct length for ceiling height though.

Product description

There's no such thing as not enough room for another kayak, canoe, or ladder. Store your kayak overhead and out of the way. Smooth pulleys and latches make lifting even the heavy kayaks super easy. The exclusive rope locking mechanism prevents unwanted release and can suspend one product - 125 lb. load limit. Please note, you can mount this item as pictured on a 2 X 4 and screw the 2 X 4 to the joist or mount it right to the joist itself. Includes two complete Kayak Hoists.

FEATURES:

2 Complete Kayak Hoists Included.

Hooks are designed with a rubber coating to protect from scratches.



Easy to install and easy to use.



Robust engineering allows you to lift heavy products - 125 lb capacity per hoist.



For Ceilings up to 12 ft.



Safe locking mechanism prevents accidental release.



Raise your canoe, kayak, ladder, or bike to the ceiling with ease.



Home Storage.



WE OFFER A LIFETIME WARRANTY AND 100% UNCONDITIONAL FULL MONEY BACK GUARANTEE!

• ►RUBBER COATED HOOKS - Hooks are designed with a rubber coating to protect from scratches. Durable straps ensure that your kayak is secure and will not fail. We guarantee it.
• ►EASY TO INSTALL - Mount to your ceiling joist or rafter and so easy to use. With only the minimum of tools you can have your kayak hanging in your garage in no time.
• ►ROBUST ENGINEERING - allows you to lift heavy products, up to 125lb. Capacity. This is the kayak hoist that all the other are trying to copy. We don't cut corners. This is the original RAD kayak hoist you've heard about.
• ►INDOOR USE - For indoor ceilings up to 12 ft. high. Once the kayak is out of the way you free up so much floor space you won't know what to do with it all.
• ►SAFETY LOCKS - Safe locking mechanism prevents accidental release. No one wants to come home and find their kayak has fallen to the floor. The Rad Kayak Hoist is safe enough to park your car under.

User questions & answers

Question:	I have rafters rather than joists so I don't have anything parallel to the floor. Can the pulley's be mounted on rafter angles
Answer:	I think you could do that. The way the roping through the pully's works you have one rope end that controls one pulley and the other controls the other pulley. Once you have your strap ends set at the same level you should be able to hoist up and down by pulling on both ropes with the same tension.
Question:	how far do the pulleys hang down from the ceiling
Answer:	Depends on how you mount it, but it's not even the pulleys that are the problem as much as the hooks—they're very long. I threw out all my measurements, but the pulleys can be cinched up to about 6-inches from the ceiling when directly mounted, meaning NOT using the provided brackets that would hang them lower. I have a 10' ceiling and 17' boats that needed to hang above the garage door when open. To squeeze them in, I directly mounted the pulleys to the ceiling, which required taking the pulleys apart, which aren't designed to come apart, so I had to drill out the riveted axles and replace them with clevis pins. For the traveling pulleys, I had to do the same, but so that I could set a pair of low profile shackles inside the provided bracket instead of using the long hooks (see my review). On top of that, I have the straps as tight around the boats as I can get them.
Question:	Anyone use anything to keep straps from spreading besides the string across the hooks? I want to avoid the horror stories of the kayak slipping out
Answer:	Yes. The bottom of my kayaks are very slick and I had one strap slip while lifting one day. I have 10-foot kayaks. My pulleys are 6-feet apart. I tied a 6-foot piece of string on the straps under the kayaks so they don’t spread. I’ve had no problem since.
Question:	Does a 2 pack mean enough mounts to hang one or two kayaks
Answer:	2 pack means you can hang two kayaks. I just received mine but haven't installed them yet. But did open the package and there 2 full sets to hang 2 kayaks. Steve

Product features

Kayak Hoist Lift Garage Storage Canoe Hoists 125 lb Capacity 2-Pack

There's no such thing as not enough room for another kayak, canoe, or ladder. Store your kayak overhead and out of the way. Smooth pulleys and latches make lifting even the heavy kayaks super easy. The exclusive rope locking mechanism prevents unwanted release and can suspend one product - 125 lb. load limit. Please note, you can mount this item as pictured on a 2 X 4 and screw the 2 X 4 to the joist or mount it right to the joist itself. Buy with confidence!

Redesigned Straps

New improved STRAPS eliminate the fragile hooks that plague cheaper hoists, and allow you to lift heavy products, up to 125lb. Capacity.

Easy to install and easy to use.

Robust Engineering

Hooks are designed with a rubber coating to protect from scratches.

For Ceilings up to 12ft.

Versitile

Safe locking mechanism prevents accidental release.

Raise your canoe, kayak, ladder, or bike to the ceiling with ease.

• Tips : How To USE: As image 4 shows, it firstly needs a mental bar(crossing the brackets to hang on tight with the whole hoist assembly, NOT included) that affords enough weights to hang the hoist up ceiling indoor or hanging outdoor.
• Lifting Weight: 660lb.(Single-line), 1320lb.(Double-line) ; Lifting Height: 38ft(Single-line), 19ft(Double-line) ; Lifting Speed: 33ft/min(Single-line), 16ft/min(Double-line);
• Electric chord of remote 5.2 FT ; Handle remote cord is 4.9FT ; Diameter of wire rope:0.18inch ; Tensile strength of wire rope ≧ 1770N/mm2
• Rated Volt: 110/120V ~ 60Hz ; Rated Current: 10.7A ; Input Power: 1250W ; Horsepower: 1.676 hp
• VERSATILE USE: Partsam electric hoist winch can be used to lift regular or irregular shape things as stones, trees, mower, engine, truck top cover ect. vertically or horizontally in garage, ceilings, loft, barn, attic anywhere and anytime you can imagine, and is a "must" in Christmas for lifting all kinds of heavy things. Extra Lift Slings we offer are included to make your job easier.【PARTSam Electric Hoist Runs with Emergency Stop Switch, the Red Button Works for that】

User questions & answers

Question:	How wide is the back of the hoist? I have to mount this in a tight spot. I only have
Answer:	16.3 x 7.3 x 12 inches
Question:	I have a unit that someone has cut the remote control off of the end of the control cable. is there anywhere to get a wiring diagram of the unit so I
Answer:	Pretty sure its color coded... and don't understand why anyone would cut the end off...
Question:	Can I hang my airplane from this in my building and can I mount the pull direct to the beam in the ceiling
Answer:	If it’s under the load limit yes that would work
Question:	How long is remote when hanging I have high ceilings
Answer:	Remote cable is 5 feet long

Product features

Commen Questions:

1. Can be install horizontally or vertically
2. Not waterproof, can be only used indoors.
3. There is no wireless remote at present.
4. Does it reverse at the same speed for lowering ------- Yes, same up as down. Not so fast either direction to ensure the safety.
5. If I am using this to life a vehicle top do I need anything other than what comes with the lift? ------- You will probably need a sling. I would check vehicles web sites for others that made there own slings. I found mine on a Porsche site but was custom fit for the top.
6. Can the stop button get stuck? ------- Stop button probably stuck. It comes with the panic button activated (red knob) twist to release and it will pop put.
7. Does the lift automatically shut off when it reaches its maximum height? ------- Yes

Core Makes it Be

Pure Copper Wire

Perfect Heat Dissipation

1. front cover
2. stator cooper wire winding
3. rotor-core
4. brake
5. back cover
6. radiator fan

What's Core Inside

1. front cover /rotor-core
2. brake
3. back cover
4. radiator fan

How Does It Make Difference

With this flexible electric hoist, it is available to use for your various needs under different situations.

FUNCTIONAL & FLEXIBLE

Zinc-plated Anti-rotate Steel Wire

Anti-heat Cable

WHAT MAKES IT DIFFERENT

Normal steel wire ropes are twisted with several thin steel ropes, item would be likely to rotate to the opposite side. For expamly, allwires originally are twisted to the left, then the ropes would be easy to rotate to the right way with the danger that the wires would be easy to twist off. That's why we remake it to be safer.

Aimed To Be Professional

We have original professional manufactures and factories, and of course the most important professional tec staff who have been working on the feilds for years with profound experiences.

For the parts of the hoists, accurate data test reports play significant roles before we get all this into markets and shelves.

Anti-heat Data Test and Anti-heat Resistor Test , as the most important two safety processes strictly fits manufacturing standards for every single piece of items on sale.

• Tips : How To USE: As image 4 shows, it firstly needs a mental bar or solid wooden bar that affords enough weights to hang the hoist up ceiling indoor or hanging outdoor.
• Lifting Weight: 110lb.(Single-line), 220lb (Double-line) ; Lifting Height: 26ft(Single-line), 13ft(Double-line) ; Lifting Speed: 26ft/min(Single-line), 13ft/min(Double-line) ;
• Electric chord of remote 5.2 FT ; Handle remote cord is 4.9FT ; Diameter of wire rope: 0.08inch ; Tensile strength of wire rope ≧ 1770N/mm2
• Rated Volt: 110/120V ~ 60Hz ; Rated Current: 1.95A ; Input Power: 220W ; Horsepower: 0.295 hp
• VERSATILE USE: Partsam electric hoist winch can be used to lift regular or irregular shape things as stones, trees, mower, engine, truck top cover ect. vertically or horizontally in garage, ceilings, loft, barn, attic anywhere and anytime you can imagine, and is a "must" in Christmas for lifting all kinds of heavy things. Extra Lift Slings we offer are included to help to make your job easier.【PARTSam Electric Hoist Runs with Emergency Stop Switch, the Red Button Works for that】

User questions & answers

Question:	How to make this waterproof
Answer:	Equipment is waterproof or it is not. This is not. However, depending upon your application, you can set the unit in to a PVC box of your creation keeping it from direct rainfall and plastic bag the remote or some reasonable facsimile. Grease the cable periodically and spray the unit with silicone. It should also be plugged into a GFI outlet. Good Luck.
Question:	Is the pulley for the double line pull as shown in picture included
Answer:	Yes, this package includes the pulley as the picture shows, hope you like it.
Question:	I How to extend the remote control cord
Answer:	Open the switch, cut all four wires, add desired length (I am using prewired flex) I am reusing the same switch
Question:	what all do i need for this to lift my hard top or my jeep ? do i have to put some boards in my ceiling ? how many
Answer:	I used two 2x4’s , one each on opposite ceiling joist. Used lag bolts to install. I also used a unistrut , attaching to the 2x4’s. I have a finished ceiling. Get 2 ratchet straps to attach to hoist hook. Be careful will have to play with it, to get top balanced. Good luck

Product features

Commen Questions:

1. Can be install horizontally or vertically
2. Not waterproof, can be only used indoors.
3. There is no wireless remote at present.
4. Does it reverse at the same speed for lowering ------- Yes, same up as down. Not so fast either direction to ensure the safety.
5. If I am using this to life a jeep top do I need anything other than what comes with the lift? ------- You will probably need a sling. I would check jeeps web sites for others that made there own slings. I found mine on a Porsche site but was custom fit for the top.
6. Can the stop button get stuck? ------- Stop button probably stuck. It comes with the panic button activated (red knob) twist to release and it will pop put.
7. Does the lift automatically shut off when it reaches its maximum height? ------- Yes

Core Makes it Be

Pure Copper Wire

Perfect Heat Dissipation

1. front cover
2. stator cooper wire winding
3. rotor-core
4. brake
5. back cover
6. radiator fan

What's Core Inside

1. front cover /rotor-core
2. brake
3. back cover
4. radiator fan

How Does It Make Difference

With this flexbile electric hoist, it is available to use for your various needs under different situations.

FUNCTIONAL & FLEXIBLE

Zinc-plated Anti-rotate Steel Wire

Anti-heat Cable

WHAT MAKES IT DIFFERENT

Normal steel wire ropes are twisted with several thin steel ropes, item would be likely to rotate to the opposite side. For expamly, allwires originally are twisted to the left, then the ropes would be easy to rotate to the right way with the danger that the wires would be easy to twist off. That's why we remake it to be safer.

Aimed To Be Professional

We have original professional manufactures and factories, and of course the most important professional tec staff who have been working on the feilds for years with profound experiences.

For the parts of the hoists, accurate data test reports play significant roles before we get all this into markets and shelves.

Anti-heat Data Test and Anti-heat Resistor Test , as the most important two safety processes strictly fits manufacturing standards for every single piece of items on sale.

• Tips : How To USE: As image 4 shows, it firstly needs a mental bar(crossing the brackets to hang on tight with the whole hoist assembly, NOT included) that affords enough weights to hang the hoist up ceiling indoor or hanging outdoor.
• Lifting Weight: 440lb.(Single-line), 880lb.(Double-line) ; Lifting Height: 38ft(Single-line), 19ft(Double-line) ; Lifting Speed: 33ft/min(Single-line), 16ft/min(Double-line);
• Electric chord of remote 5.2 FT ; Handle remote cord is 4.9FT ; Diameter of wire rope: 0.15inch ; Tensile strength of wire rope ≧ 1770N/mm2
• Rated Volt: 110/120V ~ 60Hz ; Rated Current: 7.1A ; Input Power: 850W ; Horsepower: 1.139 hp
• VERSATILE USE: Partsam electric hoist winch can be used to lift regular or irregular shape things as stones, trees, mower, engine, truck top cover ect. vertically or horizontally in garage, ceilings, loft, barn, attic anywhere and anytime you can imagine, and is a "must" in Christmas for lifting all kinds of heavy things. extra Lift Slings are included to make your job easier.【PARTSam Electric Hoist Runs with Emergency Stop Switch, the Red Button Works for that】

User questions & answers

Question:	Will these work to store items overhead
Answer:	It's not designed for that but yes. it has a brake built into it. I have a solid steel 300lb ladder that i store in the upright position using this winch. No issues. It is also faster than expected. I"ll be purchasing a few more.
Question:	Can cable be easily changed to 1/4 inch
Answer:	I’m not certain about that. It never crossed my mind.
Question:	Can you use with existing mounting hardware as a trolley type of set up? Realizing other hardware and fab will need to be done
Answer:	No problem at all. Change the mounting brackets to rollers
Question:	We received ours and the fan is broken on it. How do we get a replacement fan? Really don’t want to send the whole thing back
Answer:	Forgive me if I am mistaken, but you'll never hear the fan. If it is making a lot of noise and will not lift, "YES" there's a problem. The fan simply moves at a low frequency to move a small amount of air through the crane armature housing. The rest of the heat is dissipated by the metal "heat sink fins" on the housing around the armature. Something to think about: Just about ALL powerful hoist cranes of this type are designed for lifting huge loads for a certain amount of time and height before it stops to cool off. However, I have never experienced this because my "duty cycle time" requirements never go beyond how long it takes me to lift; the same for lowering my load/object. I wonder if the crane has ever worked at all. I also wonder if it's getting moisture inside or outside. Hope this helps. Sorry, if it does not.

Product features

Commen Questions:

1. Can be install horizontally or vertically
2. Not waterproof, can be only used indoors.
3. There is no wireless remote at present.
4. Does it reverse at the same speed for lowering ------- Yes, same up as down. Not so fast either direction to ensure the safety.
5. If I am using this to life a vehicle top do I need anything other than what comes with the lift? ------- You will probably need a sling. I would check vehicles web sites for others that made there own slings. I found mine on a Porsche site but was custom fit for the top.
6. Can the stop button get stuck? ------- Stop button probably stuck. It comes with the panic button activated (red knob) twist to release and it will pop put.
7. Does the lift automatically shut off when it reaches its maximum height? ------- Yes

Core Makes it Be

Pure Copper Wire

Perfect Heat Dissipation

1. front cover
2. stator cooper wire winding
3. rotor-core
4. brake
5. back cover
6. radiator fan

What's Core Inside

1. front cover /rotor-core
2. brake
3. back cover
4. radiator fan

How Does It Make Difference

With this flexible electric hoist, it is available to use for your various needs under different situations.

FUNCTIONAL & FLEXIBLE

Zinc-plated Anti-rotate Steel Wire

Anti-heat Cable

WHAT MAKES IT DIFFERENT

Normal steel wire ropes are twisted with several thin steel ropes, item would be likely to rotate to the opposite side. For expamly, allwires originally are twisted to the left, then the ropes would be easy to rotate to the right way with the danger that the wires would be easy to twist off. That's why we remake it to be safer.

Aimed To Be Professional

We have original professional manufactures and factories, and of course the most important professional tec staff who have been working on the feilds for years with profound experiences.

For the parts of the hoists, accurate data test reports play significant roles before we get all this into markets and shelves.

Anti-heat Data Test and Anti-heat Resistor Test , as the most important two safety processes strictly fits manufacturing standards for every single piece of items on sale.

Product description

Progressive Automations can provide you quality customer support and recommendation how to use and install electric shelves or actuators in your DIY home automation or garage, warehouse hanging storage.

• Space efficient - automated lift shelves for garage storage, basement or workshop. Dimensions: 46.5" x 28.0" x 53.9". DYI smart and safe home automation.
• Heavy duty and adjustable - with a maximum weight capacity of 165 lbs (evenly distributed) and stroke movement 24.4" you can use the electric lift shelves as ceiling storage racks. Soft start and stop motion with remote for smooth travel.
• Robust - our steel wall mount lift shelves use electric actuator technology and is easy to raise and lower with the wireless remote to quickly access storage items. Using ladders or reaching over your head is no longer needed.
• Easy installation - our 2 levels wall shelves can be assembled in 6 easy steps. Recommended suggested installation height - 90" to 95" from the ground.
• 18 month warranty from USA company Progressive Automations - one of top manufactures of linear actuators in North America.

User questions & answers

Question:	Is the space between shelves hard locked to 16.3" or can you configure it? Can I remove one shelf for more overhead room
Answer:	The space between shelves are hard locked to 16.33" and can't be adjusted.
Question:	Can I remove one shelf to make this a single shelf
Answer:	Thank you for your question. You can choose to not install one of the shelf parts for a single shelving unit.
Question:	Does this lift high enough to park a car under it
Answer:	Thank you for your inquiry. It would depend on where you install the lift itself against the wall. We do suggest installing it 90" to 95" from the ground for easier access to the shelves.
Question:	How is it powered
Answer:	This VL-S-01 Motorized Shelf Lift comes with a power adapter that is powered by input voltage of 100VAC - 240VAC, 50/60 Hz

Product features

WHY GO PROGRESSIVE?

We are Progressive Automations, manufacturer and distributor of linear actuators and linear motion control products worldwide. We have over twelve years of experience in the industry and are always striving for more. We have developed and designed a wide range of products to match the growing demand for automation across industries.

Our goal is to lead the industry in innovation while bringing you affordable, high-quality linear motion products that money can buy.

Progressive Automations' innovative storage and shelving systems use advanced electric linear actuator technology to provide a motorized lift for your home and garage. Height-adjustable wall-mounted shelves offer easy DIY installation and eliminate the need for a ladder or any heavy manual lifting. With the simple click of a button on your wireless remote, your shelf will come to you!

CREATE MORE SPACE, ORGANIZE YOUR GARAGE AND ENHANCE YOUR HOME

Reaching top shelves in your home, particularly in the kitchen or garage, often requires a stool or ladder. Motorized shelf lifts are a smart approach to shelving that makes storage safer and easier to access.

Our advanced technology provides a smooth, stable, and almost silent lifting and lowering motion.

Raise and lower your shelves with a wireless remote to access the top shelf with ease!

ADVANCED TECHNOLOGY

Raise and lower your wall shelving with the press of a button!

Quickly access storage items with no heavy lifting required. Progressive Automations' shelves are capable of holding up to 165 lbs and have a two-foot adjustment range.

WITHIN ARMS REACH

Each shelf is designed with rounded edges for easy accessibility to reach your stored items safely. This helps prevent accidents such as corners catching clothing or injury due to overreaching.

SECURED LOAD

Applying a slight tilt to each shelf helps secure your items to prevent them from falling off when activated.

GUARANTEED STABILITY

Attached wheels assist in keeping the shelves stable against the wall while the shelves are in motion and under load. This is especially helpful for storing heavier items.

QUICK & EASY DIY INSTALLATIONS

You can install the shelving in minutes with just a few tools. It is recommended to install in areas with a minimum ceiling height of 9 feet.

DURABLE, HIGH-QUALITY CONSTRUCTION

The VL-S-01 is built to last with heavy gauge steel, premium hardware, and top-quality parts that have undergone rigorous testing for safety and durability.

THE ULTIMATE SPACE SAVER

A shelf lift gives you a convenient storage solution for all of those items that take up unnecessary space, such as seasonal storage, boxes, bikes or kitchen utensils.

Product description

Hoister Direct 4-Point Hoister System



Our hoisters use the same materials and specifications as premium brands at a discounted price! Turn unused ceiling space into extra storage for your garage, shop, shed or even your apartment. Strong and durable enough to easily remove and store your Jeep Wrangler Hardtop, cargo box, truck cap, bicycle, dinghy, paddleboard or other heavy items. There's virtually no limit to what you can lift and store with this system.



Features:

Self locking cleat, automatically locks to prevent slips and accidental release. 8:1 Mechanical advantage allows anyone to easily operate. Strength isn't an issue. Easy installation. Max Height: 12 ft - 3.66 meters. Minimum working load: 75 lb - 34 kg Maximum working load: 200 lb - 91 kg

• High quality: Same as premium brand Hoisters
• Versatile: Mount almost anywhere
• For everyone: 8:1 mechanical advantage allows almost anyone to easily operate
• Maximum working load: 200 pounds (91 kilograms)
• Made in the USA

User questions & answers

Question:	Can you confirm these are Harken branded pulleys and hardware
Answer:	Can't remember if the pulleys are Harken, but they work great!
Question:	How far down off the ceiling does this hang? i have 27" of space to work with and my pelican bass raider 10e is
Answer:	You have about 6-8 inches from the ceiling to the top of your cap or whatever you are hoisting. You then need to add the height of whatever you are hoisting to your total. The hoist itself works very well. I highly recommend!
Question:	What is the difference between the hoister direct 7806.12 and the hoister direct 7806 units
Answer:	The Suffix .12 represents 12 feet. I believe the 7806 plain is the 10 foot version according to Harken Hoister's website. Cheers.

• Tips : How To USE: As image 4 shows, it firstly needs a mental bar or solid wooden bar that affords enough weights to hang the hoist up ceiling indoor or hanging outdoor.
• Lifting Weight: 550lb.(Single-line), 1100lb.(Double-line) ; Lifting Height: 38ft(Single-line), 19ft(Double-line) ; Lifting Speed: 33ft/min(Single-line), 16ft/min(Double-line);
• Electric chord of remote 5.2 FT ; Handle remote cord is 4.9FT ; Diameter of wire rope: 0.17inch ; Tensile strength of wire rope ≧ 1770N/mm2
• Rated Volt: 110/120V ~ 60Hz ; Rated Current: 8.5A ; Input Power: 1000W ; Horsepower: 1.341 hp
• VERSATILE USE: Partsam electric hoist winch can be used to lift regular or irregular shape things as stones, trees, mower, engine, truck top cover ect. vertically or horizontally in garage, ceilings, loft, barn, attic anywhere and anytime you can imagine, and is a "must" in Christmas for lifting all kinds of heavy things. Extra Lift Slings we offer are included to help to make your job easier.【PARTSam Electric Hoist Runs with Emergency Stop Switch, the Red Button Works for that】

User questions & answers

Question:	can i buy an optional swivel hook plate for a trolley
Answer:	Yes, they are available on Amazon, you have to search for them and they are a little bit higher capacity. Most will accommodate a slightly larger diameter line size but will work fine with the existing. Note that when ordering and don’t go to large.
Question:	What is the actual cable diameter in american terminology? the listed 0.17 simply does not compute here. just say "it's 5/16" or "it's 8mm
Answer:	I’d estimate it’s either 1/4” or 5/16” max. I have actually measured mine though.
Question:	Can this be mounted to a cherry picker
Answer:	I'm say yes, IF you can feed it 110V electricity, and IF the cherry picker with you in it, plus the weight of the hoist, is rated for all those pounds...
Question:	This is probably the stupid question but how would you use this as a double line
Answer:	I’m not sure what your asking but offer this. It comes with a hook and also a pulley/hook combo as shown in the picture. If you intent to use it single line you leave the combo unit off. If you wish to use the double line you connect the single hook to a hole on the upper frame and install the pulley hook. Single operation is half the double line capacity of the hoist. Side note, I have two of these and they have been stellar so far.

Product features

Commen Questions:

1. Can be install horizontally or vertically
2. Not waterproof, can be only used indoors.
3. There is no wireless remote at present.
4. Does it reverse at the same speed for lowering ------- Yes, same up as down. Not so fast either direction to ensure the safety.
5. If I am using this to life a jeep top do I need anything other than what comes with the lift? ------- You will probably need a sling. I would check jeeps web sites for others that made there own slings. I found mine on a Porsche site but was custom fit for the top.
6. Can the stop button get stuck? ------- Stop button probably stuck. It comes with the panic button activated (red knob) twist to release and it will pop put.
7. Does the lift automatically shut off when it reaches its maximum height? ------- Yes

Core Makes it Be

Pure Copper Wire

Perfect Heat Dissipation

1. front cover
2. stator cooper wire winding
3. rotor-core
4. brake
5. back cover
6. radiator fan

What's Core Inside

1. front cover /rotor-core
2. brake
3. back cover
4. radiator fan

How Does It Make Difference

With this flexbile electric hoist, it is available to use for your various needs under different situations.

FUNCTIONAL & FLEXIBLE

Zinc-plated Anti-rotate Steel Wire

Anti-heat Cable

WHAT MAKES IT DIFFERENT

Normal steel wire ropes are twisted with several thin steel ropes, item would be likely to rotate to the opposite side. For expamly, allwires originally are twisted to the left, then the ropes would be easy to rotate to the right way with the danger that the wires would be easy to twist off. That's why we remake it to be safer.

Aimed To Be Professional

We have original professional manufactures and factories, and of course the most important professional tec staff who have been working on the feilds for years with profound experiences.

For the parts of the hoists, accurate data test reports play significant roles before we get all this into markets and shelves.

Anti-heat Data Test and Anti-heat Resistor Test , as the most important two safety processes strictly fits manufacturing standards for every single piece of items on sale.
