10 best spiral wound gasket
A spiral wound gasket is a specialized type of sealing gasket commonly used in industrial applications, particularly in the fields of hydraulics, pneumatics, and plumbing. These gaskets are designed to provide an effective seal between two mating flanges, pipes, or other components in high-pressure and high-temperature environments. Here's what you need to know about spiral wound gaskets:
Construction: Spiral wound gaskets are constructed by winding a thin metal strip, usually stainless steel, in a V-shaped or W-shaped profile, around a soft filler material, often made of graphite or PTFE (polytetrafluoroethylene). The winding of the metal strip and filler material creates alternating layers, typically several plies of metal and filler.
Sealing Properties: Spiral wound gaskets are known for their excellent sealing properties, especially in applications involving extreme temperatures and pressures. The combination of the metal winding and the compressibility of the filler material allows the gasket to maintain its seal under varying conditions.
High-Pressure Applications: These gaskets are commonly used in hydraulic and pneumatic systems, as well as in plumbing and industrial pipelines where high-pressure fluids or gases need to be contained securely. The design of spiral wound gaskets makes them resilient against the forces generated by pressure.
High-Temperature Applications: Spiral wound gaskets are also suitable for applications where temperature extremes are a concern. The metallic winding provides thermal stability, while the soft filler material helps maintain the seal even when exposed to elevated temperatures.
Chemical Resistance: Depending on the choice of materials for the filler and the metal winding, spiral wound gaskets can offer resistance to a wide range of chemicals and corrosive substances. This makes them versatile for various industrial settings.
Customization: Spiral wound gaskets can be customized to fit specific flange sizes, shapes, and requirements. They are available in various sizes, materials, and configurations to meet the needs of different applications.
Installation: Proper installation is crucial for the effectiveness of spiral wound gaskets. They should be installed between two flanges, with appropriate torque applied to compress the gasket and create a tight seal. Care must be taken to ensure that the gasket is positioned correctly to prevent leaks.
In summary, spiral wound gaskets are essential components in hydraulics, pneumatics, plumbing, and other industrial applications where sealing under high-pressure and high-temperature conditions is required. Their unique design, combining metal winding and soft filler material, makes them reliable and versatile choices for ensuring leak-free connections in various industrial systems.
Below you can find our editor's choice of the best spiral wound gasket on the market

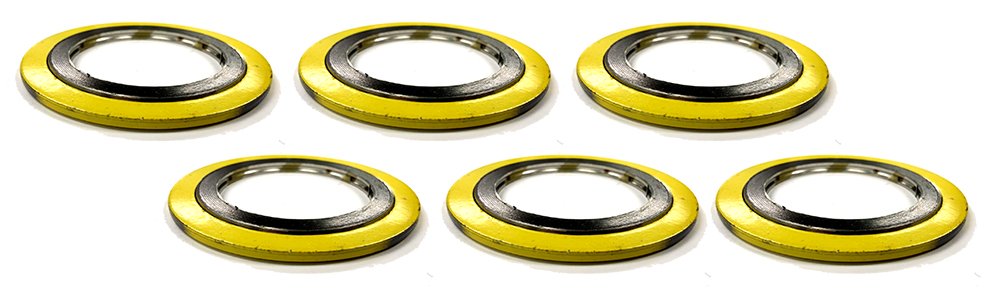

Sterling Seal & Supply SSS 9000IR1500304GR150X6 Spiral Wound Gasket with 304SS Inner Ring, 1-1/2" Pipe Size x 150# Class Flange x 304SS/Flexible Graphite (Pack of 6)
Lamons
Product description
For applications with high temperature variations (thermal cycling), and/or pressure variations
Sterling Seal & Supply SSS 9000IR.750316GR150X6 Spiral Wound Gasket with 316SS Inner Ring, 3/4" Pipe Size x 150# Class Flange x 316SS/Flexible Graphite (Pack of 6)
Lamons
Product description
For applications with high temperature variations (thermal cycling), and/or pressure variations
Sterling Seal & Supply SSS 90001316GR600X6 Green Band with Gray Stripe 316LSS/Graphite Spiral Wound Gasket, -150 to 842 Degrees Fahrenheit Temperature Range, 1.25" ID, 2.88" OD, for 1" Pipe Size (Pack of 6)
Lamons
Product description
Spiral wound gasket, 1" pipe size, 600# class flange, 316SS windings with a flexible graphite filler For applications with high temperature variations, thermal cycling and pressure variations
Sterling Seal SSI90002304GR150X12 Spiral Wound Gasket with Flexible Graphite Filler for 2" Pipe, Pressure Class 150#, 2.75" ID, 304 SS Windings/Graphite/Carbon Steel Outer Ring (Pack of 12)
Lamons
Product description
Sterling Seal & Supply Style 9000 304 Stainless Steel Spiral Wound Gaskets with Flexible Graphite Filler are for applications with high temperature variations (thermal cycling),and/or pressure variations, and/or flange rotation problems etc, They are used where gaskets with adequate residual stress (stress retention),flexibility and recovery are needed and have been designed to meet these demanding requirements Spiral-wound gaskets are made of a preformed metallic strip and a soft filler material, wound together under pressure, and optionally with an inner and/or outer guide ring The metal strip holds the filler, resulting in excellent mechanical resistance, resilience and recovery A v-shaped crown centered in the metal strip acts as a spring, giving gaskets greater resiliency under varying conditions Centering ring accurately locates the gasket on the flange face, provides additional radial strength, and acts as a compression limiter Spiral winding (sealing element) consists of metal and soft filler material These gaskets are durable, easy to install and easy to remove Resiliency and strength make spiral wound gaskets an ideal choice under a variety of conditions and applications Widely used throughout refineries and chemical processing plants, spiral wound gaskets are also effective for power generation, pulp and paper, aerospace, and a variety of valve and specialty applications
Sterling Seal and Supply , Inc. API 601 9000IR6304GR150 Spiral Wound Gasket with 304SS Inner Ring, 6" Pipe Size x 150# Class Flange x 304SS/Flexible Graphite
Lamons
Product description
For applications with high temperature variations (thermal cycling), and/or pressure variations
Assigned by Sterling Seal & Supply SWIR-8-150-304GRx6.stel Spiral Wound Gasket with 304SS Inner Ring, Size 8" Pipe, 150# Class Flange, API-601 (Pack of 6)
Sterling Seal
Product description
Spiral Wound Gasket with 304SS Inner Ring, Size 8" pipe, 150# Class Flange, 304SS windings with graphite filler, by Sterling Seal & Supply, Inc. (STCC) API-601 (qty 6 gaskets). Sterling Seal & Supply Style 9000 stainless steel spiral wound gaskets with flexible graphite filler have proven to be reliable in many applications, and allow lower clamping forces than most solid gaskets. The necessity for a gasket to have the ability to recover cannot be over emphasized. The effects of pressure and temperature fluctuations, the temperature differential across the flange face, together with bolt stress relaxation and creep, demand a gasket with adequate flexibility and recovery to maintain a seal even under these varying service conditions. Spiral Wound Gasket is the precision engineered solution to such problems, meeting the most exacting conditions of both temperature and pressure in flanged joints and similar assemblies and against virtually every known corrosive and toxic media. They are used where gaskets with adequate residual stress (stress retention),flexibility and recovery are needed. Spiral wound gaskets are made of a preformed metallic strip and a soft filler material, wound together under pressure, and optionally with an inner and/or outer guide ring. The metal strip holds the filler, resulting in excellent mechanical resistance, resilience and recovery. A v-shaped crown centered in the metal strip acts as a spring, giving gaskets greater resiliency under varying conditions. An optional centering ring accurately locates the gasket on the flange face, provides additional radial strength, and acts as a compression limiter. These gaskets are durable, easy to install and easy to remove. Resiliency and strength make spiral wound gaskets an ideal choice under a variety of conditions and applications. Widely used throughout refineries, chemical processing plants, power generation, pulp and paper, aerospace, and a variety of valve and pump specialty applications.
Sterling Seal SSI90003304GR150X6 Spiral Wound Gasket with Flexible Filler for 3" Pipe, Pressure Class 150#, 4" ID, 5.375" OD, 304 Stainless Steel Windings/Graphite/Carbon Steel Outer Ring (Pack of 6)
Lamons
Product description
Sterling Seal & Supply Style 9000 304 Stainless Steel Spiral Wound Gaskets with Flexible Graphite Filler are for applications with high temperature variations (thermal cycling),and/or pressure variations, and/or flange rotation problems etc, They are used where gaskets with adequate residual stress (stress retention),flexibility and recovery are needed and have been designed to meet these demanding requirements Spiral-wound gaskets are made of a preformed metallic strip and a soft filler material, wound together under pressure, and optionally with an inner and/or outer guide ring The metal strip holds the filler, resulting in excellent mechanical resistance, resilience and recovery A v-shaped crown centered in the metal strip acts as a spring, giving gaskets greater resiliency under varying conditions Centering ring accurately locates the gasket on the flange face, provides additional radial strength, and acts as a compression limiter Spiral winding (sealing element) consists of metal and soft filler material These gaskets are durable, easy to install and easy to remove Resiliency and strength make spiral wound gaskets an ideal choice under a variety of conditions and applications Widely used throughout refineries and chemical processing plants, spiral wound gaskets are also effective for power generation, pulp and paper, aerospace, and a variety of valve and specialty applications
Sterling Seal and Supply , Inc. API 601 9000IR10316GR150 Spiral Wound Gasket with 316SS Inner Ring, 10" Pipe Size x 150# Class Flange x 316SS/Flexible Graphite
Lamons
Product description
For applications with high temperature variations (thermal cycling), and/or pressure variations
Sterling Seal & Supply, Inc. (STCC) API 601 90006304GR150 Spiral Wound Gasket, 6"" Pipe, Class 150 Flanges, 304SS Windings, Flexible Graphite for Applications with Thermal Cycling and Pressure Variations", yellow band with gray stripe
Lamons
Product description
Spiral Wound Gasket, 6" pipe size, 150# class flange, 304SS windings with a Flexible Graphite Filler
Sur-Seal, Inc. Teadit 90001250347GR900 Spiral Wound Gasket, 1-1/4" Pipe, Class 900 Flanges, 347SS Windings, Flexible Graphite for Applications with Thermal Cycling and Pressure Variations
Lamons
Product description
Spiral Wound Gasket, 3/4" pipe size, 1500# class flange, 347SS windings with a Flexible Graphite Filler
- ASME B16.20 Gaskets for ASME B16.5 Flanges / Class 900
- Centering ring accurately locates the gasket on the flange face, provides additional radial strength, and acts as a compression limiter
- Spiral winding (sealing element) consists of metal and soft filler material
- Temperature range (F) : -320 to 850 Degrees
- Durable; easy installation and removal
