12 best spiral point taps
Spiral point taps, also known as gun taps or through-hole taps, are cutting tools used in machining and metalworking to create threads in drilled holes. They are a type of threading tap known for their specific design and function. Here's what you should know about spiral point taps:
Thread Creation: Spiral point taps are primarily used for creating internal threads in through-holes. Unlike some other types of taps, they are not suitable for blind holes where the hole does not go all the way through the material.
Flute Design: The defining feature of spiral point taps is their flute design. These taps have flutes or grooves that spiral up the tap at an angle. This spiral design helps in ejecting chips and facilitates efficient chip removal during the tapping process.
Cutting Action: Spiral point taps have a cutting edge that moves in a forward direction, away from the operator, as the tap is turned clockwise. This forward cutting action allows for faster and more efficient threading, making spiral point taps well-suited for production environments.
Material Compatibility: Spiral point taps are commonly used with materials such as steel, stainless steel, aluminum, and other metals. They are particularly effective in softer materials where chip evacuation is crucial to prevent clogging.
Types of Threads: Spiral point taps are available in various thread types, including metric and imperial (inch) threads, depending on the application and the specific requirements of the project.
Taper, Plug, and Bottoming Taps: Spiral point taps come in different configurations, including taper, plug, and bottoming taps. Taper taps have a more gradual starting point and are used to initiate threading. Plug taps are used for intermediate threading, and bottoming taps have a shorter, more pronounced point and are used to thread near the bottom of a hole.
Appropriate Speeds and Feeds: When using spiral point taps, it's important to follow recommended speeds and feeds to achieve accurate and efficient threading while prolonging the life of the tap.
Coolant and Lubrication: Proper lubrication and the use of cutting fluids are essential when using spiral point taps. This helps reduce friction, heat, and tool wear during the threading process.
Thread Depth Control: Operators should exercise care to control the depth of the threads, especially when using bottoming taps, to avoid over-tapping and potential damage to the workpiece.
Tapping Machines: In industrial settings, spiral point taps are often used with tapping machines or CNC machines to ensure precision and consistency in thread creation.
Spiral point taps are valuable tools for professionals in machining and metalworking industries, offering efficiency and speed in creating threaded holes.However, it's important to select the appropriate tap type, size, and configuration based on the specific threading requirements and materials being worked on, as well as to follow proper tapping procedures to achieve high-quality results.
Below you can find our editor's choice of the best spiral point taps on the market
Drill America - DWT57129 1/4"-20 High Speed Steel 2 Flute Spiral Point Tap, DWT Series
Drill America
Product description
Drill America DWT Series High Speed Steel hand taps are the most versatile taps for hand use, or for tapping under power. Hand taps are popular for use in general machine tapping or CNC tapping. For re-threading and making new threads. High Speed Steel Hand Taps come in three styles: Taper Style: Starts the thread square with the workpiece. Plug Style: Generally used in thru holes. Bottom Style: Generate the thread to the bottom of the hole. A tap set contains 1 taper, 1 plug and 1 bottoming tap.
- Used to make new threads or re-thread damaged and/or jammed threads
- High Speed Steel Hand Taps come in three styles: Taper Style: Starts the thread square with the workpiece. Plug Style: Generally used in thru holes. Bottom Style: Generate the thread to the bottom of the hole.
- High speed steel hand taps are the most versatile taps for hand use, or for tapping under power
- Hand taps are popular for use in general machine tapping or CNC tapping
- Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
User questions & answers
| Question: | how long is the tap? I need to retread sheet metal in metal desk leg which is down about 1 1/2 to 2 inches |
| Answer: | Hello we offer a 3/18-16 x 6” long hand tap for long reach applications. Par number: DWTET6X3/8-16 |
| Question: | is this made in USA |
| Answer: | I have no idea. I ordered six 1/4"x20 taps and the containers do not say where they were manufactured or even the name of the company. They do seem to be nice taps and the price is great. Sorry that I cannot provide more information. |
Product features
Drill America Spiral Point Hand Taps
Drill America Spiral Point Hand Taps solve the problem of tap breakage in through hole tapping. Spiral Point Hand Taps shoot chips ahead of the cutting action, thus reducing loading and clogging in the flutes.
They are recommended for use in through or blind holes which allow for chip accumulation in the bottom of the hole. Ideal for threading a wide variety of ductile materials, copper and copper alloys, brass and non-metallics.
High Speed Steel for Many Materials
Drill America Spiral Point Hand Taps are made of high speed steel and are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
Champion Cutting Tool Heavy Duty Spiral Point Tap:XL22-5/16-18-Made in USA (12 per pack)
Product description
Heavy Duty Spiral Point Taps thread quickly, accurately, and last longer when tapping steel and other tough alloys. For tapping all through hole applications in low and high carbon steel, stainless steel, alloyed steels, steel drop forgings, grey cast iron, titanium, nimonic alloys, manganese, sprint steels, and other tough alloys
- Heavy Duty Spiral Point Taps thread quickly, accurately, and last longer when tapping steel and other tough alloys. Made in USA
- Ideal for through holes applications since spiral point quickly shears and ejects chips ahead of the tap
- Special necked design for deeper, trouble free tapping and less tap breakage. Surface treated premium high speed steel for longer tool life.
- Plug Style/Three Flute/H Limits
- For tapping all through hole applications in low and high carbon steel, stainless steel, alloyed steels, steel drop forgings, grey cast iron, titanium, nimonic alloys, manganese, sprint steels, and other tough alloys
Chicago Latrobe 52581 GT18 High-Speed Steel Jobber Length Drill Bit and Spiral Point Tap Set with Metal Case, Uncoated (Bright) Finish, 18-piece, Wire Size, Letter, Inch, #6-32 to 1/2"-13 Tap Sizes
Chicago Latrobe
Product description
Greenfield Industries is a leading manufacturer of expendable cutting tools and related products. The company sells thousands of products under the brand names Cleveland, Chicago-Latrobe, Cle-Line, Vermont Tap & Die, Bassett, and Putnam Tools, Geometric, Vers-O-Tool, H & G, and Acme-Fette. The product lines include drills, end mills, taps, dies, reamers, countersinks, counterbores, tool bits, and more. These tools are used in a variety of applications, If it's being drilled, cut, bored, dug, shaped, milled, stamped, formed, drawn, or threaded, Greenfield Industries products are hard at work. In 2009, Greenfield Industries became part of the Top-Eastern Group, the world’s largest manufacturer of twist drills. The blending of these two powerhouse companies allows both the global capacity necessary to engage in the world’s cutting tool markets. By combining the benefits of world-class manufacturing facilities, experienced sales and technical support, and well-known and respected brand names, Greenfield Industries delivers a winning combination to the market. As our family of customers, distributors, employees, products and services continues to grow, we maintain our commitment to excellence.
- Set contains 9 jobber length drill bits, including wire gauge sizes #36, #29, #25, #21,and #7; letter sizes F and U; and inch sizes 5/16" and 27/64"
- Set contains 9 spiral point taps, including thread sizes 6-32 UNC, 8-32 UNC, 10-24 UNC, 10-32 UNF, 1/4"-20 UNC, 5/16"-18 UNC, 3/8"-16 UNC, 7/16"-14 UNC, and 1/2"-13 UNC
- High-speed steel (HSS) provides hardness for wear resistance
- Uncoated (bright) finish provides an untreated surface
- 118-degree conventional point on the drill bit for a range of drilling applications
- Made in the USA
User questions & answers
| Question: | Is this set made in america |
| Answer: | Yes. https://www.zoro.com/chicago-latrobe-gun-tapdrill-bit-set-18-pc-52581/i/G1930914/ |
| Question: | Can these taps be used in a drill on steel and thick steel |
| Answer: | Not sure what kind of drill you will be using but yes, should not be a problem if used correctly. These are high-quality taps and should work well in steel. |
Product features
Chicago Latrobe 52581 18-Piece HSS Jobber Drill Bit and Spiral Point Tap Set
The Chicago Latrobe 52581 jobber length drill bit and spiral point tap set contains 9 high-speed steel jobber length drill bits with 118-degree conventional points and 9 high-speed steel spiral point taps for use in general-purpose applications on a range of materials, especially soft metals. Both drill bits and taps are made from high-speed steel (HSS) that provides hardness for wear resistance and have an uncoated finish that provides an untreated surface. These spiral point taps have a plug chamfer, which includes 3-5 threads that are reduced in height and produce thick chips. They have a square-ended shank. The set includes a metal index case for identification and organization.

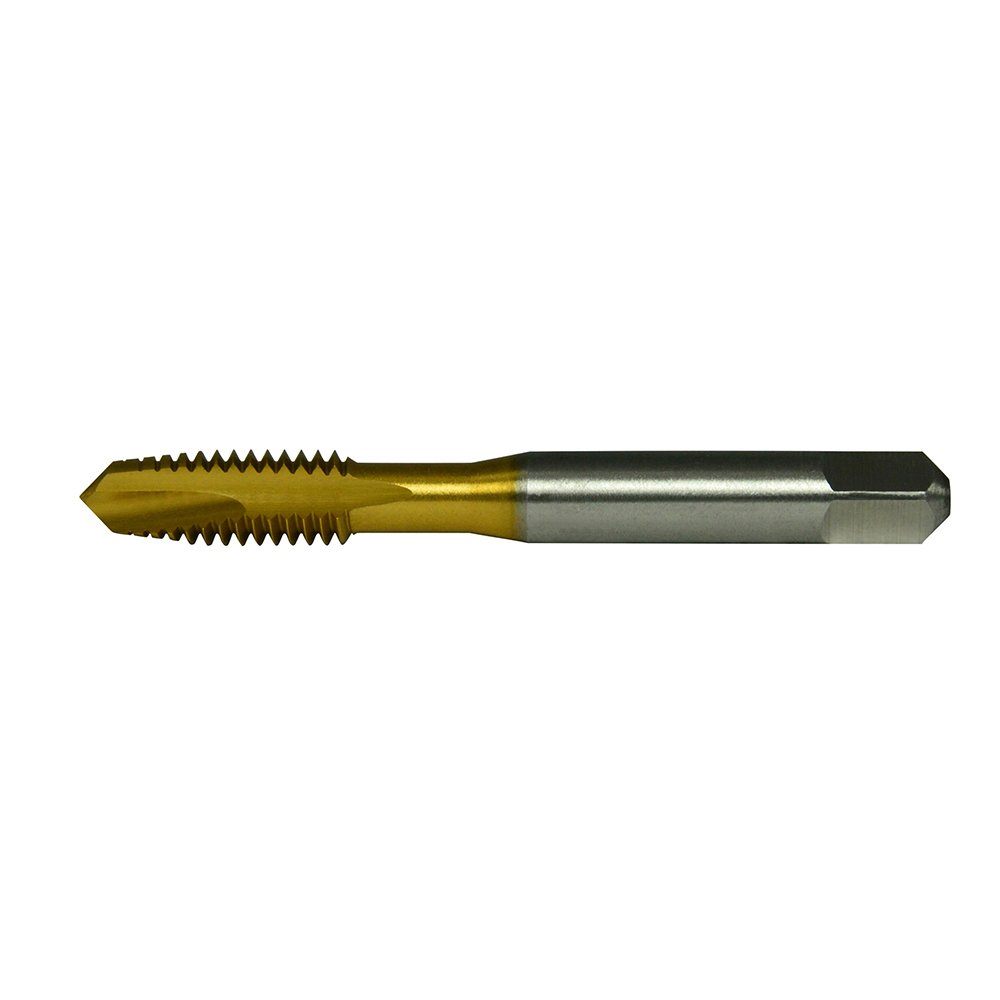

Vermont Tap & Die TN-3112 High-Speed Steel Ground Thread Spiral Point Tap, TiN Coated, Round With Flats, Plug Chamfer, 1/4"-20 Thread Size, H5 Pitch Diameter, 2 Flutes
Greenfield Threading
Product description
Flute Type: Straight. Hand of Cut: Right. Material: HSS. Number of Flutes: 2, Shank Configuration: Straight with Square. Surface Condition: TiN, Tap Blank Construction: USCTI Table 302A, Tap Chamfer: Plug, Tap Construction: Standard, Tap Ground Threads: Yes, Tap Interrupted Thread: No, Tap Limit: H5, Tap Style: Spiral Point Tap, Tap Truncated Threads: No, Tap Type: Machine Tap. Tool Size: 1/4 - 20 UNC. Diameter: 0.2500-Inch. Overall Length: 2.5000-Inch, Overall Length (Metric): 63.50mm, Shank Size: 0.2550-Inch, Shank Size (Metric): 6.48mm, Shank Square Length: 0.3125-Inch, Shank Square Length (Metric): 7.94mm, Shank Square Size: 0.1910-Inch, Shank Square Size (Metric): 4.85mm. Depth of Cut: 2xD. Material Application:- M: Stainless Steel, P: Steel. Operation Type: Thru Hole, Tap Spiral Point: Yes. Thread Creation: Thread Cutting.
- Thread form: unc
- Thread length: 1.0000-Inch
- Thread length (metric): 25.40Mm
- Thread pitch: 20
- Thread size: 1/4-inch; thread tolerance: 2b-3b
uxcell Spiral Point Plug Threading Tap M8 x 1.25 Thread, Ground Threads H2 3 Flutes, High Speed Steel HSS 6542, Titanium Coated, Round Shank with Square End, 2pcs
- Specifications: Thread size: M8 x 1.25; thread tolerance: H2; thread length: 23mm / 0.9"; plug chamfer and right hand thread cutting. 3 straight flutes are ground to provide downward chip removal
- Material & Finish: High-speed steel tool is great for general purpose applications, offering high hardness and toughness. Titanium coating for improving wear and fusion resistance, long service life
- Applications: Great for through-hole threads. Can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc.
- How to Use: Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps
- Warm Tips: Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping
Product features
Product Introduce
- Spiral point taps are also called screw-point taps, suitable for processing through-hole threads and deep-hole threads. Featured with high strength, fast cutting speed, clear tooth pattern and long life.
- Spiral point tap is a deformation of the straight flute tap. The cutting edge of the straight flute is slanted to form an angle, and the chips are discharged forward along the direction of feed. The through-hole threads should be preferentially drilling by spiral point taps.
- Made of high speed steel (HSS), threading tool is good for general purpose applications, offering high hardness, toughness and wear resistance.
GENERAL SELECTION BASIS
- Use with tapping oil to get higher quality thread and more durable taps. It is easy to cause damage for uneven force if the machine taps are used by hand.
- When selecting the cutting speed, please consider the tap material, type, thread teeth, hole shape, effective diameter of the bottom hole, processing material and cutting oil .
- Cutting oil is lubrication, cooling and anti-sticking. Be sure to select the appropriate cutting oil for complex tapping process.
Guhring Powertap, 1/4-20 Spiral point tap, HSS-E (cobalt), TiCN, Pack of 2
uxcell Spiral Point Plug Threading Tap M2 x 0.4 Thread, Ground Threads H2 3 Flutes, High Speed Steel HSS 6542, Titanium Coated, Round Shank with Square End, 2pcs
- Specifications: Thread size: M2 x 0.4; thread tolerance: H2; thread length: 10mm / 0.4"; plug chamfer and right hand thread cutting. 3 straight flutes are ground to provide downward chip removal
- Material & Finish: High-speed steel tool is great for general purpose applications, offering high hardness and toughness. Titanium coating for improving wear and fusion resistance, long service life
- Applications: Great for through-hole threads. Can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc.
- How to Use: Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps
- Warm Tips: Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping
User questions & answers
| Question: | Can this be used to tap stainless steel? I only need to use the tap once, then I am willing to dispose of it |
| Answer: | I use my tap to clear block holes in galvanized electrical switch boxes. I however believe the tap would work on stainless steel. Just as long as you drill the appropriate pilot hole for the tap. |
Product features
Product Introduce
- Spiral point taps are also called screw-point taps, suitable for processing through-hole threads and deep-hole threads. Featured with high strength, fast cutting speed, clear tooth pattern and long life.
- Spiral point tap is a deformation of the straight flute tap. The cutting edge of the straight flute is slanted to form an angle, and the chips are discharged forward along the direction of feed. The through-hole threads should be preferentially drilling by spiral point taps.
- Made of high speed steel (HSS), threading tool is good for general purpose applications, offering high hardness, toughness and wear resistance.
GENERAL SELECTION BASIS
- Use with tapping oil to get higher quality thread and more durable taps. It is easy to cause damage for uneven force if the machine taps are used by hand.
- When selecting the cutting speed, please consider the tap material, type, thread teeth, hole shape, effective diameter of the bottom hole, processing material and cutting oil .
- Cutting oil is lubrication, cooling and anti-sticking. Be sure to select the appropriate cutting oil for complex tapping process.
Viking Drill and Tool 61610 SP-10T Type 20-UB Spiral Point Plug Style Magnum Super Premium Tap Set
Viking Drill & Tool
Product description
Committed to Quality, Consistency, Service and Value QUALITY at Viking Drill and Tool begins with the finest tool steel we can buy and ends with the world class products in our catalog. Our cutting tools are designed, engineered and superbly crafted to provide long lasting durability. Our 74,000 square foot St. Paul, Minnesota manufacturing facility is specifically designed for the unique task of efficient high quality cutting tool manufacturing. CONSISTENCY is a natural by-product of our experience and dedication to quality. At Viking Drill and Tool, skilled machine operators working with the world's finest raw materials have the capability of providing you with consistent high quality products time after time, year after year. On our Ultra Bor Super Premium products, we routinely cut recognized tool tolerance standards by one half to insure that our customers receive drills manufactured to the tightest possible specification and utmost in consistency and accuracy. All materials used at Viking Drill and Tool meet the rigorous qualifications of National Aerospace Standard (NAS) 907. This standard, recognized as the most stringent in the industry precludes the use of lower quality steels which do not hold up under rigorous applications. The use of these extreme high quality materials insures that consistency is built in to every one of our U.S. manufactured products. Our extensive selection of U.S. manufactured tools is designed to give you the right tool at the right price for whatever tough job you come up against.
- 10 pc. Tap Set Premium High Speed Steel Spiral Point Plug Style
- Spiral Point Tap Set
- Contains: 1/4-20, 1/4-28. 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20
- Spiral Point Gold Oxide Taps
- Spiral Point Plug Style Magnum Super Premium Tap Set
Viking Drill and Tool 57990 SP-18TDM Type 21-UB Spiral Point Plug Style Magnum Super Premium Tap/Drill Set
Viking Drill & Tool
Product description
Committed to Quality, Consistency, Service and Value QUALITY at Viking Drill and Tool begins with the finest tool steel we can buy and ends with the world class products in our catalog. Our cutting tools are designed, engineered and superbly crafted to provide long lasting durability. Our 74,000 square foot St. Paul, Minnesota manufacturing facility is specifically designed for the unique task of efficient high quality cutting tool manufacturing. CONSISTENCY is a natural by-product of our experience and dedication to quality. At Viking Drill and Tool, skilled machine operators working with the world's finest raw materials have the capability of providing you with consistent high quality products time after time, year after year. On our Ultra Bor Super Premium products, we routinely cut recognized tool tolerance standards by one half to insure that our customers receive drills manufactured to the tightest possible specification and utmost in consistency and accuracy. All materials used at Viking Drill and Tool meet the rigorous qualifications of National Aerospace Standard (NAS) 907. This standard, recognized as the most stringent in the industry precludes the use of lower quality steels which do not hold up under rigorous applications. The use of these extreme high quality materials insures that consistency is built in to every one of our U.S. manufactured products. Our extensive selection of U.S. manufactured tools is designed to give you the right tool at the right price for whatever tough job you come up against.
- 18 pc. Set Premium Metric Tap and Dies Index High Speed Steel Spiral Point
- Spiral Point Plug Taps & HSS Drills
- Contains: HSS Spiral Point Taps & Drills
- Includes corresponding drill & tap
- Spiral Point Plug Style Magnum Super Premium Tap/Drill Set
Titan TT98015 High Speed Steel Spiral Point Plug Tap, ALTiN Coated, 3/8" - 16", H3 Limit, 0.381" Shank Diameter, 1-1/4" Thread Length, 2-15/16" Overall Length
Titan USA
Product description
Series 762 is AlTiN Coated, a multi-layered coating for a range of high speed steel applications. For use with cast iron, stainless steel, nickel based high temperature alloys and titanium alloys.
- Made in USA
- Spiral Point Plug
- AlTiN Coated
- High Speed Steel
HHIP 1011-6112 3/8-24NF H3 3 Flute Spiral Point Tap-Plug
HHIP
Product description
3/8-24NF H3 3 Flute Spiral Point Plug Tap ~ Ground thread. ~ Ground from solid. ~ High speed steel.
- Package Dimensions: 1.5 H x 1.5 L x 4.0 W (inches)
- High speed steel
- Ground Thread; Ground from solid
- Package Weight: 0.13 pounds
Drill America m6 x 1 High Speed Steel 2 Flute Spiral Point Tap, DWT Series
Drill America
Product description
Drill America DWTG Series spiral-Pointed taps, or Machine Taps, were originated to solve the problem of tap breakage in through hole tapping. The Machine Tap shoots chips ahead of the cutting action, thus reducing loading and clogging in the flutes. They are recommended for use in through or blind holes which allow for chip accumulation in the bottom of the hole. Ideal for threading a wide variety of ductile materials, copper and copper alloys, brass and non-metallics
- Tap shoots chips ahead of the cutting action reducing loading and clogging in the flutes
- They are recommended for use in through or blind holes
- Allow for chip accumulation in the bottom of the hole
- Ideal for threading a wide variety of ductile materials, copper and copper alloys, brass and non-metallics
- High speed steel spiral point tap
Product features
Drill America Spiral Point Hand Taps
Drill America Spiral Point Hand Taps solve the problem of tap breakage in through hole tapping. Spiral Point Hand Taps shoot chips ahead of the cutting action, thus reducing loading and clogging in the flutes.
They are recommended for use in through or blind holes which allow for chip accumulation in the bottom of the hole. Ideal for threading a wide variety of ductile materials, copper and copper alloys, brass and non-metallics.
High Speed Steel for Many Materials
Drill America Spiral Point Hand Taps are made of high speed steel and are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
