12 best cctv tests

• 【Analog Camera Tester】5.0 inches 800 x480 High-resolution view angle display, more intuitive and easy to display the camera image quality, support PAL/NTSC standard video signal. Support CVBS + AHD (5MP) + TVI (5MP) + CVI (4MP) Camera Test，4-In-1 CCTV Tester Monitor. High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.【NOT Support IP Camera】
• 【Hdmi Video Test Monitor】Developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having TVI,CVI, AHD. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
• 【PTZ Controller】 Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.
• 【CCTV Tester】DC12V 1A output power: Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available. Rechargeable: Built-in 18650 2600mA battery X 2,after charging 3-4 hour, working time lasts 11 hours.
• 【Warranty and Professional Technical Support】 30-day money-back guarantee and 1-year warranty which includes free parts replacement and lifetime technical support. Anpviz Teams Provide free lifetime tech support, E-mail, telephone or video support all could be provided.

User questions & answers

Question:	Can i link this to my security system and use my mouse to control and down load video to my usb device
Answer:	No. This is for viewing your hardwired camera feed while you are on a ladder and trying to figure out what the cameras going to view. Power plugs into camera and video out. Turn on this unit and adjust camera to your requirements. I had to buy this in addition to my older 8 year old unit as Resolution Has increased and you have to have updated equipment to view your cameras.
Question:	Does this tester support coaxialtron PTZ
Answer:	If you mean diagonal I don’t know. My PTZ only supports y & z and the arrows on this unit move the camera left right up down.
Question:	Does it support basic composite video input
Answer:	It will handle of the video inputs from any surveillance video camera.
Question:	Can i test poe cameras with this
Answer:	Sorry, This cctv tester only support test analog camera

Product features

Troubleshoots

• IP camera can not be tested.

This tester not supports any IP cameras testing, it can only be used to test analog cameras.

• The tester can not produce pictures.

When the device is switched to CVI mode, only connected to CVI camera can it produce pictures. If the camera is other TVI / AHD signal camera, the mode should be switched to TVI / AHD signal correspondingly, so that the connected camera can produce pictures but not flicker.

• Must this be plugged in, in order to turn on or does the batteries need to be charged?

This tester is built-in battery, as long as the battery power is sufficient, you can turn it on normally, if not, that means that the battery power has been consumed, you need charge it, fully charge it and then you can unplug the power supply to use.

• HDMI isn’t recognized.

If HDMI is used as the display input, it can only be connected to the NVR or DVR which with an input signal of HDMI. If HDMI is a signal output, it needs to be connected to the display or TV.

4 in 1 CCTV Tester(Not Support IP Cameras)

Tips

●To avoid the battery can’t charge next time. Don’t recharge it until the battery was completely used

●This tester NOT supports IP Camera

TVI camera test: HD TVI video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP. When TVI signal input, the tester will display HD TVI camera image.

AHD camera test: HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP. When AHD signal input, the tester will display the AHD camera image.

CVI camera test: HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP. When CVI signal input, the tester will display the CVI camera image.

CVBS: PAL/NTSC, 960H Camera, 800tvl/1000tvl/1 200tvl analog camera

PTZ Controller

Support RS485, compatible with protocols

PELCO-D/P, you can control the ratation of PTZ, up or down, left or right, and you also can adjust zoom, focus, aperture size.

Rechargeable

Power the camera with DC 12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available. Built-in 18650 2600mA battery, after charging 3-4 hours, working time lasts 11 hours.

Video Signal Testing

Video monitor tester, high-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.

5 Inch CCTV Tester

Audio testing: Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

UTP cable test: Display UTP cable connection status, cable type and the sequence of wires as well as read the number of the test box.

VGA/HDMI input: Support VGA/HDMI 1.1 Compliant Digital input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode.

Packing list

• 【CCTV TESTER】5-inch 800X480 Resolution Screen 4 in 1 PAL/NTSC (Auto adapt) CCTV Tester ,Hybrid camera tester is able to test and debug coaxial 720P / 960P / 1080P /3MP/4MP/5MP/8MP AHD camera &CVI camera & TVI camera and traditional CVBS analog camera （Does not support IP & SDI cameras），with video display, The LCD screen video monitor with high resolution can show clear image when troubleshooting a security camera system ,correct faraway installation.
• 【PTZ CONTROL】Support RS485 ,Compatible with multiple PTZ protocols (PELCO-D / PELCO-P ); baud rate: 2400, 4800, 9600,14400, 19200 (optional), zooms in/out the lens, adjusts the focus, aperture/sets，PTZ continuing rotate test.
• 【UTC CONTROL】Press and hold the M menu button for 5 seconds to enter, UTC is displayed at the top of the screen. Press the menu button to bring up the camera menu and operate the UTC menu with the up / down / left / right input keys. Press the M menu button for 5 seconds to exit UTC mode.
• 【APPLICATION 】UPT/LAN cable, measure the connecting status, display the sequence of connection and the NO， Audio test, and multilingual OSD，supports 12 languages to choose from ,The brightness and contrast and color saturation can be adjusable,USB2.0 interface provides 5V / 1A emergency power output,Power the camera with DC 12V /1A power output from the tester.
• 【LONG WORK TIME】 Built in 3.7V 3000 mAh rechargeable Lithium polymer battery , LED emergency lighting;After charging 2-3 hour, it can work lasts 6 hours.

Product features

6800ACT-4 in 1 CCTV Tester(Not Support IP Cameras)

5'' 800X480 Resolution Screen 4 in 1 PAL/NTSC (Auto adapt) CCTV Tester ,HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD, CVI,CVBS. It also provides many useful functions,such as UTC control/call OSD menu, video display, PTZ control,DC 12V output power, audio test, RS485 data searching, cable testing, LED lamp etc.

Tips: ● This tester NOT supports IP Camera

Product Accessories:

1.HD coaxial camera tester

2.Wrist band

3.DC 12v/1A output cable .

4.Audio test cable .

5.Network test convertor

6.USB cable

7. Power adapter DC5V 1A

8.BNC cable

9.Instruction Manual

• 🎥 5 inch IPS touch screen,1920*1080 resolution,4K 30fps HDMI input and VGA input, silicone protective shell. H.265/H.264,4K video display via mainstream,8MP TVI CVI AHD camera test, support UTC & call OSD menu,CVBS camera test, PTZ control
• 🎥 Built-in WiFi,support WiFi camera test ,Hikvision,Dahua and Uniview test tool etc,Upgrade Rapid ONVIF,create testing report,Auto HD app,auto recognize HD coax camera type and resolution
• 🎥 This CCTV tester is DC12V 3A,48V PoE power output, RJ45 cable TDR test, cable quality test. Rapid ONVIF, auto view video, and create testing report.
• 🎥 This IP camera tester Equipped with 7.4 V/3350mAh Li-ion Battery, 3-4 hours charging time, working time lasts 6 hours, add LED light, it is convenient to work in dark
• 🎥 CCTV installers often need to carry a variety of testing tools to complete their work. Koolertron Camera Tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. Perfectly compatible with this work.

User questions & answers

Question:	How do you add apps
Answer:	Connect to wifi, then download the app, or install the apk directly. If you have any problem ,pls feel free to contact our customer service email "[email protected]"
Question:	Can the tester preview the h.265 or h.264 encoded ip camera images
Answer:	Yes. (Using "Rapid ONVIF" software) Our tester can preview the H.265 and H.264 encoded camera images, and the previewed camera image resolution is up to 4K. The common 4K resolutions include 3840 × 2160, 4096 × 3112, 3656 × 2664, etc. In addition to the preview image, it also supports PTZ control and modify the parameters of IP camera.
Question:	Does the tester support foreign languages
Answer:	Yes, at present, our tester has built-in languages of 14 countries. If you switch languages, the text in the system interface will be changed to the corresponding language.
Question:	Can the tester measure the cable quality of network cable
Answer:	Yes. (use "network cable TDR test" software) Our tester can test the attenuation of network cable line, and can help judge the quality of camera signal transmission cable in engineering maintenance.

Product description

Note:Do not support Cable trace and Video level meter

Features:

IP & CVBS camera test ,PTZ controller

Rapid video, just by one key to detect all network cameras and auto display

In HDMI in mode, It can converter test from analog to digital with dual test window IP & HDMI in or Analog & HDMI in

RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

HDMI signal input, support 1080p display image, record and snapshot

CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable

Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters

Customers self update software, you can install apps with android version, such as Skype, wechat etc

4K video files and MKV/MP4 media files play

8GB SD card including

ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)

PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank

IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

POE voltage measurement, PING test, IP address scan, port flashing etc

Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface

Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools

7.4V/5000mAh Lithium Ion Polymer Battery, after 6-7 hours charging, working time lasts 10 hours

User Manual Download Link:

http://www.etekjoy.com/support/et-ipc-9800-series.pdf

• H.265/H.264, 4K video display via mainstream. 7 inch IPS touch screen, 1280*800 resolution.
• 5MP TVI(2560x1944P 12.5FPS) test, 4MP AHD(2560x1440P 15F/25F/30F) test, 4MP CVI(2560x1440P 25F/30F) test, 3G-SDI/HD-SDI/EX-SDI test(1080P 25/30/50/60fps) 4xzoom, video record and playback, Coaxial PTZ control and call camera OSD menu, 4K IP camera, dhcp server
• RJ45 cable TDR test, cable quality test. Rapid ONVIF, auto view video, and create testing report.
• Dual window test, IP &Analog camera test. TesterPlay, tester, android version mobile phone and PC display at the same time.
• HDMI input & output, 1080p. Quick office(excel ,word ,PPT format ) doc. UTP cable tester. Customers self update software. Built in WIFI, create WIFI hotspot. IP discovery , shortcut button, drop-down menu. DC12V 2A, DC48V PoE power output.

User questions & answers

Question:	Does this unit test hdmi cable integrity as well
Answer:	Yes you certainly can. Just make sure to leave at least 1/2 inch head-space minimum free, depending on what you are freezing. They are thick and good quality jars and lids.
Question:	Can this unit accept sdi signals? mine does not. is it hardware or software issue
Answer:	1)The peppers you could put in these jars must be sliced or diced. Whole peppers could not be placed in the jars, unless they are very little red or green jalapeno peppers. 2)These lids are not the same size of canning jars. 3) The glass jars are reusable. Hope the answers help you.
Question:	Can you install APK's to this unit to add more apps
Answer:	They do come with the lids.
Question:	Can I order a replacement battery? If so, where
Answer:	bottom of jar to top of lid is 3 1/2". width across base of jar is 2 1/2", diameter of lid is 2 5/16", surface area of each side measures 1 1/4 " x 2 1/2 "

• Support up to 8MP TVI/CVI/AHD, CVBS, 4K H.265 IP, support Dahua, Hikvision, Axis etc ONVIF camera test
• H.265/H.264, 4K video display via mainstream
• DC12V 3A, DC48V PoE power output. Rapid ONVIF, auto view video and create testing report
• 10/100/1000M Ethernet, network state and traffic display. Innovative coaxial HD focus, video signal quality test
• Wrist design, portable and easier to carry. We provide free lifetime tech-support, if any question, just email us

User questions & answers

Question:	how much does the Lithium Polymer Battery cost for a replacement
Answer:	I haven't had that happen yet, but I will think it would be quite cheap if you can do it yourself.
Question:	can you get a replacement power cable
Answer:	It's nothing special, just a 12v dc input. Have you contacted the manufacturer?
Question:	Can this accept GigE video
Answer:	Yes, this camera tester can accept GigE video.
Question:	i have one of those i broke the screen, anyone knows where i can find replacement
Answer:	Contact the manufacturer. I'm sure they're not too expensive.

Product description

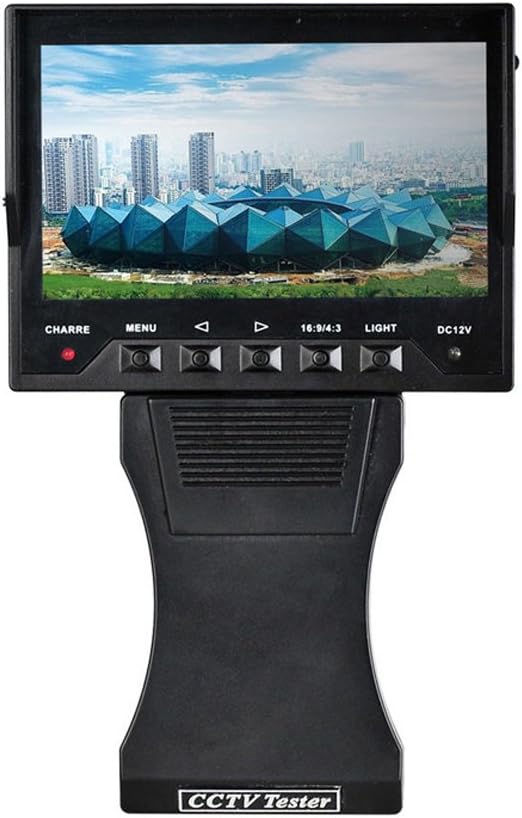

Specification:

Display: 4.3" TFT Color LCD

Number of Pixel: 480RGB(H) x 272(V)

Video In: Video In x 1 (BNC connector)

Export:

7 kinds of color bar signal output

DC power out x 1 (Support CCD camera of power source/ Max electric currency 1500mA)

System Format: AHD-CVBS-NTSC / PAL

Battery Specification: Built-in rechargeable Lithium battery: 3.7V 3000mA/h

Power Specification: External power: DC 5V 1.0A Adapter

Dimension/ Weight: 178mm (L) x 110mm (W) x 40mm (H) / 350g



Question:

Can this unit work on digital IP cameras as well as analog?

This device is for viewing a standard analog camera. You need a computer or tablet and a network to be able to view an IP Cam. This device will not show a picture from the newer cvi cameras either. A IP Cam outputs through a built in webserver which is why you need a computer and network.



Question:

Why can'tturn on the device?

1.Check battery power capability.

2.Check if correctly using the original manufactured re-charger.

3.Check if the re-charger is normal function.



Question:

Why can't the image function normally?

1.Check if the camera connects correctly with the terminal of the mainframe.

2.Check if the power is on or off.

3.Check power volume. Please recharge if the power is run out.

• Portable Product--Portable product is able to use in any place and any time. It is easy to hold and do not need complicated equipment that hinders the inspecting and repairing
• Monitor--4.3" high image resolution monitor enable to show clear image that fits any place to use
• Long Work Time--Equips with Lithium battery of high capability. Each 6hours recharge durables 5 ～8 working hours
• Humanized Design of Appearance--Hand-hold design for professionals. Easy operation without taking off gloves speeds your works. Clasp ring at bottom fits to all chains and use in all environments
• Support DC Power for Camera--It's convenient for user to check camera condition and correct direction of camera, so to make installation and repairing easier

User questions & answers

Question:	Does this unit support a rca analog video input
Answer:	Yes, it has a wide mouth and the jar will hold a lot.

• 7 inch 1280*800 resolution IPS touch screen IP & Analog & SDI & AHD & TVI & CVI tester.
• Built-in WIFI, create WIFI hotspot.10/100M Lan Port, H.265/H.264, 4K video display via mainstream.
• HDMI input and output, 1080p. Self-installing Android APPs, pls just install APPs on cameras to keep the system stable.
• TDR test. IP discovery. Rapid Onvif, auto login and view video, creating testing report.
• PoE power output. ONVIF PTZ control, video record and playback, screen snapshot 4xzoom. TDR/Digital Multimeter/Optical Power Meter/VFL.

User questions & answers

Question:	Can I test the fiber optic cable of the cameras
Answer:	Support optical fiber red light test and measure optical power.
Question:	Does this model test cat5/6 and give a report
Answer:	Yes it does.
Question:	can this device be tracked if lost
Answer:	Laughing
Question:	Can this test POE power in volts amps and watts
Answer:	Yes. To ttest external POE power supply, you can view it in the PoE voltage test app.

Product description

Tips

To avoid the battery can’t charge next time. Don’t recharge it until the battery was completely used



Product Functions

PTZ controller

Video signal testing

DC12V 1A output power

Image generator: Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

Audio testing: Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

Enhanced network cable testing: By UTP CABLE TEST port on the meter, you can test the connection of network cable.

VGA/HDMI input: Support VGA/HDMI 1.1 Compliant Digital input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode.

TVI camera test: HD TVI video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP. When TVI signal input, the tester will display HD TVI camera image.

AHD camera test: HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP. When AHD signal input, the tester will display the AHD camera image.

CVI camera test: HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP. When CVI signal input, the tester will display the CVI camera image.

LED lamp: It is useful for the engineer to install and maintain security system at night; LED On/Off pressing button, easy to operate.



Feature

Language settings: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto power off: 1-30 (mins)

Working Temperature: -10℃---+50℃

Humidity: 30%-90% Rh

Dimension: 221mm x 175mm x 91mm

Weight: 0.75kg



Packing list

1X HD coaxial tester

1X Adapter DC5V 1.5A（with USB cable)

1X International Standard 18650 2600ma battery

1X BNC cable

1X RS485 connector

1X Power output conversion cable

1X Audio cable

1X Lanyard

1X Tool bag

1X Instruction Manual

• 5.0 inches 800 x480 High-resolution view angle display, more intuitive and easy to display the camera image quality, support PAL/NTSC standard video signal。Support CVBS + AHD (5MP) + TVI (5MP) + CVI (4MP) Camera Test，4-In-1 CCTV Tester Monitor
• Developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having TVI,CVI, AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
• Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.
• PTZ controller: Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.
• DC12V 1A output power: Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available. Rechargeable: Built-in 18650 2600mA battery X 2,after charging 3-4 hour, working time lasts 11 hours.

• 5 In 1 Tester Support Up to 8MP TVI/4MP CVI/5MP AHD Cameras test, Support H.265 & H .264 Up to 4K IP Camera test, Support CVBS camera test and PTZ control,
• Rapid ONVIF, Auto log in and display image, create testing report, Support AXIS, Hikvision camera test, enter ONVIF app, input username and password to test, With IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera),IP discovery, just by one key to detect all network cameras IP address,Rapid video, just by one key to detect all network cameras and auto display
• DC12V 3A power output, PoE DC48V power output, Max power 24W, support 10/100/1000M Ethernet test, network state and traffic display, PING test, IP address scan, port flashing etc, With Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
• 4 inch touch screen, 800*480 resolutions, Wrist design, portable and easier to carry, 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts about 8 hours

User questions & answers

Question:	Will this work with Axis IP cameras
Answer:	Mine came in the cardboard box but I was told by a packaging company that I buy shipping boxers from and was told that there is a cardboard box shortage...due to all the shipping since the beginning of the pandemic. So, that maybe why they shipped in a bubble bag. If any of the jars were damaged reached out to the seller they will replace with no issues
Question:	Can these set up camera angles while installing without external power source
Answer:	Approximately 4 inches
Question:	How do i connect to ens security ip cameras
Answer:	No
Question:	Can the battery be replaced ? If so what is the cost of replacement battery
Answer:	The glass jar is pretty thick. I believe it would stand up to the heat of a candle.

• The updated new HD CCTV Test monitor with high 800*480 resolution allows displaying HD camera and other camera images in top quality.(Updated version equipped with UTC Function)
• Automatic video signal detection(AHD /TVI /CVI /CVBS).PTZ control support by RS-485.Coac and UTP cables test feature offers simple problem solving capability.
• Equipped with high capacity 3000mA Lithium battery which is sufficient for 6 hours of working time.And power output function(12V/5V 1A max)is extremely helpful when other power supply is unavailable.
• HDMI input support 720I/P,1080I/P, which will automatically switch to HDMI mode(HDMI input is optional*).VGA input will assist in configuring the recording device when there is no local screen.
• The monitor and wrist strap design is ergonomic for convenient use at any time and in any place.

User questions & answers

Question:	why is it that the power on button will not work
Answer:	These labels are intended for hand labeling. You might try running through a printer, but you would go nuts trying to format them. We have found it is very hard to provide printer ready labels as they require matching to a certain printer and format template. Sorry I can't be more helpful. Becky for Cornucopia Brands
Question:	Does this device stop charging when the battery is fully charged? I dont want to have to "babysit" it while it charges. Manual states neither way
Answer:	Recommended max height of label is 1.93 inches, the length off label can be up to 7.25 inches Becky for Cornucopia Brands
Question:	Is there an online video of how to use this? for bnc does the power come from the bnc cable? the instructions say turn vga off for bnc but no on/off
Answer:	I would only trust that answer from the manufacturers of your hair products
Question:	Does this work with hdtvi cameras
Answer:	These glass jars are made in China. Pretty much all of your cobalt glass will be made in China because the giant glass factory machines have to be completely cleaned between colors, and only really big factories deal with the cobalt. Even those factories do maybe one cobalt product run a year. Even amber, except for some very tin bottles and jars, from my research, it is virtually all made in China. Be very suspicious of sellers who claim theirs is made in the U.S. -- especially ones who deliberately put a U.S. flag emblem on their listing or even brand themselves with something like U.S. or America in the brand name. Becky for Cornucopia Brands P.S. Many jars have an emblem on the bottom that will help you research their factory provenance. And a product is required to have "made in ___" on the label or packaging. Falsifying that info or leaving it off is illegal and can be reported to Federal Trade Org or Amazon.

Product features

Product Features

• Video input:Compatible with AHD, TVI, CVI and CVBS signals of up to 2MP~5MP resolution.
• 5.0 inch 800x480 resolution (RGB). PAL/NTSC (Auto adapt).
• PTZ control:RS485 control, Baud-Rate: 1200~115200bps. Compatible with PELCO-D / P protocols.
• Camera Power Supply: Power output of DV12V/1A for temporarily powering on cameras for angle and zoom adjustment.
• Audio signal input

Ports Information

• USB Power Supply: USB2.0 interface provides 5V / 1A power output.
• Enhanced UTP cable/BNC cable test with indicatorlights. The cable test distance can reach 100-150 meters.
• VGA input:VGA support 1024*768 and 1280*1024 resolutions.
• HDMI input:HDMI support 480I / P, 576I / P, 720I / P,1080I / P . HDMI access will automatically switch to HDMI mode.
• Coaxial HD Test

Wide-Applications

• AHD tester support 5MP AHD test, 2560x1944P12.5F/ 20fps
• TVI tester support 5MP AHD test, 2560x1944P12.5F/ 20fps
• CVI tester support 4MP AHD test, 2500x1600P12.5F/ 20F/25fps
• LED emergency lighting
• Bulit-in 3.7V Lithium polymer battery 3000mAh

4 in 1 AHD + TVI +CVI+ CVBS 8MP HD Coaxial Tester Analog Video Test

• This product was designed to assist the camera installation process by helping the installation and adjust the view position and lens after the installation.It is designed to bring installer maximum convenience during the installation.

Package Contains

• 1*Test monitor &1*Wrist band
• 1*DC output cable &1*Network cable test unit
• 1*Coax cable test convertor & 1*Audio test cable
• 1*USB cable & 1*US Power adapter
• 1*User manual
• If you have any questions or any suggestions,please feel free to reach us.We will give you a immediate reply in 24 hours.

Product description

ZUEXT CE FCC Certified 4-in-1 CCTV Camera tester can work with 720P/960P/1080P Coaxial AHD Camera, TVI camera and CVI Camera, 960H/1000tvl/1200tvl traditional analog Camera from brands: HIKVISION, Q-see, Swann, ZOSI, Night Owl, Zmodo, ANNKE, Samsung, Amcrest, JOOAN, etc.



Overview:

1. Best cost effective equipment for camera installation and inspection

2. User can check the details of camera video during the process of installation

3. 12V 1A output function can be helpful when no external power supply for the camera

4. Built-in rechargeable 3.7V 2600mAh Lithium battery, each 4 hours recharge lasts 7 working hours

5. Auto identify NTSC/PAL format camera image signal

6. Network cable test

7. RS485 Interface with PTZ control

8. Through DC power out enables user to inspect; correct camera or confirm installation. It's convenient for video equipment that helps communication with clients during installation.



Specifications:

Product Type: 4.3 inch Color LCD Portable CCTV Camera Monitor Tester

Image Resolution: 1920*1080 (1080P, 2.0MP)

Video Input: 1CH BNC

Support Audio Test: input audio signal and play on the internal speaker

LCD Brightness/Contrast/Color Saturation are adjustable

PTZ Protocol: Supports more than 20 PTZ protocols (PELCO-P, PELCO-D, SAMSUNG etc.) Multi-interface and Multi-baud rate: Support RS232 ,RS485 and RS422 interface; baud rate ranging from 150 to 19200bps

PTZ address scanning, search up the ID of PTZ camera

System Format: PAL/NTSC Automatically recognize

OSD Language: English / Russian/ Deutsch/ Espanol/ Portugal/ Italian

Working Temperature: -20°C ~ 70°C

Dimension: 4.7" x 3.1" x 1.6" inch

Weight: 150g



Package:

1x Portable CCTV Camera Tester

1x Built-in 2600mAh Lithium Battery

1x 5V 1A Adapter

1x Wrist Strap

1x Micro USB Cable

1x A/V Cable

1x Power Output Cable

1x Manual

• 4.3 INCH 4 IN 1 CCTV CAMERA TESTER: ZUEXT hybrid camera tester is able to test and debug coaxial 720P/960P/1080P AHD camera / TVI camera / CVI Camera / traditional CVBS analog camera like 960H 1000tvl 1200tvl Cameras; The LCD screen video monitor with 1080P high definition can show clear image when troubleshooting a security camera system.
• LONG WORK TIME: Built in 3.7V 2600mAh Rechargeable Lithium battery, each 4 hours recharge lasts 6-7 work hours. DC 5V 1A power adapter also supplied for charging.
• PTZ CONTROL: Compatible with multiple PTZ protocols(PELCO-D / PELCO-P etc.); baud rate: 1200, 2400, 4800, 9600, 19200 (optional), zooms in/out the lens, adjusts the focus, aperture/sets/calls the preset position, PTZ continuing rotate test.
• APPLICATION: Powerful to test UPT/LAN cable, measure the connecting status, display the sequence of connection and the NO. of the LAN cable, inspect camera quality, correct faraway installation, etc.
• PORTABLE DESIGN WITH 2 YEARS FREE WARRANTY: Palm size, wrist ban wear, easy to carry with and operate.

User questions & answers

Question:	Does this camera tester come with a cable for connecting a camera to the 12v DC output power connector
Answer:	I've been using it constantly 10-12 hours per day for about 9 months and have not experienced any problems.
Question:	Is the display on the test 1920 by 1080p? i need the see every pixel for my 1920p security cameras
Answer:	As far as I can determine it is a built in battery that is charge with the charger.
Question:	Will this camera tester work for all 12v cctv cameras? Does it have a bnc connector
Answer:	I have not seen it yet.
Question:	Can this device be used to set the osd options on the cctv camera
Answer:	Yes, you can use these for candles. Just always pour your hot wax in slowly so you don't give glass thermal shock [that applies to all glass]. Becky for Cornucopia Brands

• 7 inch IPS touch screen,1920*1200 resolution,H.265 & H .264 IP,4K video display via mainstream,Note:Don't support HDMI in,cable trace and Video level meter,don't support AHD,CVI,TVI,SDI,HD coaxial camera
• Rapid ONVIF,Auto log in and display image,create testing report,AXIS,Hikvision camera test,enter ONVIF app,input username and password to test,CVBS camera test and PTZ control,IPC TEST (Non-ONVIF test),HIK test tool (Hikvision camera),DH test tool (Dahua camera)
• DC12V/3A power output,camera can be powered from DC 12Voltage,48V PoE power output,Rapid video,just by one key to detect all network cameras and auto display,Built in Wi-Fi,display image from the wireless camera,create WIFI hotspot
• CVBS loop test,the tester send and receive color bar generator signal,to check BNC cable,Enhanced Color bar generator,PAL/NTSC multi-system color bar video generator
•  Improvement cable tester,UTP cable,telephone cable etc order and connectivity test,can save testing report, Can detect the near-end,mid-end and far-end fault point of RJ45 cable connector, RJ45 cable TDR test,test cable pair status, length,attenuation,reflectivity,impedance,skew etc

User questions & answers

Question:	Could you use this to position cameras while installing saving time going up and down ladders or waiting til network is available
Answer:	Hi, unfortunately no. You cannot connect this unit to the internet. You may check other details of the unit by visiting our website pyleaudio.com. Type the model number on the search box PLTV1053 for more details. Thank you.

Product features

IPC Test Pro

integrated IP camera test, Powered camera, and using DC12V power cable to connect camera, and display the video. Also with PoE and camera test tool function in one app, view the network information, the power and voltage of PoE and DC12V, support quickly jump to ONVIF and test tool interface

TesterPlay( screen projection)

TesterPlay app,support tester,PC and mobile phone display at the same time,the android version mobile phone install"TesterPlay"app,or install VLC player in the PC,can real-time receiving screen informaiton from the tester,mobile phone and PC display at the same time(For android version mobile phone)

Auto HD

Auto recognize HD coax camera type and resolution,support snapshot,video record&playback,coaxial PTZ&call OSD menu

IP Discovery

Auto-scan the whole network segment IP,as well as auto-modify the tester's IP to the same network segment with the scanned camera's IP

CVBS Loop Test

cvbs loop test,the tester send and receive color bar generator signal,to check BNC cable

For Non-ONVIF Camera

Support more than 100 camera protocols test

You can select sub-stream code to test camera

User name and password recording function make the operation more quickly

Split screen

IP and Analog camera test at the same time,turn on the cvbs input window,you can test analog camera in any interface

RJ45 cable TDR test

Test cable pair status,length,attenuation,reflectivity,impedance,skew etc,measurement range 180M
