11 best qotom mini pcs

• [Small Computer] Please re-install operating system if necessary and install software like Microsoft office by yourself. It supports Windows 7/ 8/ 10.
• [Advanced Router Firewall] More powerful than common router. Support for a larger number of terminals. Support Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, etc. Re-install OS by yourself.
• [High Performance] DDR3L memory and mSATA SSD improve overall data throughput and transmission speed. Intel Celeron j1900 processor (quad core 2.0 GHz) onboard.
• [Wide application] Running 24/7. Apply to Small Office Home Office (SOHO) internet access, home labs, virtual offices, SMB, Branch Office, remote worker locations, etc.
• [Qotom] Small enclosure: aluminium alloy 156*128*37mm. Fanless design, quiet operation. Running 24/7. Power Consumption: 10 W.

User questions & answers

Question:	Does the processor support aes-ni
Answer:	No, CPU J1900 doesn't support it. How about Q330G4 with Core i3-4005U processor? https://www.amazon.com/dp/B071FWMPN5
Question:	Does it support Linux
Answer:	So far I tried openWRT, Debian 10, and Ubuntu 18.04 server. Debian 10 install got stuck in the same place twice; I went on the Ubuntu and have not tried again after BIOS adjustments. Ubuntu 18.04 server worked OK so far but would not shutdown or reboot properly under SW control until I went into BIOS and set XHCI from "auto" to "enabled". Now it shutsdown and reboots. Software controlled reboot is very important as this box will sit in a closet. I have only run OpenWRT from the USB drive so far but it worked but again had the shutdown/reboot problem. Have not tried after BIOS adjustment.
Question:	Does it Support pFSense
Answer:	Yes, it does. I have the latest pfSense running on it with no problems out of the box. One thing to keep in mind that WiFi card coming with this Mini PC (AzureWave AW-NU706H) is not supported by pfSense. Worse that this WiFi card is unique as it uses USB protocol while having mini-PCI connector and this is the only kind of WiFi cards this PC supports. Basically you have to either use external WiFi access point or go with a newer model they have Q310G4, which does support mini-PCI WiFi cards. In general with pfSense you want any Atheros chipset.
Question:	Anyone have experience with pfsense over a 1gb connection on this qotom? i will be running this to a managed switch with controls wan/lan
Answer:	Yep. Works perfectly

Product features

Front-Panel

• Power on/off
• Power LED
• 3 x USB 2.0 Ports
• 1 x USB 3.0 Port
• 1 x VGA Port

Back-Panel

• 1 x DV 12V input
• Power LED, HDD LED
• 4 x RJ-45 Ports - Intel I211-AT- 10/100/1000 Controller

Wi-Fi (Optional)

• 1x Half mini PCI-E slot for Wi-Fi card
• Q190G4N only support USB Signal wireless
• If buyer choose Wi-Fi, it will come with AzureWave RT5390 wireless card and dual antennas

Intel Celeron j1900 Processor onboard

• Quad Core 2.0 GHz, up to 2.42 GHz
• Cache: 2 MB L2
• TDP: 10 W
• Processor Graphics: Intel HD Graphics
• Do not support AES-NI

Internal Connectors

• 1 x Full Mini pcie slot for mSATA SSD
• 1 x Half Mini pcie slot for WIFI/Bluetooth Module
• 1 x DDR3L SO-DIMM Memory Slot. No-ECC

SIM card & 3G/ 4G module

There is a SIM card slot on motherboard, but the half mini pcie slot supports Wi-Fi card by default, if Buyer wanna install 3G/ 4G module, we can move a screw to make a full mini pcie slot to support 3G/ 4G module before shipment.

Packing

• 1 x Mini PC
• 1 x Power supply: 12V 3A adapter and US plug
• 1 x VESA bracket & screws
• 2 x Antennas (If Buyer choose Wi-Fi)
• 1 x Packing box

• Main Port: 1 HD Video + 1 COM + 2 USB 2.0 + 2 USB 3.0 + 6 LAN.
• CPU: Intel Core i5-7200U Processor (Kaby Lake, Dual Core, 3M Cache, 2.50GHz, up to 3.10GHz).
• Configuration: Barebone-S05 (NO DDR4 RAM, NO mSATA SSD, NO 2.5" SATA HDD, NO WiFi, NO OS, Fanless)
• It support PCIe signal WiFi, if you wanna use pfsense or similar OS, please install WiFi card with Atheros chipset to get better compatibility.
• Perfect fit for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, etc.

User questions & answers

Question:	Does this support ddr3l-1600 type ram? i5-7200u spec says cpu supports it, but does the motherboard
Answer:	Hey bud! It weighs 11.5 lbs
Question:	Where can I get the motherboard manual for this PC
Answer:	Hey there! Our 9'0's are out of stock. However, they should be back in stock right around 8/5/20
Question:	Which ram is compatible? also is sata cable for 2.5mm ssd included
Answer:	Hi there! Typically it's a longer board in the 9'0 range. But it also has a lot to do with your height and weight. Feel free to respond back with those and I'll provide more insight.
Question:	Where can you download drivers or bios updates
Answer:	Hi there! Yes, they came in on 8/5/20 and they sold out on 8/25/20. We should have more stock around 9/25/20. Sorry about that.

Product features

Processor System

• Audio: No
• AES-NI: Yes
• Watch Dog: Yes
• CPU TDP: 15W
• Graphics: Intel HD Graphics 620
• LAN Chipset: 6 x Intel I211-AT Gigabit LAN
• CPU: Intel Kaby Lake Gen Core i5-7200U SOC Processor, Dual Core, 3M Cache, 2.50 GHz, Up to 3.10 GHz

Front I/O

• 1 x Power on/off Button
• 1 x COM (RS-232)
• 1 x HD Video
• 2 x USB 3.0
• 2 x USB 2.0

Rear I/O

• 1 x DV 12V DC Input
• 1 x Power LED
• 1 x HDD LED
• 6 x Intel RJ-45 for Gigabit LAN

Item Dimension

L x W x H = 187 x 111 x 50 mm

VESA Mounting Dimension

Inner Dimension: 75 x 75 mm

External dimension: 100 x 100 mm

Memory

Support 1 x DDR4 SO-DIMM Socket

Non-ECC Memory

1.2V, Up to 32G

Hard Disk

Support 1 x Mini-PCIe for mSATA SSD

Support 1 x 2.5" SATA SSD/HDD

WiFi

Support 1 x Half-length Mini-PCIe for Wi-Fi Module (USB Signal by default).

If with WiFi, it contains 1 x WiFi card + 2 x Antennas.

OS

• We pre-install Unactivated Windows 7 in English for test without any Windows license.
• Support Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, CentOS, Untangle, etc.
• F11 key boot from USB Drive, Delete key enter into BIOS.

• [Small Computer] Please re-install operating system if necessary and install software like Microsoft office by yourself. It supports Windows 7/ 8/ 10
• [Advanced Router Firewall] More powerful than common router. Support for a larger number of terminals. Support Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, etc. Re-install OS by yourself.
• [High Performance] DDR3L memory and mSATA SSD improve overall data throughput and transmission speed. Intel Celeron j1900 processor (quad core 2.0 GHz) onboard.
• [Wide application] Running 24/7. Apply to Small Office Home Office (SOHO) internet access, home labs, virtual offices, SMB, Branch Office, remote worker locations, etc.
• [Qotom] Small enclosure: aluminium alloy 134*126*45 mm. Fanless design, quiet operation. Running 24/7. Power Consumption: 10 W.

User questions & answers

Question:	Does this comes with harddrive
Answer:	Mine came with a 64G drive, but it all depends on which one you select.
Question:	Is this product x86 only or is it in 64 bit as well
Answer:	Instruction Set: 64-bit
Question:	is it possible to change the power settings to turn back on after losing power
Answer:	Yes. Normally, this setting is in the BIOS, and is called, "Power Recovery" (ON).
Question:	Are there published performance numbers with various opensource solutions
Answer:	I have the 64G version. This runs an untangle firewall for me with no issues (all 4 gigabit ports used). Hardware wise it is more than I need. With that said this is a passively cooled Celeron J1900 so it is not the fastest 4 core / 4 thread CPU out there, but considering the size and features it has served me well.

Product features

Connecting monitor, keyboard & mouse

Q190G4U can work as a common desktop computer. With Intel Celeron j1900 Proceossr (Quad core 2.0 GHz) onboard and VGA port, connecting monitor, keyboard & mouse, it's a new computer.

(The order excludes monitor, keyboard & mouse and VGA cable.)

• To Build a Firewall Router

With 4x Intel Gigabit LAN ports, Qotom Mini PC Q190G4U can be configured as a firewall, LAN or WAN router, VPN appliance, gateway device, DHCP Server, DNS Server, etc.

Connectors

• Power on/off
• Power LED
• 3 x USB 2.0 Ports
• 1 x USB 3.0 Port
• 1 x VGA Port

Back-Panel

• 1 x DV 12V input
• Power LED, HDD LED
• 4 x RJ-45 Ports - Intel I211-AT- 10/100/1000 Controller
• Wi-Fi (Optional)

Mini Motherboard Q1900G4-M

• 1 x Memory slot for DDR3L SO-DIMM
• Max: 8GB
• Do not support ECC memory

Storage

• 1 x Full mini PCI-E slot for mSATA SSD
• 1 x SATA connector for 2.5" SATA SSD/ HDD

Wi-Fi

• 1x Half mini PCI-E slot for Wi-Fi card
• Q190G4U only support USB Signal wireless
• If buyer choose Wi-Fi, it will come with AzureWave RT5390 wireless card and dual antennas

• Main Port: 1 HD Video Port + 1 COM + 2 USB 2.0 + 2 USB 3.0 + 4 LAN.
• CPU: Intel Core i5-5200U SOC Processor (Broadwell, Dual Core, 3M Cache, 2.2GHz, up to 2.7GHz). Support AES-NI.
• Configuration: 8GB DDR3L RAM, 32GB mSATA SSD, WiFi, NO 2.5" SATA HDD, Fanless
• Perfect fit for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, etc.
• We pre-install Unactivated Windows 7 in English for test without any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.

User questions & answers

Question:	What is the purpose of the sim card slot on the motherboard? (not the 3g/4g module
Answer:	Hello, If you want to use 3G/4G, you will install SIM card and 3G/4G module. Thank you!
Question:	Can this run off a USB battery pack
Answer:	This unit runs on a 12 V DC power adapter. Since most USB power packs provide 5 V DC, I’m not quite sure how you could accomplish that.
Question:	Can specify the wifi 5g card that works? "half-length mini pci-e slot): only for wifi (/bluetooth) is quoted, but is it a usb or pcie slot or both
Answer:	Hello, This model doesn't support 5G module, and it supports WiFi of Mini-pcie-pcie. Thank you!
Question:	Is it possible to connect 2 ssd's for raid setup
Answer:	Hello, This model can connect 1xMSATA SSD and 1x2.5" SATA SSD/HDD at the same time. Thank you!

Product features

Processor System

• AES-NI: Yes
• Lithography: 22nm
• Power Consumption: TDP 15W
• Audio Solution: Realtek ALC662 HD Audio
• Integrated Graphics: Intel HD Graphics 5500
• LAN Chipset: 4 x Intel I211-AT Gigabit LAN
• CPU: Intel Broadwell Core i5-5200U SOC Processor, Dual Core, 3M Cache, 2.2 GHz, Up to 2.7 GHz

Front I/O

• 1 x Power on/off Button
• 1 x COM (RS-232)
• 1 x HD Video
• 2 x USB 3.0
• 2 x USB 2.0

Rear I/O

• 1 x DV 12V DC Input
• 1 x Power LED
• 1 x HDD LED
• 4 x Intel RJ-45 for Gigabit LAN
• 1 x Speak Out Connector
• 1 x Mic In Connector

Item Dimension

L x W x H = 187 x 111 x 50 mm

VESA Mounting Dimension

Inner Dimension: 100 x 100 mm

External dimension: 75 x 75 mm

Memory

Support 1 x DDR3L SO-DIMM Socket, Non-ECC Memory

(1.35V, Up to 8G, 1333/1600MHz)

Hard Disk

Support 1 x Mini-PCIe for mSATA SSD

Support 1 x 2.5" SATA SSD/HDD

WiFi

Support 1 x Half-length Mini-PCIe for Wi-Fi Module.

If with WiFi, it contains 1 x WiFi card + 2 x Antennas.

OS

• We pre-install Unactivated Windows 7 in English for test without any Windows license.
• Support Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, CentOS, Untangle, etc.
• F11 key boot from USB Drive, Delete key enter into BIOS.

Product description

Basic Information

Chipset:By CPU

Size:156 x 127 x 37mm

Power Consumption: 10W

Operating Temp.:0~50 Degrees Celsius

Non-Operating Temp.:-20~80 Degrees Celsius

Processor Graphics:Intel HD Graphics

Onboard LAN:4 x Intel I211-AT Gigabit LAN

Onboard CPU:Intel Celeron BayTrail SOC J1900 Quad Core Processor 2.0GHz,Up To 2.42GHz 2M Cache

Memory:Support DDR3L SO-DIMM 1333/1600 MHz 1.35V, 1 x Memory Slot, Up to 8GB Memory

Hard Disk:Support mSATA SSD

Wireless:150M WiFi (Only for USB Device)



Front I/O:

1 x Power on/off Button

1 x Power LED

3 x USB 2.0

1 x USB 3.0

1 x VGA

Internal Connectors:

1 x Minipcie (For mSATA SSD)

1 x Minipcie (For USB Device)

1 x DDR3L SO-DIMM Memory Slot

1 x SATA

1 x SATA Power

1 x Automatically Boot Jumper

1 x RS232 Header (Optional)

1 x SIM Card Slot (Optional)

Rear I/O:

1 x DV 12V Input

1 x Power LED

1 x HDD LED

4 x RJ-45

1 x WiFi (For USB Device)



Package Included:

1 x Mini PC

1 x Screws

1 x Power Supply

1 x VESA Mount Bracket

2 x Antennas



Please Note:

1) It only supports AP-mode.

2) Height is too thin to install 2.5" HDD, so it only can support mSATA SSD.

3) Mini-PCIE cann't support WiFi and 3G/4G module at the same time in this computer. Half-length Mini-PCIE is only for WiFi, full-length is only for 3G/4G. It is Half-length by default.



Warranty:

1) Warranty is one year from you purchase.

2) This device fits for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, IDS/IPS, etc.

• Main Port: 1 VGA + 1 USB 3.0 + 3 USB 2.0 + 4 LAN.
• CPU: Intel Celeron BayTrail SOC Processor J1900 (Quad-Core 2.0 GHz, Up to 2.42 GHz 2M Cache).
• Configuration: Barebone-S07 (150M WiFi, NO DDR3L RAM, NO mSATA SSD, NO OS, Fanless)
• WiFi is incompatible with pfSense (only support AP-mode), please reinstall other OS if necessary.
• Perfect fit for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, etc.

User questions & answers

Question:	Why does this have 4 lan (rj45) connectors
Answer:	Hello Samuel,Yes, it has 4 LAN (RJ45) Ports.Because it can be used as a router.Thank you!Catryna
Question:	Too small for 2.5" ssd, will you be providing a larger one
Answer:	Hello T. P. Powers,We have 2.5" SATA HDD, is it ok?Pls note: Q190G4N-S07 doesn't support 2.5" SSD or 2.5" HDD. Because the height is too thin to install 2.5" HDD, so it only can support msata SSD. But Q190G4N-S08 supports 2.5" SSD or 2.5" HDD.Thank you!Catryna
Question:	Can I install Windows 10 on this
Answer:	Hello, Yeah, this model supports windows 10. Thank you!
Question:	What is the max ram it will support
Answer:	Hello, It supports max ddr3l ram is 8G. Thank you!

Product description

Mirco mini pc Q190n with Intel Celeron Baytrail J1900 processor (No Screen):

Size: S01:135*128*38mm (L* H *W)

Weight: 2kg

Color: Black

Onboard CPU: Intel Celeron Baytrail J1900 processor 2G Quad Core

Memory: NO ram (4G/8G DDR3 RAM SO-DIMMs optional)

Support DDR3 1333/1600 MHz

1 x DDR3 DIMM Memory Slot

Max. Supports up to 8GB Memory

Storage: NO Hard disk

(support a msata or sata ssd)

Onboard VGA: Intel HD Graphics

LAN: RJ-45 port ( Realtek RTL8111E 10/100/1000 Controller)

Wifi and Bluetooth: Optional

802.11 b/g = 150MB



802.11 b/g/n = 300MB



Audio: Realtek ALC662 HD Audio

Power Consumption: 10W

Chipset: Intel NM70

Front-Panel Connectors

1 * Power switch button ( Power LED )

1 * HDD LED

1 * USB3.0 ports

3 * USB2.0 ports

1 * Microphone port

1 * Serial port

Back-Panel Connectors

1 x DV12V DC input

1 x VGA Port

1 x HD video Port

1 x USB 2.0 Port

1 x RJ-45 LAN Port

1 x Speaker port

Operating System: NO OS.

- Support Windows 7 | Windows 8 |Linux etc. (Nonsupport Win XP)

Packing list: Q190n mini pc, Power supply, VESA Mount Bracket( Standard size) etc.

Warranty: 1 Year

• Barebone (No Ram, No hard disk),No wifi, No Bluetooth
• Fanless Mini PC
• Intel Baytrail J1900 CPU 2g quad-core
• Support 1080P HD film

User questions & answers

Question:	Support Windows XP
Answer:	No, it does not support Windows XP. It supports Windows 7/8/10, Linux, etc.

• [CPU onboard] Intel Core i5-4200U Processor, 3M Cache, dual core 1.6 GHz, up to 2.6 GHz. Support AES-NI. TDP: 15 W.
• [Small Computer] Preload inactive Windows 10 for test. Please re-install operating system if necessary and install software like Microsoft office by yourself. It supports Windows 7/ 8/ 10, Linux, etc.
• [Advanced Router Firewall] With CPU Core i5, it's more powerful than common router. Support for a larger number of terminals. Support Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, etc. Re-install OS by yourself.
• [High Performance] DDR3L memory and mSATA SSD improve overall data throughput and transmission speed. Extension: 2.5" SATA
• [Qotom] Small enclosure: aluminium alloy 187*111*50 mm. Fanless design, quiet operation. Running 24/7.

Product features

Qotom Mini PC Q300G4 Series - Q350G4 with CPU Core i5-4200U

• CPU onboard: Intel Core i5-4200U Processor, 3M Cache, dual core 1.6 GHz, up to 2.6 GHz. Support AES-NI.
• Processor Graphics: Intel HD Graphics 4200
• TDP: 15 W
• Fan-less design, quite working
• Running 24/7
• Aluminum alloy case
• 1 x DDR3L SO-DIMM Slot (Up to 8G) * No-ECC
• 1 x Full Mini PCIe slot for mSATA SSD
• Extension: SATA connector for 2.5 inch SATA
• 1 x Half Mini PCIe slot (for WIFI/Bluetooth Module)
• Support SIM card and 3G/4G Module
• Operating temperature: 0~50 degrees Celsius
• Preload inactive Windows 10 for test. Supports Windows, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc.

Mini motherboard Q4200UG4-P

• 1 x Full Mini pcie slot (for mSATA SSD)
• 1 x SATA connector (for 2.5 inch SATA)
• 1 x Half Mini pcie slot (for WIFI card by default)
• 1 x DDR3 SO-DIMM Memory Slot (MAX 8G. 1.35V. No-ECC)
• 1 x SIM card slot

Mini PCIe slot for WiFi/ 4G Module

The half Mini PCIe slot support WiFi card by default.

• If you choose WiFi, Atheros chipset by default.

If you wanna install 3G/ 4G module, please move screw to make full mini PCIe slot to support it.

Product description

QOTOM-Q430P-S08 Series MINI PC Datasheet:

Dimension:156*128*48mm(L*H*W)

Packaging dimension:270*230*90mm

Weight:2Kg

Power Consumption:15W

Onboard CPU:Intel Core i3-4005U Processor 3M Cache, 1.70 GHz ,4th Generation Haswell

Memory:Support DDR3L 1333/1600 MHz,1.35V ,1 x DDR3 DIMM Memory Slot ,Max. Supports up to 8GB Memory

Hard Disk:support MSATA SSD and 2.5 inch SATA HDD

Onboard VGA:Intel HD4400 Graphics

Onboard LAN:2 * Realtek 8111E 10/100/1000 Controller

Audio Solution:Realtek ALC662 6-Channel HD Audio

Front-Panel Connectors:

power on/off button

Power LED

2 x USB 2.0 Ports

2 x USB 3.0 Ports

1 x COM Port



Internal Connectors:

1 x Minipcie port (for mSATA SSD)

1 x Minipcie port (for WIFI/BLUETOOTH)

1 x Minipcie port (for 3G/4G Module)

1 x DDR3 DIMM Memory Slot

1 x SIM card Slot

1 x SATA Port

1 x SATA power header

1 x Front panel header

1 x Front panel audio header

1 x Front panel USB header

1 x Automatically boot jumper

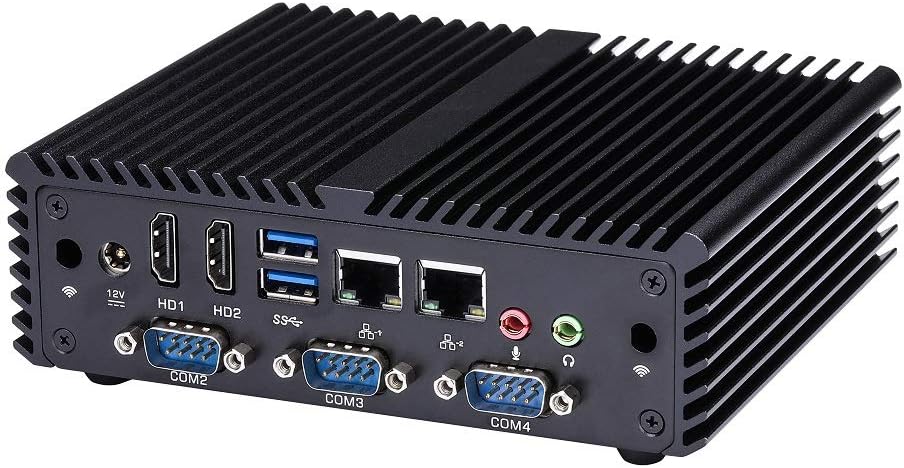

Back-Panel Connectors:

1 xDV 12V DC input

2 x HD Video Connectors

2 x RJ-45 Ports

2 x USB 3.0 Ports

1 x Speak Out Connector

1 x Mic In Connector

3 x COM port

Operating System:Support Windows 7 / Windows 8 / 10 / Linux/Pfsense .etc

It can act as a host, applying to home, office, library, hospital, restaurant, bank and almost of where need a computer.

Warranty:

1.For all the mini pcs you bought from us, we provide a full one-year warranty.

2.We assure you that all the mini pc and accessories have been tested before delivery.

3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.

• Intel Core i3-4005U Processor 3M Cache, 1.70 GHz ,4th Generation Haswell
• Configuration: 2G ram 16G Msata SSD 300M WIFI
• 2 HD Display,4 COM, 2 Lan , 2 USB2.0, 4 USB3.0
• It support Windows 7 / Windows 8 / Windows 10 / Linux OS. We pre-install Unactivated Windows 7 for test and we do not provide any Windows license. If you prefer to other OS, please contact us.
• computer TV/office/business/room/media/POS machine /Digital Signage to use

• CPU: Intel Core i5-5200U Processor (3M Cache, dual core 2.2 GHz, up to 2.7 GHz). Support AES-NI.
• 4 x Intel I211-AT- 10/100/1000 Controller
• Aluminum alloy Shell. Small, compact and cheap. Fanless design. Running 24/7.
• Perfect fit for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, etc.
• Preload inactive Windows 10 for test. It supports Windows, Linux, OPNsense, Sophos, VyOS, Linux iptables, Untangle, etc. Please reinstall OS by yourself.

User questions & answers

Question:	Any issue with hdmi? mine appears to be doa. zero output on verified cable and monitor
Answer:	Mine works just fine
Question:	Are the heatsink fins situated/spaced to where I can attach a couble of usb powered 80mm (or whatever size) cooling fans
Answer:	A fan could be mounted with self tapping screws to the top of the sink
Question:	Is the included 64 gb ssd m.2 or sata? the included 8 gb ram is it 1 or 2 so-dimms
Answer:	64GB MSATA SSD, 8GB RAM 1 SO-DIMM
Question:	Where can i purchase a replacement cmos battery for this device? mine is bad and does not hold bios changes
Answer:	Should be a standard coin cell with number stamped on the battery

Product features

Qotom Mini PC Q300G4 Series - Q355G4 with CPU Core i5-5200U

Build Advanced Router Firewall

With 4x Intel Gigabit LAN ports, it can be configured as a firewall, LAN or WAN router, VPN appliance, gateway device, DHCP Server, DNS Server, etc.

• Intel LAN is more stable than other brand LAN.

Build a Personal Computer

Connecting monitor, keyboard & mouse, it can work as a common desktop computer. It's a good solution due to its wide use and cost-effectiveness.

• Max Resolution: 2560x1600@60Hz
• Come with VESA bracket, it can be hung on the back of monitor to save space.
• It supports Windows 7/8/10, Linux, etc.

* Mini PC Q355G4 have removed Speak Out & Mic In ports since December, 2020.

Fanless Mini Motherboard

• 1 x Full Mini pcie slot (for mSATA SSD)
• 1 x SATA connector (for 2.5 inch SATA)
• 1 x Half Mini pcie slot (for WIFI card by default)
• 1 x DDR3 SO-DIMM Memory Slot (MAX 8G. 1.35V. No-ECC)
• 1 x SIM card slot

* Speak Out & Mic In ports have been removed since December, 2020.

Product description

Qotom-Q190S-S01 Spec:

Size:135*128*38mm

Weight:0.62kg

Color:Black

Onboard CPU:Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz)



Memory:Support DDR3L 1333/1600 MHz 1.35V ,

1 x DDR3L DIMM Memory Slot,Max.up to 8GB Memory

Hard Disk:1*Mini PCIe slot,supports mSATA SSD

Onboard VGA:Intel HD Graphics

LAN:2*RJ45 port Realtek RTL8111E 10/100/1000 Controller

Audio:Realtek ALC662 HD Audio

Power Consumption:10W,max 23W,support 7 days x 24 hours .

Chipset: Intel NM70



Front Panel Connectors

1* Power switch button (Power LED)

1* HDD LED

3* USB2.0 ports

1* USB3.0 ports

1* Microphone port

1* Serial port



Back Panel Connectors

1* DC 12V DC input

1* HD Video port

1* VGA port

2* RJ45 port

1* Speaker port

WIFI and Bluetooth :A half Mini PCIe slot support Wi-Fi and Bluetooth,If the above configuration includes of WIFI, the package box will include 2 pcs antennas.

Please Note: It support Windows 7 / Windows 8 / Windows 10 / Linux OS. We pre-install Unactivated Windows 7 for test and we do not provide any Windows license. If you prefer to other OS, please contact us.

It can act as a host, a pfSense Firewall / Router,applying to home, office, library, hospital, restaurant, bank and almost of where need a computer.

Warranty:

1.For all the mini pcs you bought from us, we provide a full one-year warranty.

2.We assure you that all the mini pc and accessories have been tested before delivery, and we can provide Windows drivers and motherboard User Manual download link.

3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.

• CPU:Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz),Quad Core,Low Power 10W,Fanless
• Configuration:8G DDR3 Ram 64G Msata SSD NO WIFI
• Rich IO£º1*HD Video Port, 1*VGA, 2*LAN,1* serial port, 3*USB2.0,1*USB3.0
• It will come with unlicensed Windows 7 for test and we don't provide any Windows license. You can reinstall OS by yourself. Delete into BIOS. F11 boot from USB stick
• Computer TV/office/business/room/media/hotel/bank/pos to use

User questions & answers

Question:	Is the board 64bit? Looking at using it for a Sophos UTM
Answer:	Yes ,the board is 64bit, it can support the Sophos UTM .
Question:	Can anyone show me what the power supply looks like
Answer:	12V 3A power adapter, input :100-240V ~50/60Hz 2.0A , output:12V-3A

• CPU: Intel Celeron Processor 2955U (2M Cache, dual core 1.40 GHz)
• 2x HDMI ports, support dual display
• Aluminum alloy Shell. Fanless No Noise
• As personal computer, excellent POS terminal, mini server, etc.
• Preload inactive Windows 10 for test. Support Windows 7/ 8/ 10, Linux, pfsense, etc.

Product features

Qotom-Q401P

With Intel Celeron 2955U Proceossr (Dual core 1.4 GHz) onboard and 2x HD video port, connecting monitor, keyboard & mouse, Q401P is a new PC or mini Server. This portable computer support Windows 7/ 8/ 10, Linux OS and most of common software.

• Your POS Terminal

• Light structure, save space, easy to move
• Simple connections. Easy maintenance
• SATA connector for 2.5" SATA to be used as a backup
• Option: IEEE 802.11ac Wi-Fi with Bluetooth 4.0
• Wide application. Good compatibility
• Support SIM card & 4G Module

Front-Panel

• 1 x Power switch button
• 1 x HDD LED
• 2 x USB2.0 ports
• 2 x USB3.0 ports
• 1 x Serial (RS232) port

Back-Panel

• 1 x 12V DC input
• 2 x HD video port, 2 x USB 3.0 Ports
• 2 x RJ-45 ports - Realtek RTL8111E 10/100/1000 Controller
• 3 x Serial (RS232) ports
• 1 x Speak Out & Mic In Connector

With Wi-Fi

• 1x Half mini PCI-E slot for Wi-Fi card
• If buyer choose Wi-Fi, it will come with AzureWave AW-CB161H wireless card (Chipset RTL8821AE) inside and dual antennas in box.
• AzureWave AW-CB161H: IEEE 802.11ac Wi-Fi with Bluetooth 4.0 / 3.0 Combo Half Mini Card

Operating System

• Mini PC Q401P come with inactive Windows 10 for test, seller won't provide any Windows license. please re-install OS by yourself.
• It supports Windows 7/ 8/ 10, Linux, pfSense, Sophos, VyOS, Linux iptables, CentOS, Untangle, etc.
• F11 key boot from USB Drive. Delete key enter BIOS.

Mini motherboard

• 2M Cache, dual core 1.4 GHz
• TDP: 15 W
• Processor Graphics: Intel HD Graphics
