13 best fingerprint scanner for arduino

Product description

NOTE: Please use IDE 1.6.6



Features:

Make adding fingerprint detection and verification super simple.

Typically used in safes-there's a high powered DSP chip that does the image rendering, calculation, feature-finding and searching.

Connect to any microcontroller or system with TTL serial, and send packets of data to take photos, detect prints, hash and search.

You can also enroll new fingers directly - up to 162 finger prints can be stored in the onboard FLASH memory.

There's a red LED in the lens that lights up during a photo so you know it is working.



Specifications:

Supply voltage: DC 3.8-7.0V

Operating Current: <65mA

Peak current: <95mA

Fingerprint image time: <1.0 seconds

Window area: 14.5*19.4 mm

Signature File: 256 bytes

Template files: 512 bytes

Storage capacity: 1000



Attention: There are basically two requirements for using the optical fingerprint sensor.

First is you'll need to enroll fingerprints - that means assigning ID #'s to each print so you can query them later. Once you've enrolled all your prints, you can easily 'search' the sensor, asking it to identify which ID (if any) is currently being photographed.

You can enroll by using the windows software (easiest and neat because it shows you the photograph of the print) or with the sketch (good for when you don't have a windows machine handy or for on-the-road enrolling)



Connection wit DIYmall R3 board

pin #2 is IN from sensor (GREEN wire)

pin #3 is OUT from (WHITE wire)

5V connect sensor (Red wire)

GND connect sensor (Black wire)

Connection with DIYmall 2560 board:

pin #10 is IN (GREEN wire)

pin #11 is OUT (WHITE wire)

5V connect sensor (Red wire)

GND connect sensor (Black wire)



Package includes:

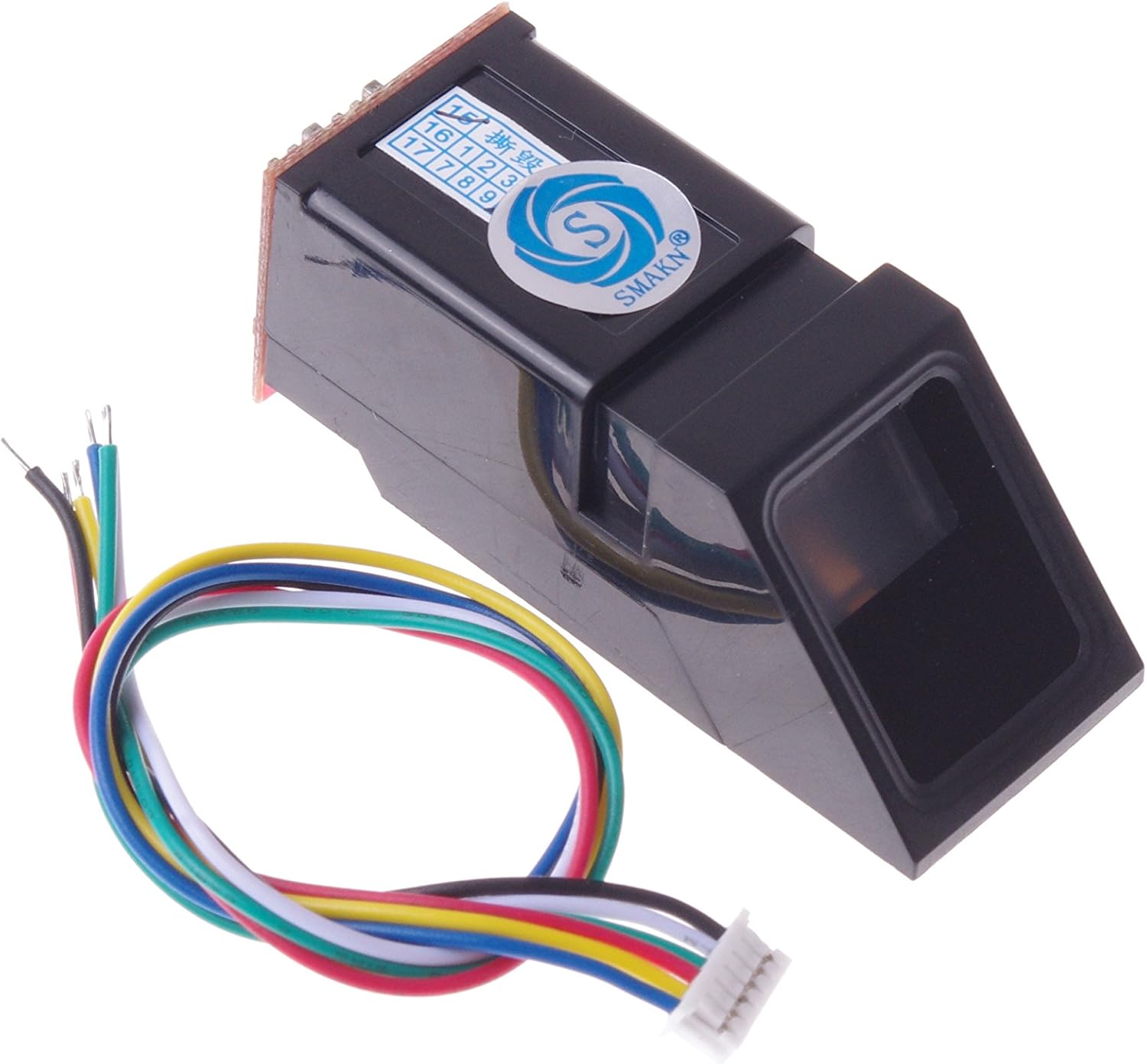

1 x Fingerprint Recognition Module

• Document link: https://tinyurl.com/Fringerprint-Sensor
• Adapter FTDI FT232 Cable link:https://www.amazon.com/dp/B014GZTCC6
• Connection with diymall R3 board:pin #2 is IN (GREEN wire),pin #3 is OUT (WHITE wire),5V connect sensor (Red wire),GND connect sensor (Black wire) Connection with diymall 2560 board:pin #10 is IN (GREEN wire),pin #11 is OUT (WHITE wire),5V connect sensor (Red wire),GND connect sensor (Black wire)
• Use:Typically used in safe -there's a high powered DSP chip that does the image rendering, calculation, feature-finding and searching
• What you will get is: 1 x Optical Fingerprint Reader Sensor Module. If any question, pls contact us by email.You can find " Sold by DIYmall" under Buy Now button, click "DIYmall" and you will get to a new page, click "Ask a question".

User questions & answers

Question:	Can i use this with usb to ttl adapter, usb to serial converter and attach to raspberry pi
Answer:	Yes, you can
Question:	am i able to connecet this sensor to an buzzer and hold the history who put the finger
Answer:	This Can't connect directly with buzzer, need MCU.If you want to keep the record of the input fingerprint, you need to use other storage devices.
Question:	Does this model support pins 1&2 touch power up
Answer:	Yes, it supoort. pin 1 Touch induction power input（cable color: blue） 5V , pin 2 Touch Induction signal output（cable color: yellow）
Question:	could you just use this like a switch to open something, like a secret drawer
Answer:	Yes. First program the fingerprint into the device that you want to use as a key to the drawer. Then, program any Arduino device to throw a relay to unlatch the drawer or rotate a stepper motor for the same purpose. I'm sure that there are programs out there already that you could copy for free either on the Arduino playground or on Instructables.

• The product documentation link cannot be displayed. If you need technical documentation, please click “Geekstory”(you can find "Sold by Geekstory" under Buy Now button), in the new page, click “Ask a question” to email us
• It can work with any microcontroller which with serial port: such as compatible with arduino, 51, avr, stm32, pic, arm, msp430
• This module can be used for fingerprint collection, fingerprint registration, fingerprint comparison and fingerprint search
• You can enroll new fingers directly - up to 240 finger prints can be stored.
• The sensor is an ideal device for door locks, safes, guns, financial and other security areas

User questions & answers

Question:	Does this scanner work with the arduino pro micro and/or the arduino nano or just the arduino uno R3 thats in the description
Answer:	It can work with any microcontroller which with serial port:such as Arduino,51,avr,stm32,pic,arm,msp430
Question:	Does the led constantly flash
Answer:	No, the led only turn on when you put fingerprint on the scan area after uploading code
Question:	Does this work with the adafruit library
Answer:	Yes
Question:	Can anyone assist in locating RPi2b code that i can use with this module
Answer:	Please Check the product details page, the first of the five characteristics has been updated.Please refer to the document link.Any question please feel free to contact.

Product features

Applications:

Fingerprint door locks, safes, guns, financial and other security areas;

Access control systems, industrial computers, POS machines, driving training, attendance and other areas of identity;

Private clubs, management software, licensing and other management areas;

Medicare recipients, pensioners receive, fingerprint payment and other financial areas.

Functions

1. Fingerprint collection

2. Fingerprint registration

3. Fingerprint comparison

4. Fingerprint search

Fingerprint sensor 2560 connection

Fingerprint Module works with 2560 Connection:

pin #10 is IN from sensor (GREEN wire)

pin #11 is OUT from sensor (WHITE wire)

5V connect sensor (Red wire)

GND connect sensor (Black wire)

Fingerprint sensor R3 connection

Fingerprint Module works with R3 Connection:

pin #2 is IN from sensor (GREEN wire)

pin #3 is OUT from sensor (WHITE wire)

5V connect sensor (Red wire)

GND connect sensor (Black wire)

Fingerprint sensor

It can work with any microcontroller which with serial port: such as compatible with arduino, 51, avr, stm32, pic, arm, msp430

Product description

WINGONEER trademark Reg.NO:4747611



WINGONEER Green Light Optical Fingerprint Reader Sensor Module for Arduino Mega2560 UNO R3



Description:

The JM-101 fingerprint module is an integrated fingerprint processing module that integrates the optical path and fingerprint processing part. It has the characteristics of small size, low power consumption and simple interface. It has high reliability, fast recognition speed, good wet and dry finger adaptability, and fingerprint search. high speed.



Specifications:

Supply voltage: DC 3.3V

Supply current: Operating current: <60mA

Peak current: <60mA

Fingerprint image entry time: <1.0 seconds

Window area: 15.3╳ 18.2 mm

Resolution: 500dpi



Note:

1, fingerprint characteristics

The feature extracted by the fingerprint algorithm from the acquired fingerprint image represents the information of the fingerprint. Fingerprint storage, comparison and search are all done by manipulating fingerprint features.

2. Fingerprint processing consists of two processes: fingerprint login process and fingerprint matching process [where fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N)].



When the fingerprint is matched, the fingerprint image is entered and the fingerprint image is verified and processed, and then matched with the fingerprint template in the module. If the template is matched with a template specified in the module, it is called a fingerprint comparison method, that is, 1:1. Mode; if matching with multiple templates, called fingerprint search mode, ie 1:N mode), the module gives the matching result (pass or fail).



Package includes:

1 x Fingerprint Recognition Module

• The JM-101 fingerprint module is an integrated fingerprint processing module that integrates the optical path and fingerprint processing part.
• It has the characteristics of small size, low power consumption and simple interface
• It has high reliability, fast recognition speed, good wet and dry finger adaptability, and fingerprint search. high speed.
• JM-101 module communication interface is USB and UART communication interface.
• Dimensions (23.3*20.3*48.1)mm

Product description

Product Parameters: Resolution: 500dpi Supply current: <60mA Supply voltage: 3.3V Fingerprint image entry time: <1.0 seconds Peak current: <60mA Window area: 15.3x18.2MM Communication Interface: USB/UART How the Module Works: 1. Fingerprint features The fingerprint algorithm extracts features from the acquired fingerprint image and represents the fingerprint information. The storage, comparison and search of fingerprints are all done by operating fingerprint features. 2. Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (in which fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways). When the fingerprint is registered, two fingerprints are entered for each fingerprint, and the input image is processed twice. The synthesis module is stored in the module. When the fingerprint is matched, the fingerprint sensor is used to input the fingerprint image to be verified and processed, and then it is compared with the fingerprint module in the module (if it is matched with a module specified in the module, it is called fingerprint comparison mode, ie, 1:1 mode. If matching with multiple modules is called fingerprint search, ie 1:N mode, the module gives the matching result (pass or fail).

Product description

DFRobot Capacitive Fingerprint Scanner/Sensor for Arduino



Introduction

This capacitive fingerprint sensor supports fingerprint capture, image processing, fingerprint storage, fingerprint comparison, etc. It supports 360 degree arbitrary angle recognition and deep self-learning function, high performance and low power consumption.



Features

360 degree fingerprint entry and matching

Self-learning function

CNC metal ring, plus aperture



Applications

Fingerprint door-lock

Drawer Lock

Identity Recognition

Authorization



Specification

Operating Voltage: 3.3V

Operating Current: <60mA

Communication Method: UART

Storage Capacity: 80 fingerprints

1:1 verification time: 300~400ms

Pixel Resolution: 508dpi

Number of Pixels: 160x160

Fingerprint Detection Area: 8.0mm x 8.0mm

Working Environment: ‐40‐60℃/< RH 90%

Dimension: diameter 21mm/height 5mm



Shipping List

Capacitive Fingerprint Scanner/Sensor x1

PH1.0 6P Cable x1

• This capacitive fingerprint sensor supports fingerprint capture, image processing, fingerprint storage, fingerprint comparison, and so on.
• Taking ID809 high-performance processor and semiconductor fingerprint sensor as the core, the sensor adopts built-in IDfinger6.0 algorithm, which can complete all fingerprint identification work independently.
• The product supports UART communication. When working with the Arduino library, it can easily realize functions like fingerprint registration, fingerprint deletion, etc. Also, we provide upper computer software that helps users to operate this sensor.
• This fingerprint sensor comes with round breathing LEDs and has a simple structure, small size, and delicate appearance. The sensor offers fast recognition speed and high security.

Product description

Item Description



Supply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying

Supply Current: Current: <120mA

Peak current: <140mA

Fingerprint image time: <1.0 seconds

Window size: 14 ╳ 18 mm

Matching mode: Match mode (1:1)

Search mode (1: N)

Signature File: 256 bytes

Template files: 512 bytes

Storage capacity: 200 max

Safety level: five (from low to high: 1,2,3,4,5)

False Accept Rate (FAR): <0.001% (security level 3)

False Reject Rate (FRR): <1.0% (security level 3)

Search time: <1.0 seconds (1:500, the mean)

PC Interface: UART (TTL logic level) or USB2.0 / USB1.1

Communication baud rate (UART): (9600 ╳ N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)

Working environment:

Temperature: -20 ° - +50 °

Relative Humidity: 40% RH-85% RH (non-condensing)

Storage environment:

Temperature: -40 ° - +85 °

Relative humidity: <85% H (non-condensing)

Dimensions (L ╳ W ╳ H):

Split: Fingerprint sensor: 56 ╳ 20 ╳ 21.5mm

-One: 56 ╳ 20 ╳ 21.5mm



Hardware connection:



Module via a serial communication interface, directly with 3.3V or 5V power microcontroller communication: Module data transmission feet (2

Foot TD) connected to the data bit machine receiving end (RXD), data receiver module feet (3 feet RD) connected to the data sender bit machine (TXD).

For the RS-232 level (for example: PC machine) for PC communication, increase the level conversion between the module and the host computer

Circuitry (e.g.: MAX232 circuit)



Package includes:



1PCS Optical Fingerprint reader Sensor Module sensors All-in-one For Arduino Lock

• 100% Brand new and High quality.
• 85% conventional orders will be delivered within 7-18days.Some remote countries will take longer.We provide DHL expedited service. The time limit is 3-7 days. (Excluding preparation time.) If the order amount is more than 150, we will use the DHL service free of charge.
• We offer tens of thousands of electronic accessories and modules. You just need to search for keywords in my store.
• If the packages not be delivered on time or the products may not be satisfactory. You just need to send a refund request, we will full refund for you without asking.
• We make every effort to provide customers with satisfactory service.

Product description

Specification:

Resolution: 500dpi

Supply current: <60mA

Supply voltage: 3.3V

Fingerprint image entry time: <1.0 seconds

Peak current: <60mA

Window area: 15.3x18.2mm

Communication Interface: USB/UART

Baud rate: 57600bps

Storage capacity: 0-200 pieces

How the Module Works:

1. Fingerprint features

The fingerprint algorithm extracts features from the acquired fingerprint image and represents the fingerprint information. The storage, comparison and search of fingerprints are all done by operating fingerprint features.

2. Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (in which fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways).

When the fingerprint is registered, two fingerprints are entered for each fingerprint, and the input image is processed twice. The synthesis module is stored in the module.

When the fingerprint is matched, the fingerprint sensor is used to input the fingerprint image to be verified and processed, and then it is compared with the fingerprint module in the module (if it is matched with a module specified in the module, it is called fingerprint comparison mode, ie, 1:1 mode. If matching with multiple modules is called fingerprint search, ie 1:N mode, the module gives the matching result (pass or fail).

Package Included:

1 x fingerprint module

1 x Connection cable

• Optical Fingerprint Reader Sensor Scanner Module Optical Fingerprint Module Door Lock Access Control for Arduino
• Resolution: 500dpi
• Supply current: <60mA
• Fingerprint image entry time: <1.0 seconds

Product description

*Supply voltage: 3.6 - 6.0VDC/Direct supply 3.3V.

*Operating current: ＜120mA.

*Peak current: ＜140mA .

*Fingerprint imaging time: <1.0 seconds.

*Window area: 14mm x 18mm.

*Signature file: 256 bytes.

*Template file: 512 bytes.

*Storage capacity: 1000 templates.

*False Acceptance Rate: <0.001% (Security level 3).

*False Reject Rate: <1.0% (Security level 3).

*Interface: UART(TTL logic level).

*Baud rate: 9600, 19200, 28800, 38400, 57600 (default is 57600).

*Working temperature rating: -20℃ to +50℃.

*Working humidity: 40%-85% RH(no condensing).

*Full Dimensions: 56 x 20 x 21.5mm.

Areas of application: widely used fingerprint module, suitable for everything from high-end to low-end fingerprint identification system. Such as: *Fingerprint door lock, safe, gun boxes, such as financial security.

*Entrance guard system, industrial control, POS machine, driving training, attendance, and other areas of the identity.

*Private clubs, management software, licensing, and other areas of the management.



Feedback: We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help. Our aim is to provide Top Level Customer Service, so we will try our best to solve any problem.Thank you very much!

• Supply voltage: 3.6 - 6.0VDC/Direct supply 3.3V.
• Operating current: ＜120mA.
• Peak current: ＜140mA .
• Fingerprint imaging time: <1.0 seconds.
• Window area: 14mm x 18mm.

Product description

Theproductconsistsofopticalfingerprintsensor,high-speedDSPprocessor,high-performancefingerprintcomparisonalgorithm,large-capacityFLASHchipandotherhardwareandsoftware.Thefingerprintmodulehasstableperformance,perfectfunctions,andhasmultiplefunctionssuchasfingerprintcollection,fingerprintregistration,fingerprintcomparison,andfingerprintsearch.



Usageisverysimple:aslongastheserialportofthemicrocontroller,embeddedcanoperatethismodule,MSP430,51,AVR,PIC,STM32,ARM,FPGA,ForArduinocontrollercanoperatethismodule.Thismoduleiscontrolledbytheserialport,youcanalsousetheserialportofthecomputertocontrolthismodule.



Applicationareas:



Thefingerprintmoduleiswidelyusedandissuitableforallfingerprintrecognitionsystemsfromhighendtolowend.



suchas:

◆Fingerprintdoorlocks,safes,boxes,financeandothersecurityareas;

◆identitysystemsuchasaccesscontrolsystem,industrialcomputer,POSmachine,drivingtraining,attendanceandsoon;

◆Managementareassuchasprivateclubs,managementsoftware,andlicensing;

◆Financialinsurance,medicalcare,pensionpayment,andotherfinancialfields.



Specifications:



◆Powersupplyvoltage:DC3.8to7.0V

◆Backlightcolor:red

◆Lightingmode:longlight/flashing

◆Powersupplycurrent:workingcurrent:<60mA

Peakcurrent:<85mA

◆Fingerprintimageentrytime:<0.5seconds

◆Windowarea:15×17mm

◆Matchingmethod:comparisonmethod(1:1)

Searchmethod(1:N)

◆Featurefile:384bytes

◆Templatefile:786bytes

◆Storagecapacity:240pieces

◆Securitylevel:3(lowtohigh:1,2,3,4,5)

◆Fakerate(FAR):<0.001%(whenthesecuritylevelis3)

◆Rejectionrate(FRR):<1.0%(whensecuritylevelis3)

◆Searchtime:<220milliseconds(1:240hours,mean)

◆Hostcomputerinterface:UART(TTLlogiclevel)

◆Communicationbaudrate(UART):(9600×N)bpswhereN=1-12(defaultvalueN=6,ie57600bps)

◆Workingenvironment:Temperature:-30°Cto+70°C

Relativehumidity:40%RHto85%RH(nocondensation)

◆Storageenvironment:Temperature:-40°Cto+85°

• The item is good quality
• we will test the product Before shipping.Estimated Delivery Time: 6-24 days(trackable)----- We provide Expedited Shipping service : 2-7 days.(excluding handling time).If the order amount above US $120, we will use Expedited Shipping service for free.
• We are a professional distributor of electronic components. We also sell other kinds of products. just search the model number in our store.
• We make every effort to provide customers with satisfactory service.any question,please feel free to contact me.

Product description

Item

Descriptions:



Supply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying

Supply Current: Current: <120mA

Peak current: <140mA

Fingerprint image time: <1.0 seconds

Window size: 14 ╳ 18 mm

Matching mode: Match mode (1:1)

Search mode (1: N)

Signature File: 256 bytes

Template files: 512 bytes

Storage capacity: 200

Safety level: five (from low to high: 1,2,3,4,5)

False Accept Rate (FAR): <0.001% (security level 3)

False Reject Rate (FRR): <1.0% (security level 3)

Search time: <1.0 seconds (1:500, the mean)

PC Interface: UART (TTL logic level) or USB2.0 / USB1.1

Communication baud rate (UART): (9600 ╳ N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)

Working environment:

Temperature: -20 ° - +50 °

Relative Humidity: 40% RH-85% RH (non-condensing)

Storage environment:

Temperature: -40 ° - +85 °

Relative humidity: <85% H (non-condensing)

Dimensions (L ╳ W ╳ H):

Split: Fingerprint sensor: 56 ╳ 20 ╳ 21.5mm

-One: 56 ╳ 20 ╳ 21.5mm



Hardware connection:



Module via a serial communication interface, directly with 3.3V or 5V power microcontroller communication: Module data transmission feet (2

Foot TD) connected to the data bit machine receiving end (RXD), data receiver module feet (3 feet RD) connected to the data sender bit machine (TXD).

For the RS-232 level (for example: PC machine) for PC communication, increase the level conversion between the module and the host computer

Circuitry (e.g.: MAX232 circuit)





Package Included:



1 x Optical Fingerprint Reader Sensor Module

• FPM10A Optical Fingerprint Reader Sensor Module Door Lock Fingerprint Scanner Detector identification UART TTL USB for Arduino
• Developed country Estimated Delivery Time: 7-18 days by Special line. 10-30 days for other country..We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.

Product description

Fingerprint scanners are awesome. Why use a key when you have one right at the tip of your finger? Unfortunately, they’re usually unreliable or difficult to implement. Well not anymore! We’ve found this great fingerprint module from ADH-Tech that communicates over TTL Serial so you can easily embed it into your next project.

The module itself does all of the heavy lifting behind reading and identifying the fingerprints with an on-board optical sensor and 32-bit CPU. All you need to do is send it simple commands. To get started, just register each fingerprint that you want to store by sending the corresponding command and pressing your finger against the reader three times. The fingerprint scanner can store different fingerprints and the database of prints can even be downloaded from the unit and distributed to other modules. As well as the fingerprint “template,” the analyzed version of the print, you can also retrieve the image of a fingerprint and even pull raw images from the optical sensor!

This is the more economical version of the GT-511 which has a decreased memory capacity (compared to the GT-511C3). The module can only store up to 20 different fingerprints but is capable of 360° fingerprint recognition and download and upload templates using serial interface. If you are on a budget and need only a small number of fingerprints stored, this is the perfect option for you!

The module is small and easy to mount using two mounting tabs on the side of the sensor. The on-board JST-SH connector has four signals: Vcc, GND, Tx, Rx. A compatible JST-SH pigtail is included. Demo software for PC is available in the documents below, simply connect the module to your computer using an FTDI Breakout and start the software to read fingerprints!

Dimensions: 37 x 17 x 9.5 mm

Attachment cable included

PINOUT: from LEFT to RIGHT = TX (3.3V level - black wire), RX (3.3V level), GND, VCC (3.3V to 6V)

• High-Speed, High-Accuracy Fingerprint Identification using the SmackFinger 3.0 Algorithm
• Download Fingerprint Images from the Device
• Read and Write Fingerprint Templates and Databases
• Simple UART protocol (Default 9600 baud)
• Capable of 1:1 Verification and 1:N Identification, 360° Fingerprint Recognition

User questions & answers

Question:	Can this work a lock by itself or does it need to be used with some sort of controller? Can this run off of a 9v battery
Answer:	There is 1 keychain
Question:	Is this product Arduino compatible? also how many fingerprints does it hold
Answer:	I’m not sure what the actual measurement was but it fit perfectly on my bosses key chain, not to big maybe a little bigger than a key
Question:	at the hardware level, you need to use uart tx and rx signals at ttl (5v) level" what does it mean for the raspberry pi and how do we do so
Answer:	It does come in a gift box... not sure about customization
Question:	Would this work an a raspberry pi
Answer:	This was a gift for my stepmother, who procrastinated on telling me anything she wanted for Christmas, so I found this stepmother necklace and she loved it. I really appreciate the pretty wrapping, especially since there wasn't time to send it to me to wrap and then ship it to her. She said the necklace is beautiful!

Product description

Fingerprint scanners are awesome! Why use a key when you have one right at the tip of your finger? Unfortunately, they’re often unreliable or difficult to implement. Well not anymore! This great GT-521F32 fingerprint module from ADH-Tech communicates over TTL Serial so you can easily embed it into your next project. The module itself does all of the heavy lifting behind reading and identifying the fingerprints with an onboard optical sensor and 32-bit ARM Cortex M3 processor.

To get started, just register each fingerprint that you want to store by sending the corresponding command and pressing your finger against the reader three times. The fingerprint scanner can store different fingerprints, and the database of prints can even be downloaded from the unit and distributed to other modules. In addition to the fingerprint “template,” the analyzed version of the print, you can retrieve the image of a fingerprint and even pull raw images from the optical sensor!

This module is the economical version of the GT-521F52 and can store up to 200 different fingerprints. It is capable of 360° fingerprint recognition and download/upload templates using serial interface. Additionally, the GT-521Fxx series features a resolution of 450dpi, with a false acceptance rate of <0.001% and a false rejection rate of <0.1% while only needing <1.5 seconds to identify a unique fingerprint!

The module is small and easy to mount using four mounting holes surrounding the sensor. The onboard JST-SH connector has four signals: Vcc, GND, Tx and Rx. A compatible JST-SH pigtail can be found in the Hookup Accessories section below.

• Simple UART & USB communication protocol Complies with USB 2.0 full-speed specification
• Ultra-thin optical sensor Resolution 450dpi Capable of 360° recognition
• Storage for 200 unique fingerprints Wake up on Finger Function
• 1:1 verification, 1:N identification High-accuracy and high-speed fingerprint identification technology
• 4x mounting holes 2x JST SH connectors

Product description

ELEGOO Upgraded 37 sensor modules kit is the most useful and highest cost performance sensor kit in market. It is 100% suitable for beginners. And it is also 100% compatible with Raspberry PI and STM32. But if you want to use it with Raspberry PI and STM32, you may find the tutorial by yourself. We only offer the tutorial in our CD. The kit has only sensor modules, if you want to use it, you will need the wires and controller boards. Warning Tip: The input voltage of Elegoo Power Supply Module is 6. 5v - 9v (DC) via 5. 5mm x 2. 1mm plug . Please DO NOT over charge it otherwise it will burn your board and chips. Component listing: 1 x Joystick Module 1 x Relay Module 1 x Rotary Encoder Module 1 x DS-1307 RTC Module 1 x Ultrasonic Sensor Module 1 x HC-SR501 PIR sensor Module 1 x Flame Sensor Module 1 x Linear Hall Module 1 x Metal Touch Module 1 x Digital Temperature Module 1 x Big Sound Module 1 x Small Sound Module 1 x RGB LED Module 1 x SMD RGB Module 1 x Two-tone Color Module 1 x 7 Color Flash Module 1 x Laser Emit Module 1 x Shake Module 1 x IR Receiver Module 1 x IR Emission Module 1 x Tilt Switch Module 1 x Button Module 1 x Active Buzzer Module 1 x Passive Buzzer Module 1 x 18B20 temp Module 1 x Photo-resistor Module 1 x Temperature and Humidity Module 1 x GY-521 Module 1 x Photo-interrupter Module 1 x Tap Module 1 x Membrane Switch Module 1 x Avoidance Module 1 x Tracking Module 1 x Magnetic Spring Module 1 x Water Lever Sensor 1 x Power Supply Module 1 x LCD1602 Module (with pin header)

• Updated from the old version (others): Received great ideas from our customers and adopted in this upgraded kit.
• Removed useless modules like light cup and mercury module, heartbeat sensor, two of the hall sensors, one of the dual-color sensor. Add useful modules like GY-521 accelerometer module, LCD1602 screen, DS1307 real time clock module etc.
• Upgraded tutorial only for R3, MEGA2560 R3, NANO in CD, listing paper, resistors pack only from Elegoo Team. There are tutorials in the CD that comes with. If you prefer download the tutorials online from the official website
• 100% compatible with Arduino official IDE, Raspberry Pi and STM32.
• Note: To use Elegoo starter kits requires basic electronic knowledge. If the user has no experience, it would be better to have someone lead and teach them while studying.

User questions & answers

Question:	Is there an available pdf version of the cd-rom
Answer:	This fingerprint scanner needs a micro controller with a firmware that can operate the fingerprints that are scanned and stored in the device. It works with a 3.3 to 6V DC power supply and the digital interface to the micro controller requires 3.3V to 5V. If you run it off a 9V battery, you will need a voltage regulator to power this fingerprint scanner as well as the micro controller.
Question:	ok for 8yr old
Answer:	Yes it is. However, you must buy the cable TTL Serial, this is crucial for establishing the connection with your arduino.
Question:	Are the data/specification sheets for the sensors provided
Answer:	The device works with power from 3.3V to 6V. It should work fine with 3.3V Raspberry Pi signals. Make sure you power the fingerprint module with the same 3.3V DC
Question:	Lesson 26: the tutorial does not give the meanings of the signal pins clk, dt, and sw. also, can anyone make sense of the "principle" text
Answer:	Yes you should be able to use it with rasp pi. Youll need the code which is python based. Here's a link to it. https://github.com/QuickGroup/pyGT511C3

Product features

Sensor kit that everyone can use to learn electronics and programming

Electronics is not as complicated as you imagine especially with Elegoo 37-in-1 sensor kit. For advanced users like professional lab engineers, electronic major students and experienced hobbyists for starters, they can use this kit to do various kinds of tests and experiments with so many sensors available at hand.

What about novice users who don't have any electronics knowledge? Fear not amigo. Just follow our tutorial enclosed and step by step you will come to realize that learning electronics is more fun than you ever expected with this amazing sensor kit.

It’s a good choice and perfect gift for your friends, family or kids who are obsessed with electronics, programming or robotics to take their first steps on electronics journey!

Detailed and easy-to-follow tutorial helps you learn electronics without problems

An enjoyable and educational experience is definitely the priority option to learn electronics. Our detailed tutorial with 31 lessons ranges from simple projects like how to monitor temperature and humidity with DHT11 sensor to complex projects like how to achieve the goal of timing control switch using a 1 channel relay module. Easy to understand and easy to follow.

Schematics and wiring diagrams are also presented in out tutorial, which helps you better understand why those sensors are connected in that way. Besides that we also have the IDE for programming codes ready in the CD and our website. If you are a professional and prefer a little DIY you can also edit the codes as you wished and make it more personalized.

DHT11 Temperature and Humidity sensor

DHT11 digital temperature and humidity sensor is a composite sensor which contains a calibrated digital signal output of the temperature and humidity. The dedicated digital modules collection technology and the temperature and humidity sensing technology are applied to ensure that the product has high reliability and excellent long-term stability. The sensor includes a resistive sense of wet components and a NTC temperature measurement devices, and connects with a high-performance 8-bit microcontroller.

HC-SR501 PIR Motion Sensor

PIR sensors allow you to sense motion, almost always used to detect whether a human has moved in or out of the sensors range. They are small, inexpensive, low-power, easy to use and don't wear out. For that reason they are commonly found in appliances and gadgets used in homes or businesses. PIRs are basically made of a pyroelectric sensor, which can detect levels of infrared radiation. Everything emits some low level radiation, and the hotter something is, the more radiation is emitted.

GY-521 Triaxial acceleration triaxial gyroscope sensor

GY-521 six-axis sensor usually consists of two which are accelerometer and gyroscope. The GY-521 is a 6 DOF (Degrees of Freedom) or a six axis IMU sensor, which means that it gives six values as output. Three values from the accelerometer and three from the gyroscope. It is also a sensor based on MEMS (Micro Electro Mechanical Systems) technology. Both the accelerometer and the gyroscope is embedded inside a single chip. This chip uses I2C (Inter Integrated Circuit) protocol for communication.
