14 best amd mini itx motherboards
AMD Mini-ITX motherboards are compact-sized motherboards designed to fit into small form factor (SFF) computer cases.These motherboards are ideal for building compact and space-efficient systems, such as home theater PCs (HTPCs) or gaming consoles. Here are some key points about AMD Mini-ITX motherboards:
Compact Size: Mini-ITX motherboards are the smallest form factor for desktop PCs, measuring 6.7 × 6.7 inches (17 × 17 cm). Despite their size, they incorporate most of the features found in larger ATX or microATX motherboards.
Socket Compatibility: AMD Mini-ITX motherboards are designed to support AMD processors, including Ryzen and Ryzen Threadripper series. The specific socket type (AM4, for instance) will depend on the generation of the motherboard.
Limited Expansion Slots: Due to their small size, Mini-ITX motherboards typically have limited expansion slots. They usually feature a single PCIe slot for a graphics card and a couple of RAM slots. Some models might include M.2 slots for fast NVMe SSDs.
I/O Ports: Mini-ITX motherboards come with a basic set of I/O ports, including USB ports, audio jacks, HDMI/DisplayPort for integrated graphics, and networking options such as Ethernet or Wi-Fi. The exact configuration can vary between different models.
Cooling Solutions: Efficient cooling is crucial in small form factor builds. Many Mini-ITX motherboards have fan headers and other cooling features to ensure optimal thermal performance in confined spaces.
Power Delivery: These motherboards are equipped with power delivery systems to support the processor and other components. The quality of power delivery components can affect stability and overclocking capabilities.
Wi-Fi and Bluetooth: Mini-ITX motherboards often come with integrated Wi-Fi and Bluetooth modules, eliminating the need for separate expansion cards and saving space.
Build Considerations: When selecting a Mini-ITX motherboard, it's important to consider factors such as compatibility with your chosen CPU and RAM, available I/O ports, and whether it meets your specific use case requirements.
It's always recommended to carefully read the specifications and user reviews of the specific Mini-ITX motherboard you are interested in, as features and capabilities can vary widely between different models.
Below you can find our editor's choice of the best amd mini itx motherboards on the market
MSI Performance Gaming AMD Ryzen 1st and 2nd Gen AM4 M.2 USB 3 DDR4 HDMI Display Port Mini-ITX Motherboard (B450I GAMING Plus AC)
MSI
Product description
This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies. Outsmart and outperform your opponent’s in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills. Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
- Support AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics Processors for Socket AM4
- Supports 32gb dual channel ddr4 memory 1866/ 2133/ 2400/ 2667 MHz by jedec, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by a xmp oc mode
- VR ready: Automatically optimizes your system for VR usage, pushing for maximum performance
- In game weapons: Game boost, gaming hotkey, x boost
- Gaming certified 24 hour on and offline game and motherboard testing by esports players. Form factor: Mini ITX
User questions & answers
| Question: | Can i use two monitors, one in the hdmi port and other in the display port? i a thinking to use an amd ryzen 5 2400g processor with radeon rx vega |
| Answer: | They are all philips head screws |
| Question: | does this motherboard support multiple moniters using an APU?(2200g |
| Answer: | Yes definitely. I read the manual for my laptop and found the screw type. This pack has that particular screw and mounted my M.2 SSD easily. |
| Question: | Does it have bluetooth |
| Answer: | No this adapter is for any wattage power supply, what the main function of the adapter is to covert a standard psu adapter into one that works for the your Lenovo mobo. So the wattage itself won’t matter |
| Question: | Anyone know if this comes with Ryzen 3 support as of |
| Answer: | If it is CPU 4 pin port, you still have to connect it. |
Product features
MSI ProSeries AMD Ryzen 1st and 2nd Gen AM4 M.2 USB 3 DDR4 D-SUB DVI HDMI Micro-ATX Motherboard (B450M PRO-M2)
- Supports AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors for Socket AM4
- Supports DDR4-3466(OC) Memory
- Audio Boost: Reward your ears with studio grade sound quality.
- DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost.
- Turbo M.2: Delivering Speeds Up to 32Gb/s.
- EZ Debug LED: Easiest way to troubleshoot.
- PCI-E Steel Slot: Protecting VGA cards against bending.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
MSI MPG B550I Gaming Edge WiFi Gaming Motherboard (AMD AM4, DDR4, PCIe 4.0, SATA 6Gb/s, M.2, USB 3.2 Gen 2, AX Wi-Fi 6, HDMI, Mini-ITX)
MSI
Product description
Powered by AMD Ryzen AM4 processors, the MSI B550I GAMING EDGE WIFI (mini-ITX) has been forged for performance with Extended Heatsink Design, M.2 Shield Frozr with Frozr Heatsink Design, and Core boost. The Gen 4 M.2 and PCIe connections deliver blistering bandwidth for ultra-fast speed SSDs and PCIe devices.
- Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update
- Supports dual channel DDR4 memory up to 64 GB (4600 MHz)
- 2.5G LAN with LAN Manager and Wi-Fi 6 AX Solution
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
- AUDIO BOOST rewards your ears with studio grade sound quality for immersive gaming experiences
- Premium Thermal Solution: Extended heatsink, MOSFET baseplate, M.2 Shield Frozr with Frozr Heatsink and patented fan design
- Mini-ITX form factor
User questions & answers
| Question: | Can you attach a reset switch to the clear cmos jumper while still keeping the io shield on |
| Answer: | No, this does not have Bluetooth. |
| Question: | Does the bios update for ryzen 5000 need a cpu already installed |
| Answer: | Yes |
| Question: | Compatible with nzxt h1 and it’s aio cooler |
| Answer: | Yes, I had a couple of those little screws fall out of the back of my Dell laptop as well and this little kit fixed me right up! |
| Question: | board wont boot after entering bios even when I dont change anything. I need to clear cmos just to get it to boot.R5 3400g, newest bios, any solutins |
| Answer: | Used them on a Dell Inspiron 5000 series laptop. There is a very large assortment of screws so my guess is you’d find what you need. |
Gigabyte A520I AC (AMD Ryzen AM4/Mini-ITX/Direct 6 Phases Digital PWM with 55A DrMOS/Gaming GbE LAN/Intel WiFi+Bluetooth/NVMe PCIe 3.0 x4 M.2/3 Display Interfaces/Q-Flash Plus/Motherboard)
Gigabyte
Product description
Supports 3rd Gen AMD Ryzen Processors AMD AM4 Socket Dual Channel DDR4, 2 DIMMs Optimized VRM Heatsink Direct 6 Phases Digital PWM with 55A DrMOS PCIe 3.0 x16 Slot 1x NVMe PCIe 3.0 x4 M.2 Slot ALC887 Audio Codec Blazing Fast 1GbE LAN Intel Dual Band AC WiFi and Bluetooth with Ultra Durable Antenna Rear DP & 2x HDMI Support Q-Flash Plus - Easily Flash Your BIOS RGB FUSION 2.0 Mini-ITX Form Factor
- Supports 3rd Gen AMD Ryzen Processors AMD AM4 Socket
- Dual Channel DDR4, 2 DIMMs
- Optimized VRM Heatsink
- Direct 6 Phases Digital PWM with 55A DrMOS
- PCIe 3.0 x16 Slot
- 1x NVMe PCIe 3.0 x4 M.2 Slot
- ALC887 Audio Codec
User questions & answers
| Question: | Will this work with a Ryzen 5 1400? Everything I can find does not list it as a compatible cpu |
| Answer: | My h80i fits perfectly with factory backplate |
| Question: | What bios for a 1600af |
| Answer: | From the info on the box, MSI claims the 3400g is not compatible with the b550i |
| Question: | Can this board handle a ryzen 7 3800xt? And how do you use the precision boost overdrive on this board |
| Answer: | I believe so, but can't say for certain since I haven't tried it. It's possible that installing the Discrete graphics card will disable the onboard graphics, and they will need to be reenabled in the bios in order for it to work. It's worth some more research in that direction. |
| Question: | Will this work with a Ryzen 7 2700X |
| Answer: | yes it worked on 6 dif manuf. for me; HP DELL, NEC, ASUS, ACER, ETC. |
Product features
Motherboard BIOS update for AMD Ryzen 5000 series processors
- From GIGABYTE’s website, download the latest compressed BIOS update file that matches your motherboard model from its product page.
- Uncompress the downloaded BIOS file, save it to your USB flash drive, and rename it to GIGABYTE.bin. Note: The USB flash drive must use the FAT32/16 file system.
- Insert the USB flash drive into the white USB port or BIOS Q Flash port on the back panel of your motherboard (USB port may not be labelled on all models, checking the user manual is recommended)
- Connect the power cables to the CPU 8 Pin power connector (connect either one if there are two) and mainboard 24 Pin power connector.
- Press the Q-Flash Plus button (location may vary by model) and the system will automatically search and match the BIOS file in the USB flash drive on the white USB port. The QFLED and the Q-Flash Plus button on the rear panel will flash during the BIOS matching and flashing process. Wait for 2-3 minutes and the QFLED will stop flashing when the BIOS flashing is complete.
Asus Prime A320I-K AMD Ryzen AM4 DDR4 M.2 DP HDMI Mini ITX (Mitx) A320 Motherboard with Gigabit LAN, USB 3.1 Gen1
ASUS
Product description
Powered by AMD Ryzen AM4 processors, the Asus Prime A320I-K packs performance and reliability into a mini its form-factor. Access next-generation connectivity and speeds with NVMe M.2, USB 3.1 Gen1, Gigabit LAN and support for 32GB DDR4. 5x Protection III ensures component longevity and reliability while safe Slot Core adds PCIe slot protection.
- Powered by AMD Ryzen AM4 and 7th Generation Athlon processors to maximize connectivity and speed with NVMe M.2, support for 32GB of DDR4, USB 3.1 Gen1 and Gigabit LAN
- 5x Protection III Hardware-level safeguards provide component longevity and reliability
- Patent-pending Safe Slot Core fortified PCIe slot prevents damage from heavyweight GPU
- Fanxpert 2+ delivers advanced fan controls for optimized cooling
- Industry-leading 8-channel HD audio driven by Japanese capacitors features an onboard LED-illuminated design
User questions & answers
| Question: | will work from box with ryzen 2200g? or need update |
| Answer: | It does support the ryzen 7 3800xt, but it would definitely act as a bottle neck to your cpu do to it’s limited bandwidth, and lack of support for PCIE 4.0. You would effectively be paying for performance you can’t use If you buy that cpu and match it with this mother’s board, so if you can’t spend more on a mother board I recommend you get a less expensive cpu to make room in your budget for a higher quality motherboard. |
| Question: | Does this motherboard natively support 3rd gen ryzen |
| Answer: | NO, IT WILL NOT. 3rd Gen and newer ONLY. Jason is incorrect. |
| Question: | Hello, are these shipped with the new bios revision to support gen 3? I need at least version 216. I plan to use a ryzen 3 3200g. Thankyou |
| Answer: | I can't answer that but here is how you can reset the cmos without removing the io shield (thanks to evl619 on reddit): "If you have the latest BIOS version 7C92v11, try to hold power button for 5sec till mobo power off, then press power again to restart. Following screen instruction press F1 to clear CMOS. Apparently MSI noticed the hardware design flaw and added above function in their latest BIOS. It kind tricky, so make sure to hold down the power button for exactly 5sec, or it will just shut down at 4sec without resetting the CMOS." I had an issue with the integrated bluetooth module not being recognized but after performing the above, Win10 now sees it. Google "MSI B550I Heatsink Blocking CMOS Reset" for more info. |
| Question: | Will this Board run and support Ryzen |
| Answer: | I'm looking for an answer to this too. Just completed build with Ryzen 5800x and it will not boot to bios. Everything is getting power. The "boot" debug LED comes on. I will update if I find a solution. I am going to try updating the bios from USB. |
Product features
Asus Prime A320I-K AMD Ryzen AM4 DDR4 M.2 DP HDMI Mini ITX (Mitx) A320 Motherboard with Gigabit LAN
- 5X Protection III: Multiple hardware safeguards for all-round protection
- Native M.2: Lightning-fast storage speeds
- One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3
- Fan Xpert 2+:Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing forcooler gaming
- ASUS Aura Sync header: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware
ASRock Mini-ITX Motherboard (B450 Gaming-ITX/AC)
ASRock
Product description
ASRock Fatal1ty B450 GAMING-ITX/AC Socket AM4/AMD B450/DDR4/SATA3&USB3.1/M.2/Wi-Fi/A&GBE/Mini-ITX Motherboard (New Item!). Wireless LAN - Supports Dual-Band (2.4/5 GHz), Supports high speed wireless connections up to 433Mbps, Supports Bluetooth 4.2 / 3.0 + High speed class II
- Socket AM4, Digi Power design, 8 Power Phase design, Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
- Chipset: AMD Promontory B450. OS - Microsoft Windows 10 64-bit
- Memory: 2x DDR4-3466+(OC)/3200(OC)/2933/2667/2400/2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB (AMD Ryzen series CPUs(Pinnacle Ridge))
- Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8)
- SATA: 4x SATA3 Ports, Support RAID 0, 1, 10, NCQ, AHCI and Hot Plug
User questions & answers
| Question: | Do I need graphic card for ? I have 5 beep just installed |
| Answer: | I cannot confirm which specific version the bios was at when I got it, but I recently put together a computer with this board and a 3200g and it worked out of the box, no video card or bios update required. |
| Question: | How many fan headers does this board have |
| Answer: | It should support a 3900x. I recently put together a computer with this board and a 3200G and it worked out of the box. |
| Question: | Is this bios updated for ryzen |
| Answer: | This worked with my Ryzen 5 1600x. I did need to update the bios first though. |
| Question: | How many m.2 ports |
| Answer: | Not supported. |
ASRock X570 Phantom Gaming-ITX/TB3 Mini ITX Thunderbolt 3 AMD Motherboard Model X570 Phantom GAM ITX
ASROCK MB
Product description
AMD X570 Supports AMD AM4 socket Ryzen 2000 and 3000 series processors Thunderbolt 3 Type-C AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
- Mad x570 supports AMD AM4 socket
- un-buffered memory AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
- AS Rock X570
- Phantom gaming-tix/TB3 Mini ITX
User questions & answers
| Question: | Is this the latest firmware to support the ryzen5000 series? Or do I need a firmware update |
| Answer: | When I purchased mine in October it had a sticker put on the box from the factory saying that the BIOS was updated for the 3rd gen Ryzen processors |
| Question: | Does this have a front 3.2 gen 1 usb-c header |
| Answer: | There is a single M.2 socket on the back side |
| Question: | does this motherboard have a type c usb header |
| Answer: | If u go to the ASUS website it will say that the motherboard is compatable. But just to make sure. I would see if u need to update the bios and firmware. |
| Question: | Without using the displayport input, can the thunderbolt 3 port be used as a displayport output for an apu's integrated graphics (like a ryzen 3400g |
| Answer: | Through a Bios update yes. |

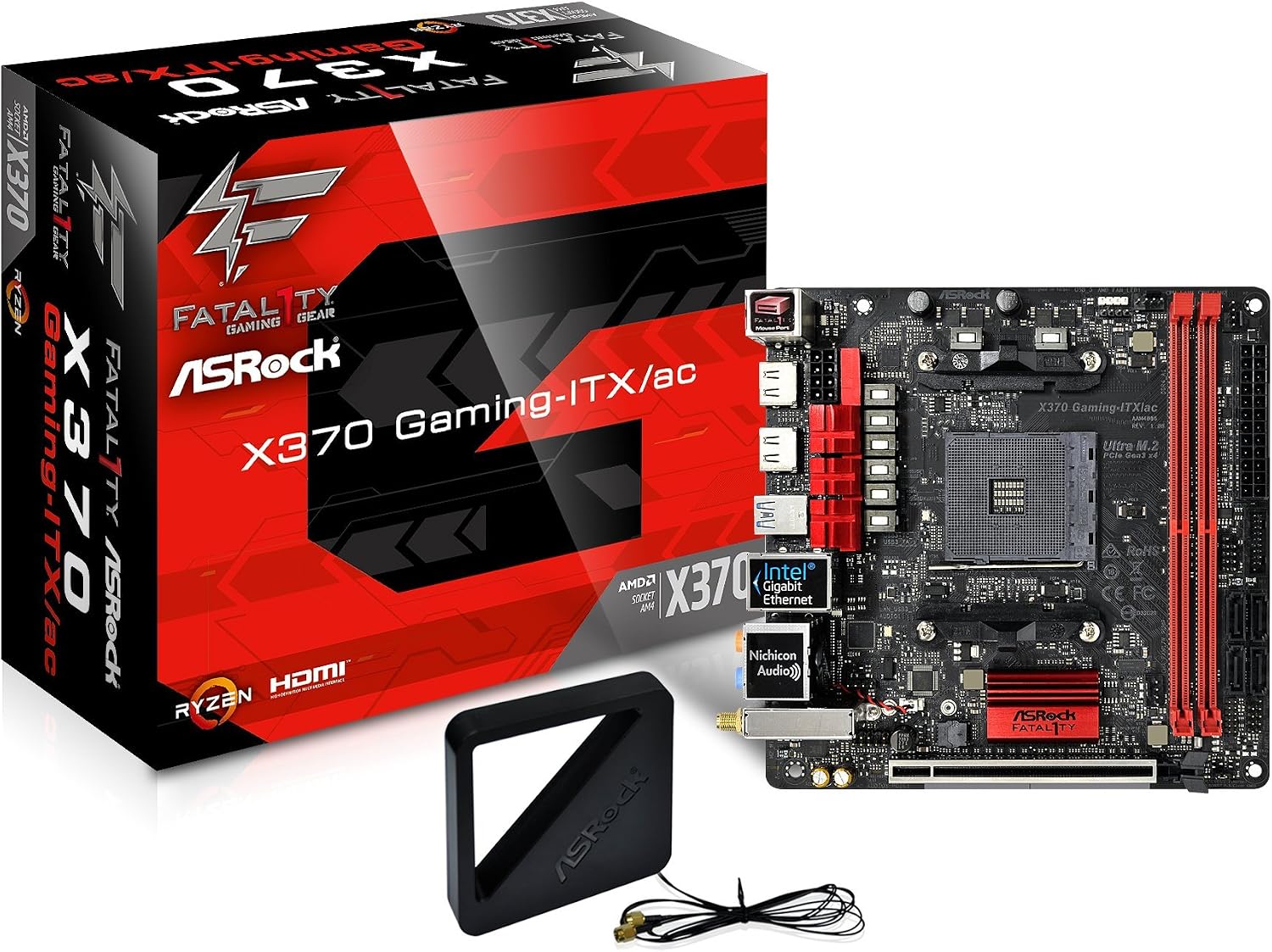

ASRock Mini-ITX Motherboards X370 Gaming-ITX/AC
ASRock
Product description
ASRock X370 GAMING-ITX/AC Socket AM4/AMD X370/DDR4/SATA3&USB3.0/M.2/WiFi/A&GbE/Mini-ITX Motherboard. Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC.
- Chipset: AMD Promontory X370
- DDR4 DIMM Slots
- 2x PCI-Express 3.0 x16 Slots (one runs at x8)
- 4x SATA3 Ports
- Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
User questions & answers
| Question: | Does it support the new amd - ryzen 5 2400g |
| Answer: | It has a "standard" USB 3.1 (20 pin) header, not the newer USB C header... there are adapters out there if your case has the newer connector. |
| Question: | Building a headless system, but obviously will need video to perform the os install. do i need a graphics card if i use a ryzen 7 2700 cpu |
| Answer: | B2L incorrectly states that these boards do not support the 3000G series processors, this just isn't true. There is an HDMI out on the motherboard for that. They are listed on Asrock's website as supported by this board. Honestly, I think anyone would be better off with a B550 Mini-ITX motherboard, in most cases. Unless you absolutely need Thunderbolt 3. The addition capabilities of X570 won't fit on a Mini-ITX motherboad. Things like SLI and Crossfire, don't work with a single slot motherboard. |
| Question: | will this support 3000 series ryzen |
| Answer: | Does your processor have an APU? If not yes you do need a discrete graphics card |
| Question: | Is this motherboard updated for the new ryzen apu's |
| Answer: | There's a total of 3(1CPU & 2CHA) fan headers on this board. |
ASUS ROG Strix X570-I Gaming, X570 Mini-ITX Gaming Motherboard, AMD Ryzen 3000 with PCIe 4.0, WiFi 6 (802.11ax), Intel Gigabit Ethernet, SATA 6Gb/s
ASUS
Product description
Powered by 3rd generation AMD Ryzen AM4 processors, the Asus x570 ROG Stix x570-i gaming is a compact Mini-ITX powerhouse board capable of packing atx-size payloads delivers enthusiasts crave with the utmost functionality and pure aesthetic expression. Features PCIe 4. 0, on-board Wi-Fi 6 (802. 11ax), Intel Gigabit LAN, SATA 6GB/s, USB 3. 2 Gen 2, HDMI 2. 0, DisplayPort 1. 4, M. 2 audio Combo card and Aura Sync RGB lighting.High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- AMD AM4 Socket and PCIe 4. 0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs
- Next-gen gaming connectivity: features PCIe 4. 0, HDMI 2. 0, DisplayPort 1. 4, Dual M. 2, USB 3. 2 Type-A and Type-C connectors.
- Fastest gaming networking: Intel Gigabit Ethernet With Asus LANGuard, Wi-Fi 6 (802. 11Ax) with MU-MIMO support, and Gateway teaming via GameFirst V.
- Optimal power solution: 8+2 power stages with a ProCool II power connector, alloy Chokes and durable capacitors to support multi-core processors.
- Comprehensive cooling design: features an actively-cooled VRM, Chipset combo heatsink and heat pipe to absorb and rapidly dissipate heat, meanwhile paired with AIO pump header and multiple chassis-fan header.
- Unmatched Personalization: ASUS-exclusive aura Sync RGB lighting, including RGB headers and Gen. 2 addressable RGB headers.
- Industry-leading ROG audio: High-fidelity audio with Supreme S1220A, DTS Sound Unbound and Sonic Studio III to draw you deeper into the action.
User questions & answers
| Question: | I want to use the lian li tu150, does this mobo have a type c front panel connector |
| Answer: | Yes, I have the 3700x running on it, but you need an older cpu to update its BIOS, so just buying this board an a ryzen 3000 series CPU would render is useless until you update it with a ryzen 1000 or 2000 series CPU |
| Question: | Will using both m.2 slots and a 2.5in Sata drive cause worse performance |
| Answer: | There is a bios update you can install that will ensure compatibility. |
| Question: | When will the board be updated for amd's ryzen 5000 cpus? building a new system, don't have any current ryzen to power up and update bios myself. thxx |
| Answer: | You will need to update the firmware. The board ships with factory current then is sitting for months in inventory. Unless the factory image has recently changed, it will need to be updated to support 5000 series CPUs. |
| Question: | Can any recent purchasers tell me what bios version it's shipping with |
| Answer: | No |
Product features
Best in Class Power Design
- Digital power control and 8+2 teamed up power stages with high-quality choke and capacitor ensuring ultra-smooth and clean power delivery to the CPU
- ProCool II Power Connectors ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation
Comprehensive Cooling Design
Equipped with active VRM heatsink, onboard M.2 heatsinks, an array of fan headers that are controllable via FanXpert 4, a reinforced backplate, options for the water pump and AIO headers. That is why Rog Strix X570-I Gaming allows consolidated cooling control of the entire system.
Dual PCIe 4.0 M.2
Dual PCIe 4.0 M.2 slots support up to type 2280 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.
The Fastest Gaming Connectivity
ROG Strix X570-I Gaming amps up networking with Intel Gigabit Ethernet and next-gen Intel Wi-Fi 6 (802.11ax) that takes your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience.
DIY Friendly
- Pre-mounted I/O Shield
- FlexKey- a multiple-purpose reset button on the front panel of your chassis to provide quick access to your choice of Aura lighting controls DirectKey or system reset.
ROG Exclusive Audio
SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. The front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset
ASROCK MOTHERBOARD AMD A320 Chip Set Mini-ITX a320 m
ASRock
Product description
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for.
- Supports up to 32GB dual-channel DDR4 memory
- Socket type: AM4
- Chipset: AMD A320
- Mini ITX form factor
- Ports: 1 x Keyboard, 2 x HDMI, 1 x Optical SPDIF Out, 2 x USB2.0, 1 x USB3.1 Gen1 Type-A, 1 x USB3.1 Gen1 Type-C, 2 x USB3.1 Gen1, 1 x RJ-45 LAN
AsRock Rack Mini-ITX Server Motherboard AM4 PGA 1331 X570 AMD Ryzen 3rd Generation Series Processors Model X570D4I-2T
ASRock
Product description
- Brand: AsRock Rack
- Model: X570D4I-2T
- CPU Socket Type: AM4 PGA 1331
- CPU Type: AMD Ryzen 3rd Generation Series Processors (Max 105W)
- North Bridge: AMD X570
- Number of DDR4 Slots: 4 x 260-pin
- DDR4 Standard: DDR4 2933
- Maximum Memory Supported: 64GB
- ECC Supported: Yes
- Registered: Yes
- PCI Express 4.0 x16: PCIE7: Gen4x16 link (Matisse)
- SATA: 8 x SATA 6.0Gb/s
- Support AMD Ryzen 3rd Generation Series Processors (Max 105W)
- Support 4 x SO-DIMM slots, Dual Channel DDR4 ECC and non-ECC SO DIMM, max. 64 GB
- Support 8 x SATA3 by 2 x OCulink + 1 x M.2
Supermicro M11SDV-8C-LN4F AMD EPYC 3251 8-Core Embedded Mini ITX Motherboard with Quad GbE LAN, Ipmi (MBD-M11SDV-8C-LN4F)
Supermicro
Product description
Featuring the AMD EPYC embedded 3000 high performance processor at 50W TDP, this motherboard balances the performance-per-watt giving a cost effective choice. With four Gigabit Ethernet LAN ports and an additional dedicated IPMI, this motherboard is ideal for network function virtualization, software defined networking, and networked storage infrastructure.
- Mad EPYC 3251 2. 5 - 3. 1 GHz 8-Core Processor
- Supports up to 512GB ECC RDIMM Memory
- 4 x Intel Gbe LAN and a dedicated IPMI
- Phi-e 3. 0 x16 Slot, M. 2 PCI-E 3. 0 x4 Slot
- Mini ITX Form Factor: 170 x 170mm, 6. 7" X 6. 7" (In inches)
User questions & answers
| Question: | Does this have the processor already with it |
| Answer: | Yes you will need to get a gpu. The cpu that your looking at does not have on board graphics. The ryzen. 3 2200g is a apu and you don't need a graphics card. |
GIGABYTE B450 I AORUS PRO Wi-Fi (AMD Ryzen AM4/Mini ITX/M.2 Thermal Guard with Onboard Wi-Fi/HDMI/DP/USB 3.1 Gen 2/Motherboard)
Gigabyte
Product description
Supports AMD 2nd generation Ryzen/ Ryzen with Radeon Vega graphics/ 1ST generation Ryzen processors Dual Channel ECC/ Non ECC Unbuffered DDR4, 2 DIMMs Intel Dual Band 802.11AC Wave2 Wi-Fi and BT 5 DisplayPort, HDMI2 ports for multiple display ultra-fast NVMe PCIe Gen3 x4 M.2 with thermal Guard ALC1220 VB enhance 114dB(Rear)/ 110dB(Front) SNR in microphone with high end audio Capacitors RGB Fusion with Multi Zone LED light Show design, Supports Digital LED and RGB LED strips Intel Gbe LAN with cFosSpeed Internet Accelerator Software Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers with Fan Stop center including easy tune and Cloud Station Utilities CEC 2019 Ready, Save power with a single click. Mini itx form factor; 17.0 cm x 17.0 cm. H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, and Fan speed control.
- Supports AMD 2nd generation Ryzen/ Ryzen with Radeon Vega Graphics/ 1st generation Ryzen processors
- Dual channel ECC/ non-ECC unbuffered DDR4, 2 DIMMs
- Intel dual band 802.11AC Wave2 Wi-Fi & BT 5
- DisplayPort, HDMI 2 ports for multiple display
User questions & answers
| Question: | Won't boot using 1070. Other cards work on it. The 1070 works on other boards. Why will this specifically not work on this board |
| Answer: | The rear m.2 and SATA are sharing bandwidth since they both run off the chipset, but they're sharing x4 pci-e 4.0 so it's unlikely to be a problem. Current pci-e 4.0 ssds can't use the full x4 bandwidth anyways. Even if you max out your new Gen 4 ssd you still have enough headroom to run several sata ssds at full speed. |
| Question: | Will this support the ryzen 5 3400g out of the box, or will this require a bios update |
| Answer: | According to a press release from Asus, this board already supports Zen 3 with BIOS version 2606. |
| Question: | Where is the jumper on this board |
| Answer: | It is shipping with BIOS version 2407 dated 2020/07/03. If you're intending to install a Ryzen 5000 series CPU, it should be noted that this BIOS version does NOT support booting with the 5000 series. Since this board does not have a BIOS flashback option, you MUST have a Ryzen 2000/3000 CPU on hand to be able to install the latest required BIOS. |
| Question: | Is the bios for this updated for ryzen 3rd gen cpus |
| Answer: | Yup. Running one in mine. Earlier revisions may need a BIOS update, but mine didn't. |
Product features
B450 I AORUS Pro WiFi
Tiny Form Factor
GIGABYTE's 400 series motherboards perfectly fit the latest AMD Ryzen 2000 series processors' computing performance with more features and more control. Maximize your PC's potential with AMD StoreMI technology, which accelerates traditional storage devices to reduce boot times and enhance the overall user experience.
Sleek Design
For the first time ever, AORUS makes its introduction to AMD B450 series with an aggressive gamer finish. With AORUS, users can expect well placed lighting touches, reinforced armor, and premium gaming features scattered throughout the motherboard.
Onboard WIFI
The onboard 802.11ac WIFI module from Intel supports Dual Band, which runs up to 433 Mbps and also supports BLUETOOTH 4.2.
Multiple Outputs
Other onboard features also include two HDMI and one Display Port outputs for multiple display setups. AORUS motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.
Improved Networking
Aside from integrated WIFI, the Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Native USB 3.1 Gen 2
With speeds up to 10Gbps and available over the USB Type-A connector, the USB 3.1 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.1 Gen1.
Ultra Durable
GIGABYTE motherboards are built with Ultra Durable components such as anti-sulfur transistors, solid plated power connectors, and humidity protection glass fabric that give users peace of mind on the longevity of their system.
GIGABYTE X570 I AORUS Pro Wi-Fi (AMD Ryzen 3000/X570/Mini-Itx/PCIe4.0/DDR4/USB 3.1/Realtek ALC1220-Vb/DisplayPort 1.4/2xHDMI 2.0B/RGB Fusion 2.0/Gaming Motherboard)
Gigabyte
Product description
Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ Ryzen with Radeon Vega graphics processors Dual Channel ECC/ Non ECC Unbuffered DDR4, 2 DIMMs direct 8 phase Infineon digital VRM solution with 70a power stage Extended VRM heatsink and 5W/MK thermal pad dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Intel Wi-Fi 6 802.11ax and BT 5 with a or us antenna Amp Up audio with ALC1220 VB Intel Gigabit LAN USB turbocharger for mobile device Fast charge support RGB Fusion with Multi Zone addressable LED light Show design Smart Fan 5 Hybrid Fan Headers with FAN STOP and noise detection rear USB 3.2 Gen 2 Type C integrated I/O shield Q Flash Plus update BIOS without installing CPU, memory, GPU.
- Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics processors
- Dual channel ECC/ non-ECC unbuffered DDR4, 2 DIMMs
- Direct 8 phase infineon digital VRM solution with 70A power stage
- Extended VRM heatsink & 5W/MK thermal pad
- Dual ultra-fast NVMe PCIe 4.0/3.0 x4 M.2
User questions & answers
| Question: | Does it come with a sata cable |
| Answer: | Which jumper? |
| Question: | will the m.2 cooler be in the way of a low profile cpu cooler like the noctua NH-l9a? or is there decent clearance |
| Answer: | From the same question to Gigabyte support, they replied: "MB serial number starting from SN1922xxxxxxxx Bios will be F40 and ready to use AMD Ryzen 3200G CPU. You may need to check with Vendor see they can provide you the MB serial number. Thank you so much!" So, yeah, if the seller could guarantee I would get a board from that SN prefix, that would be great. |
| Question: | How many fan headers are on this itx motherboard |
| Answer: | Yes, it is an AMD EPYC 3251 with 8 cores (16 threads) |
| Question: | Bought this motherboard.. tested it out last night. lights, and fans all turned on, but the motherboard made no beep.. anyone experience this issue |
| Answer: | It does NOT have a connector anywhere that works with the USB-C port on the front panel of the Lian-Li TU150. I own both, and the person who answered before me is wrong. It has an internal USB 3.0 header which works with the USB-A ports on the TU150, but it lacks an actual USB-C header, and the rear port will not work for that. |
Product features
Motherboard BIOS update for AMD Ryzen 5000 series processors
- From GIGABYTE’s website, download the latest compressed BIOS update file that matches your motherboard model from its product page.
- Uncompress the downloaded BIOS file, save it to your USB flash drive, and rename it to GIGABYTE.bin. Note: The USB flash drive must use the FAT32/16 file system.
- Insert the USB flash drive into the white USB port or BIOS Q Flash port on the back panel of your motherboard (USB port may not be labelled on all models, checking the user manual is recommended)
- Connect the power cables to the CPU 8 Pin power connector (connect either one if there are two) and mainboard 24 Pin power connector.
- Press the Q-Flash Plus button (location may vary by model) and the system will automatically search and match the BIOS file in the USB flash drive on the white USB port. The QFLED and the Q-Flash Plus button on the rear panel will flash during the BIOS matching and flashing process. Wait for 2-3 minutes and the QFLED will stop flashing when the BIOS flashing is complete.
Direct 8 Phase Digital 70A VRM
The X570 I AORUS PRO WIFI uses IR PWM controller and latest generation Infineon TDA21472 Power Stage 70A MOSFET to build the one of the most powerful mini-ITX motherboards.
Advanced Thermal Design
To avoid thermal throttle on a small motherboard, an improved thermal solution consisting of a heatsink with cuts and multi-layered heatsinks has been implemented on the X570 I AORUS PRO WIFI.
PCIe 4.0 Ready
X570 AORUS Series Motherboards feature built-in PCIe 4.0 slots, delivering superior bandwidth compared to that from previous generation technology. Performance of Graphics cards and PCIe NVMe AIC SSDs will not be limited by insufficient bandwidth.
2x M.2 with Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Shine Bright with RGB Fusion 2.0
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Easy BIOS Updates
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
ASUS ROG Strix B450-I Gaming AMD AM4 (3rd/2nd /1stGen Ryzen ITX SFF Motherboard (Intel Gigabit Ethernet, 2x2 802.11ac Wi-Fi, USB 3.1 Gen 2 and Aura sync RGB Lighting)
ASUS
Product description
Experience next-level performance on the mix form factor with the ROG Strix B450-I Gaming, powered by 2nd generation AMD Ryzen AM4 processors. Unlock your system's potential with 5-Way Optimization while personalizing your build with Aura Sync RGB. Integrated dual NVMe M.2, gigabit LAN and USB 3.1 Gen2 maximize connectivity speeds.
- AMD AM4 Socket: The perfect pairing for 3rd/2nd /1st Gen AMD Ryzen CPUs
- Fast memory and storage: Dual-channel DDR4 3600MHz (OC) and NVM Express RAID supported.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips.
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
- Gaming networking: Intel Gigabit Ethernet, 2x2 802.11ac Wi-Fi with MU-MIMO support, plus ASUS LANGuard and GameFirst technologies.
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.
- Gamer’s Guardian: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.
- Please ensure your BIOS is up to date if installing a compatible Ryzen 5000 series CPU. Visit ASUS site search by motherboard model name, click on “Support” tab, Drivers and Tools, then BIOS & Firmware to download the latest BIOS.
Product features
Overview
Experience next-level performance on the mITX form factor with the ROG Strix B450-I Gaming, powered by 2nd generation AMD Ryzen AM4 processors. Unlock your system’s potential with 5-Way Optimization while personalizing your build with Aura Sync RGB. Integrated dual NVMe M.2, gigabit LAN and USB 3.1 Gen2 maximize connectivity speeds.
One-Click Overclocking and Cooling
Take care of complex tuning with just one click. ASUS 5-Way Optimization makes your PC smart by dynamically optimizing essential aspects of your system, providing overclocking and cooling profiles that are tailored for your rig.
Dual M.2 with Perfected Cooling
ROG Strix B450-I Gaming is equipped with a stylish, angular M.2 heatsink that keeps your SSD cool. By efficiently dissipating heat away from the M.2 area, ROG Strix B450-I Gaming minimizes the possibility of performance-sapping throttling.
Outshine the Competition
ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Intel Integrated Ultra Wi-Fi support
ROG Strix B450-I Gaming features Intel 802.11ac Wi-Fi with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps — so you'll get fast, smooth transfers, even when your rig is further away from the router.
SupremeFX
Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.
Cyber Outlook
The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch.
ROG Elite Rewards loyalty program
Become a member of the ROG Elite Rewards loyalty program and earn points for being an active Republic of Gamers fan. There are many ways to earn points including purchasing ROG gear, and a selection of rewards that can be redeemed with points, tailored to the ROG community.
Latest Reviews
View all
Stereo 3D Glasses
- Updated: 09.07.2023
- Read reviews
Bluetooth Speaker Larges
- Updated: 24.04.2023
- Read reviews
Dvds
- Updated: 11.07.2023
- Read reviews
Leggings For Work
- Updated: 06.04.2023
- Read reviews
Probiotics For Constipations
- Updated: 23.01.2023
- Read reviews
