14 best centrifugal pumps

Product description

Specifications for the Goulds GT20 Model: • Motor: 2 HP, 230 volt, single phase motor • Pipe Connections: 1-1/2" NPT Suction / 1-1/2" NPT Discharge • MAX Suction Lift: 25 Ft • MAX Total Dynamic Head: 127 ft • MAX Discharge Pressure: 55 psi GPM/Pressure Performance Rating examples for the Goulds GT20: • 20 PSI Discharge Pressure: 5 ft Suction Lift: 86 GPM 15 ft Suction Lift: 70 GPM 25 ft Suction Lift: 46 GPM • 30 PSI Discharge Pressure: 5 ft Suction Lift: 80 GPM 15 ft Suction Lift: 67 GPM 25 ft Suction Lift: 44 GPM • 40 PSI Discharge Pressure: 5 ft Suction Lift: 65 GPM 15 ft Suction Lift: 57 GPM 25 ft Suction Lift: 43 GPM • 55 PSI: (MAX of 127 ft of Dynamic Head Pressure): 0 GPM Goulds GT Series Standard Features: Self-Priming Design: Once pump is initially primed, filled with water, it will re-prime when the water level rises above the end of the suction pipe. Serviceable: • Back pullout design allows dis-assembly of pump for service without disturbing piping. • Two compartment motor for easy access to motor wiring and replaceable components. Diffuser (Guide vane): Bolt down diffuser provides positive alignment with impeller. Diffuser has stainless wear ring for extended performance in abrasive conditions. F.D.A. compliant, injection molded, food grade, glass filled Lexan for durability and abrasion resistance. Impeller: F.D.A. compliant, glass filled Noryl. Corrosion and abrasion resistant. Corrosion Resistant: Electro-coat paint process is applied inside and out, then baked on. Casing: Cast iron construction. Four bolt, back pull-out design. Tapped openings provided for vacuum gauge and casing drain. Powered for Continuous Operation: Pump ratings are within the motor manufacturer's recommended working limits. Can be operated continuously without damage. Mechanical Seal: Carbon/ceramic faces, BUNA elastomers. 300 series stainless steel metal parts. Pump design prevents the seal from running dry.

User questions & answers

Question:	Can this pump operate at variable speed with proper wiring and parts
Answer:	Typically we use a 3 phase motor for VFD but I believe there are some VFD's that can work with these. You will need to work with one of our engineers to make sure this will function for your application. Irrigation-Mart
Question:	what is the flow rate at 60 psi
Answer:	According to the specification sheet, the max discharge pressure is 40 psi. The flow rate depends upon the amount of head from the pump to the final sprinkler heads. Go to this link for the curves associated with performance: https://documentlibrary.xylemappliedwater.com/wp-content/blogs.dir/22/files/2015/04/GTSALES-R1.pdf
Question:	Is there any faster shipping options
Answer:	Good afternoon Rhonda,Yes. We have 3 day, 2nd day, & next day air. If you let us know you zip code I will send you the cost for each. If you have any other questions please feel free to contact us. We will be in the office today until 1:00pm est or you can contact us on Monday. Thank you and have a great weekend.Best regards,B. MoraWater Pumps Pro(786)310-7384
Question:	How exactly would i wire this? do i need an electrician to come install a 220 box? where exactly do the wires go? any ideas/suggestions welcome
Answer:	Yes you need 220V for a GT20If you don't have 220v, you will need an electrician to run 220v to service the pump. You will need a 220v Hard wire connection to motor terminals inside the rear of the motor. (Under cover)

Product description

Centrifugal Pump, Power Rating 1 HP, Voltage @ 60 Hz 115/230 Volts, Phase Single, Full Load Amps 16. 2/8. 1, Motor Enclosure ODP, NPT Inlet 1 1/2 Inches, Outlet Port 1 1/2 Inches, Length 19 7/8 Inches, Height 9 1/4 Inches, Width 8 1/4 Inches, Self Priming '

• Price For: Each Wetted Materials: CI, Noryl, Lexan, Carbon, Ceramic and Buna Voltage: 115/230 Hz: 60 Inlet: 1-1/2" Includes: Buna N and Carbon/Ceramic Parts Frame: 56J Max. Case Pressure: 125 psi Height: 9-1/4" Features: Casing Design Prevents the Seal from Running Dry, Back Pull Out Design for Ease of Maintenance Phase: 1 Thermal Protection: Automatic Reset Width: 8-1/4"
• Model Number: GT10
• Item Package Dimension: 23.99999997552" L x 12.99999998674" W x 9.9999999898" H
• Item Package Weight: 53.0 lb

User questions & answers

Question:	Is this an on-demand pump and does it have a dry shut off? Thank you
Answer:	Hello, on demand is dependent on the irrigation controller and solenoid valves. This pump can work with with those components. Just make sure the irrigation system sprinklers heads are in sync with the GPM discharge of the pump. If you want guidance, please call us. Best regards, Scott 786-310-7384
Question:	I installed it but it doesn't pump water from our canal which is roughly 150 yards from the pump. Is it too small
Answer:	I have the same situation out of a pond with no problem. did you fully prime the pump? you could be sucking air some where in your piping or your pickup screen is full of mud packed solid. I think it is a great pump.
Question:	Trying to use this pump for irrigating greenhouse, will it work with 15 psi irrigation tapes? will installing pressure regulator cause back pressure
Answer:	Good morning, does the pump need to overcome any suction lift? Min discharge psi should be around 20 psi minimum. Best regards, Scott 786-310-7384
Question:	The pump will only build pressure to 30 pounds. What's up with that
Answer:	I'd like to know myself ! Flow is excellent but if pump runs with all valves shut - pump will not exceed 30 psi as you say. I wonder if there's some sort of internal "spring safety valve" that pops open when 30 psi pressure is reached and then water just free-flows around inside pump ? My "new" set-up shuts power off to pump at end of final sprinkler zone whereas before the increased pressure would do this when last zone ended. Very odd. I might call Gould to get explanation. Been tied up with other things - as are we all !

Product description

Compact Submersible Centrifugal Pump, Application Water, 1/150 HP, Voltage 115, Impeller Material Nylon, Volute Material Nylon, Screen Material Polyethylene, Seal Material Viton, Cord Length 6 ft., Max. Head 10.2 ft., Inlet Type Screened, Length 4-1/4 In., Width 4-1/4 In., Height 4-9/16 In., Continuous Duty, 60 Hz '

• Price For: Each Voltage: 115 Hz: 60 Motor RPM: 3400 Motor Type: Shaded Pole Port Rotation: CW Item: Compact Submersible Centrifugal Pump HP: 1/150 Impeller Material: Nylon Seal Material: Viton Duty: Continuous Includes: 6 ft. Cable Inlet: Screened Max. Liquid Temp.: 120 Degrees F Cord Length: 6 ft. Max. Head: 10.2 ft. Width: 4-1/4"
• Length: 4-1/4" Outlet: 1/4" (M)NPT Height: 4-9/16" Country of Origin (subject to change): Mexico

• Description This high quality 1/2 HP Electric Centrifugal Clear Water Pump features: 1/2 HP/110 volt/370 watt/60 Hz/2.5 amp Motor
• Clear water operation Capacity: 10 Gallons per minute Maximum Suction Lift: Up to 24ft Pump inlet and outlet: 1" Dynamic Head: Up to 240ft
• Manual prime Overall unit measurement: 10 1/4" x 4 3/4" x 6 1/8" Heavy Duty Steel and Aluminum Construction Install in a protected location - do not expose to the elements..

User questions & answers

Question:	Would like to use this for irrigation system for a grow garden. Can the pump run dry
Answer:	irrigation yes... DO NOT run dry... will burn up !!
Question:	Will this pump work to connect a rain barrel to drip irregation system
Answer:	Hi my friend! Yes, it will work only if the water is filtered from coarse impurities! The water must be clean! It is inadmissible for this pump to run without water. (Dry running)
Question:	Can u hook a garden hose to it to pump water off a pool cover
Answer:	Intake needs to be hard line hose may collapse. I am using mine on a 20 foot well to 150ft hose for one sprinkler. Works great
Question:	What size are the inlet and outlet? The seller should put that in the product description
Answer:	Respectfully, the answer that said 3/4” is incorrect. The inlet and outlet are both 1” NTP Female

Product features

Electric Industrial Centrifugal Clear Clean Water Pump

This 1/2HP Water Pump is a heavy-duty centrifugal pump built from sturdy cast iron. The non-submersible electric operation is designed to transfer water from tanks, pools, rain barrels, and ground water through hoses connected to the inlet and outlet. Compact and versatile, this 1/2HP Water Pump can be used in commercial applications as well as residential use.

Input Power: 370W

Output Power: 220W

Nozzle Size:1"x1"

Carbon Steel Rotor

Material: Cast Iron

inlet and outlet threaded

inlet and outlet 1-1/4" diameter

garden hose thread into both the inlet and outlet

Max capacity:36L/min

Product description

With a 3-Year Residential and Commercial Guarantee, the Honda WB20XT 164 GPM 2" GX120 118cc General Purpose Centrifugal Water Pump is Protected By Honda Oil Alert Warning System and comes in a heavy-duty full frame for protecting the pump and engine on both sides. The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions. It has a 164 gal./min. capacity and centrifugal 2" pump.

• OHV COMMERCIAL ENGINE - The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
• 4 VANE HIGH EFFICIENCY IMPELLER - The WB20's exclusive, Honda-designed 4 vane impeller offers improved performance and high efficiency.
• DURABLE - The WB20 features abrasion-resistant silicone-carbide seals for extended wear.
• CAST IRON VOLUTE - The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.

User questions & answers

Question:	How long will it run on one tankful
Answer:	It will run 2 1/2 to 3 hours on a tank full. I can't say enough good about this little pump. It starts on the first pull every time. It has totally saved our garden this year.
Question:	Q distancia se puede trasladar el agua
Answer:	Ochenta meters
Question:	Any good as a fire hose pump ? Has anyone used it for one ? Live in the forest, building a pond right now for the pump's water
Answer:	Yes, great pump and very powerful for its compact size. I pump water from a river, up a 75’ tall embankment. Get the adjustable fire hose nozzle, it can shoot a stream of water 30’. Great for fire protection
Question:	Horse power
Answer:	https://engines.honda.com/models/model-detail/mid-gx Try this link to the Honda website. It states 3.5 HP.

Product description

Specifications:

Material: Shell: ABS plastic, Pump shaft: Zirconia ceramic, Rotor: Ferrite, POM

Power supply: solar panel, battery, adapter, power module

Drive mode: Brushless, magnetic isolation

Power consumption: 19W

Rated voltage: 12V

Rated current: 1.5A

Max flow rate: 800L/H(210GPH)

Max lift height: 5M/16ft

Diameter of inlet: G1/2" male thread;

Diameter of outlet: G1/2" male thread;

Noise: <35dB

Waterproof level: IP68

Lifespan: More than 30,000hrs

Working temperature: 0¡æ - 65¡æ/(32¡ãF - 149¡ãF)

Item dimension: 77*63*49mm

Weight:220g(7.8ounces)

Cable length: Approx. 50cm (19.7")

Wiring: The red wire is connected to the positive pole of the power supply, and the black wire is connected to the negative pole of the power supply.



Note:

1, This is a submersible centrifugal water pump. It must be immersed in the water, or the water level of the external water source must be lower than the water inlet nozzle of the water pump when the pipeline is connected, so that the air after the water pump is discharged and the water is pumped normally.

2, The head of the water pump is the maximum water delivery height, that is, the flow rate to the maximum head point is zero.

3. This pump cannot work without water for a long time.



Package includes:

1 x 12 V G1/2" male thread brushless water pump

• Low noise (<35dB), small size, high efficiency, low power consumption, strong anti-interference ability, stable operation, safe and pollution-free.
• The stator and circuit board of the motor are potted with epoxy resin and completely isolated from the rotor, which solves the leakage problem caused by long-term diving of the motor-type DC water pump, and is completely waterproof (waterproof grade: IP68).
• The water pump shaft adopts high-performance ceramics (zirconia), which has high precision and good wear resistance. It adopts the precision matching of high-precision shaft sleeve and ceramic shaft, and has a long service life.
• 12V G1/2" male thread; Cable length: Approx. 50cm (19.7"); Maximum flow: 800L/H 210 GPH, Maximum llift height: 5M/16ft, Working temperature: 0¡æ - 65¡æ/(32¡ãF - 149¡ãF).
• Amphibious (installation position is lower than the liquid level for external use). The pump is a centrifugal pump, suitable for fountains, swimming pools, pond, pet aquariums, fish tanks, solar circulation systems, water circulation systems, hydroponic systems, etc.

User questions & answers

Question:	If I reduce the voltage, will the flow rate be reduced
Answer:	Yes of course the flow will be reduced if you reduce the input voltage

Product description

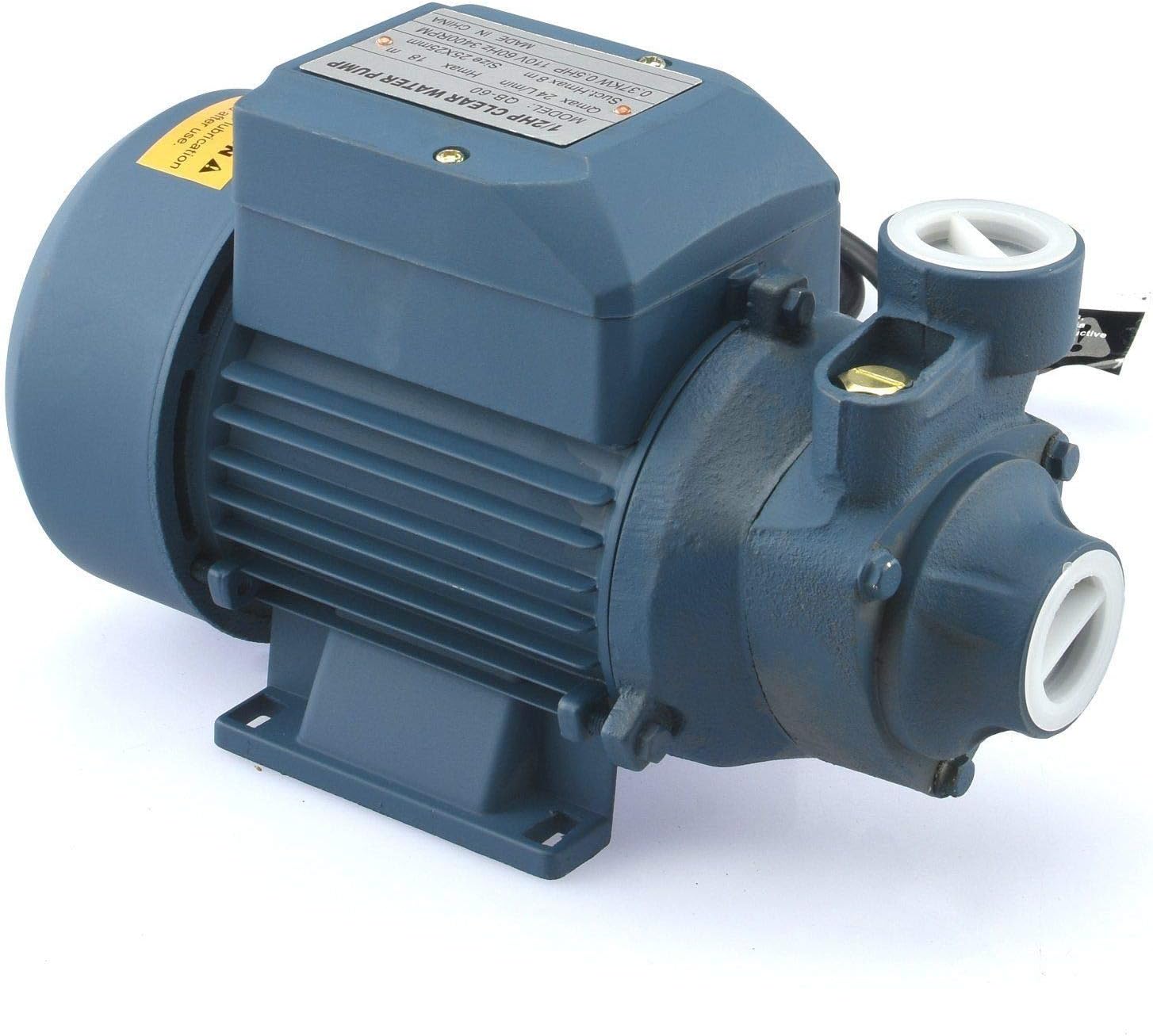

Features: QB-60, the pump is with peripheral impeller containing numerous radial blades in its edge. The particular shape of the blades rapidly transfers radial re-circulation motion to the fluid on entry to the pump, between the impeller blades and the double channel, machined on each side of the pump body. They have various appearances and motor shells to the different operating requirements. They are reliable, economical and simple to use. As present in the picture, power wire not include. Pump needs to be hardwired Model: QB-60 Power: 0.5Hp/370w Electric: 110v 60hz Speed: 3450 Rpm Q.MAX:24L/min Dynamic Head: Up to 240ft Head of Suction: Up to 24ft Pipe Diameter: 1 Inch Net Weight: 15 Lbs Dimensions: 12*7*8 Inch(L*W*H) Note:Install in a protected location - do not expose to the elements.

• Features: QB-60, the pump is with peripheral impeller containing numerous radial blades in its edge. The particular shape of the blades rapidly transfers radial re-circulation motion to the fluid on entry to the pump, between the impeller blades and the double channel, machined on each side of the pump body.
• They have various appearances and motor shells to the different operating requirements
• They are reliable, economical and simple to use. As present in the picture, power wire not include. Pump needs to be hardwired
• Model: QB-60 Power: 0.5Hp/370w Electric: 110v 60hz Speed: 3450 Rpm Q.MAX:24L/min Dynamic Head: Up to 240ft Head of Suction: Up to 24ft
• Pipe Diameter: 1 Inch Net Weight: 15 Lbs Dimensions: 12*7*8 Inch(L*W*H) Note:Install in a protected location - do not expose to the elements.

User questions & answers

Question:	Cuánto pesa
Answer:	Weight: 15 Lbs

Product description

The Rule General Purpose Pump is designed for use as a washdown pump and/or to circulate water to your livewell tanks. Heavy-duty construction for commercial or pleasure boat use. 1-1⁄ 2" (38mm) inlet and 1-1⁄ 2" (38mm) discharge outlet. The Rule General Purpose Pump must be mounted below the waterline. It does not deliver high pressure, nor is it self-priming. It pumps lots of water, but at low pressure. 12 volt DC unless noted.

• For use as a washdown pump and/or to circulate water to your livewell tanks
• Heavy-duty construction for commercial or pleasure boat use
• 1-1/2" (38mm) inlet and 1-1/2" (38mm) discharge outlet
• Non-automatic, 3800 GPH (14380 LPH)

User questions & answers

Question:	Can this pump be mounted vertically
Answer:	Hello Keith, Yes, the 17A can be mounted vertically but please remember that the intake needs to be below the water line. This is not a self-priming pump. Regards, Xylem.
Question:	im using it foe a live bait well in the boat but you have 3 models what is the differences and which one should i use its a 55 gal
Answer:	It’s a 3800 gallon per hour pump. She would a little much for a live well if it is not a big tank. It would definitely work though. Make sure the pump is mounted as instructed or you will have issues getting water.
Question:	What is the temperature range for this pump? Can it be used with hot water
Answer:	I don't think so because all the parts inside are made of plastic. Normal use is for Salt water wash down pump or live bait pump.

Product description

lightweight, compact submersible centrifugal pump is ideal for moving water in multiple confined and open area applications. This is a powerful, versatile, low maintenance pump that is perfect for a wide range of operations supporting Contractors, Service Utilities, Municipalities, and Homeowners. Further, the ST2047 incorporates a rugged cast aluminum housing, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller and molded 50’ Power Cable with strain relief.

• 2" Suction & Discharge
• 1 Horsepower
• 115 VOLT
• 87 Gallons per minute (GPM)
• 47' Maximum Head
