Inverter ICs, also known as Inverter Integrated Circuits, are electronic components used in various applications, including power inverters, battery chargers, and automotive systems. These ICs are responsible for converting direct current (DC) into alternating current (AC) or for generating AC waveforms with specific characteristics. Here are some key points about inverter ICs:
Inverter Functionality: Inverter ICs primarily perform the function of converting DC voltage into AC voltage. They are commonly used in applications where it's necessary to produce AC power from a DC source, such as in power inverters for portable devices, solar inverters, and uninterruptible power supplies (UPS).
Waveform Generation: Inverter ICs can generate different types of AC waveforms, including sine waves, square waves, and modified sine waves. The choice of waveform depends on the specific application and requirements.
Frequency and Voltage Control: Many inverter ICs allow for precise control of the output frequency and voltage. This control is crucial in applications like variable-frequency drives (VFDs), where motor speed and power need to be adjusted.
Protection Features: Inverter ICs often include built-in protection features, such as overvoltage protection, overcurrent protection, and thermal shutdown, to safeguard the circuit and connected devices from damage.
Efficiency: The efficiency of inverter ICs is an essential consideration in power conversion applications.Higher efficiency means less power is lost as heat during the conversion process.
Voltage Regulation: In applications like battery chargers and power supplies, inverter ICs can provide voltage regulation to ensure a stable and consistent output voltage.
PWM Control: Pulse-width modulation (PWM) is a common technique used in inverter ICs to control the output voltage. PWM allows for precise control of the duty cycle, which, in turn, regulates the output voltage.
Application Diversity: Inverter ICs find use in various industries and applications, including automotive (for powering electrical accessories), renewable energy (solar inverters), and consumer electronics (laptop chargers and UPS systems).
Integrated vs. External: Some inverter ICs are integrated into larger systems, while others can be used as standalone components. The choice depends on the specific design requirements.
Manufacturers: Various semiconductor manufacturers produce inverter ICs, offering a range of features and performance characteristics. Designers often select ICs from reputable manufacturers based on their project's needs.
In summary, inverter ICs play a vital role in converting DC power into AC power with specific characteristics, making them essential components in a wide range of electronic and power conversion applications, including automotive and portable power systems. These ICs provide the necessary flexibility and control required for efficient and reliable power conversion.
Below you can find our editor's choice of the best inverter ic on the market
Todiys New 10Pcs for 74HC04 74HC04D CD74HC04 SN74HC04 SN74HC04DR DIP-14 Hex Inverter IC Chip SN74HC04N
Product description
Compatible P/N:
74HC04 74HC04D CD74HC04 SN74HC04 SN74HC04N SN74HC04DR
Description:
Condition: 100% Brand New And High Quality
Material: Electrical Components
Color: See Pictures
Encapsulation: DIP-14
Fully static operation
Outputs Can Drive Up To 10 LSTTL Loads
Typical tpd = 11 ns 4-mA Output Drive at 5 V
Low Input Current of 1 µA Maximum
Current - Quiescent (Max): 2µA
Current - Output High, Low: 5.2mA, 5.2mA
Operating Temperature: -40°C ~ 85°C
Logic Level - Low: 0.5 V ~ 1.8 V
Logic Level - High: 1.5 V ~ 4.2 V
Number of Circuits: 6
Number of Inputs: 6
Voltage - Supply: 2 V ~ 6 V
Size: 19.2mm x 8.6mm x 7.2mm
Quantity: 10 Pcs
NOTE: Kindly compare your original item with the photos provided for the listing to make sure that you are purchasing the correct part. we don't provide technical assistance please make sure you are familiar with the product before purchasing. apologize in advance.
- Item Condition: Brand New
- 12 Months Quality Warranty
- Actual item as shown in photos
- Random send the part number
- NOTE: Kindly compare your original item with the photos provided for the listing to make sure that you are purchasing the correct part. we don't provide technical assistance please make sure you are familiar with the product before purchasing. apologize in advance.
Texas Instruments SN74HC04N CD74HC04 74HC04 Hex Inverters DIP14 5 Pack
Texas Instruments
Product description
The ’HC04 devices contain six independent inverters. They perform the Boolean function Y = Not A in positive logic.
Texas Instruments SN74HC04N CD74HC04 74HC04 Hex Inverters DIP14 10 Pack
Texas Instruments
Product description
We will test it before shipment.
Reference Weight:0.1kg (0.22lb.)
User questions & answers
| Question: | One reviewer suggest that these are 3.3v ic's I would prefer to work with 5v. Can these ic's handle 5v |
| Answer: | They can handle a maximum of 6V. The data sheets are super helpful for this information |
| Question: | Are these really schmitt triggers or just inverters? everything i have found suggests they just invert and that the -14 are the triggers |
| Answer: | You are correct, they are just inverters, the HC14 are Schmitt triggers. I'll ask Amazon to correct the title. |
Go Power GP-ICR-50 Inverter Charger Remote 12 Volt
Go Power!
Product description
* Tynex SKU# Ty161863, * Model# GP-ICR-50
Conveniently monitor and control your IC series inverter/charger with an easy-to-read, 4 line digital display panel. Digital display and menus offer simple operation and use while providing detailed operational data about your inverter charger.
Features
Change settings and modes of operation
View real-time status of battery charging activity, inverter AC input, and inverter status
Monitor inverter/charger health and temperature
50 ft cable included
3 year warranty
UPC#: 839085007266
User questions & answers
| Question: | Is this remote an upgrade for the 3000 extreme kit |
| Answer: | This remote is included in the Solar Extreme Kit and is required for all Go Power inverter chargers. |
DBParts New for 20 Pcs HEF4069/HCF4069/CD4069BE CD4069UBE DIP-14 HEF4069 4069 Hex Inverter IC
Product description
DBParts New For 20 Pcs HEF4069/HCF4069/CD4069BE CD4069UBE DIP-14 HEF4069 4069 Hex inverter IC
- Brand New
- Package Include: 20Pcs
- DIP 14 IC
- High Quality & Six Months Warranty
Bennett Marine Go Power! GP-IC-3000-12-PKG IC Series Inverter Charger - 3000W
Bennett Marine
Product description
The Go Power! Inverter Charger is a breakthrough product where you get top features, quality, and performance at an economical price. The inverter charger is a 3-in-1 system combining an inverter, battery charger and automatic transfer switch. This saves space and simplifies installation by reducing the number of devices and cables to install. While most inverter chargers offer a 30 amp transfer switch, the IC-3000 provides two 50-amp legs. That means when connected to shore power 50-amp service (240V), you can draw up to 12,000 watts of power! The IC-3000 is also compatible with 30-amp service. The IC-3000 Includes a battery temperature sensor on a 25' cable. One end mounts onto your battery and the other end plugs into the inverter charger. The temperature data is sent to the IC-3000 which automatically adjusts voltage to maintain proper and healthy charging. Accessorize with the IC Series digital remote panel for complete control and monitoring of your inverter charger! Meets UL 1741 and UL 458 with marine supplement.
- 3000 watt pure sine wave inverter; 3400 watt surge (5 seconds)
- High inverter efficiency - 90%
- 125-amp battery converter/charger
- 100-amp automatic transfer switch (50 amps per leg at 110V AC)
- Industry standard protection features
User questions & answers
| Question: | Does the gp-ic-3000-12-pkg include the remote |
| Answer: | Yes, the GP-IC-3000-12-PKG comes with the GP-ICR-50 included. |
| Question: | Does this package include the lcd controller |
| Answer: | Yes |
Todiys New 20Pairs for 20Pcs CD4069B CD4069BE CD4069UBE HCF4069BE HEF4069BP TC4069BP DIP-14 CMOS Hex Inverter + 20Pcs 14-Pin IC Sockets CD4069
Product description
Compatible P/N:
CD4069 CD4069B CD4069BE CD4069UBE HCF4069BE HEF4069BP TC4069BP
Description:
Condition: 100% Brand New And High Quality
Material: Electrical Components
Color: See Pictures
Encapsulation: DIP-14
Logic Function: Inverter
Number of Elements per Chip: 6
Maximum Propagation Delay Time @ Maximum CL (ns): 110@5V|50@15V|60@10V
Absolute Propagation Delay Time (ns): 110
Process Technology: CMOS
Output Type: Push-Pull
Maximum Low Level Output Current (mA): 4.2(Min)
Maximum High Level Output Current (mA): -4.2(Min)
Minimum Operating Supply Voltage (V): 3
Typical Operating Supply Voltage (V): 5|9|12|15|3.3
Maximum Operating Supply Voltage (V): 18
Typical Quiescent Current (uA): 0.02
Maximum Quiescent Current (uA): 5
Propagation Delay Test Condition (pF): 50
Operating Temperature -55 °C~ +125 °C
Size-IC Chip: 19mm x 8.6mm x 7.2mm
Size-Socket: 17.7mm x 10mm x 8mm
Quantity: 20 Pairs
IC Chip: 20 Pcs
IC Socket: 20 Pcs
NOTE: Kindly compare your original item with the photos provided for the listing to make sure that you are purchasing the correct part. we don't provide technical assistance please make sure you are familiar with the product before purchasing. apologize in advance.
- Item Condition: Brand New
- 12 Months Quality Warranty
- Actual item as shown in photos
- Random send the part number
- NOTE: Kindly compare your original item with the photos provided for the listing to make sure that you are purchasing the correct part. we don't provide technical assistance please make sure you are familiar with the product before purchasing. apologize in advance.
Todiys New 20Pcs for 7404 7404N 7404PC SN7404N DM7404 DM7404N MH7404 MH7404N DIP-14 Hex Inverters IC Chip SN7404
Product description
Compatible P/N:
7404 7404N 7404PC SN7404 SN7404N DM7404 DM7404N MH7404 MH7404N
Description:
Condition: 100% Brand New And High Quality
Material: Electrical Components
Color: See Pictures
Encapsulation: DIP-14
Logic Function: Inverter
Number of Elements per Chip: 6
Maximum Propagation Delay Time @ Maximum CL (ns): 22@5V
Absolute Propagation Delay Time (ns): 22
Output Type: Push-Pull
Maximum Low Level Output Current (mA): 16
Maximum High Level Output Current (mA): -0.4
Minimum Operating Supply Voltage (V): 4.75
Typical Operating Supply Voltage (V): 5
Maximum Operating Supply Voltage (V): 5.25
Propagation Delay Test Condition (pF): 15
Operating Temperature: 0 °C~+70 °C
Size: 19mm x 8.6mm x 7.2mm
Quantity: 20 Pcs
NOTE: Kindly compare your original item with the photos provided for the listing to make sure that you are purchasing the correct part. we don't provide technical assistance please make sure you are familiar with the product before purchasing. apologize in advance.
- Item Condition: Brand New
- 12 Months Quality Warranty
- Actual item as shown in photos
- Random send the part number
- NOTE: Kindly compare your original item with the photos provided for the listing to make sure that you are purchasing the correct part. we don't provide technical assistance please make sure you are familiar with the product before purchasing. apologize in advance.
Juried Engineering CD74HC14E CD74HC14 74HC14 7414 High Speed CMOS Logic Hex Schmitt-Triggered Inverters Breadboard-Friendly IC DIP-14 (Pack of 10)
Juried Engineering
Product description
The CD74HC14 74HC14 High Speed CMOS Logic Hex Schmitt-Triggered Inverters each contain six inverting Schmitt Triggers in one package.
- The CD74HC14 74HC14 High Speed CMOS Logic Hex Schmitt-Triggered Inverters each contain six inverting Schmitt Triggers in one package
- Unlimited Input Rise and Fall Times, Exceptionally High Noise Immunity, Balanced Propagation Delay and Transition Times
- Fanout (Over Temperature Range) Standard Outputs . . . . . . . . . . . . 10 LSTTL Loads Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads, Wide Operating Temperature Range . . . –55°C to 125°C
- Significant Power Reduction Compared to LSTTL Logic ICs
- 2V to 6V Operation, High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
Bridgold 20pcs 10 Types 74LSxx Series Low-Power Schottky Logic IC，Digital Integrated chip，Including:74LS00 74LS02 74LS04 74LS08 74LS32 74LS47 74LS86 74LS90 74LS138 74LS245 Each 2 pcs.
Bridgold
Product description
Package include:
2pcs*74LS00
2pcs*74LS02
2pcs*74LS04
2pcs*74LS08
2pcs*74LS32
2pcs*74LS47
2pcs*74LS86
2pcs*74LS90
2pcs*74LS138
2pcs*74LS245
- The most popular 74LSx series IC chip kit.
- There are 2 models for each model, a total of 20, placed in a convenient box.
- A new product that is capable of meeting the data requirements at work.
- 74LS00 2 input four NAND gate, 74LS02 2 input quad NAND gate, 74LS04 six inverter.
- 74LS138 3-8 line translator / multiplexer.
GO POWER GP-IC3000-12
Go Power!
Product description
The Go Power! 3000-watt Inverter Charger 3000 delivers top features and performance at an economical price. It is a 3-in-1 system that expertly combines an inverter, battery charger and automatic transfer switch into one powerful and lightweight unit. The GP-IC-3000 has a compact footprint that saves space and simplifies installation - there are fewer components and cables to install!
- 3000W pure sine wave inverter; 4800W surge (5 seconds), 6000W surge (1 second)
- High inverter efficiency - >90%
- 125A battery converter/charger, power factor corrected
- Meets UL 458 with marine supplement
- 3 year
User questions & answers
| Question: | I'm getting ready to order one of these but need to know what gauge size welding wire to buy for the batteries feed. Thanks |
| Answer: | This inverter/charger requires 4/0 wire and a 400 amp fuse. |
| Question: | Will the charger circuit work in parallel with my current lithium on board converter/charger |
| Answer: | You would disconnect the current battery charger and set the converter in the IC3000 to match the exact charging parameters outlined by your lithium battery manufacture for optimal charging performance. |
| Question: | Can you run shore power or generator with this unit off |
| Answer: | In my install, no. Shore power enters the rig, feeds a surge protector which is wired to the AC input terminals of the IC-3000. The outputs of the inverter go to both legs (hot 1 & hot 2) of the 120v panel. On shore power ac not required to power the 5th wheel then charges the battery bank. |
| Question: | I have a 50 amp service in my rv will this power up the whole service or just one side |
| Answer: | We have this and we have a 50 amp RV. We use it with 4 v-max 125 batteries with a 400 W solar setup. It works well. We are able to start everything with it without any problems. However are battery bank isn’t big enough to run the air conditioner very long but we can start it. It works so much better than the one we had previously. |
Bridgold 40pcs(20pcs 74HCxx+20pcs 74LSxx) Series Logic IC Assortment Kit
Bridgold
Product description
Package include:
74HC00*2pcs
74HC02*2pcs
74HC04 *2pcs
74HC08 *2pcs
74HC14 *2pcs
74HC32*2pcs
74HC138*2pcs
74HC164*2pcs
74HC165*2pcs
74HC595*2pcs
74LS00*2pcs
74LS02*2pcs
74LS04*2pcs
74LS08*2pcs
74LS32*2pcs
74LS47*2pcs
74LS86*2pcs
74LS90*2pcs
74LS138 *2pcs
74LS245*2pcs
- We carefully select the combination of 74HCXX series and 74LSXX series for you to meet your needs for IC chip work.
- 74HCxx Series Shift Output Registers IC chip.
- The most popular 74LSx series IC chip kit.
- 74LS00 2 input four NAND gate, 74LS02 2 input quad NAND gate, 74LS04 six inverter.
- Pack including:74HC00*2pcs,74HC02*2pcs,74HC04 *2pcs,74HC08 *2pcs,74HC14 *2pcs,74HC32*2pc,74HC138*2pcs,74HC164*2pcs,74HC165*2pcs,74HC595*2pcs,74LS00*2pcs,74LS02*2pcs,74LS04*2pcs,74LS08*2pcs,74LS32*2pcs,74LS47*2pc,74LS86*2pcs,74LS90*2pcs,74LS138 *2pcs,74LS245*2pcs
WHISTLER CABLES FOR PRO 3000W
Whistler
Product description
The Whistler IC-3000W cables are recommended for use with power inverters rated up to 3000 watts. Includes 1 black cable and 1 red cable, each measuring 3 feet in length each. These power inverter cables have 0 AWG gauge wire and feature 3/8" ring terminal connectors.
- Recommended for use with power inverters rated up to 3000 watts
- Includes 1 black cable and 1 red cable, each measuring 3 feet in length each
- Power inverter cables have 0 AWG gauge wire
- Feature 3/8" ring terminal connectors
User questions & answers
| Question: | What Gauge Are These |
| Answer: | My husband checked our cables and they are stamped 0 gauge. Hope this helps! |
| Question: | What length are these cables |
| Answer: | Why too short .. Don't waste your money. You can buy longer length and thicker cable at Walmart or any auto store for a quarter the price. |
| Question: | What size gauge wire are the cables |
| Answer: | According ti the mfg, installation requirements the wire size is to be determined by the distance from batteries to your inverter connection. I suggest the shortest distance between the two of 3-6 feet and use #0 copper. I found pre made cables on amazon that work great. they are 3 feet and 6 feet in length. Further, do not under-estimate the importance of proper cable size. It is better to go with a larger size cable than an under size cable. Hope this helps. |
| Question: | Where would I put a fuse if using these to connect a whistler 3k inverter to my battery |
| Answer: | I put mine under the hood on the fender well about 2 feet from the battery on the positive lead. |

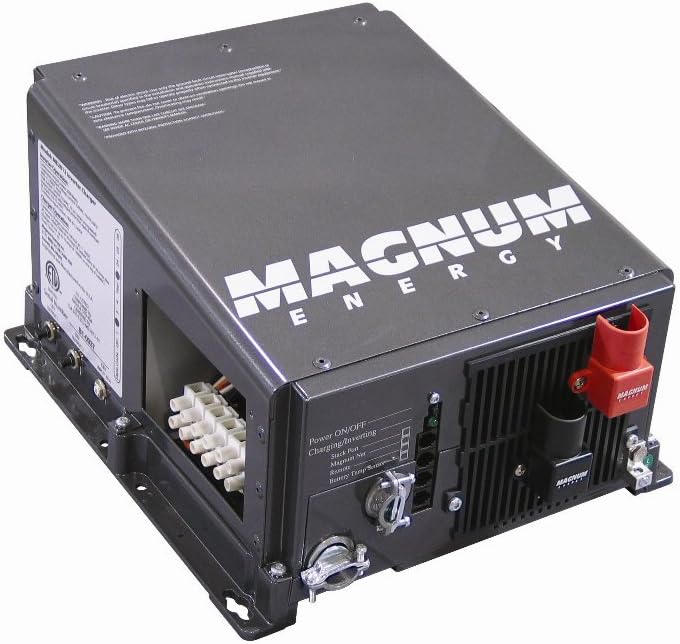

Magnum ME2012 2000W Inverter with 100 Amp Charger
Magnum Energy
Product description
Magnum Energy ME2012 ME-Series 2000W 12VDC Modified Sine Inverter/100 Amp PFC Charger, Easy-to-install, Versatile mounting, Multiple ports, Convenient switches, Expanded transfer relay
The ME Series Inverter/Charger from Magnum Energy is a modified sine wave inverter designed specifically for rugged mobile applications. The ME Series is powerful, easy-to-use, and best of all, cost effective.
Key Features
- Versatile mounting: Mount the ME Series on a shelf, bulkhead, or even upside down
- Accessible design: The extra large AC access cover with terminal screw block and 360° DC connection terminals with covers make this inverter more accessible when it needs to be
- Convenient switches: The ME Series comes with an on/off inverter-mounted switch with an easy-toread LED indicator
- Expanded transfer relay: 60 Amp transfer service is available, and can be wired in three ways, including single in/single out, single in/dual out, or dual in/dual out
Specifications
- Output Power: 2,000W
- Peak Watts: 3,700W
- Output Voltage: 120 VAC
- Output Peak: 60A
- Output Current: 17A
- Output Frequency: 60 Hz
- Input Voltage: 12
- Continuous Output Amps: 17
- Operating Temp: -4°F to 140°F
- Efficiency: 95%
- Weight: 37 lbs
- Dimensions: 13.75” x 12.65” x 8.0”
- UL Certified: Yes
- Phase: Single
- Topology: Low Frequency
- Input Battery Voltage Range: 9-16
- Easy-to-install: Install the ME Series in four easy steps: simply connect the inverter’s output to your distribution circuits or electrical panel, connect your shore power cable (AC) to the inverter’s easy-to-reach terminal block, connect the batteries, and switch on the power
- Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger – using 25-30% less AC current than standard chargers
- Multiple ports: The ME Series provides multiple ports, including an RS485 communication port for network expansion, and a remote port
- Lightweight: The lightweight aluminum base and cover also provides noise reduction and corrosion resistance
- Safe and reliable: The ME Series is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01, ensuring that the inverter is safe and reliable
User questions & answers
| Question: | Will this safely replace a 600 watt pure sine wave inverter charger |
| Answer: | Should be acceptable, Magnum is pure sine 2000 watt inverter charger... should work for 600 watt. check Sensate Technologies site for more info |
| Question: | Amp reading on the remote, 6A, is that 6amps or 60amps |
| Answer: | Well, it could be either one, depending on what display you are viewing and the current charging/inverting status. |
| Question: | Would this be a proper replacement for the ME3112 model |
| Answer: | Yes, however it is 1100 watts less. We do have the ME3112 available. |
| Question: | Do i need a charge controller if i buy one of these |
| Answer: | I did not ,but as it turned out it was my controller that was bad |
Latest Reviews
View all
Hummingbird Nectar
- Updated: 27.01.2023
- Read reviews
Macally Mac Keyboards
- Updated: 07.02.2023
- Read reviews
Pyle Projectors For Home Theaters
- Updated: 03.01.2023
- Read reviews
Spy Camera With Night Visions
- Updated: 04.01.2023
- Read reviews
Bodum Coffee Maker Mades
- Updated: 04.01.2023
- Read reviews
